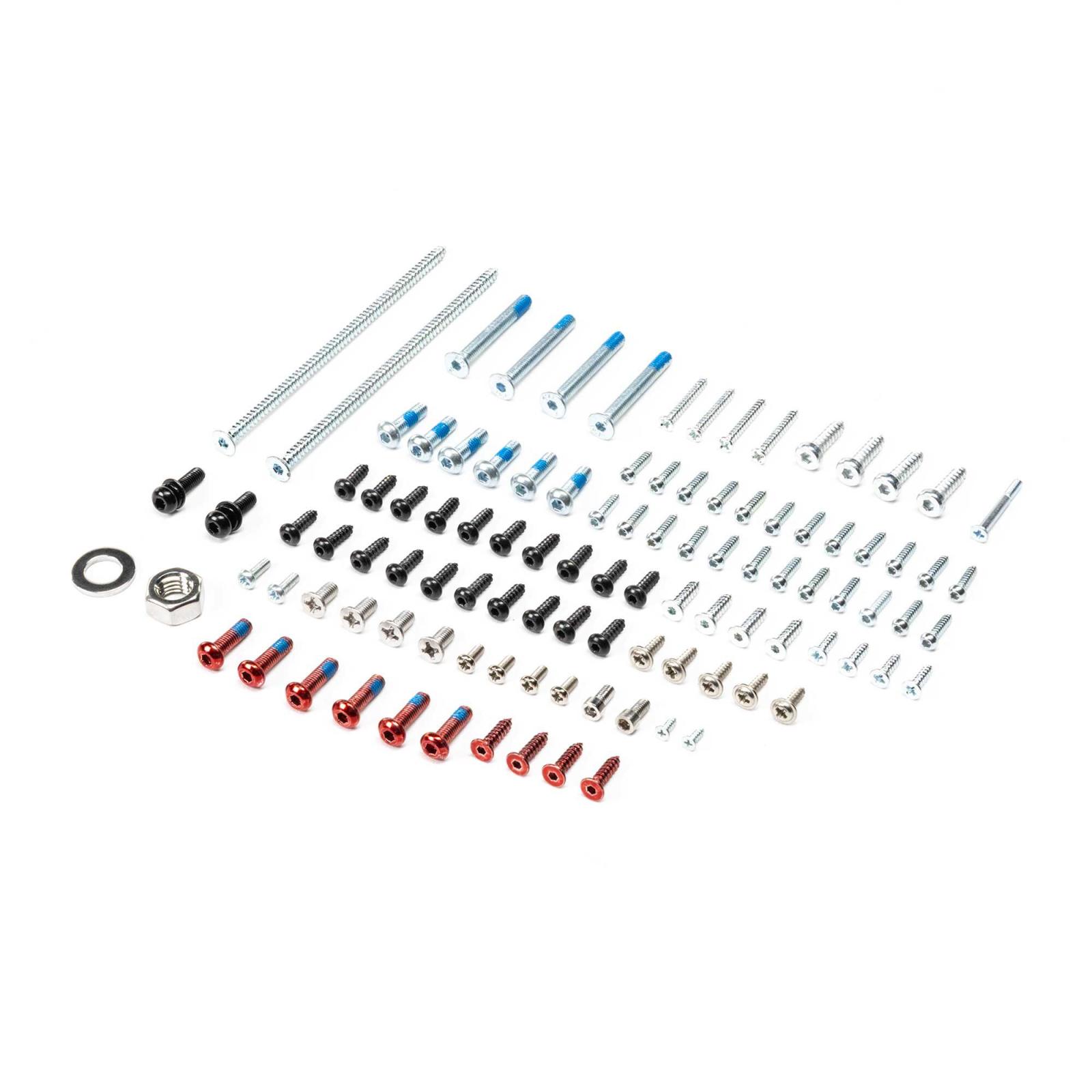

Screw and Hardware Set: Gee Bee R-2 1.0m

Screw and Hardware Set for the E-flite Gee Bee R-2 Racer 1.0m RC airplane.

Specifications

• Part Type: Hardware

Content

• 4x Wing Securing Screws M3 x 25mm Flathead Machine
• 2x Wing Hands-Free Connector Securing Screws M2 x 8mm Flathead Self-Tapping
• Aileron Servo Cover Securing Screws M2.5 x 10mm Flathead Self-Tapping (4 Red, 2 Silver)
• 4x Aileron Control Horn Screws M2 x 8mm Button Head Self-Tapping
• 2x Horizontal Stabilizer Securing Screws M3 x 70mm Flathead Self-Tapping
• 2x Elevator Servo Mounting Screws M2.5 x 8mm Button Head Self-Tapping
• 2x Rudder Securing Screws Top and Bottom M2 x 8mm Button Head Self-Tapping
• 2x Rudder Center Hinge Securing Screws M2 x 8mm Button Head Self-Tapping
• 2x Rudder Servo Mounting Screws M2.5 x 8mm Button Head Self-Tapping
• 2x Rudder Control Horn Screws M2.5 x 8mm Button Head Self-Tapping
• 2x Fuselage Hands-Free Plate Securing Screws M2 x 8mm Flathead Self-Tapping
• 4x Motor Mounting (Firewall) Screws M3 x 12mm Button Head Self-Tapping
• 4x Motor "X" Mount Securing Screws M2.5 x 6mm Flathead Machine
• 4x Propeller Adapter Securing Screws Socket Head Cap M2.5 x 10mm
• Wheel Pant Mounting Screws M3 x 10mm Button Head Machine (3 Red, 1 Silver)
• 3x Tailwheel Pant Securing Screws M2 x 8mm Button Head Self-Tapping
• 1x Tailwheel Axle Screw M2 x 17mm Flathead Machine
• 4x Landing Gear Top Mounting Screws M3 x 10mm Button Head Machine
• 2x Drag Link Securing Screws M2 x 6mm Button Head Machine
• 2x Landing Gear Lower Fork Securing Screws M3 x 10mm Button Head Machine with Washer
• 14 Wheel Pant Assembly Screws M2.5 x 8mm Button Head Self-Tapping
• 4x Servo Arm Screws M2 x 4.5mm Button Head Machine
