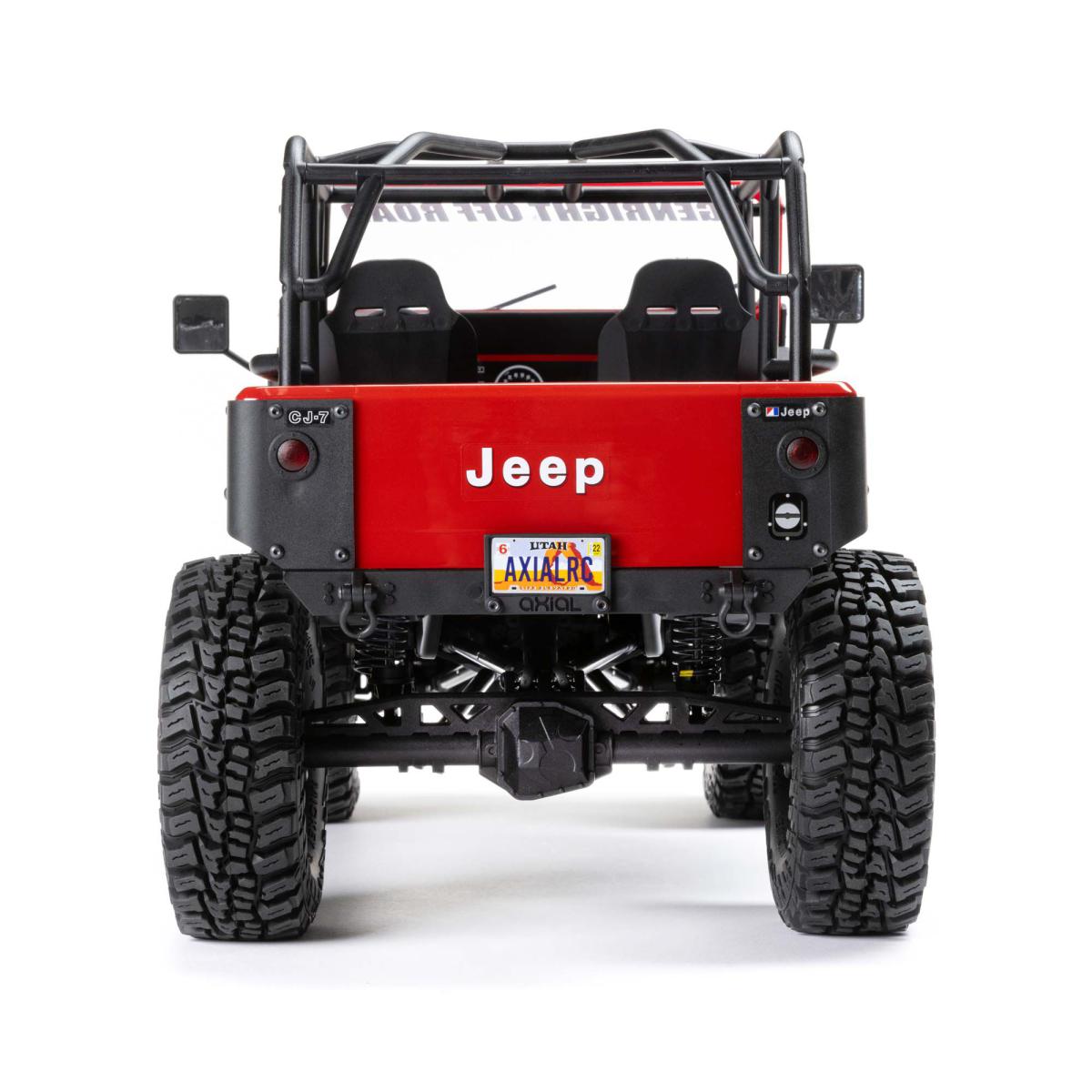

1/10 SCX10 III Jeep CJ-7 4WD Brushed RTR, Red

Axial brings you one of the greatest off-road icons of all time ? the SCX10 III Jeep CJ-7! Fully licensed and as detailed as it is powerful, it will conquer any trail with you. It's a must-have for any RC crawling enthusiast's fleet and great fun for fans of original Jeeps.

Features

• Officially licensed Jeep CJ-7 body
• Officially licensed Gen-Right bumpers and body armor
• Officially licensed Raceline Daytona beadlock wheels
• Officially licensed Mickey Thompson Baja Boss R35 compound tires
• Full interior with hinged center console
• Sturdy SCX10 III steel C-section chassis
• AR45 standard rigid axles
• Multi-link rigid axle suspension
• Oil-filled struts
• All-metal gearbox
• Fully ball bearing mounted
• Spektrum DX3 Smart 3-channel transmitter
• Spektrum Firma 40A Smart 2-in-1 ESC and receiver unit
• Factory assembled and ready-to-run
• Only battery and charger required

Overview

After the end of World War II, the hard-working Willys-Overland military jeep once again became a popular utility vehicle ? with the designation 'CJ' for 'civilian Jeep'. Introduced in 1976, the CJ-7 model became one of the most popular rock crawlers and was produced until it was replaced by the Jeep Wrangler in 1987. The CJ-7 remains one of the greatest rock crawling icons of all time.

More than any other vehicle, the Jeep CJ-7 symbolizes off-road adventure. Now it's finally available for your RC expeditions in an officially licensed scale version based on the successful Axial SCX10 III chassis.

For any dedicated RC crawling enthusiast, the SCX10 III Jeep CJ-7 is an essential addition to their Axial collection. For Jeep enthusiasts with or without RC experience, it offers an exciting new way to bring off-road dreams to life. The CJ-7 offers both the looks and performance the original is famous for.
While the SCX10 III Jeep CJ-7 is built and equipped to take on any trail, it's the incredible scale details that will make it the main protagonist at the next crawler meet.

In addition to the officially licensed Jeep CJ-7 body, this car features officially licensed Gen-Right bumpers and body armor, a full interior with flip-up center console, roll cage and more. The rims and tires also contribute to the authenticity. The wheels are officially licensed Raceline Daytona beadlocks, and the high-traction tires are officially licensed Mickey Thompson Baja Boss treads.

As part of the Axial SCX10 III family, the CJ-7 is naturally as capable as it is detailed. It feels right at home on the trail and conquers true-to-scale rock obstacles with ease. The precise handling and proven durability of the SCX10 III platform is complemented by a transmitter-activated Dig function for improved turning and even more controlled crawling. The Dig servo is included and pre-installed.

The SCX10 III Jeep CJ-7 comes complete and ready to drive with a factory-installed brushed power system and Spektrum DX3 Smart transmitter. Simply install a 2?3S LiPo battery and use your existing charger. If you're using a Spektrum Smart battery, you can also take advantage of the remote control system's Smart Technology features, including the ability to track your battery status in real time directly from the DX3 transmitter.





Officially licensed Jeep CJ-7 body
The officially licensed and factory-finished body of the CJ-7 is made of tough polycarbonate and features numerous details with officially licensed Gen-Right bumpers and body armor, a fully injection-molded roll cage and a complete interior including a hinged center console. The doors can be opened or even removed.

SCX10 III C-PROFILE STEEL CHASSIS
The CJ-7 is based on the proven, realistic Axial SCX10 III platform. The rigidity of the SCX10 III's C-section chassis reduces the deflection of the ladder frame and increases the precision of the suspension movement.

AR45 STANDARD AXLES
Another example of the faithfulness of this rig are the AR45 standard axles, which correspond to the axles of the original CJ-7. The AR45 rigid axles with offset front differential provide a prototypical appearance and a low center of gravity. An optional overdrive gear is available separately (6-Bolt 27 8 Overdrive Gear Set, AXI332001).

ADJUSTABLE ALUMINUM STRUTS
The oil-filled shock absorbers have aluminum threaded bodies and a single coil spring. The shocks are tunable to achieve the best damping rate.

DIG FUNCTION
The transmission's Dig function allows you to instantly switch to front wheel drive by locking the rear axle via the transmitter to improve steering and controlled turning. The Dig servo is included and installed.

OPTIMIZED SUSPENSION
The multi-link rigid axle suspension features 6 mm stainless steel links and metal ball joints for solid off-road durability.

ALL-METAL TRANSMISSION
The CJ-7 transmission includes a full set of ball bearings and metal internal gears to give you the power you need on the trails.

INSTALLED DRIVE SYSTEM
The factory-installed brushed drive system features a Dynamite 35T 540 motor and a Spektrum Firma 40A Smart 2-in-1 controller and receiver unit.

OFFICIALLY LICENSED WHEELS & TIRES
The officially licensed Mickey Thompson Baja Boss R35 compound tires are mounted on officially licensed Raceline Daytona beadlock wheels for sure grip wherever the road takes you.

ADDITIONAL SCALE DETAILS INCLUDED
The Axial designers had fun with this project. The many scale details include a functional center console, removable coffee cup and beverage can, dual shifters and shifter for the automatic transmission, bucket seats with slots for optional seat belts, folding side mirrors and more!

SPEKTRUM DX3 SMART TRANSMITTER
The Spektrum DX3 Smart transmitter, together with the 40A Smart 2-in-1 ESC/receiver unit, gives you many of the benefits of Smart technology, such as a battery level indicator for your integrated Smart LiPo battery. The third channel of the remote control controls the CJ-7 Dig function.

Technical data

• Color Variant: Red
• Battery: Sold Separately
• Wheel Hex Size: 12mm
• Water-Resistant: Yes
• Drive Type: Forward/Brake/Reverse
• Receiver: Included
• Internal Gear Ratio: 45.6:1
• Suspension: Multi-Link Solid Axle
• Motor Size: 540 size (Axial 35T motor included)
• Gear Pitch: 32P
• Motor Type: Brushed
• Product Length: 18.9" (480 mm)
• Wheelbase: 12.3" (312 mm)
• Charger: Sold Separately
• Product Height: 9.75" (248 mm)
• Pinion: 14T
• Drivetrain: 4WD
• Ball Bearings: Full Set
• Inner Tire / Outer Wheel Diameter: 1.9 in
• Tire Tread: Mickey Thompson Baja Boss
• Vehicle Type: Rock Crawler
• Radio: Included
• Final Drive Ratio: 45.6:1
• Make: Jeep
• Tire Compound: R35
• Connector Type: EC3, IC3
• Wheel Width: 1.0 in (25.4mm)
• Differential: Locked
• Servos: Included
• Product Width: 9.25" (235 mm)
• Chassis: Adjustable Steel C-channel
• Ground Clearance: 2.75 in (69.8mm)
• Body: Polycarbonate Painted
• Speed Control: Included
• Track Gear: 52T
• Product Weight: 6.9lb (3.12kg)
• Steering Type: 2WS
• Completion Level: Ready-To-Run
• Scale: 1/10


In The Box
• (1) Axial SCX10 III Jeep CJ-7 1/10 Scale 4WD RTR
• (1) Dynamite 35T electric motor (installed)
• (1) Waterproof Spektrum S614 Metal Gear Surface Servo, 23T (installed)
• (1) Analog Spektrum SX108 Micro Metal Gear Surface Servo for Dig function (installed)
• (1) Spektrum Firma 40A Brushed Smart 2-in-1 ESC/receiver unit (installed)
• (1) Spektrum DX3 Smart 2.4GHz remote control
• (4) AA alkaline transmitter batteries
• (1) Owner's manual


Needed to Complete
• (1) 2-3S LiPo battery with EC3 or IC3 connector
• (1) Compatible charger
