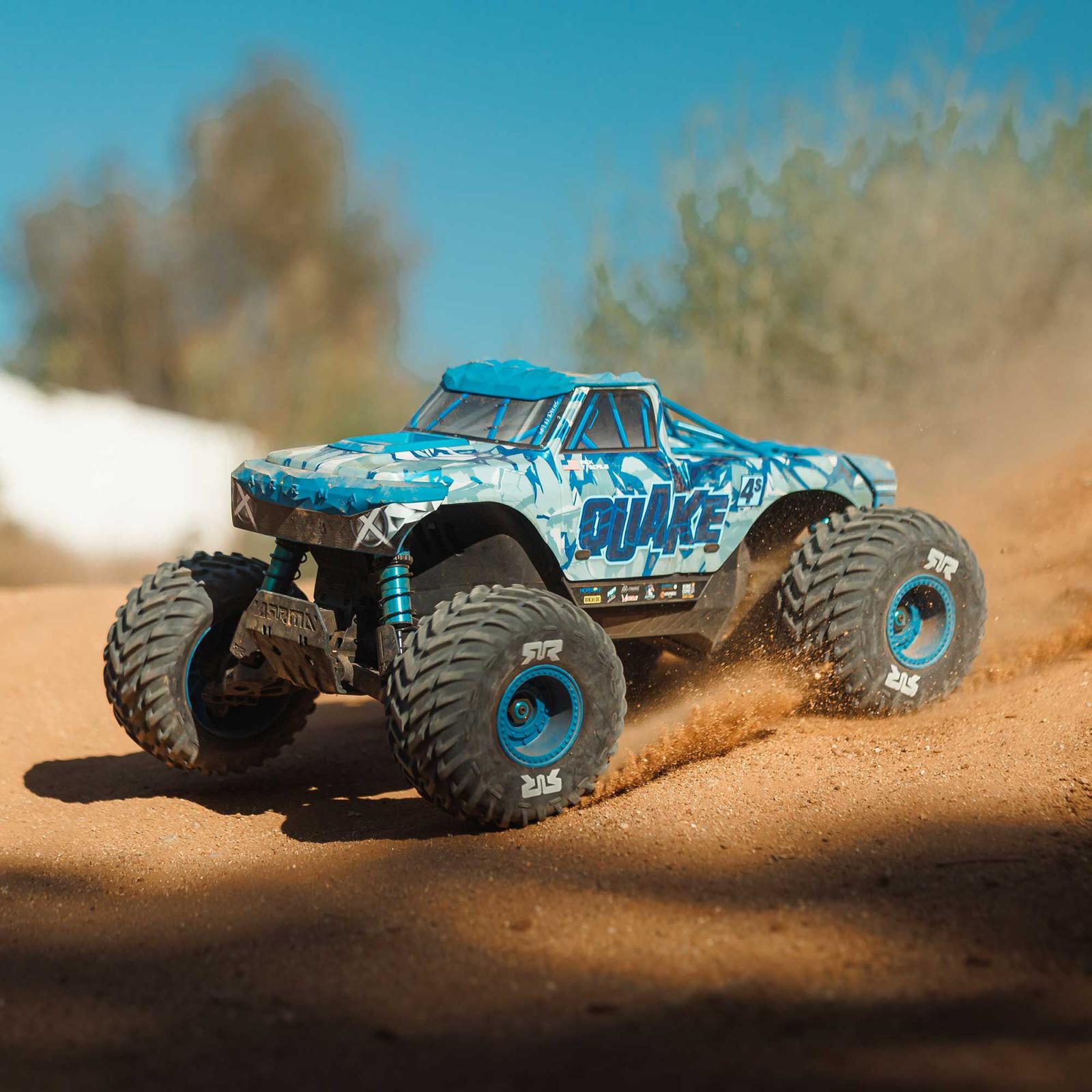

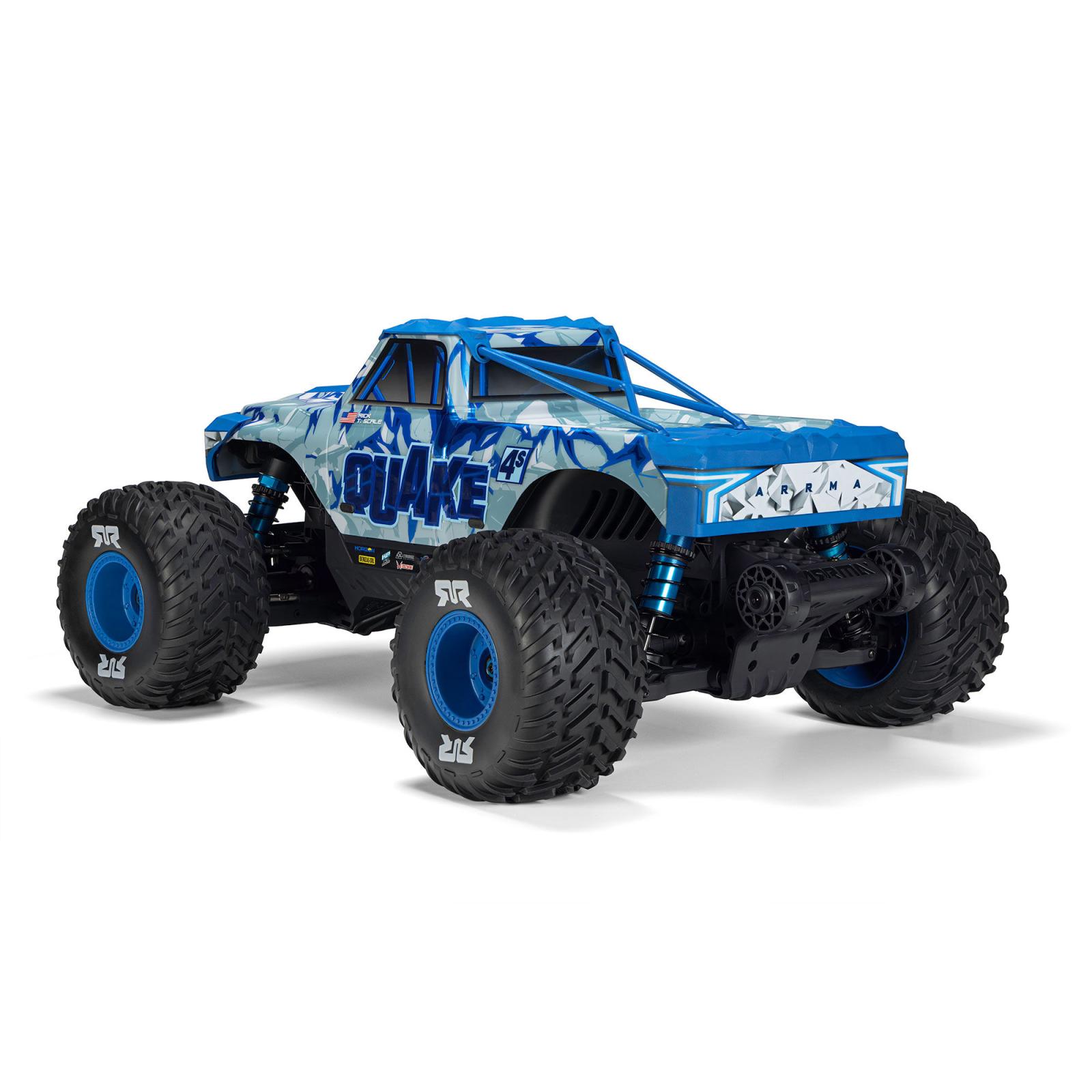

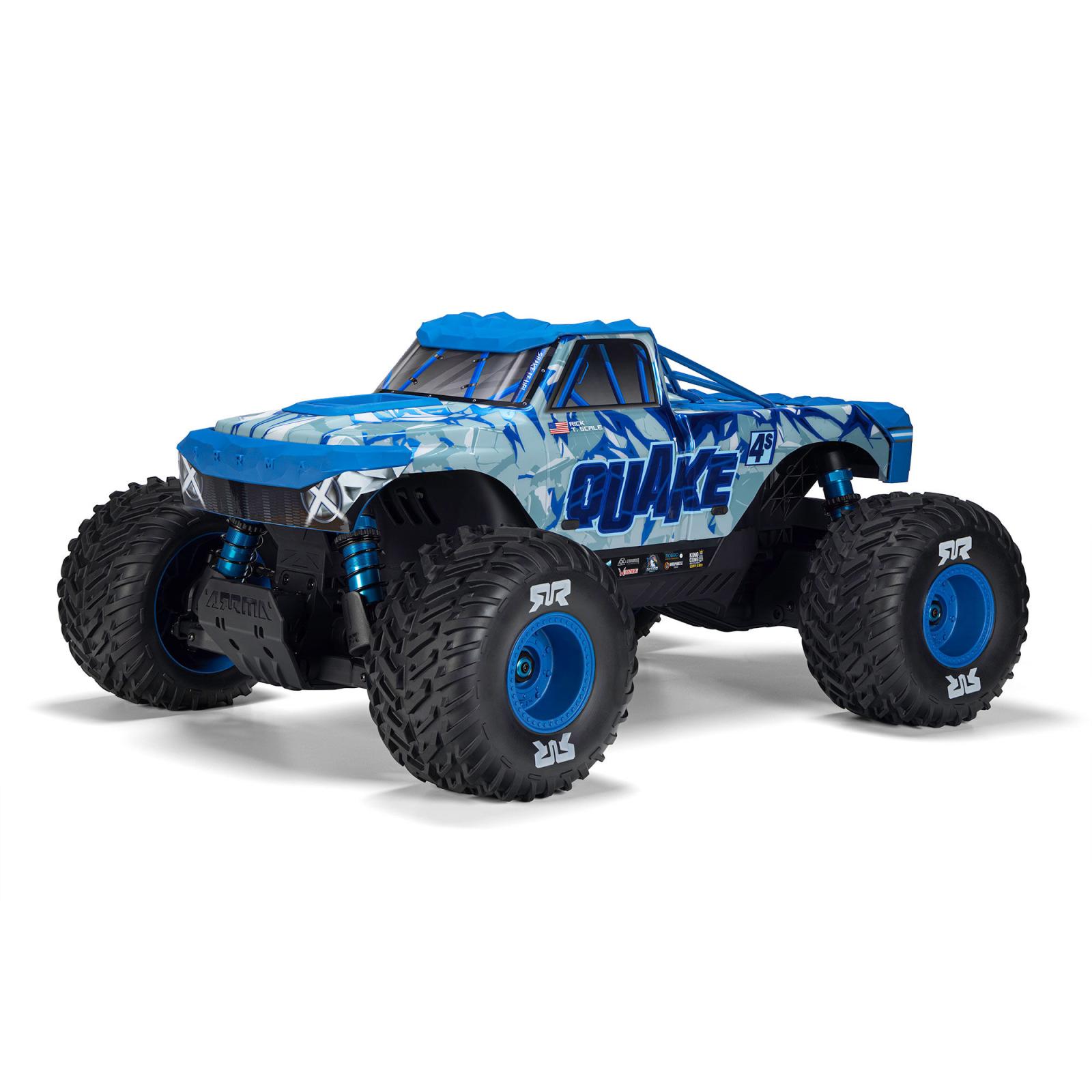

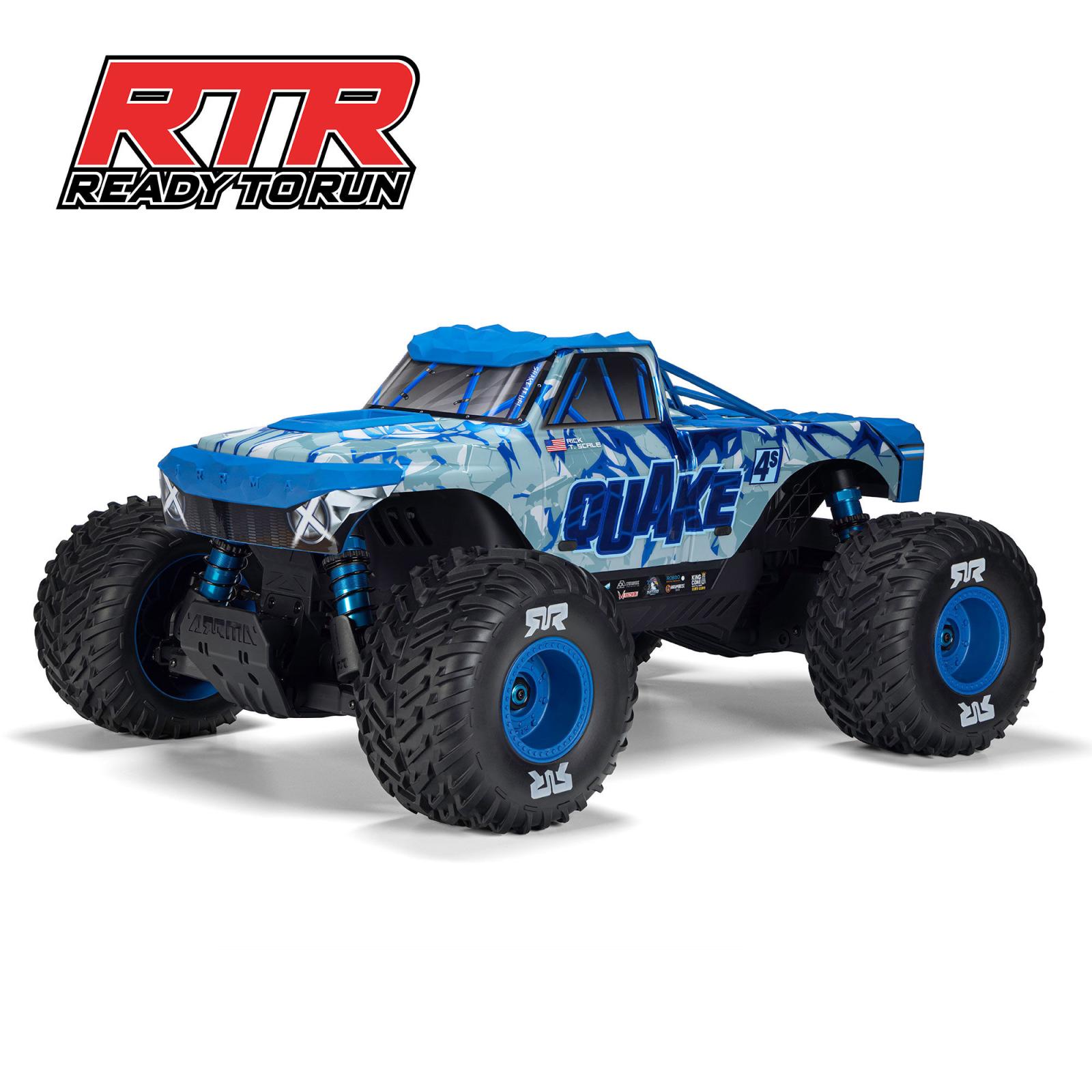

ARMMA QUAKE 4S DSC 4X4 RTR BL Monster Truck, White/Blue 1:8

The ARRMA® QUAKE™ 4S DSC 4X4 RTR brings powerful 4S brushless performance to the track in a larger 1/8-scale monster truck. The chassis, with its high center of gravity, delivers authentic monster truck handling with wheelies and spectacular driving maneuvers, while Spektrum™ Dynamic Stability Control (DSC) provides additional vehicle control. Thanks to its maintenance-friendly design with fewer parts, servicing is quick and easy.

ARRMA 1/8 QUAKE 4S DSC 4X4 RTR Brushless Motor - Introduction

The series began with the QUAKE 223S and the QUAKE GROM. The ARRMA® QUAKE™ 4S DSC 4X4 RTR takes the concept to a whole new level. As the first vehicle on the new ARRMA 4S platform, it combines the larger 1/8 scale with powerful 4S brushless technology and a rugged, low-maintenance design featuring fewer parts.
It’s built on a monster truck chassis with a high center of gravity that leans realistically in turns and allows for wheelies when desired. The increased ground clearance ensures excellent off-road performance on gravel, grass, and uneven terrain. The integrated wheelie bar supports spectacular driving maneuvers, while the Chevron tires provide high grip. The permanent all-wheel drive with three differentials reliably distributes power to all four wheels and ensures maximum traction even during hard landings.
Under the body is a Complete Spectrum™ 4S powertrain. The Firma™ 150A Brushless Smart ESC V2 (IC5) supports 3S and 4S LiPo batteries and powers the Firma™ 3674 2300Kv brushless motor. Heat sinks, fans, and the integrated chassis ventilation ensure efficient temperature control even during extended runs. The separate placement of the ESC and receiver improves reliability and driving precision.
To ensure performance remains controllable at all times, the QUAKE 4S is equipped with Spektrum Dynamic Stability Control (DSC). The system automatically corrects steering when necessary, detects oversteer, and assists the driver with controlled drifts. Four selectable modes allow for different levels of intervention from maximum assistance to a completely unadulterated driving experience. The Spektrum SLT3™ 2.4-GHz 3-channel radio features adjustable throttle travel limit, while the waterproof Spektrum S662 digital servo with metal gears, aluminum servo horn, and rugged servo saver ensures precise steering.
The QUAKE 4S was designed for tough conditions. The deep composite chassis protects the electronics and increases stability. Locking shock mounts provide additional rigidity, while the integrated wheelie bar allows for big wheelies. Aluminum coil-over shocks with oversized piston rods reliably absorb jumps and hard landings. Shock-absorbing chassis reinforcements, an oversized front bumper, and mud flaps on the rear control arms further enhance durability. The integrated body protection reduces dirt intrusion and protects vehicle components during rollovers.
Maintenance has also been simplified. The minimal number of parts makes servicing easier, while the spacious battery compartment—featuring a battery strap and an easily accessible mounting system allows for quick battery changes. The concealed body mounting ensures a clean look and eliminates the need for conventional body clips. The QUAKE 4S is available in Black/Red, White/Blue, and as a limited-edition Black/Pearl version.
A 3S or 4S hard-case LiPo battery is all you need to unleash its full potential. The ARRMA QUAKE 4S DSC 4X4 RTR offers more size, more power, high durability, and a maintenance-friendly design for demanding monster truck driving.

ARRMA QUAKE 4S Action Video

ARRMA 1/8 QUAKE 4S DSC 4X4 RTR Brushless Monster Truck Features

• Brushless power system compatible with 3S and 4S LiPo batteries
• Spectrum DSC with four selectable modes for adjusting steering assistance
• DSC detects oversteer and automatically corrects it with countersteering pulses
• Adjustable throttle travel limit for controlled power management
• All-wheel drive with three differentials for optimal power transfer
• Separate placement of the ESC and receiver for maximum reliability and precise response
• Chassis with a high center of gravity for authentic monster truck handling and easy wheelies
• Increased ground clearance for challenging terrain

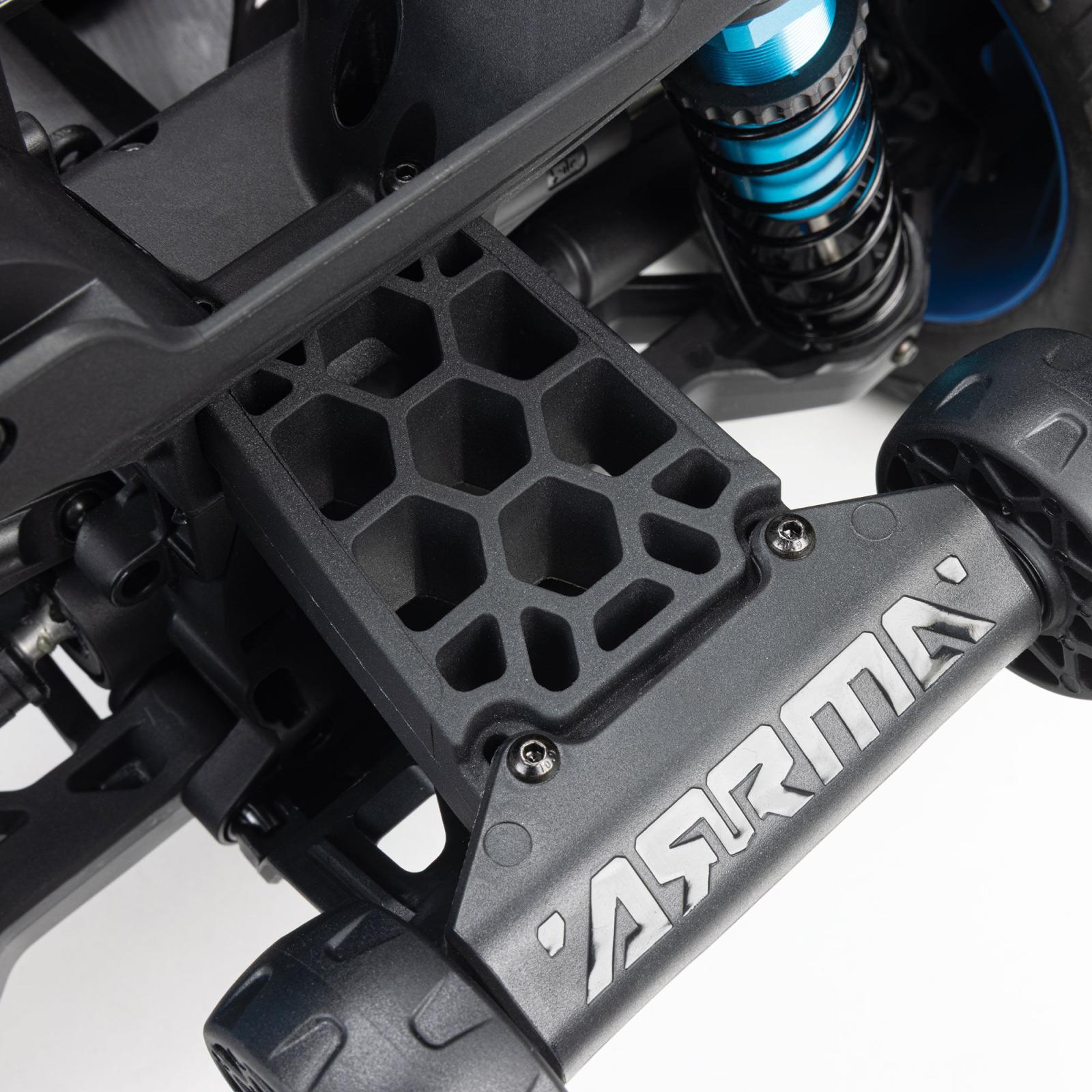

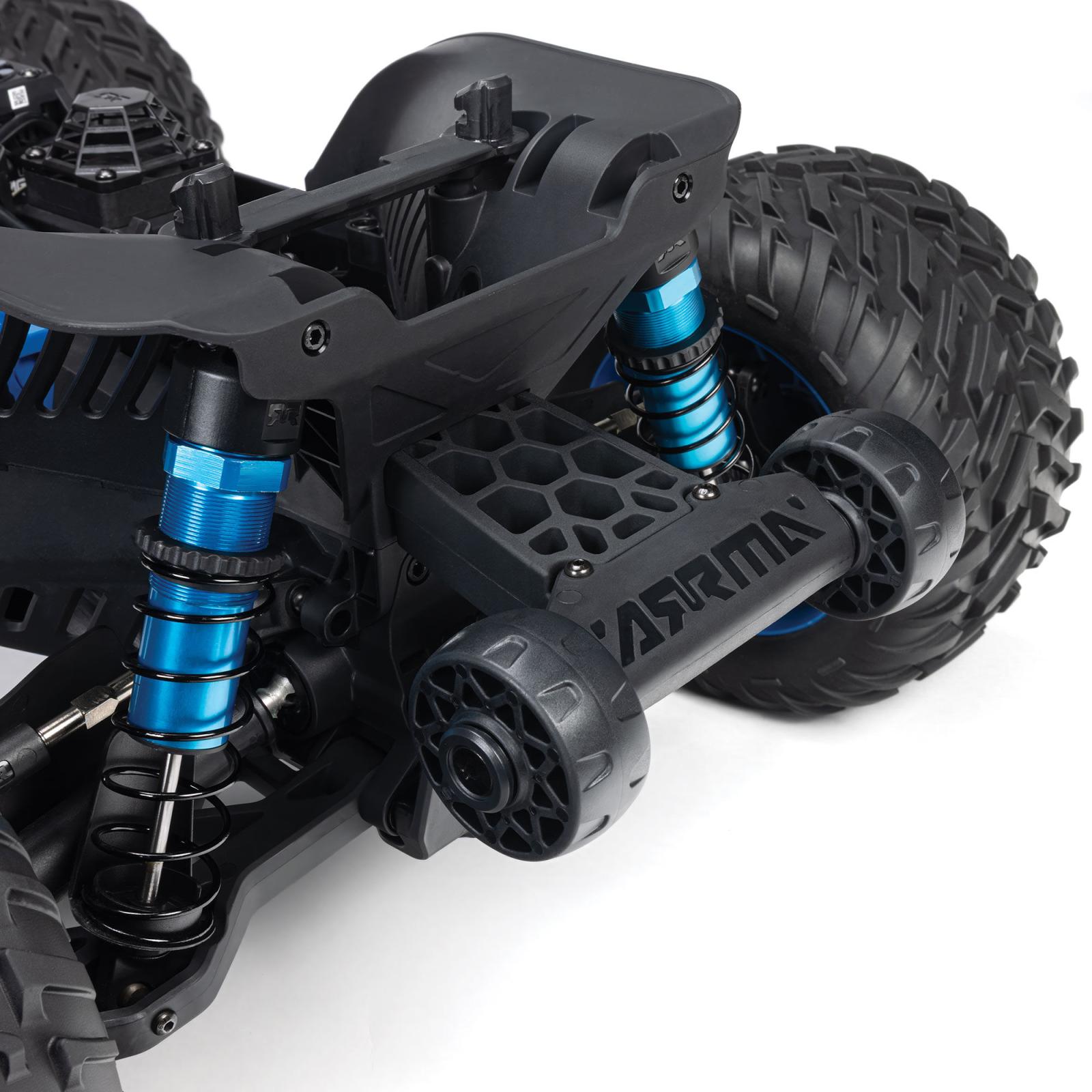

• Integrated wheelie bar with a wide angle of attack for spectacular wheelies

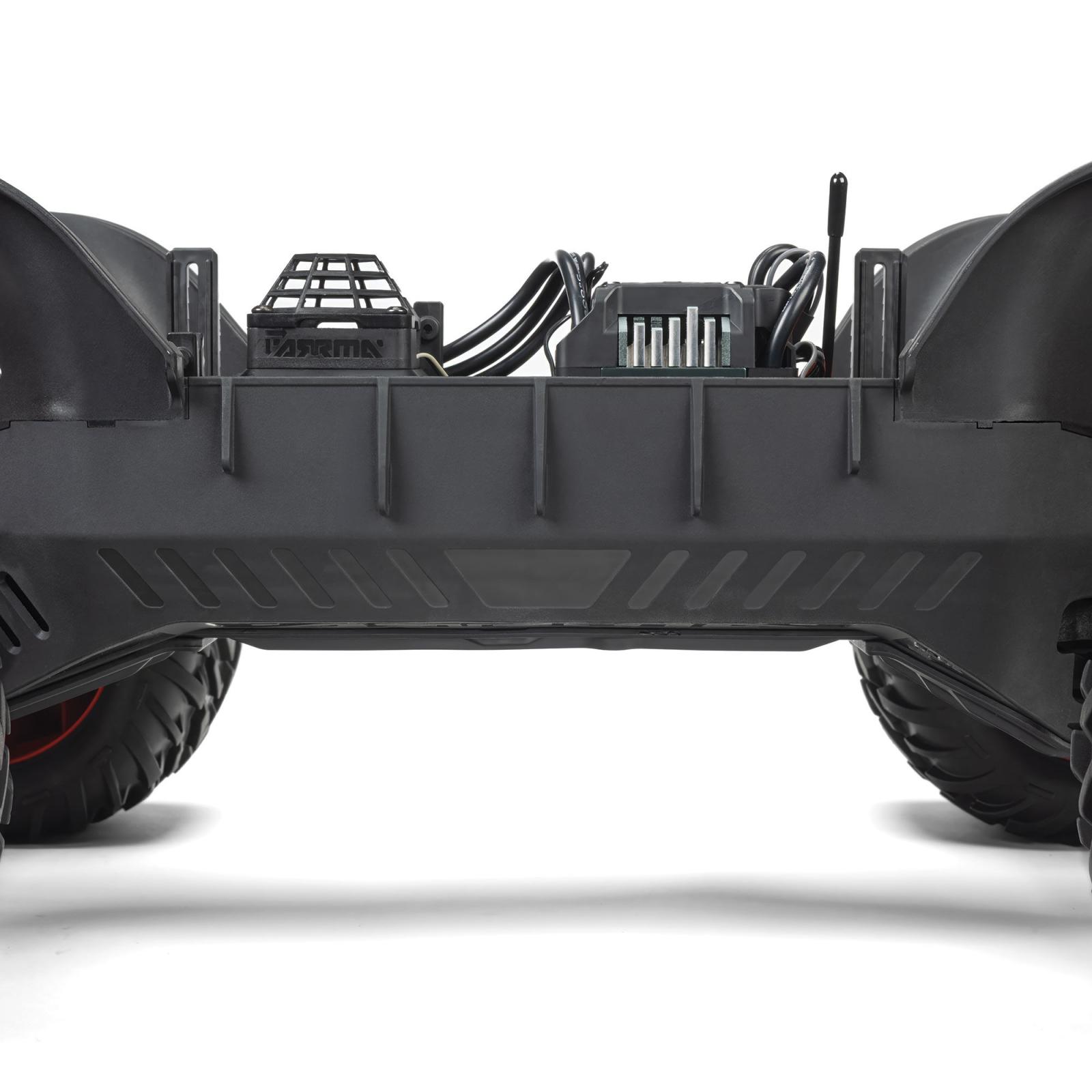

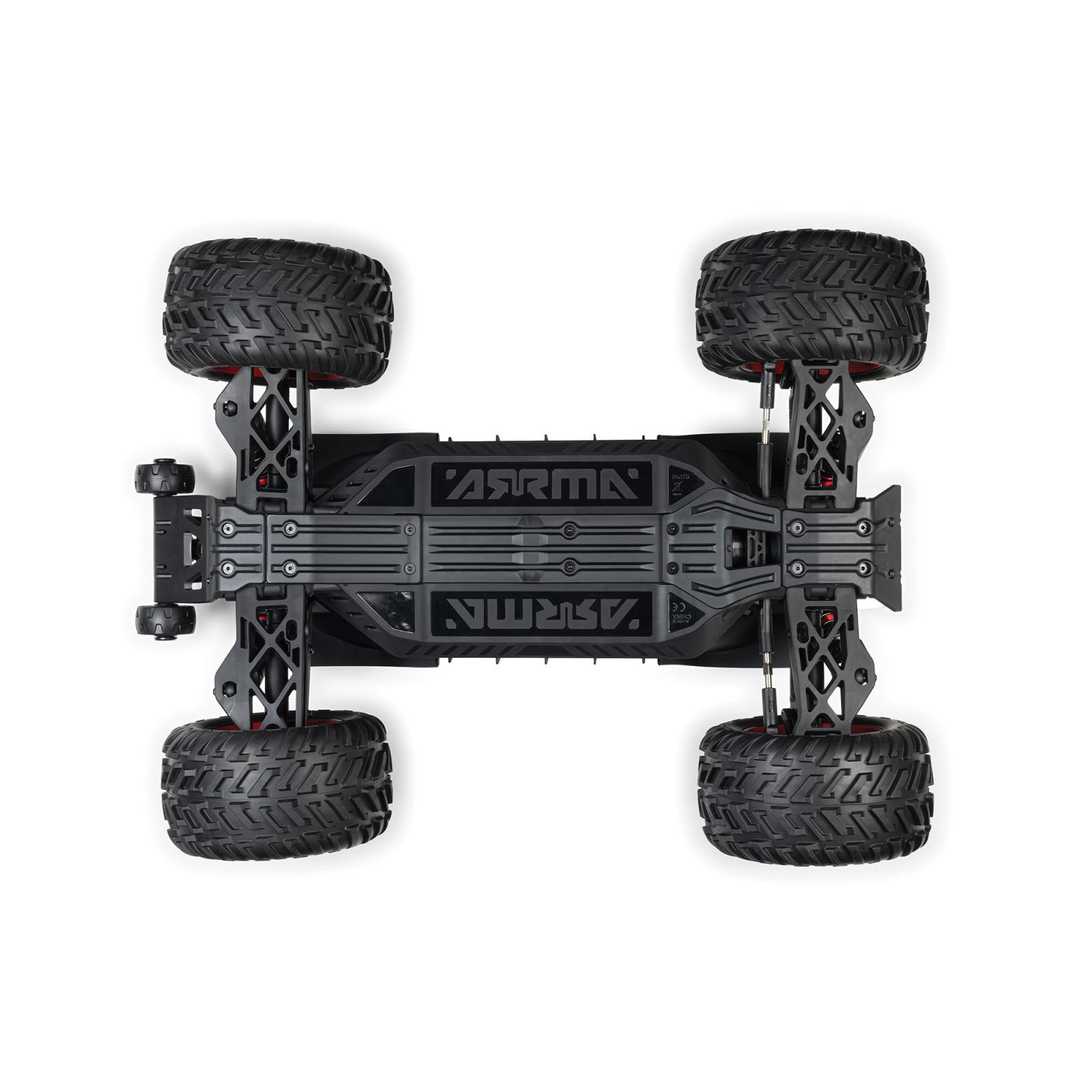

• Deep-drawn composite plastic chassis for high protection and maximum stability
• Locking shock mounts for added suspension ruggedness
• Aluminum coil-over shocks with oversized piston rods

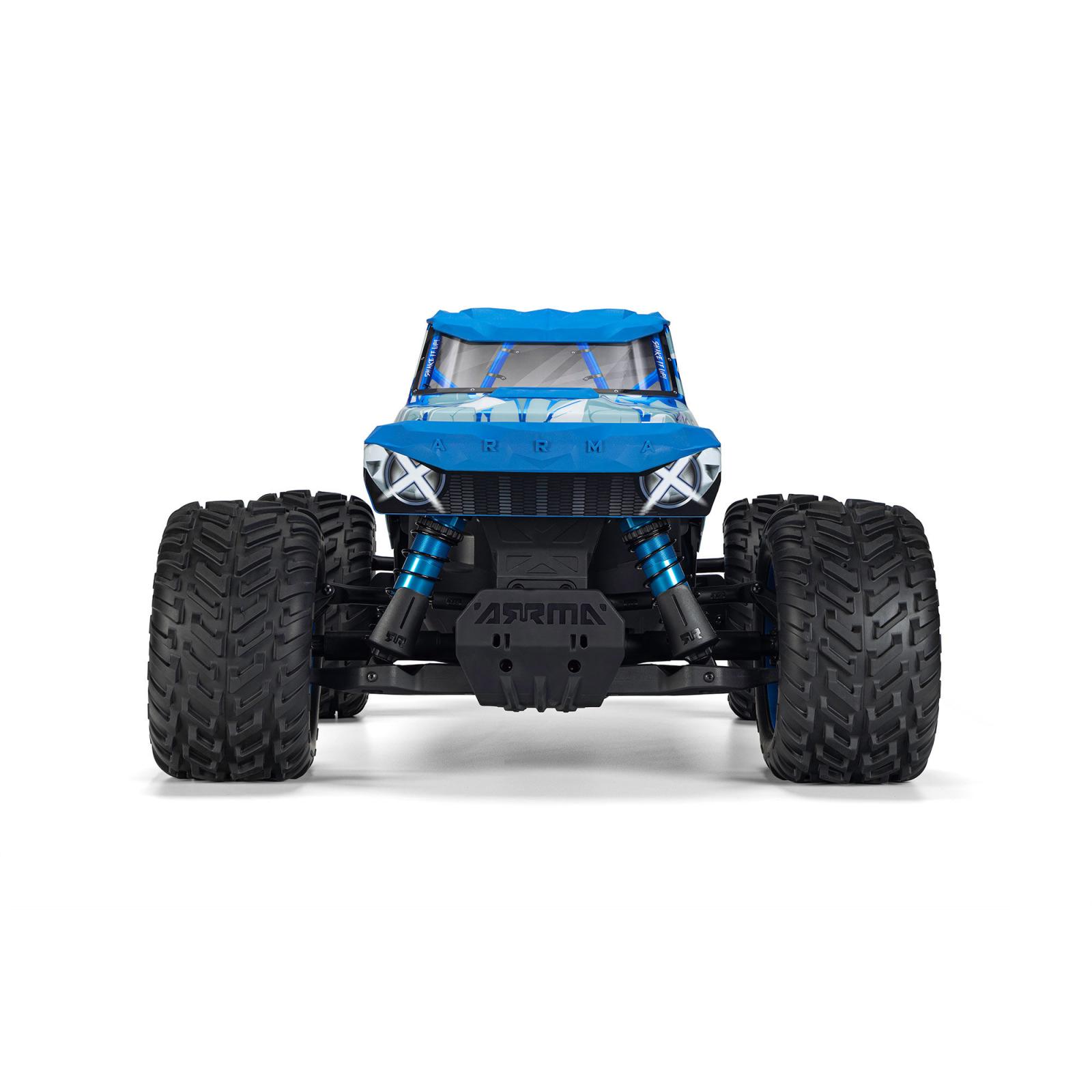

• Heavily reinforced front bumper for hard impacts
• Shock-absorbing bumper reinforcements for additional impact protection

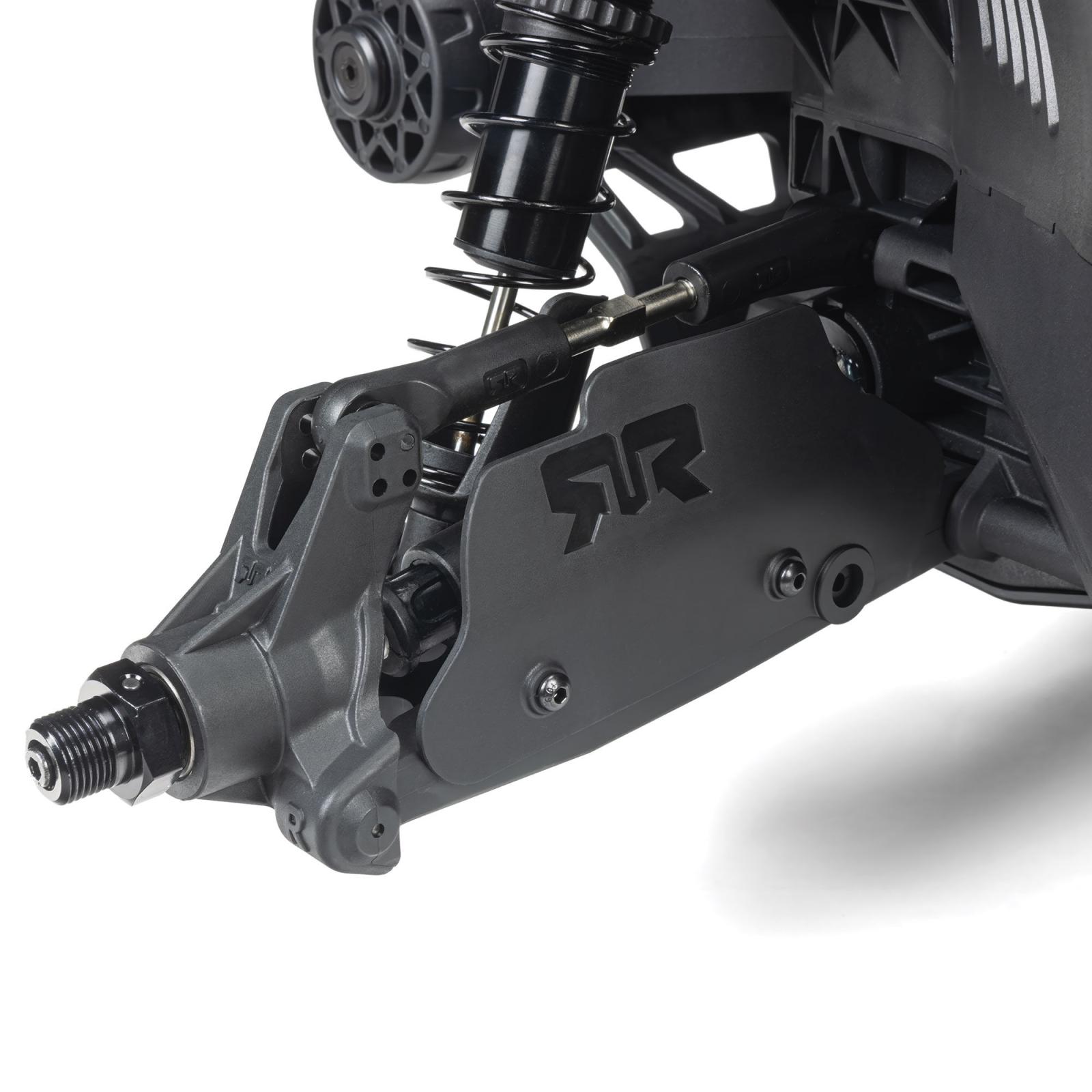

• Mud flaps on the control arms protect the suspension from flying debris
• Integrated body and interior protection keeps dirt away from vehicle components
• Concealed body mounting system for a clean look without body clips
• Chevron-pattern tires with high traction on a wide variety of surfaces
• Color-matched rims

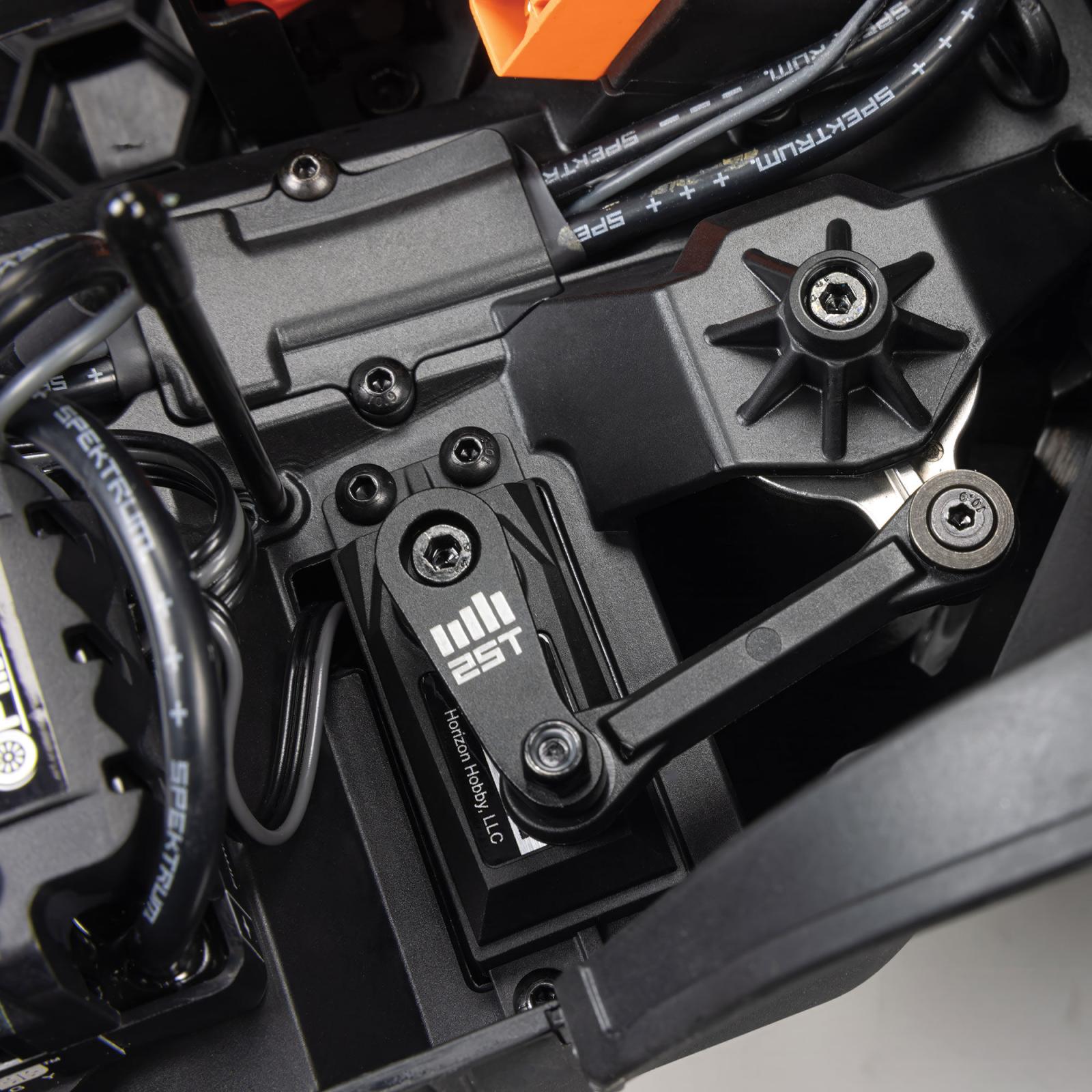

• Aluminum servo horn (25T) for precise and reliable steering
• Rugged servo saver with slide rail protects the steering system during hard turns
• Spacious battery compartment with removable inserts for different battery sizes
• Battery strap for quick and secure battery changes
• Neat and secure battery wiring for rugged bashing use
• Powerful fan and heat sink for effective motor cooling
• Air-permeable fan cover and integrated chassis cooling
• Reduced number of parts for exceptionally easy maintenance
• Available in Black/Red, White/Blue, and as a limited-edition Black/Pearl model
• Spektrum™ S662 waterproof digital servo with metal gears
• Spektrum™ Firma™ 3674 2300Kv brushless motor
• Firma™ 150A Brushless Smart ESC V2, 3S–4S, IC5
• Spektrum™ SLR370 DSC receiver with SLT protocol
• Spektrum™ SLT3™ 2.4 GHz 3-Channel Radio with DSC
• Ready-to-Run—battery and charger sold separately


LIMITED EDITION BLACK/PEARL (ARA4437T3)
The shimmering Black/Pearl paint scheme (ARA4437T3) is available as a limited special edition. Depending on the angle of the light, the effect paint changes its appearance, giving the QUAKE a particularly eye-catching look. Technically, this version corresponds to the production model and offers the same uncompromising monster truck performance.

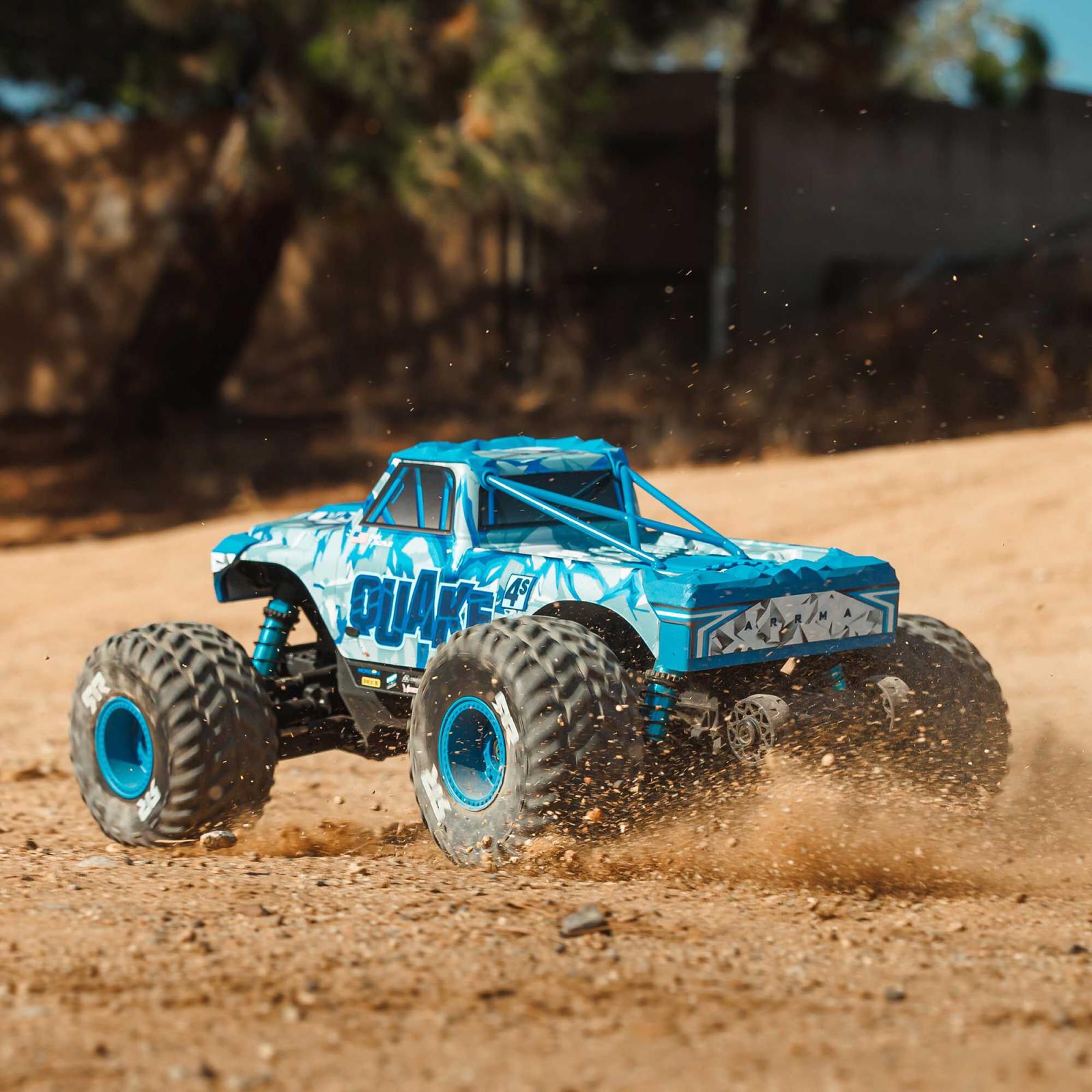

AUTHENTIC MONSTER TRUCK HANDLING
 The chassis, with its high center of gravity, was specially developed to deliver a realistic monster truck driving experience. Significant body roll in corners, powerful wheelies during acceleration, and controlled landings after high jumps ensure a driving experience that closely resembles that of a real monster truck. Not a modified buggy, but a vehicle consistently designed for monster truck performance.


NEXT GEN 4S PLATFORM IN 1/8 SCALE
The QUAKE 4S is the first vehicle on the new ARRMA® Next Gen 4S platform and brings the QUAKE concept to a larger 1/8 scale. More size, more power, and even more confident handling ensure an impressive monster truck experience on virtually any terrain. The new platform combines rugged construction, high durability, and powerful 4S performance for demanding bashing applications.


DYNAMIC STABILITY CONTROL (DSC)
The Spektrum™ Dynamic Stability Control (DSC) assists the driver with automatic steering corrections for controlled and easily manageable handling. The system detects oversteer early on and stabilizes the vehicle with targeted countersteering impulses. Four selectable modes allow you to customize the level of intervention—from maximum assistance to an unadulterated driving experience. As your driving skills improve, you can gradually reduce the assistance or disable it entirely.


ROBUST CONSTRUCTION FOR DEMANDING CONDITIONS
The exceptionally durable composite plastic chassis, locking damper bridges, a generously sized front bumper, and shock-absorbing reinforcements ensure high durability even during severe impacts. Mud flaps on the control arms and integrated body protection elements keep dirt and debris away from critical vehicle components.


MAXIMUM TRACTION ON ANY TERRAIN
The all-wheel-drive system with three differentials ensures even power distribution to all four wheels. The chevron-pattern tires provide excellent grip on gravel, grass, dirt, and other loose surfaces, ensuring reliable traction even under challenging conditions.


SPEKTRUM™ 4S DRIVE SYSTEM

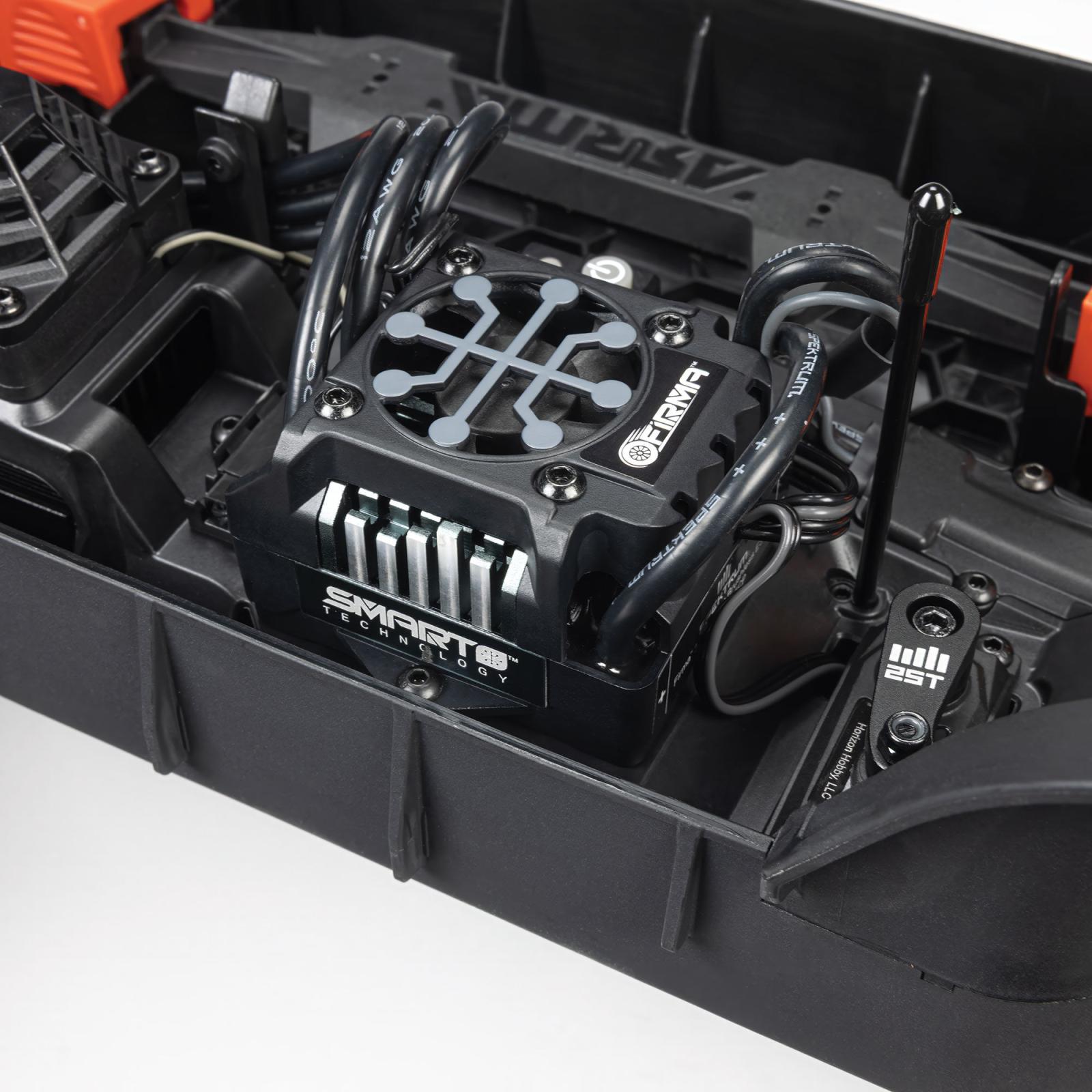

The Spektrum™ Firma™ 150A Brushless Smart ESC V2 with IC5 connector supports operation with 3S and 4S LiPo batteries and powers a Firma™ 3674 2300Kv brushless motor. Compared to earlier ARRMA 4S models, the motor length has been increased from 68 mm to 74 mm, resulting in higher torque. Heat sinks, a fan, and the integrated chassis cooling system with an air-permeable fan cover ensure effective heat dissipation even during extended runs.


EASY MAINTENANCE
Thanks to the reduced number of parts, maintenance is quick and straightforward. Easy access to the drive system, electronics, and battery compartment allows for short service times and ensures that the QUAKE 4S is back in action quickly.

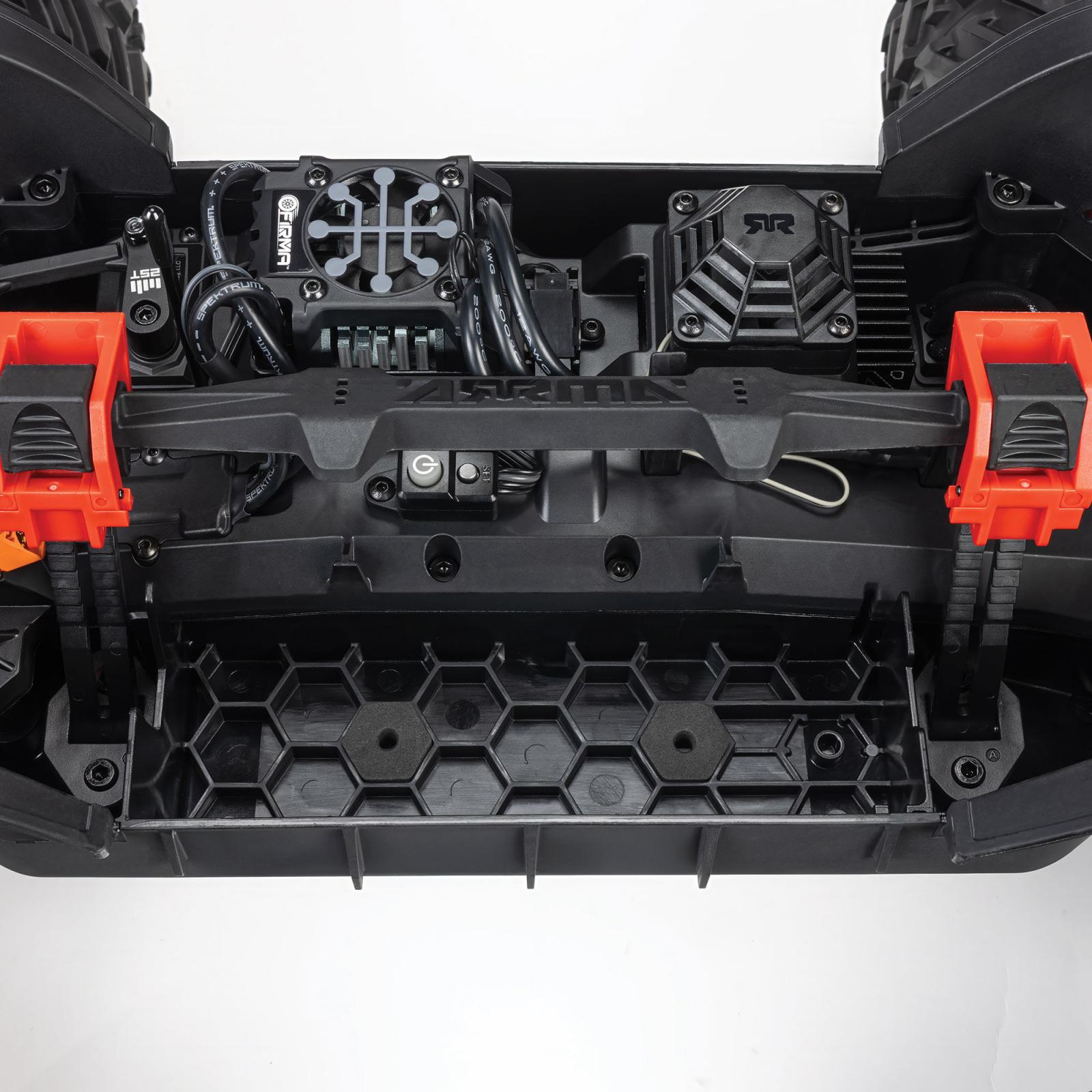

FAST AND SAFE BATTERY CHANGES

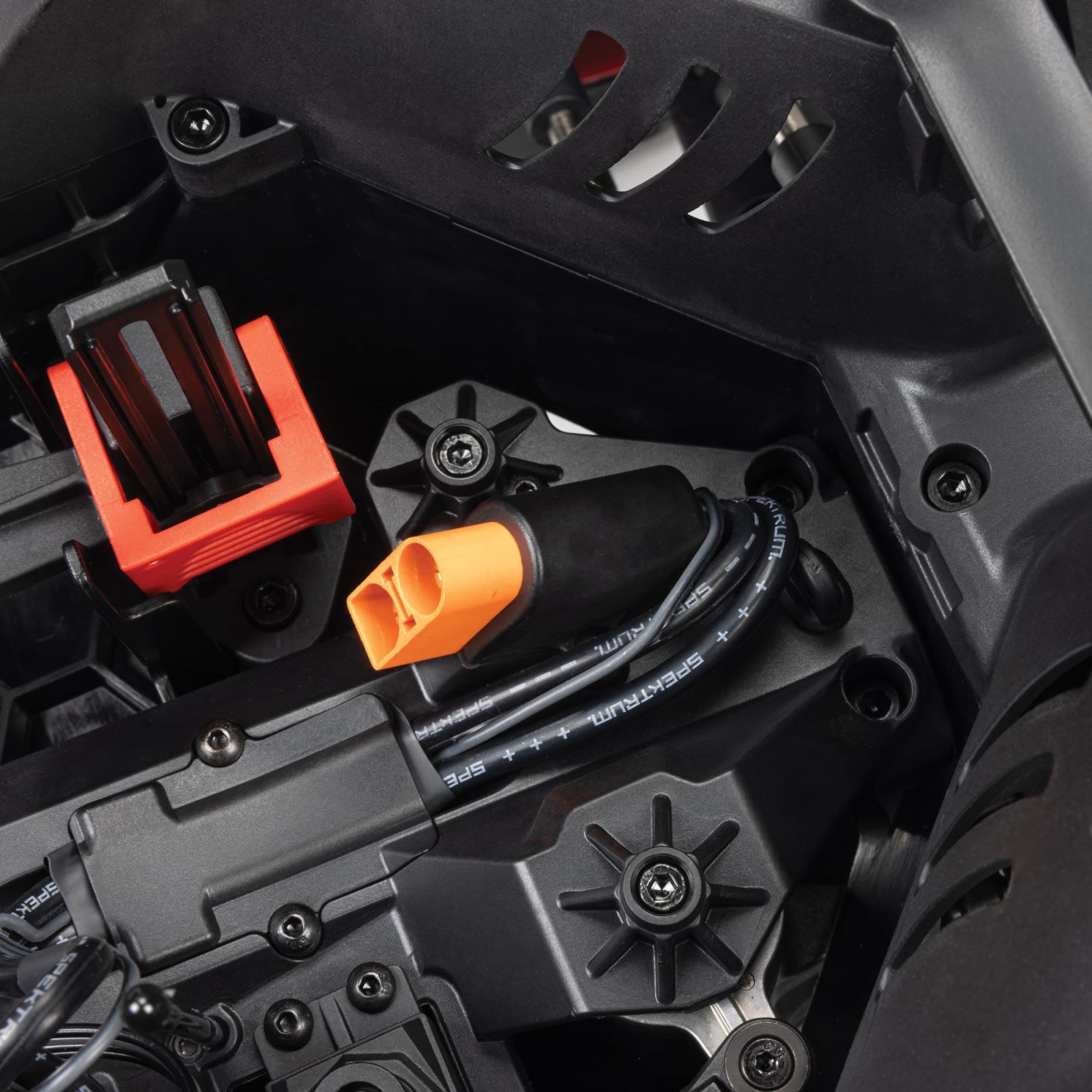

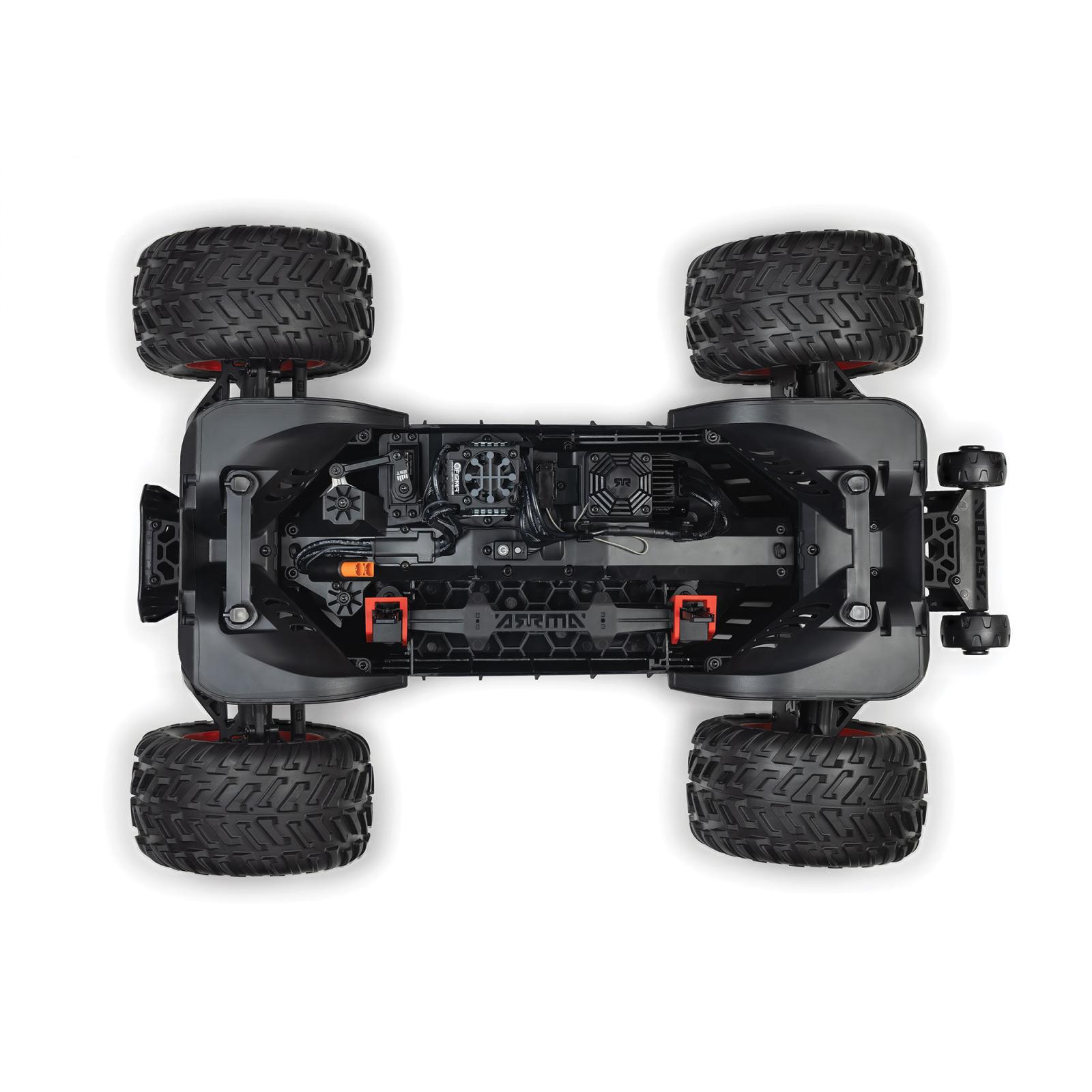

The generously sized battery compartment, the battery strap, and the easily accessible mounting system allow for quick and hassle-free battery changes. The neatly routed and secured battery wiring also ensures reliable protection during rough bashing sessions.

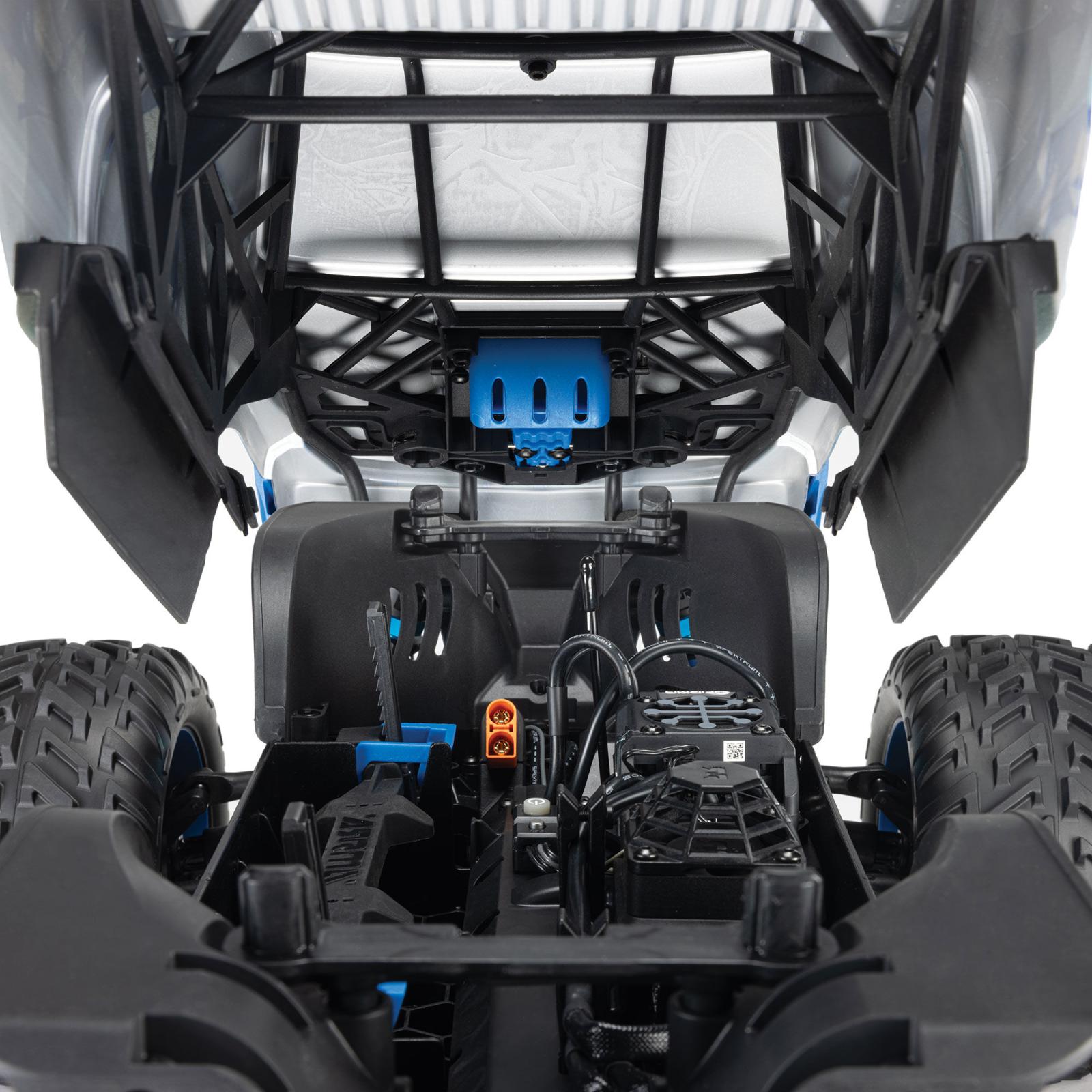

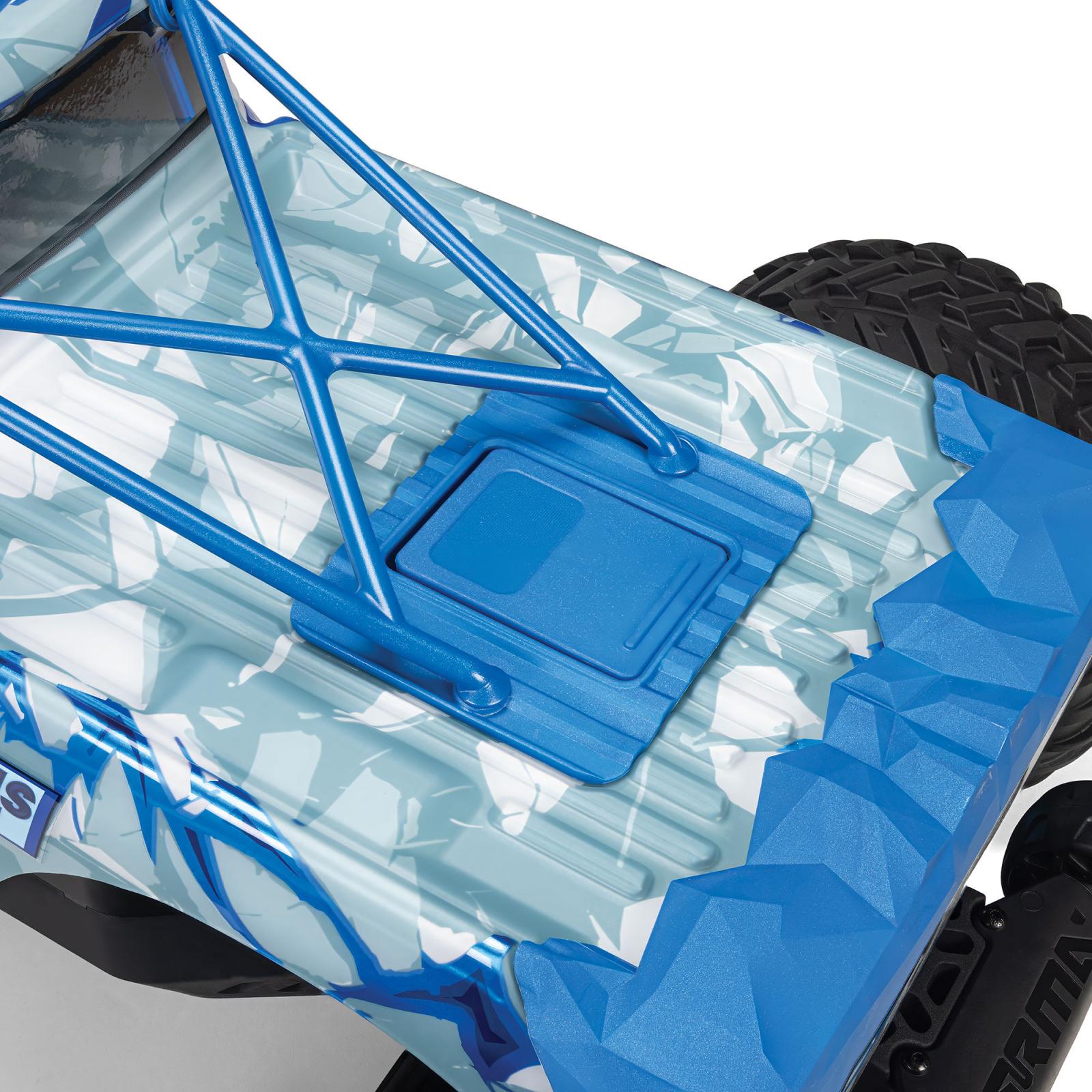

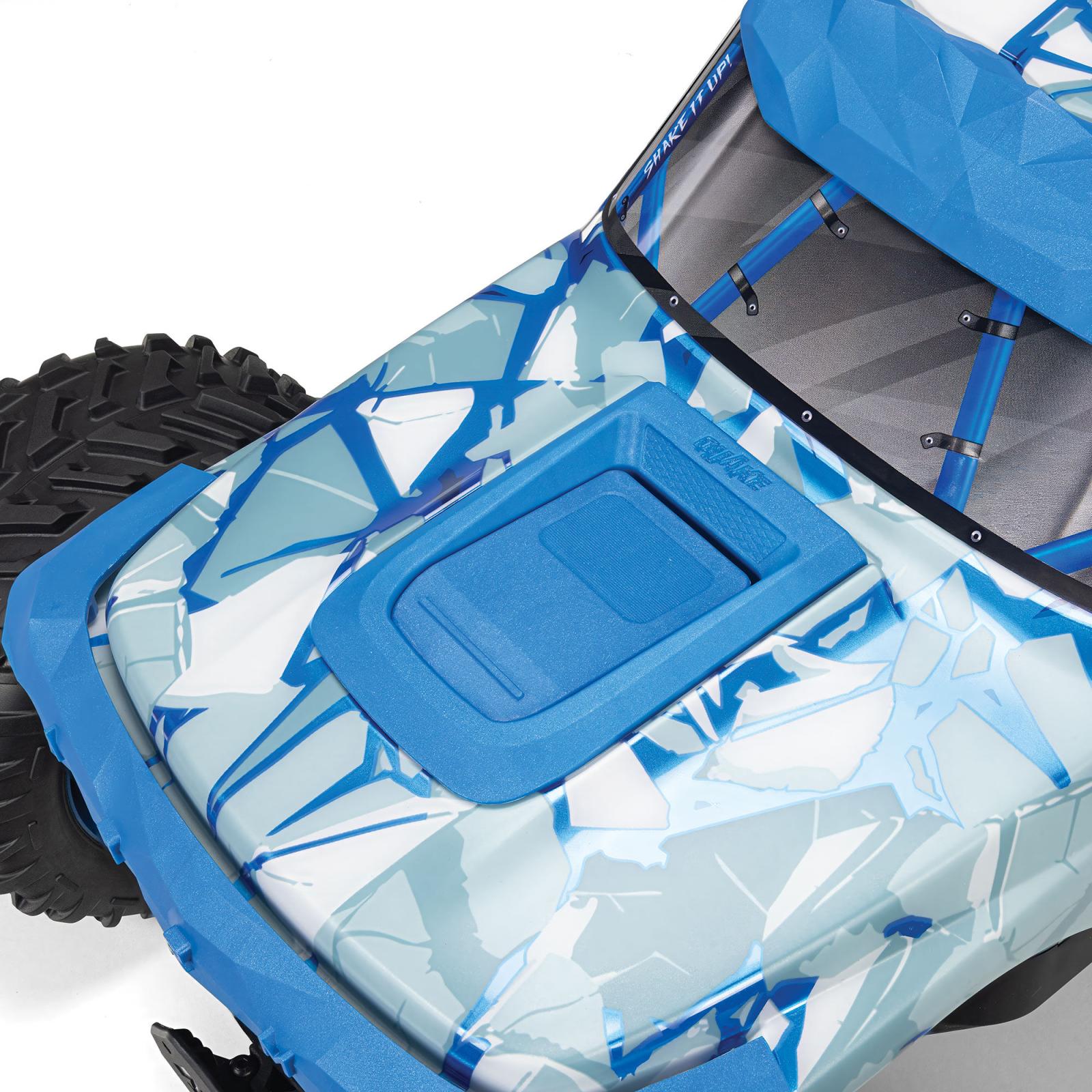

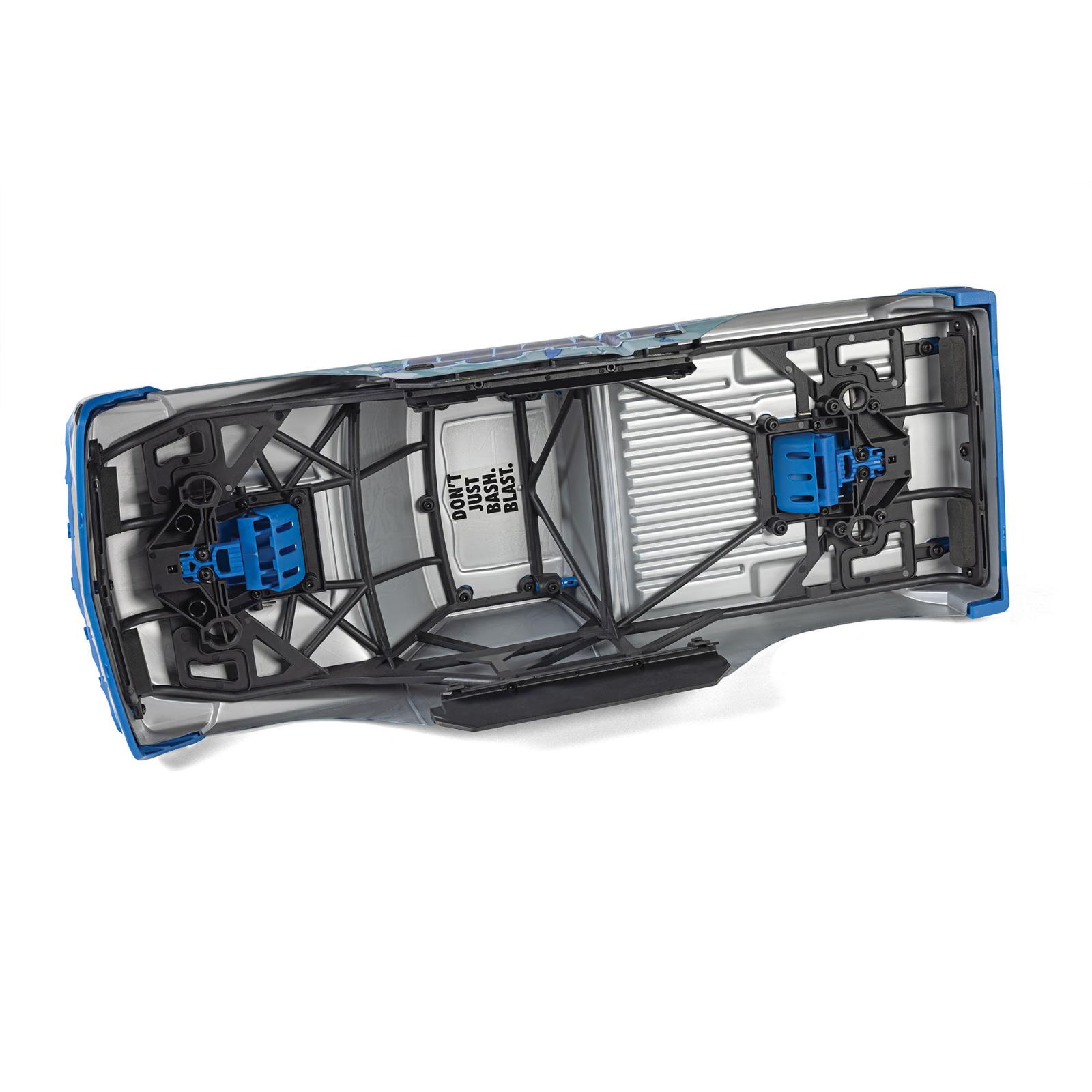

HIDDEN BODY MOUNTING SYSTEM
The hidden body mounting system ensures a clean look without visible body clips. The body sits securely on the vehicle, while the integrated internal structure increases stability and provides additional protection during rollovers and impacts.

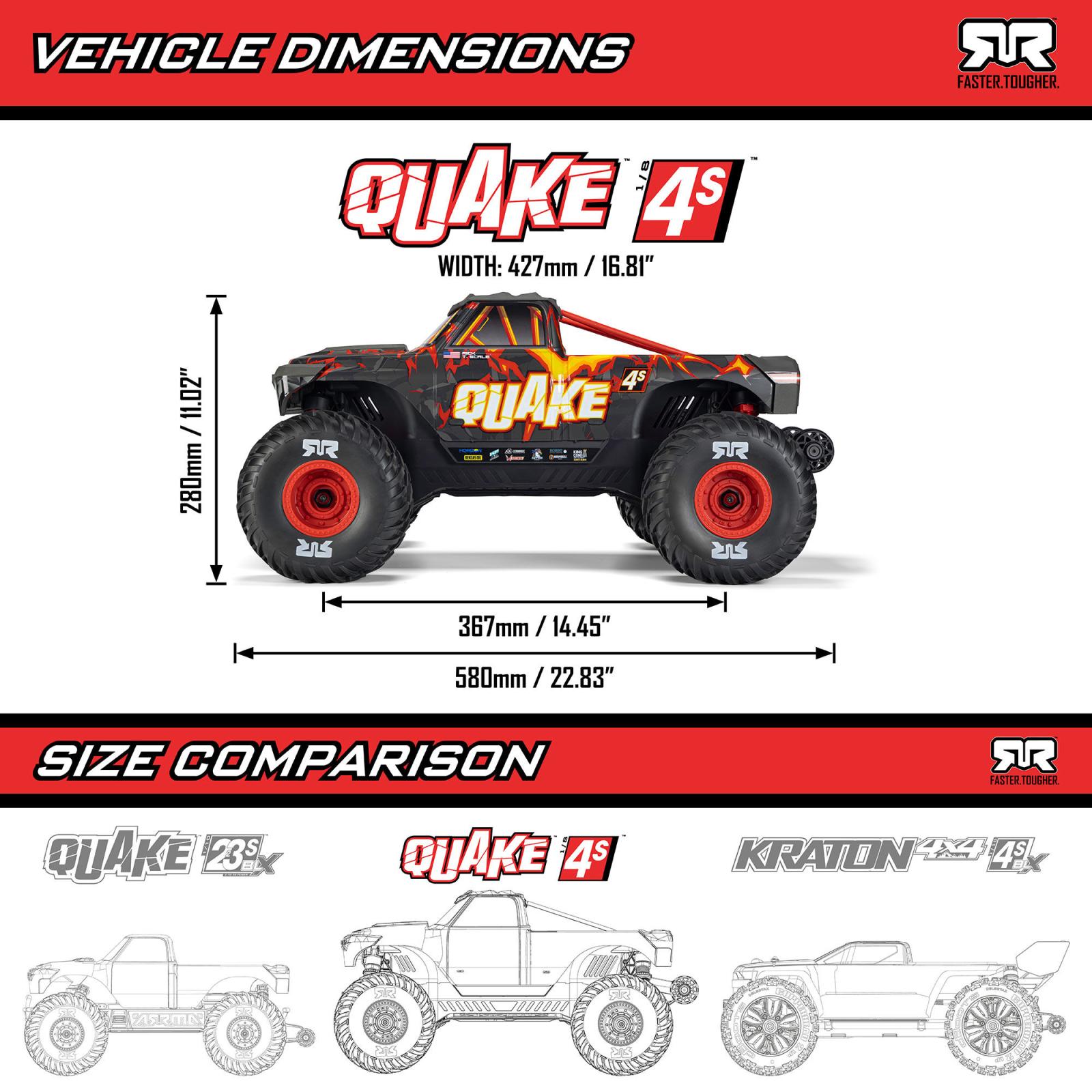

Specifications

• Product Width: 16.31" (414 mm)
• Differential: Gearbox
• Battery: Sold separately
• Gear Pitch: Mod-0.8
• Scale: 1/8
• Drive Type: Forward/Brake/Reverse
• Estimated Assembly Time: No assembly required
• Vehicle Type: Monster Truck
• Connector Type: IC5
• Rim driver size: 17 mm
• Receiver: Included
• Completion Level: Ready-To-Run
• Drivetrain: 4WD
• Product Height: 11.02" (280 mm)
• Vehicle Size: Standard
• Motor Size: 3674 2300Kv
• Motor Type: Brushless
• Product Weight: 13.49 lbs (6.12 kg)
• Power Type: Electric
• Technology: DSC
• Body: Painted, Decaled, Trimmed
• Remote Control: Included
• Chassis: Super-tough molded composite deep tub
• Speed Controller: Included
• Servos: Included
• Max Battery Dimensions: 6.3 in x 1.96 in x 2.75 in (160 x 50 x 70 mm)
• Pinion gear: 63T
• Internal gear ratio: 2.85
• Wheelbase: 14.45" (367 mm)
• Charger: Sold separately
• LiPo Compatibility: 3S, 4S
• Product Length: 22.83" (580 mm)

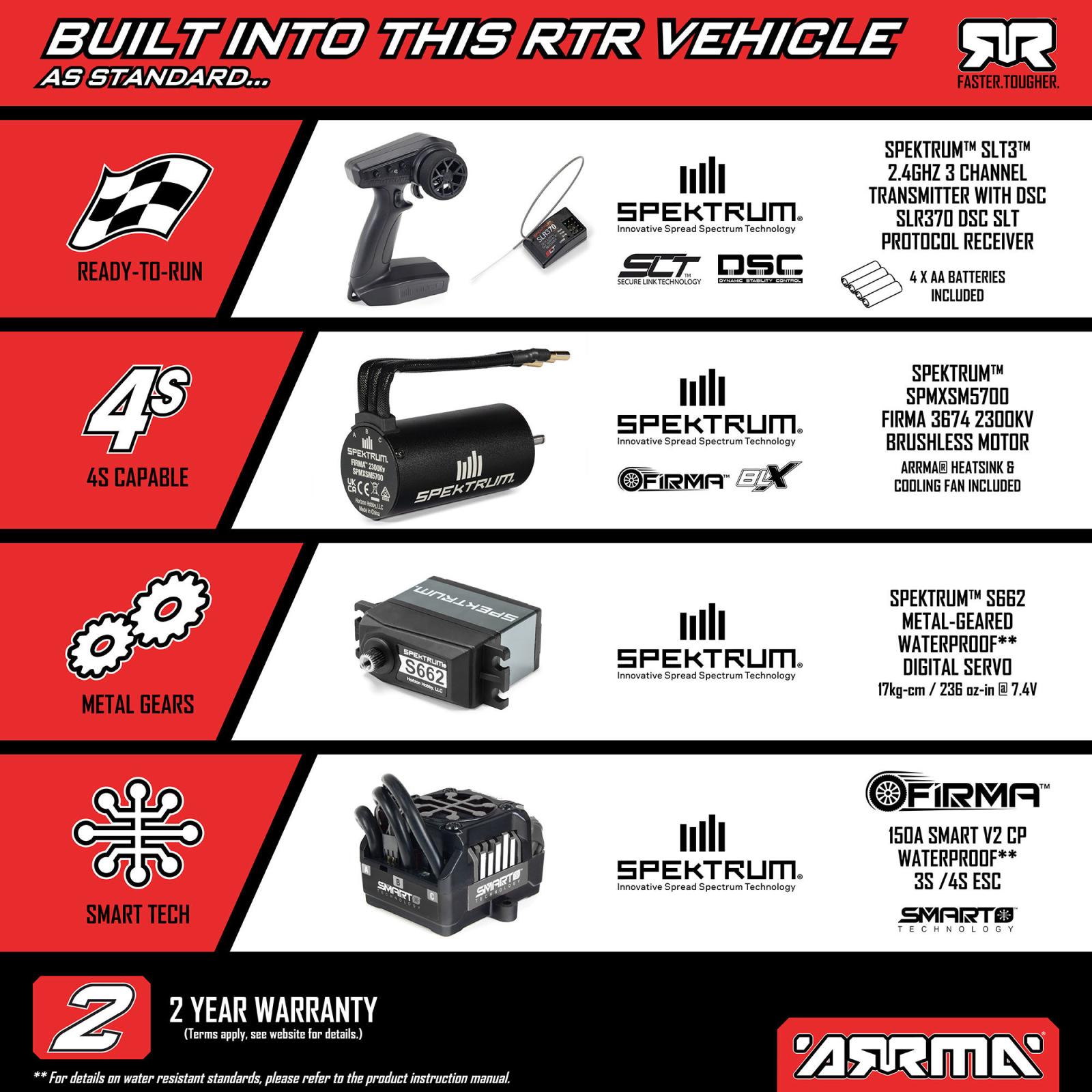

Content

• 1x ARRMA® QUAKE 4S DSC 4X4 RTR Brushless Monster Truck
• 1x Spektrum 150A Smart V2 CP waterproof ESC, 3S/4S (installed)
• 1x Spektrum 3674 2300Kv brushless motor (installed)
• 1x Spektrum S662 waterproof digital servo with metal gears (installed)
• 1x Spektrum SLR370 DSC SLT Protocol Receiver (installed)
• 1x Spektrum SLT3? 2.4 GHz 3-channel remote control with DSC
• 4x AA batteries for the remote control
• 1x User Manual

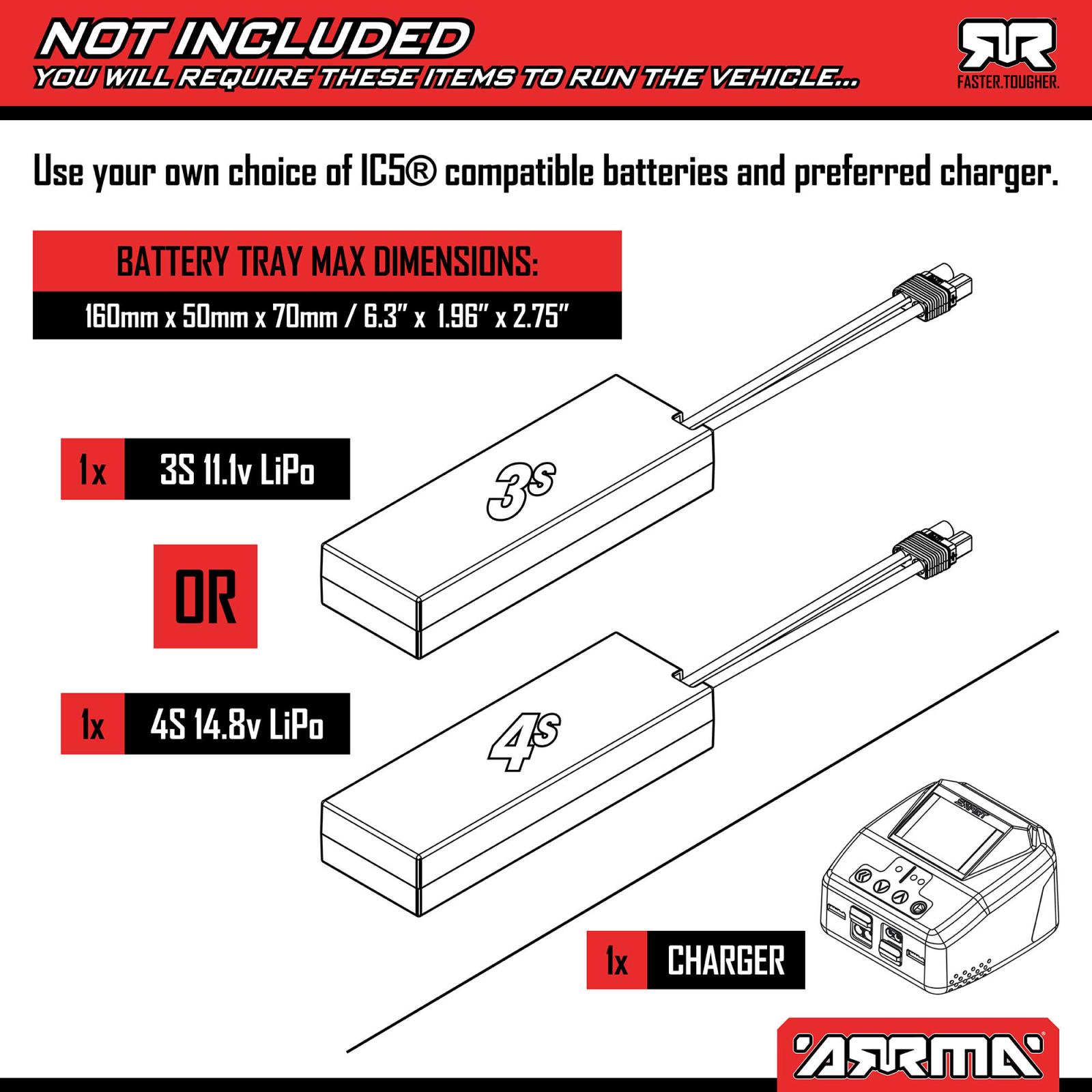

Required for assembly

• 1x 3S or
• 1x 4S hard-case LiPo battery (do not use soft-case batteries)
• 1x compatible LiPo charger
• 1x LiPo safety pouch
