RadioLink T8FB 2.4GHz FHSS 8-Kanal inkl. R8FM (Mode2)

Upgrade for anti-interference capability and control distance
Protocol upgrade
T8FB with chip TI CC2500 (OpenTX, same as FrSky X9D) and the transmission rate is three times faster than OpenTX, use the same FHSS spread spectrum of AT9S and 67 channels pseudo-random frequency sequence hopping makes T8FB have better anti-interference ability both on the same frequency band and different frequency bands. Control distance 2000m air, about twice that of T4EU, T6EHP-E and T7E.

Improved precision of the sticks
PCB layout redesign makes the maximum PWM signal jitter is 1.84μs, and the regular jitter is 0.5μs (same as AT9S), 4 times better than the old version of T8FB and 14 times higher than a famous racing drone transmitter, which with 7μs regular signal jitter, much better than the competing transmitters. Use the same joystick components of AT9S.

Complete types
Suit for most of the airplanes including fixed wing 2 wings 3 rears, glider 4 wings 2 rears and all multicopters, RC cars and boats. 21cm long antenna receiver especially for RC boats.

Programmable mix control
Basic menu, advanced menu, graphical view for different throttle and servo curves, 5-8 channels are individually adjustable. Advanced settings as you wish.

Low battery consumption
Switching Mode Power Supply (SMPS) keeps the operating current of the T8FB below 110mA. Our hardware design avoids the interference of SMPS.

Wide input voltage range
The operating voltage is 4.8-18V, suitable for 2S to 4S LiPo or 4pcs AA batteries. T8FB, simple operation, makes it easy to operate even without user manual.

Features

• Wide voltage range
• Mini receiver
• USB upgrade - parameter setting via Android app
• Anti-plug protection
• 80mA operating current
• 8CH full function
• FHSS
• S.BUS / PPM / PWM support

Technical specifications

Size: T8FB - 173x102x206mm
Weight: 0.47kg
Frequency: 2.4GHz ISM band (2400MHz2483.5MHz)
Modulation method: GFSK
Channel bandwidth: 400KHz
Bandwidth: 1200kHz
Spread spectrum: FHSS
Adjacent channel suppression: >36dBM
Power of the transmitter: <100mW (20dBM)
Sensitivity: -104dBM
Speed: 38kbps
PWM output: 1.0ms ~ 2.0ms
Section accuracy: 2000, 0.5μs per section
Cycle: 15 ms/per frame
Operating voltage of the T8FB radio: 4.8 V to 18 V
Radio T8FB operating current: <110mA
Supported receivers: R8EF, R8FM, R4FG, R4F
Control distance: 500 meters on the ground and 1000 meters in the air, the actual control distance depends on the flight environment

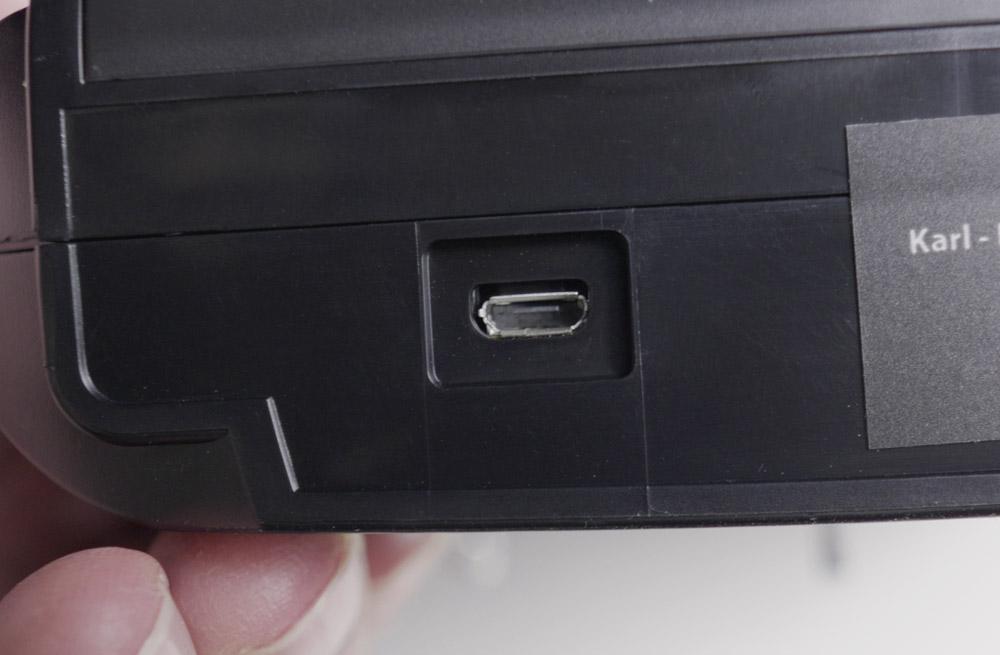

USB connection: USB Micro-B

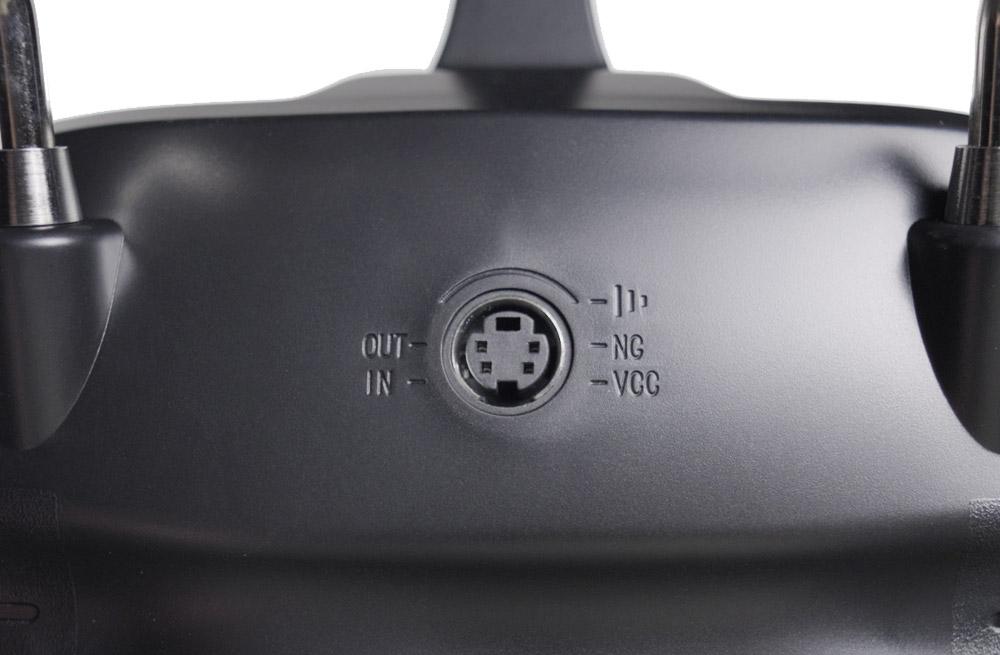

Trainer port connection: 6-pin mini-DIN

Scope of delivery

• RadioLink T8FB transmitter
• RadioLink R8FM receiver
• USB adapter cable
• Throttle stick return
• User manual

Required for installation

• 4x AA battery
