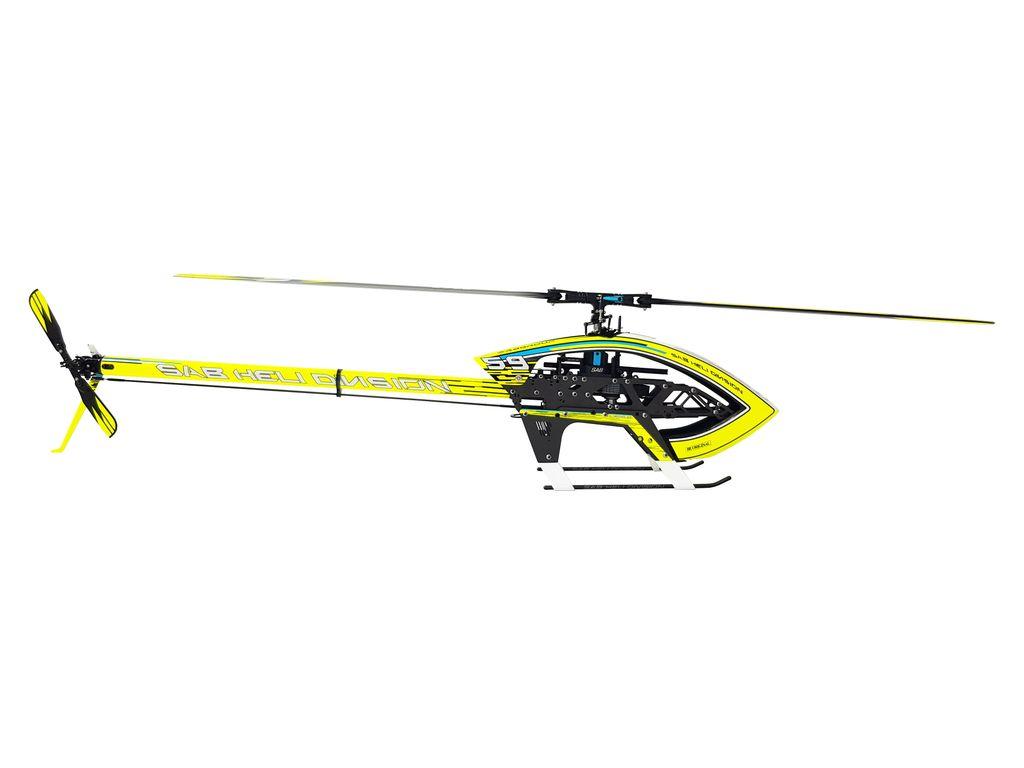

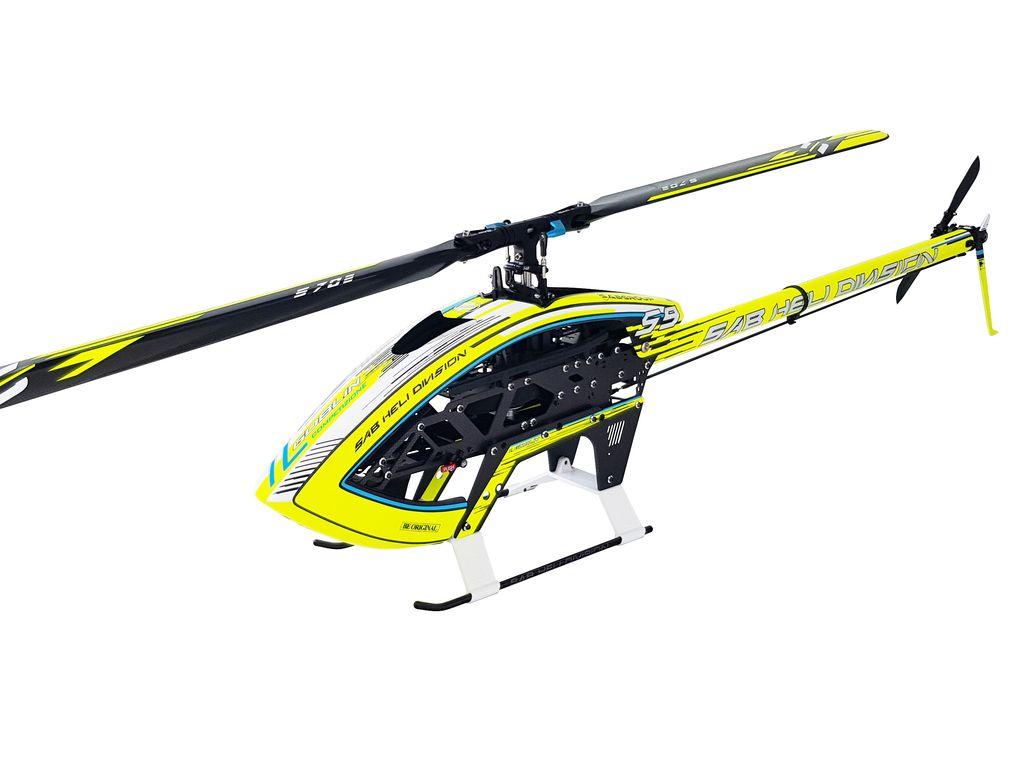

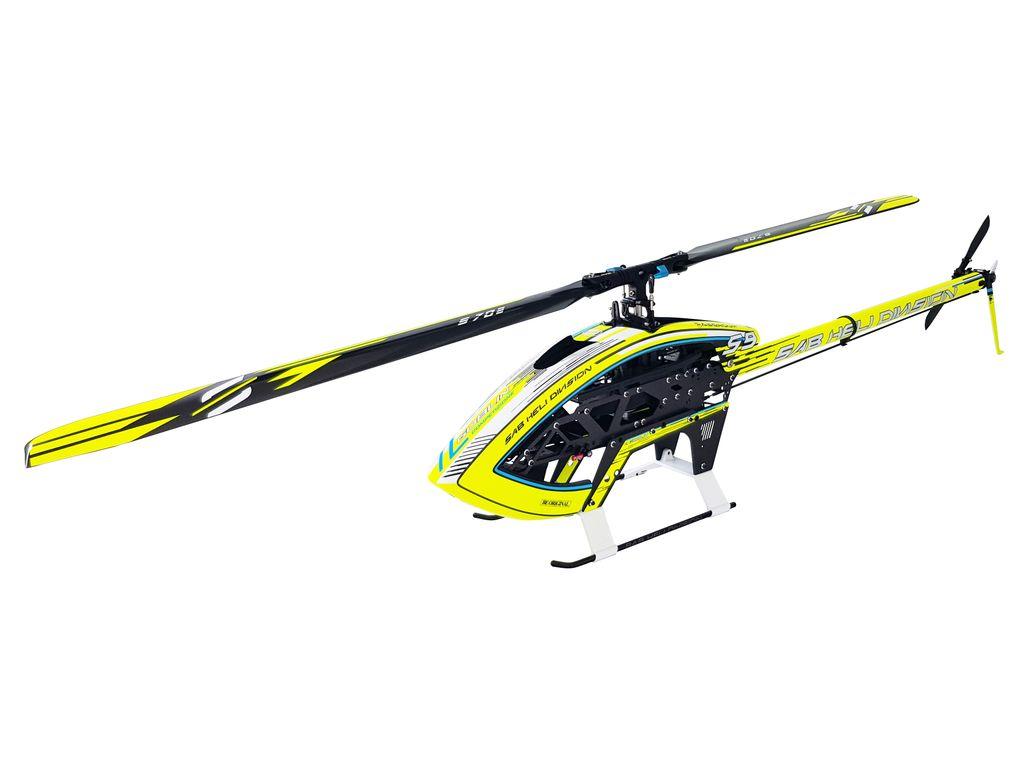

SAB ILGoblin Competition 770 - Yellow

Born from years of competition experience and rigorous testing with the world’s elite Goblin pilots, the ilGoblin Competizione is the ultimate racing machine. Developed according to the “no compromises” principle, every single design choice is geared toward achieving peak performance. In competition, low weight is everything. Despite its ability to handle extreme performance and aggressive maneuvers, the ilGoblin Competizione boasts a remarkable airframe weight of less than 2 kg. Experience an unprecedented level of acrobatic precision and flight feel.

Features

Main Frame
• Improved frame design: Lightweight and redesigned for maximum structural rigidity.
• 19-mm motor belt: Designed for high torque and durability.
• Highly efficient tensioning mechanism: Ensures optimal performance of the tail belt.
• Additional rear servo mount: Provides greater stability for the most demanding maneuvers.


Main Rotor
• Revolutionary Geometry: Optimized for a true 1:1 control ratio.
• High-modulus technopolymer damper: Designed for superior responsiveness and precision.
• 12-mm main shaft: Supported by triple bearings for maximum reliability and smooth operation.
• Backlash-free swashplate arms: Improved reference points for precise cyclic control.
• Titanium blade screws and titanium/Delrin washers for low weight and high strength.


Tail Rotor
• Lightweight tail: Features an oversized bearing for improved durability.
• One-piece shaft and hub: Machined from a single piece for maximum precision, including an integrated damper to reduce vibration.
• Double-pin tail slider: Eliminates play and ensures absolutely precise tail control.
• CNC-milled washers: For high-quality, durable construction.


Tail Boom
• 35-mm carbon tail boom: With internal aluminum reinforcements.
• Ultra-lightweight construction: Total weight of just 180 grams.


Canopy & Rotor Blades
• Quick access to the battery: The unique canopy design allows the battery to be inserted from the rear—no need to remove the canopy.
• Integrated connectors: Enable lightning-fast and convenient battery changes.
• High-visibility color scheme: Optimized for orientation and visibility during high-speed competitions. Fully compatible with the molded tail boom and Pro cap for the unique Goblin overall design.

Technical Specifications

• Airframe weight: 1990 g (without rotor blades, battery, or electronics)
• Main rotor diameter: 1576 mm (with 700-mm blades)
• Length of main rotor blades: 650–730 mm
• Tail rotor diameter: 292 mm (with 110-mm tail rotor blades)
• Tail rotor blade length: 105–115 mm
• Servos: Standard size (40 mm) for swashplate and tail
• Main rotor gear ratio: 11.8–8.8:1 (21T pulley included = 10.1:1)
• Tail rotor gear ratio: 5.1–4.9:1 (26T pulley included = 4.9:1)
• Power system: 6S–12S configurations (motor KV: 480–560 / 950–1100 KV)
• Battery compartment: 50×60×300 mm

Package Contents

• 1x ILGoblin Competizione
• 2x Battery mounts
• 1x S702 Yellow main rotor blades (700 mm)
• 1x S110 Yellow tail rotor blades (110 mm)
• 1x bound manual

Still needed

• 3x swashplate servos (standard size, 40 mm)
• 1x tail servo (standard size, 40 mm)
• 1x ESC (12S = 180–265A, 6S = 125–160A)
• 1x motor (12S = 4525, 4530, or 5024 with 525–535 kV; 6S = 4026 or 4025 with 1115–11120 kV)
• 1x flybarless system (Microbeast Ultra)
• 1x battery (6–12S, 4500–5500 mAh, max. size: 300 x 60 x 50 mm)
