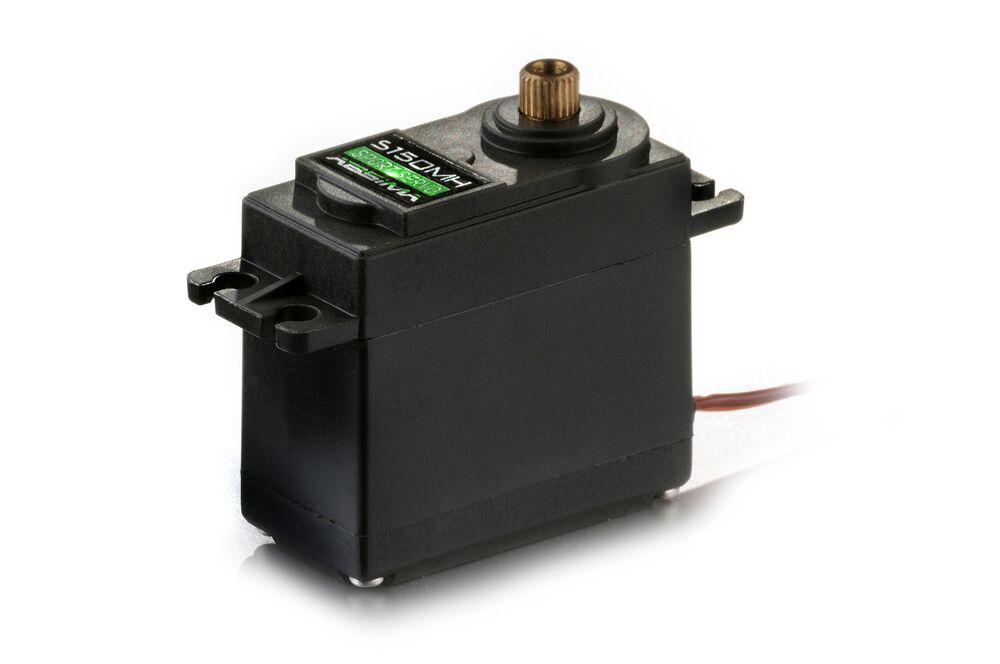

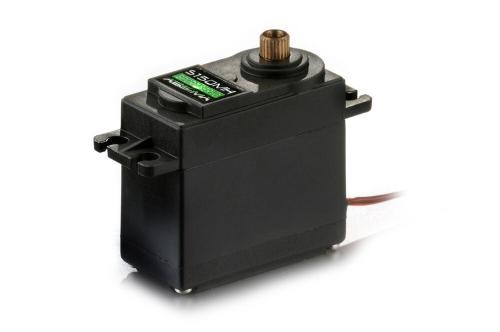

Servo ‘S150MH’ 15kg 25Z/JR metal gearbox

Features

• Standard size
• Operating voltage: 4.8-6.0V
• Actuating force 15.0 kg @ 4.8V
• Actuating time 0.26 sec / 60° @ 4.8V
• Metal gearbox
• Motor type: Core
• Gear rim 25 teeth
• JR connector system
• Cable: 22AWG, 260mm
• Ball bearing: 2
• Weight: 62g

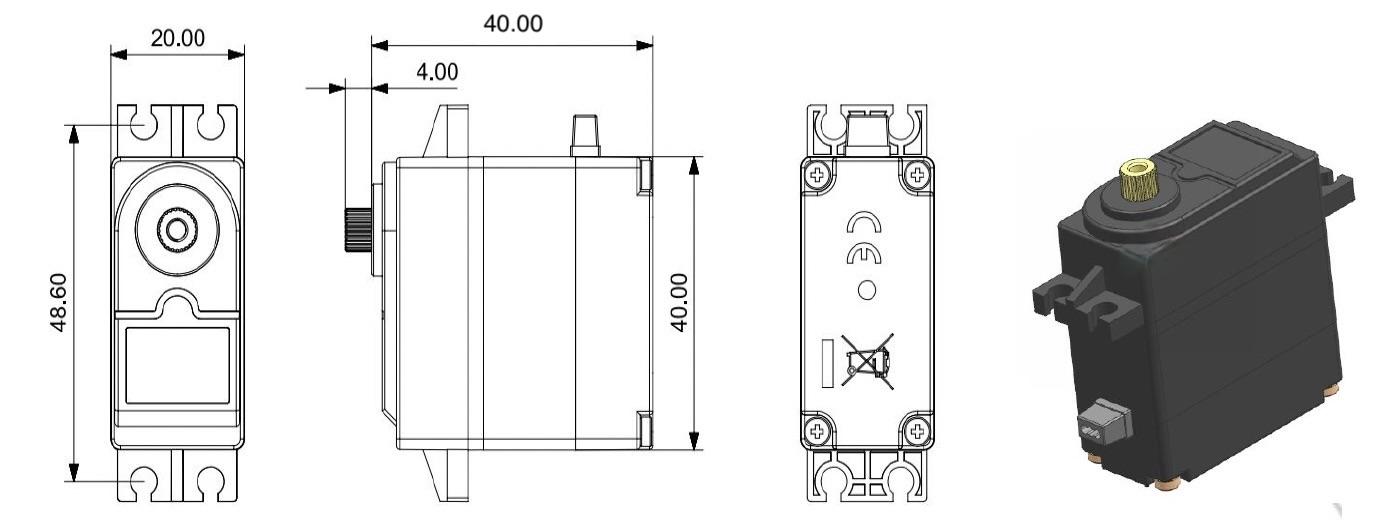

• Overall dimension (L/W/H): 54.0x 20.0x44.0mm
• Installation dimension (L/W/H): 40.0x 20.0x40.0mm
• Hole spacing: 48.6mm

Scope of delivery

• 1 x S150MH servo
• 5 x servo horns
Mounting material
