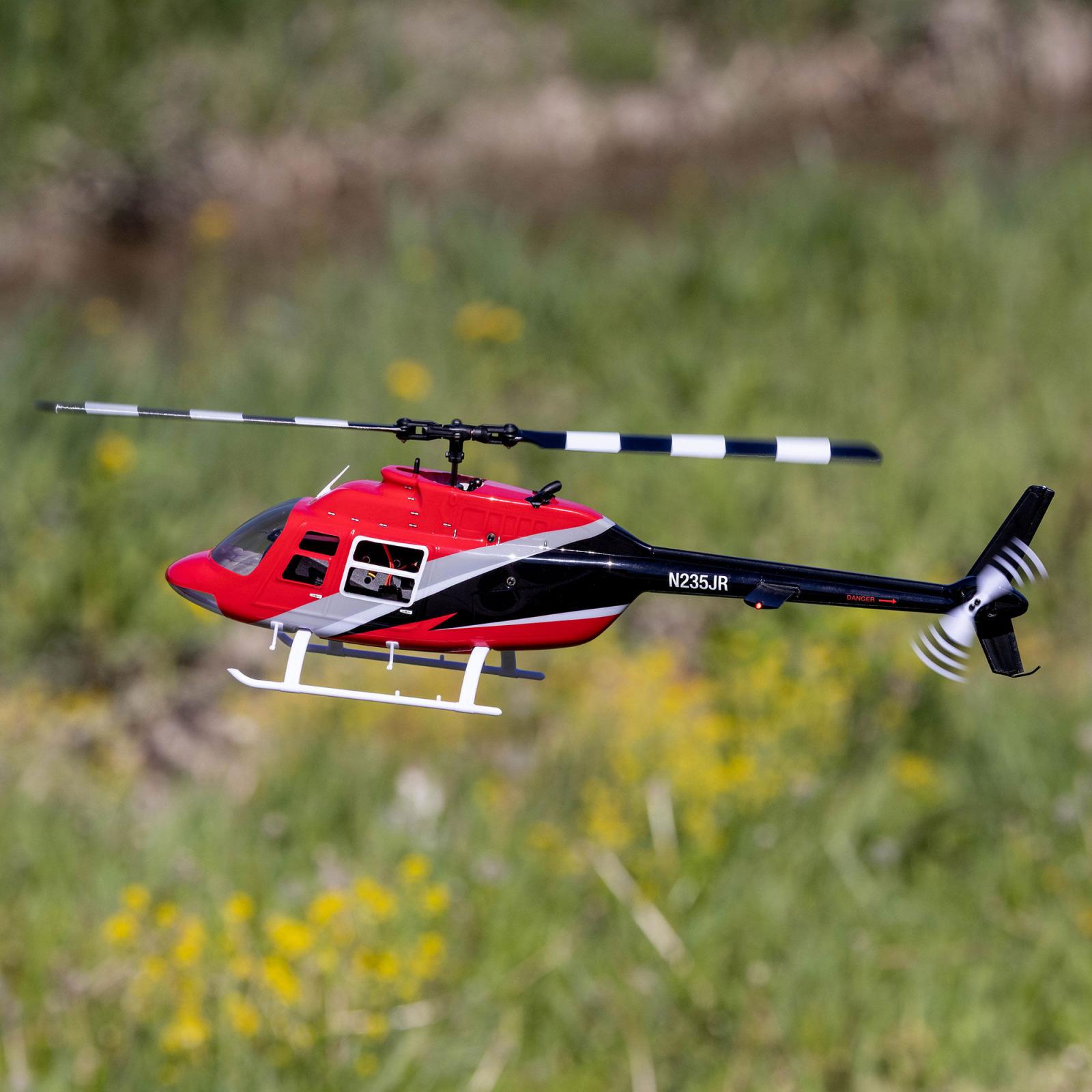

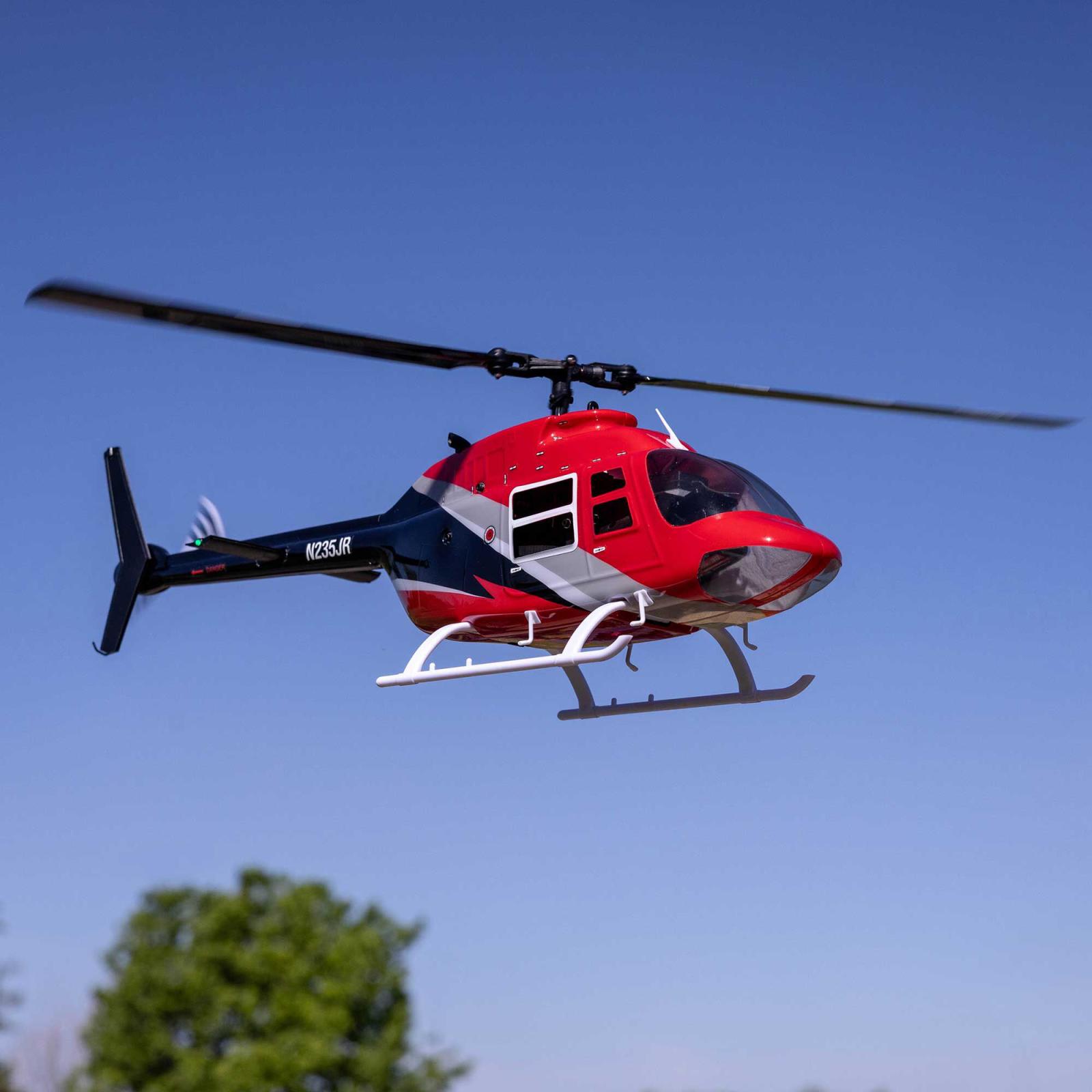

Bell 206 Jet Ranger 235 CP BNF Basic with AS3X and SAFE

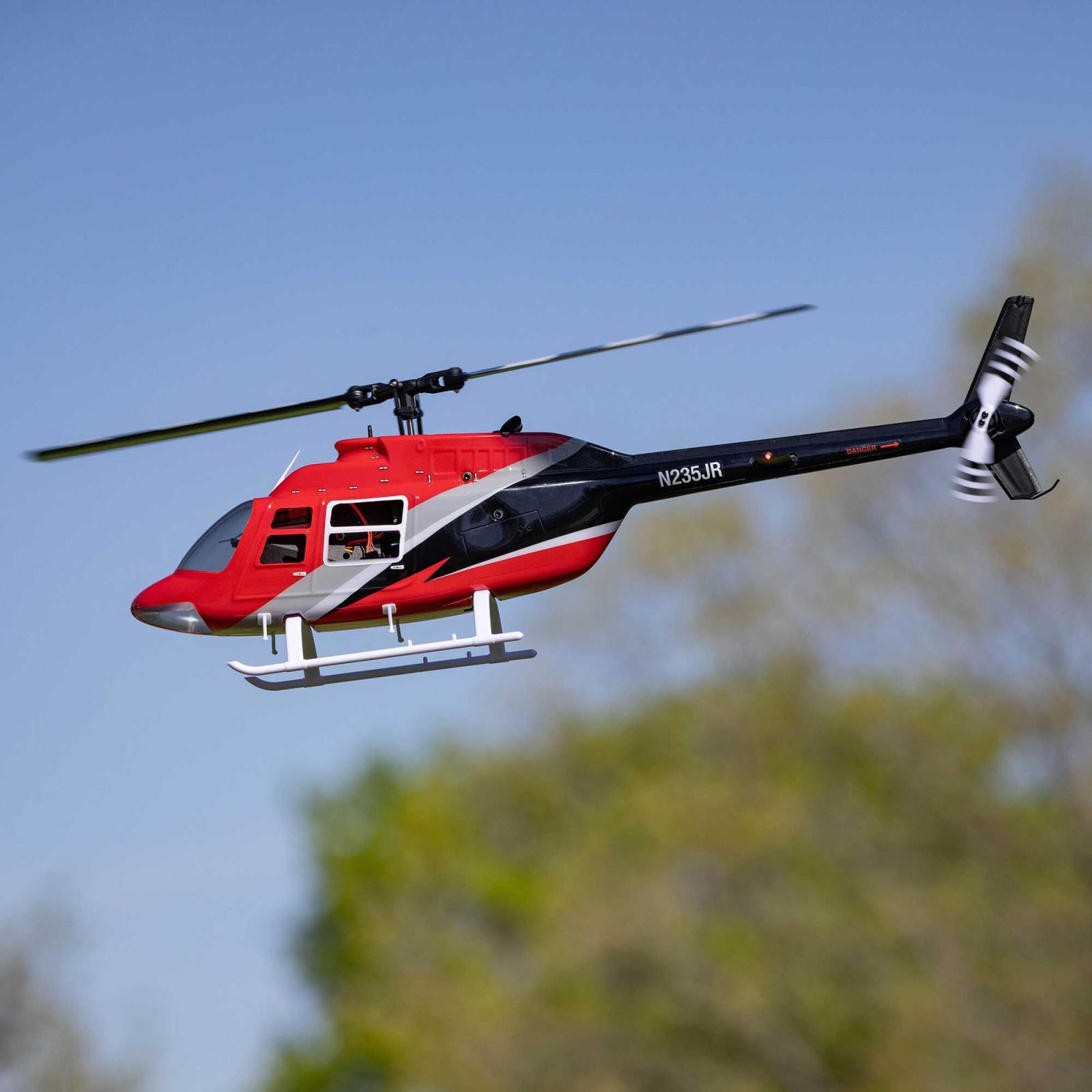

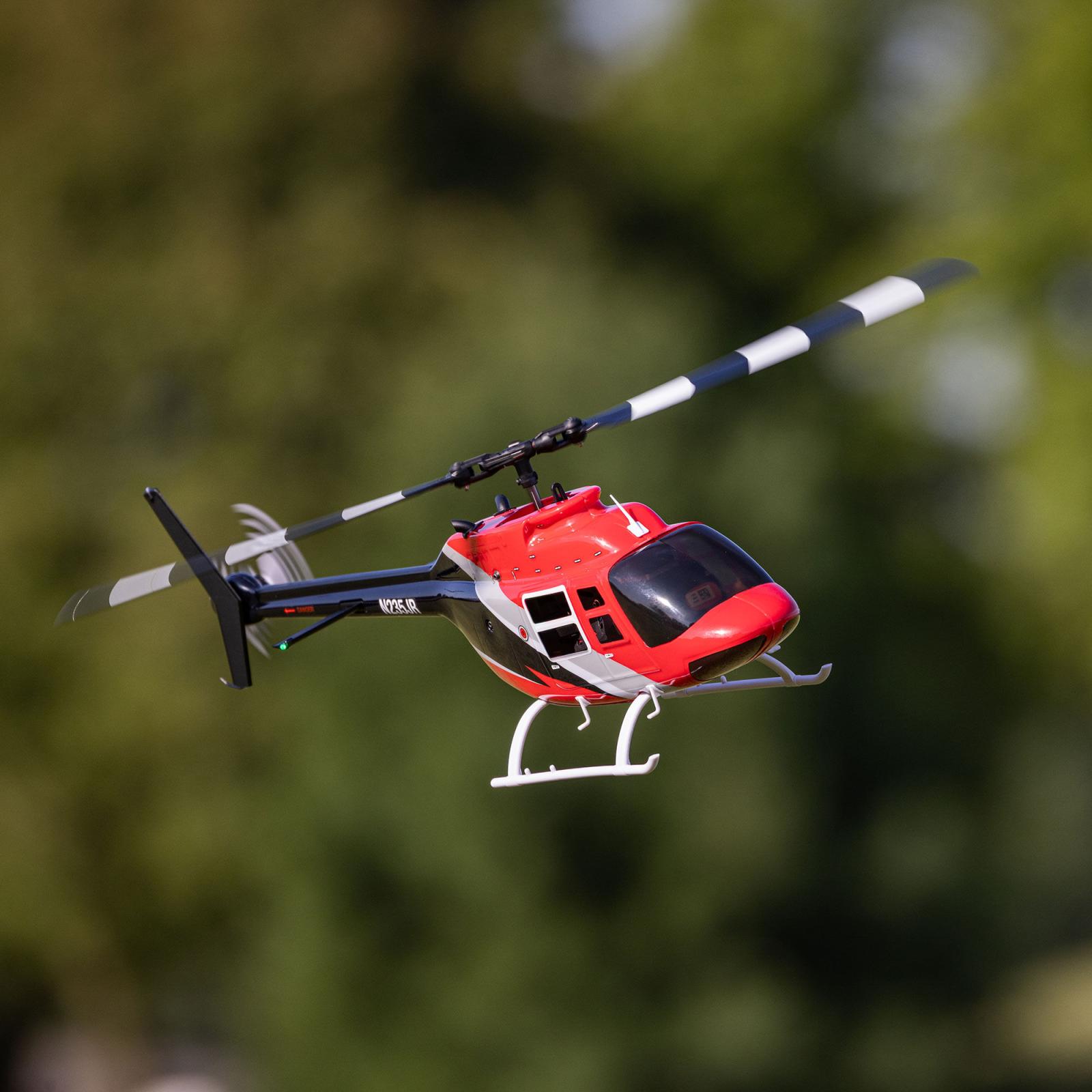

Now you can learn to fly Collective Pitch (CP) helicopters and hone your skills with a scale replica of the legendary Jet Ranger! The Bell 206 Jet Ranger 235 CP is based on the popular Blade Revolution 235 CP and comes fully assembled, flight-tested, and ready to fly right out of the box—ideal for beginners through experienced helicopter pilots.

Blade Bell 206 Jet Ranger 235 RC Helicopter Overview

The Bell 206 Jet Ranger is one of the most famous and iconic helicopter models of all time. Developed and first flown as early as the 1960s, the design has proven its versatility and adaptability, resulting in the production of over 7,000 units in various versions—ranging from corporate transport and news coverage to rescue missions and military operations. In recent years, more people have learned to fly CP (Collective Pitch) RC helicopters using the various versions of the Blade 230 S than with any other model. The Bell 206 Jet Ranger 235 CP is an updated and improved version of the proven 230 and a scale variant of the popular Revolution 235. It comes factory-equipped with a Jet Ranger fuselage and offers features that make flying easier than ever before. Thanks to the exclusive and innovative SAFE (Sensor Assisted Flight Envelope) technology, it features angle limits and improved self-stabilization in Normal mode to prevent crashes. In all other flight modes, there are no limits, but with the Panic Recovery function, you can stabilize the model at the push of a button should you ever lose control.
Best of all: The Bell 206 Jet Ranger 235 CP is delivered pre-assembled, flight-tested, and ready to fly—no assembly or setup required. The Ready-To-Fly (RTF) Basic version includes everything you need to fly, except for a battery and charger. This makes it the perfect choice for beginners through experienced pilots who value maximum convenience and great value for the money. You can either use a convenient and cost-effective Spektrum Powerstage bundle or a separate battery and charger of your choice. The included Spektrum DXS 2.4-GHz transmitter can also be used with other Bind-N-Fly® (BNF) and BNF Basic models once you’ve mastered flying the Jet Ranger 235 CP! For pilots who already own a Spektrum transmitter as well as Smart or non-Smart batteries and chargers, a Bind-N-Fly (BNF) Basic version is also available. Both versions include a Spektrum flybarless flight controller and receiver equipped with a Smart Transmitter File. This allows you to automatically import all settings for NX and iX transmitters during the binding process, so you can fly faster and more easily with your preferred or upgraded transmitter.
The RTF Basic version also includes a full version of the RealFlight Trainer Edition RC flight simulator, which runs on a wide range of PCs—from budget laptops to gaming desktops—running Windows® 10 or 11. This simulator features many of Horizon Hobby’s most popular trainer airplanes and helicopters, including the Jet Ranger 235 CP, as well as built-in Virtual Flight Instructor lessons. Additional features include nearly two dozen “Next Step After a Trainer” (Skill Level 2) airplanes/helicopters and variants, as well as 4 unlockable airfields that become available as a reward after just 2–4 hours of training with the trainer models. Other features include a modern and user-friendly interface, multiplayer options for training and flying together online, the ability to enable wind, unlock water landings, and much more! This allows new pilots to successfully learn to fly by practicing at home on a desktop PC or on the go with a laptop. Simply connect the updated DXS remote control to a compatible USB port on your computer via a USB-C cable and take off!

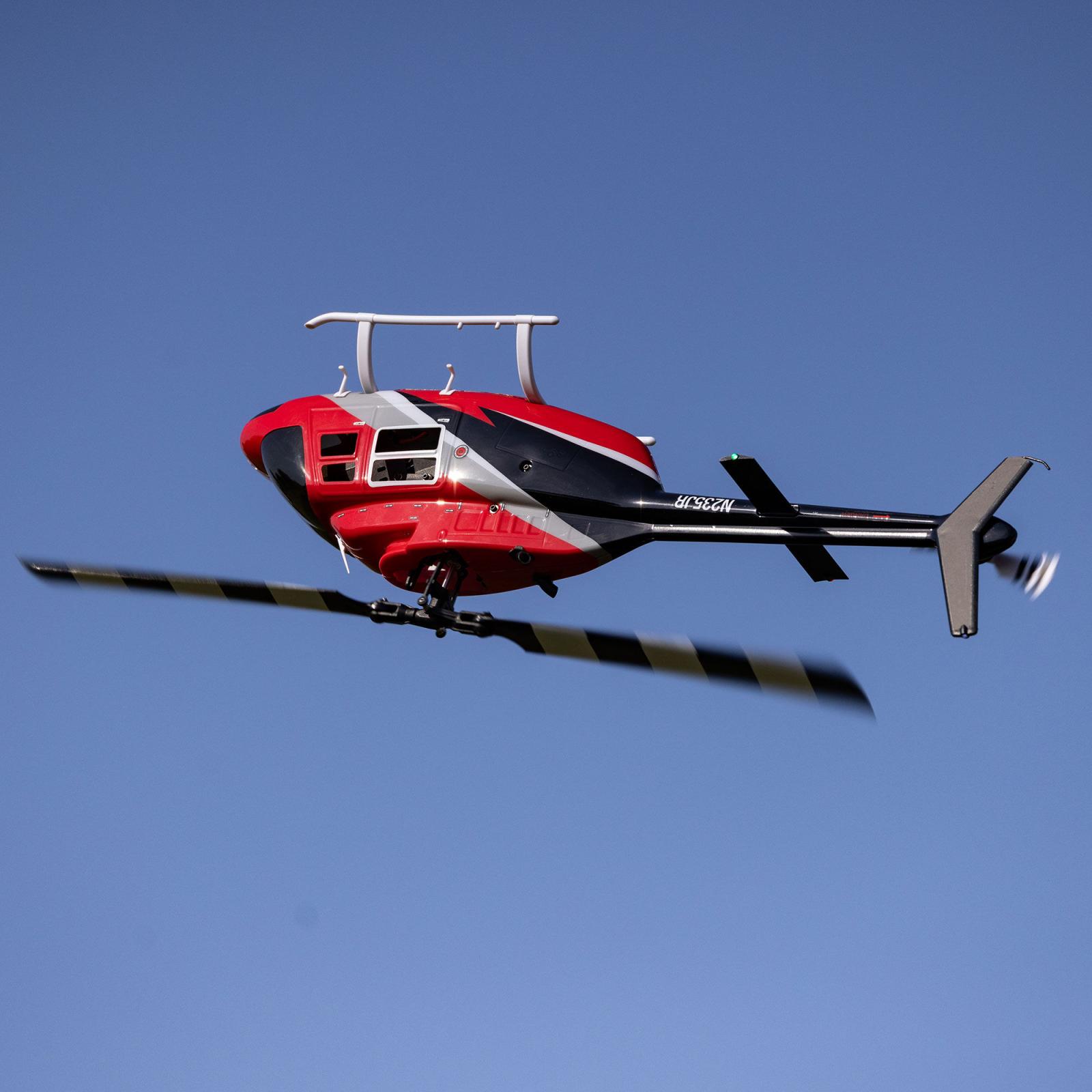

And the fun doesn’t stop once you’ve learned to fly! In Stunt/Idle-Up mode, the Jet Ranger 235 CP can perform basic aerobatic maneuvers such as loops, rolls, inverted flight, and more. It’s never been easier to learn to fly or improve your skills with a scale RC helicopter!

Blade Bell 206 Jet Ranger 235 CP Scale RC Helicopter Video

Blade Bell 206 Jet Ranger 235 RC Helicopter Features

• Officially licensed scale replica of the Bell 206 Jet Ranger—one of the most iconic and recognizable helicopter designs of all time.
• An updated and improved version of the proven Blade 230 S, as well as a scale version of the popular Revolution 235 CP, which is easy to fly for both beginners and experienced helicopter pilots.
• The perfect scale model for learning to fly collective pitch (CP) helicopters and honing your skills.
• Compact size for better visibility and stability when flying outdoors, such as in gardens, parks, on sports fields, and more—even in light winds.
• Fully factory-assembled, flight-tested, and ready to fly right out of the box—no assembly or setup required.
• Equipped with enhanced SAFE technology that prevents crashes and makes learning to fly easier.
• Flight modes: Normal (SAFE) and Stunt 1 and 2 (AS3X), which can be easily switched via a button.
• Panic Recovery Mode, activated with the push of a button, to regain control and prevent crashes.
• Ready for use with your compatible Spektrum DSMX/DSM2 transmitter, battery, and charger (sold separately).
• Receiver with Smart Transmitter File (STF), which automatically imports all settings for NX and iX transmitters during binding.
• Compatible with popular and affordable 3S 850mAh Smart and similar non-Smart LiPo batteries with an IC2® connector (or with a compatible IC2 adapter).
• The Spektrum Dual Smart ESC provides real-time data such as battery voltage and motor RPM to compatible transmitters (with both Smart and non-Smart batteries).
• Factory-installed Spektrum AR6250MHX flybarless flight controller with exclusive AS3X and updated SAFE technology.
• Improved flight controller tuning for optimized self-stabilization performance in Normal (SAFE) mode.

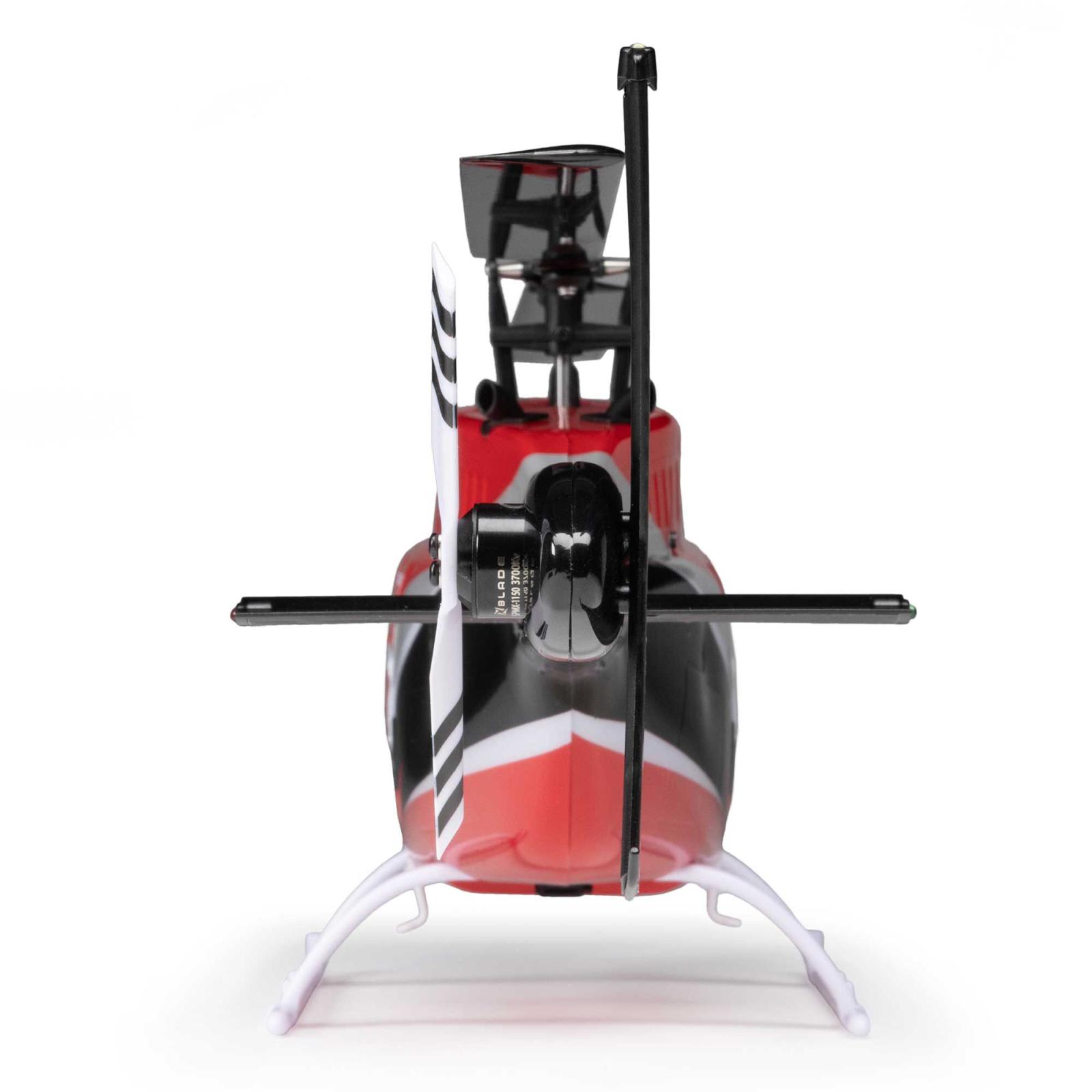

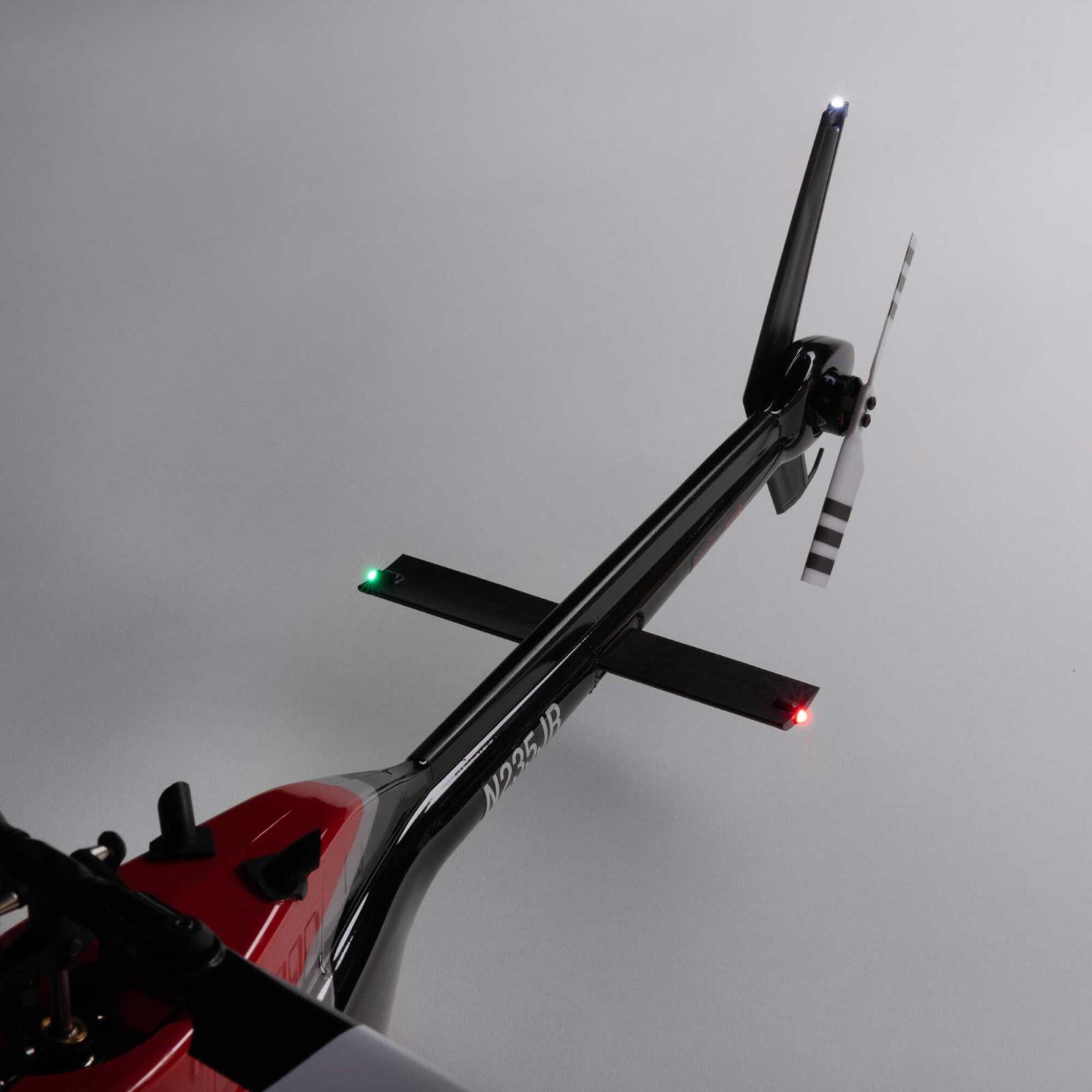

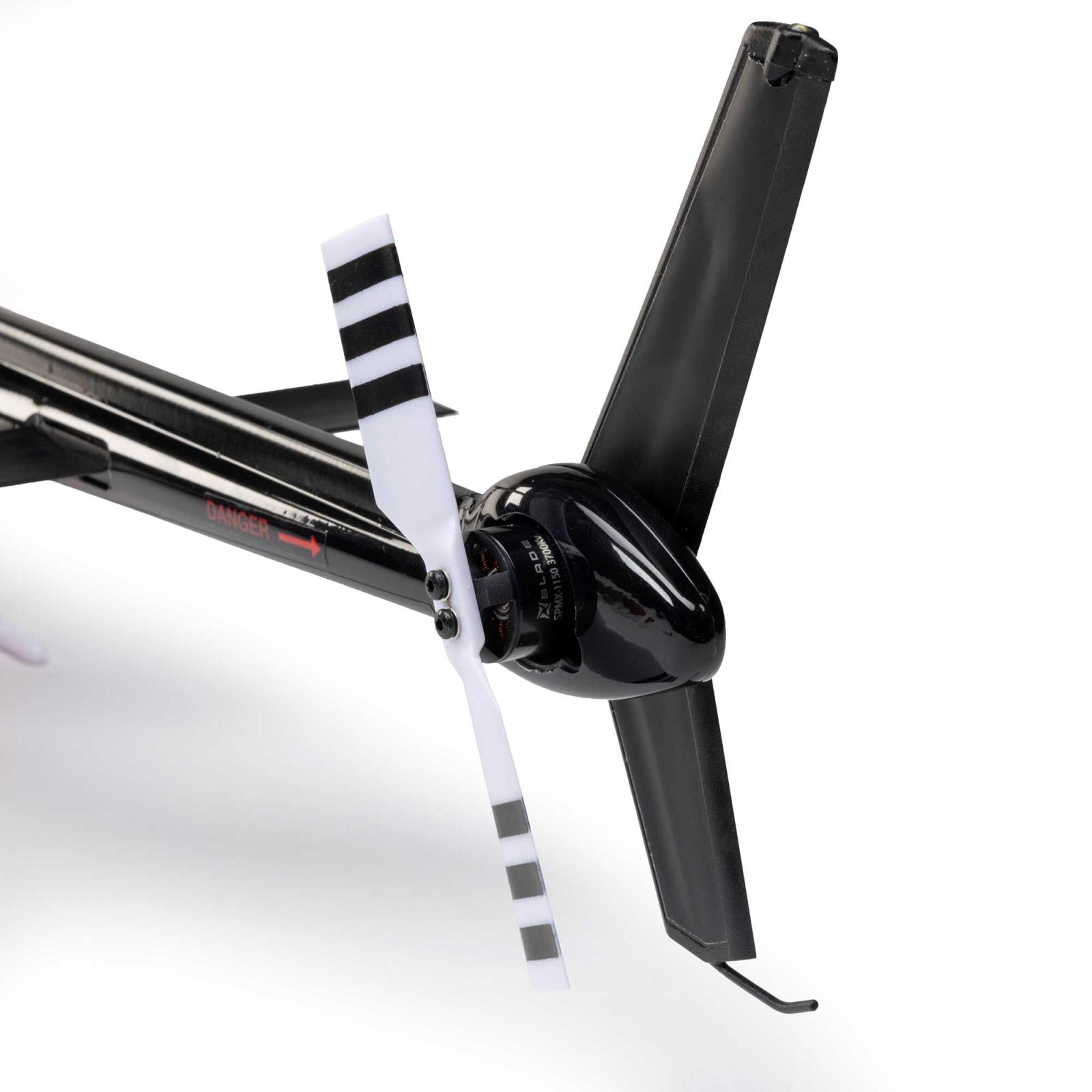

• Tail motor and rotor mounted on the left side, with main rotor blades rotating in the scale direction.
• Factory-installed digital swashplate servos with metal gears and precise ball-joint connections.

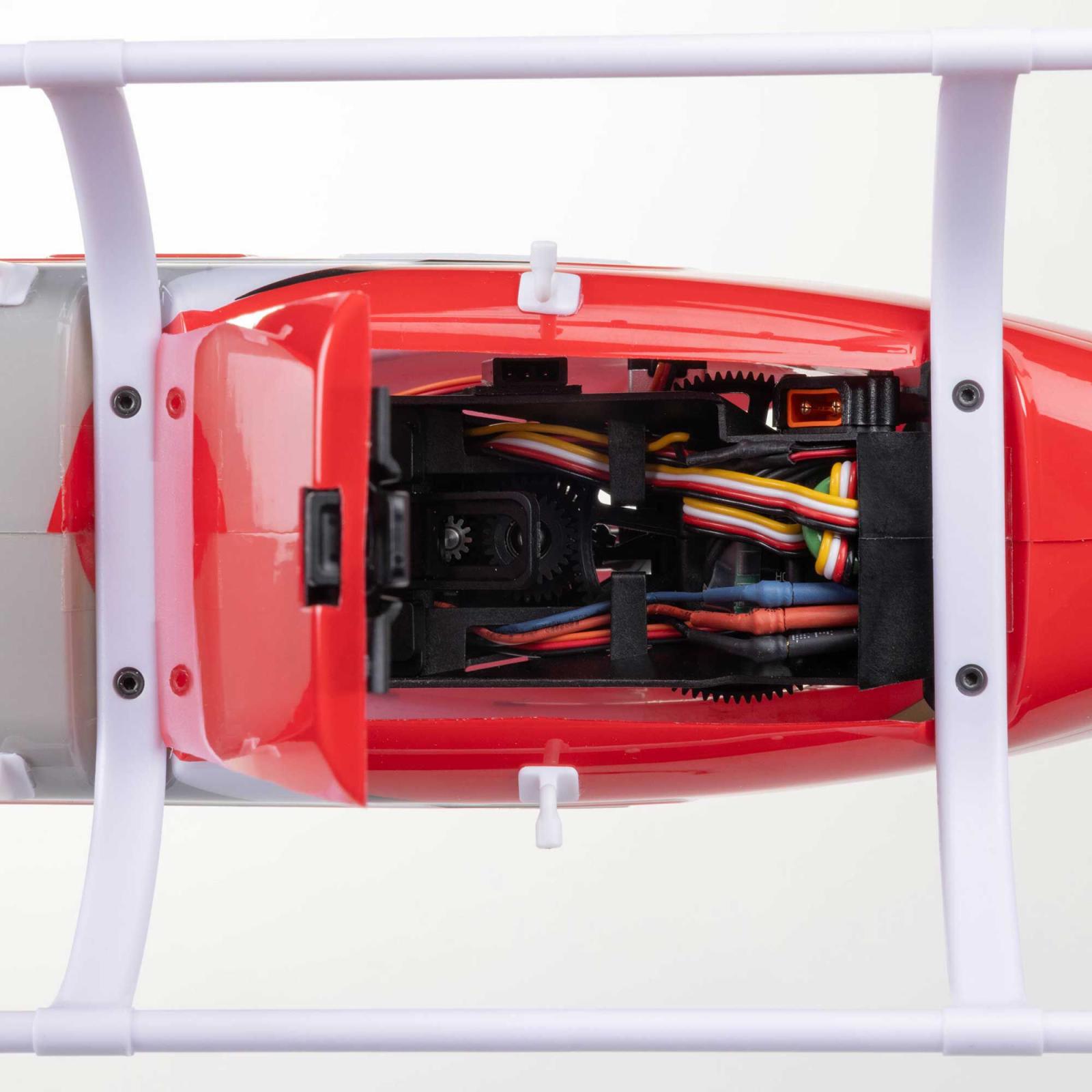

• Unique frame design with two-stage gear reduction and an easily removable battery mount.

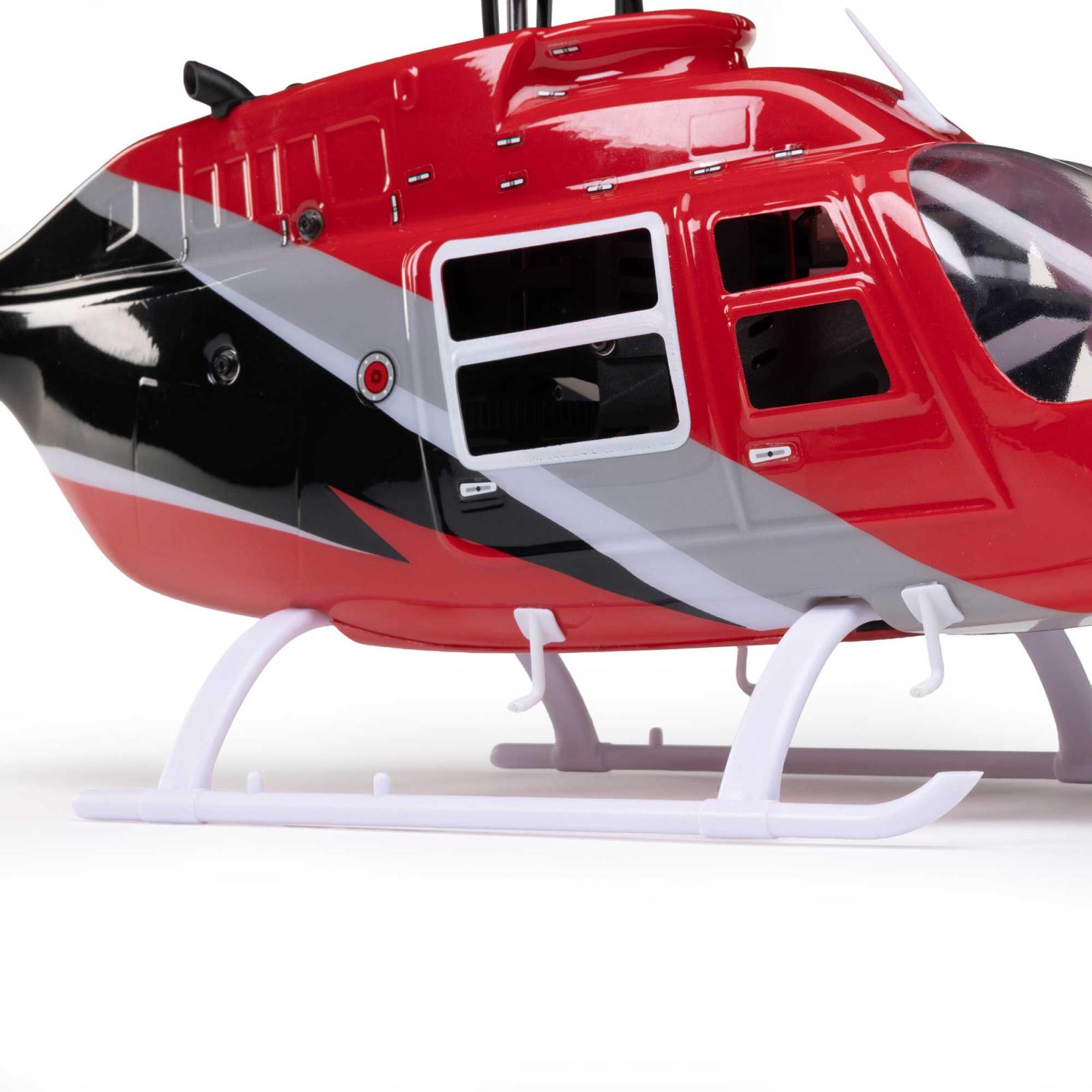

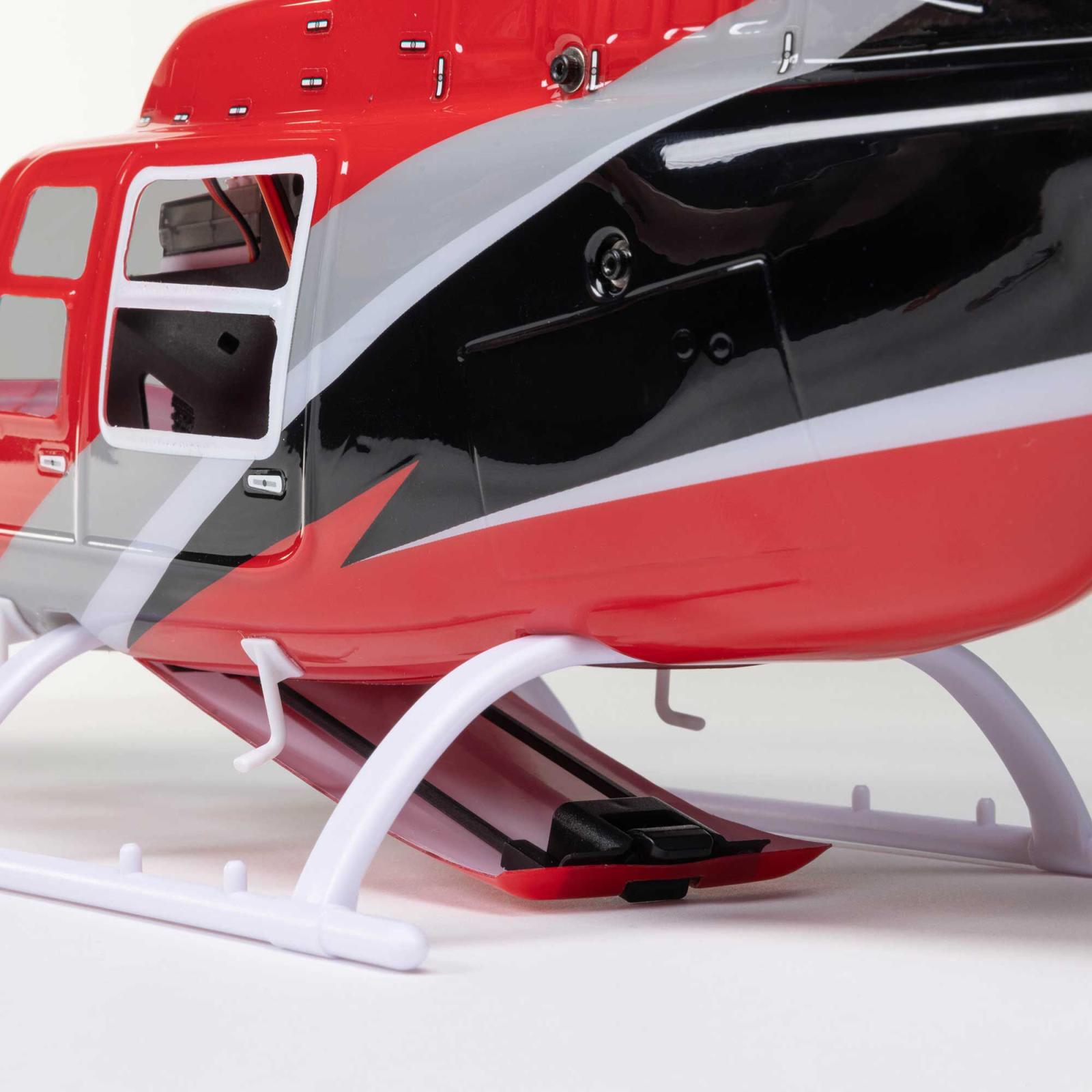

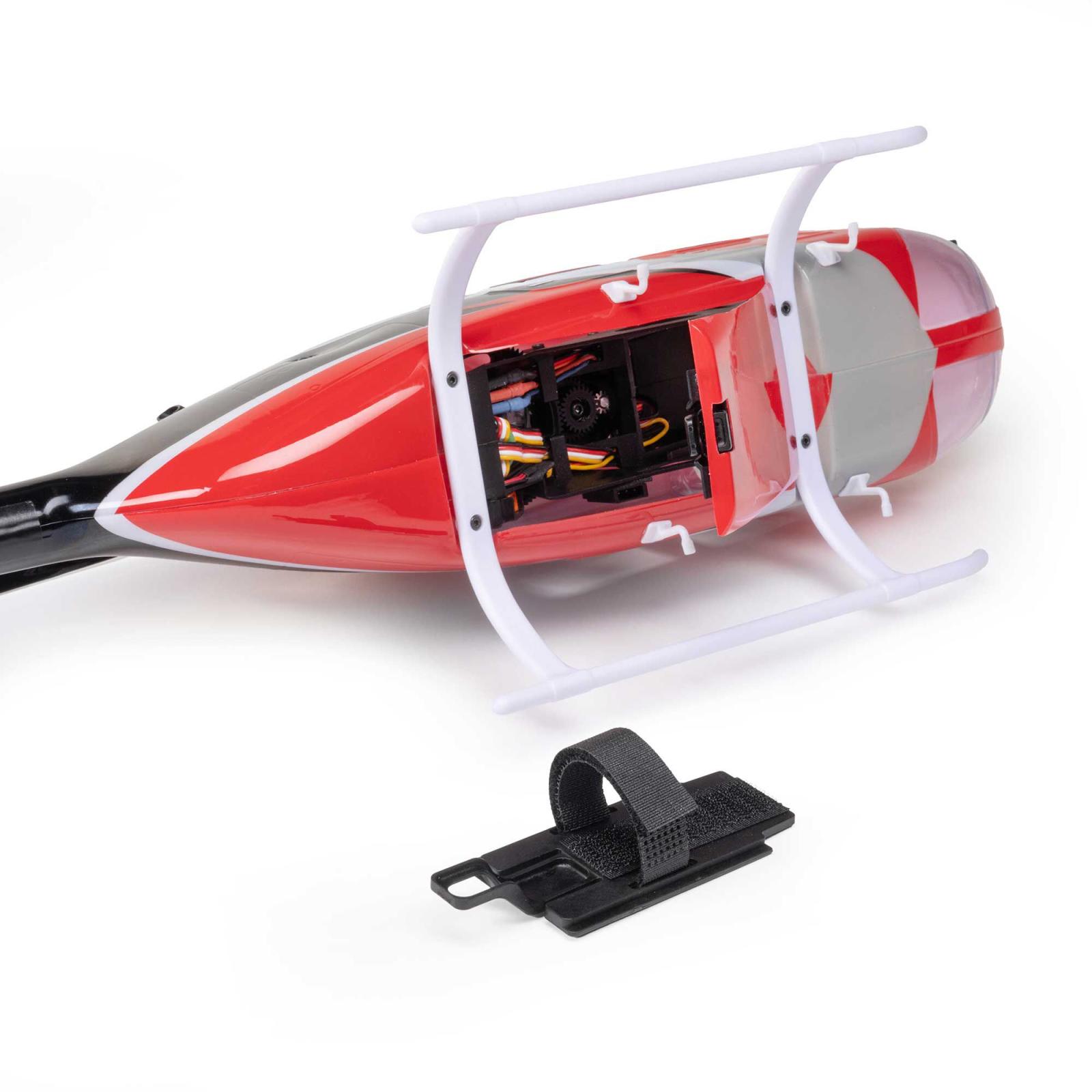

• Factory-painted and installed body with a hinged battery hatch for an enhanced scale look.
• Powerful and efficient brushless motors for the main and tail rotors.
• Extensive range of replacement parts available.
• Flight training for this model is available in the RealFlight RC flight simulator (included with the RTF Basic version; sold separately for the BNF Basic version).


Skill Level 1 - Beginner Pilots (No experience required)
Skill Level 1 airplanes and helicopters, like this one, are perfect for beginners and RC helicopter pilots with no prior experience, since you don’t need any flying experience at all!


Bind-N-Fly Equipment Advantage
Do you already own a Spektrum™ transmitter? With Bind-N-Fly (BNF) models, it’s never been easier to get airborne quickly while enjoying the best possible control. The models come equipped with a power system, servos, and a Spektrum 2.4 GHz receiver. All you have to do is bind the receiver to a compatible transmitter, complete any final assembly steps—and you’re ready to fly! (Transmitter, battery, and charger sold separately.)


Exclusive Technologies
The factory-installed and precisely tuned AR6250MHX flybarless flight controller is equipped with exclusive Spektrum AS3X and SAFE technologies. The updated SAFE technology provides angle limits and improved self-stabilization to prevent crashes in Normal mode. AS3X compensates for the effects of wind and turbulence without limiting flight or enabling self-stabilization in other flight modes, giving you complete freedom even in inverted flight and during aerobatic maneuvers. Plus, with the Panic Recovery function, you can stabilize the model at the push of a button if you ever lose control!


Smart Transmitter File
This helicopter is equipped with a receiver that contains a Smart Transmitter File (STF). This makes programming your preferred or upgraded Spektrum computer transmitter as easy as a few clicks. As soon as you bind your transmitter to an STF-compatible helicopter, all programming parameters are automatically downloaded from the receiver. Switch assignments, rates, Expo, telemetry, and voice prompts configure themselves automatically. No lengthy step-by-step instructions. No constant adjustments. Just the push of a button—and you’re in the air faster!


Telemetry-Capable
The Bell 206 Jet Ranger 235 CP is equipped with a Spektrum Smart ESC, a flight controller, and a receiver that transmit real-time information—such as the total voltage of the flight battery, motor RPM, and other telemetry data—to compatible Spektrum AirWare-compatible transmitters—whether using Smart or non-Smart batteries. This includes transmitters such as the DXS, DX6e and 8e, DX6 G2/G3 and 8 G2, DX9, NX6 through NX20, iX12 through iX20, and many others. Additionally, the DXS transmitter, included in the RTF Basic version, displays the approximate remaining battery level via multiple LEDs and emits audible warnings.


Learn to Fly with SAFE® Technology
If this is your first RC helicopter, Horizon Hobby’s exclusive SAFE (Sensor Assisted Flight Envelope) technology helps prevent oversteering and crashes. At the same time, it offers various flight modes that give you more control and options as your skills improve.


Normal (SAFE) Mode
In this flight mode, the helicopter is equipped with pitch and roll angle limits to prevent oversteering, which could lead to loss of orientation and crashes. As soon as you release the control sticks, the helicopter automatically returns to a stable, level flight attitude. This allows you to sit back and relax while simply “steering” the helicopter through the sky without having to constantly focus on keeping it stable. This flight mode also makes takeoff and landing much easier!


Stunt/Idle Up 1 (AS3X) Mode
In this flight mode, there are no limits on pitch or roll angles, giving you full control! The rotor speed is higher and more constant than in Normal Mode, allowing you to fly upside down (inverted) and perform basic aerobatic maneuvers such as loops, rolls, and more.


Stunt/Idle Up 2 (AS3X) Mode
In this flight mode, there are no limits, and the rotor speed is even higher, allowing you to perform even more spectacular aerobatic maneuvers.


Panic Recovery Button
If you lose control of the helicopter while in Stunt or Idle-Up flight mode, simply press and hold the Panic Recovery button or switch to Normal mode and release the right control stick. SAFE technology automatically returns the helicopter to an upright and stable flight attitude!


Collective Pitch
The CP (Collective Pitch) main rotor mechanism enables precise control and offers a unique combination of hovering, scale flight, and aerobatics that cannot be achieved with FP (Fixed Pitch) mechanics.


Scale Authenticity
The powerful and efficient brushless main motor features a gear reduction system that is perfectly integrated into the fuselage and rotates the main rotor blades in the scale-accurate (counterclockwise) direction. The brushless tail motor is mounted on the left side and rotates the tail rotor in the scale-accurate (clockwise) direction. Both motors are connected to a factory-installed Spektrum Dual Smart ESC and are compatible with standard and affordable 3S 850mAh Smart LiPo batteries, as well as similar non-Smart LiPo batteries with an IC2® connector (or a compatible IC2 adapter).


Fully Assembled
The Bell 206 Jet Ranger 235 CP is 100% ready to fly and comes out of the box fully assembled, flight-tested, and ready for immediate use! Equipped with industry-leading Spektrum 2.4 GHz technology, the RTF Basic version comes pre-paired with the included DXS transmitter. Both versions can also be connected to most 6+ channel DSMX/DSM2-compatible transmitters that can be programmed for helicopters.


Proven Control

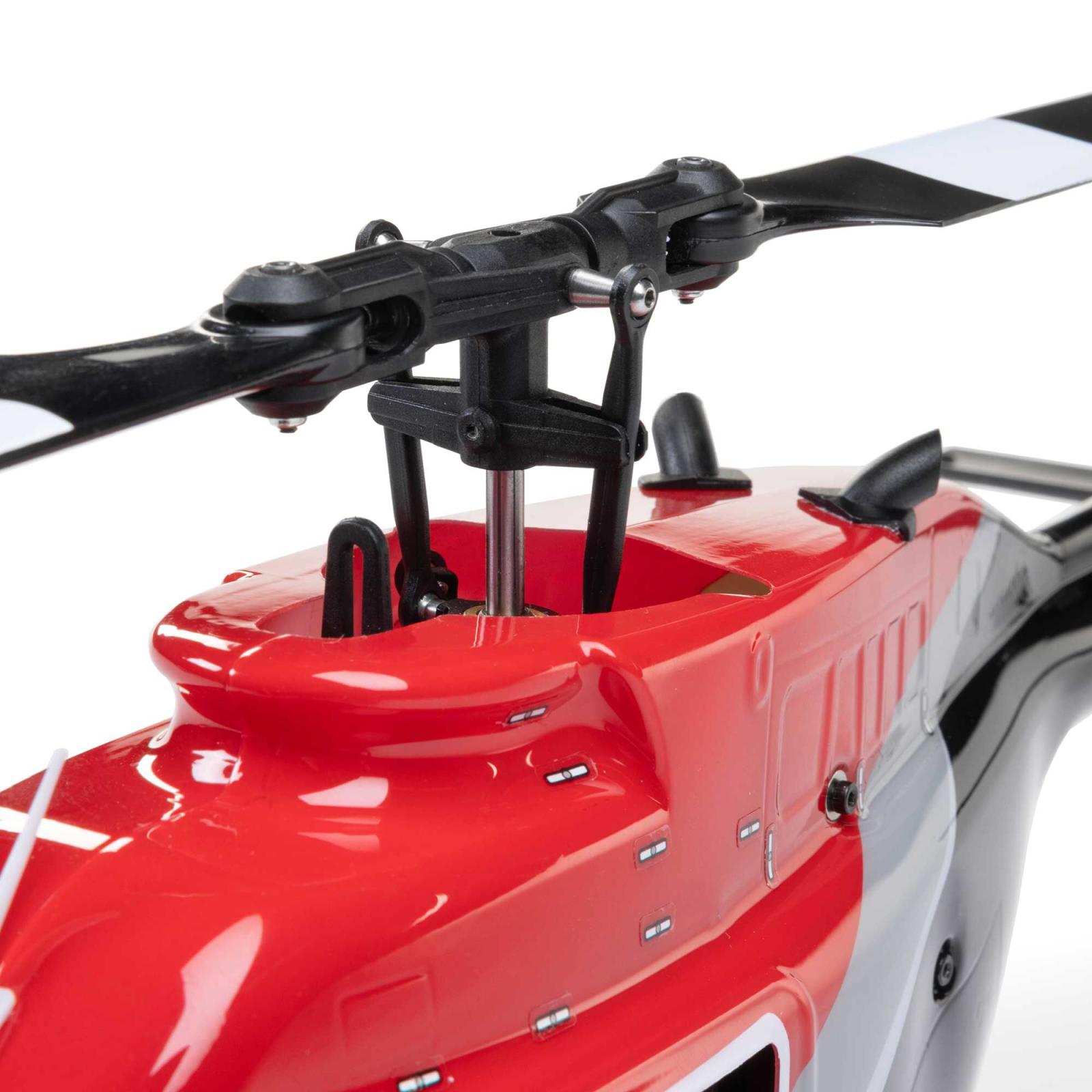

The Revolution 235 CP’s precise, digital, metal-driven swashplate servos, combined with its unique frame design and proven rotor head mechanics, ensure excellent control and performance.


Replacement Parts
If you damage the airframe or components and cannot repair them, you’ll find a wide selection of replacement parts available to you.

Technical Specifications

• Estimated assembly time: No assembly required
• Motor type: Brushless
• Tail rotor material: Plastic
• Remote control: Sold separately
• Pinion: 12T
• Tail Rotor Diameter: 3.95" (100 mm)
• Canopy/Body Material: PVC
• ESC Type: Dual Brushless ESC (SPMXAE1020C)
• Product Height: 6.6" (168 mm)
• Charger: Sold separately
• Technology: AS3X, SAFE, Smart Transmitter File, Smart
• Product Weight: Without Battery: 14.39 oz (408 g) / With Recommended 3S 11.1 V 850 mAh 30C LiPo Flight Battery: 16.83 oz (477 g)
• Main Frame Material: Plastic
• Gear Ratio: 11.28:1
• Assembly Level: Bind-N-Fly Basic
• Battery: Sold separately
• Receiver: Included
• Main Rotor Diameter: 21.85" (555 mm)
• Experience Level: Level 1
• Product Length: 22.36" (568 mm)
• Main Rotor Blade Length: 9.63" (245 mm)
• Servos: Included
• Product Width: 5" (127 mm)

Package Contents

• 1x Blade Bell 206 Jet Ranger 235 CP with:
• 1x Brushless tail motor (installed)
• 1x Brushless main motor (installed)
• 3x Spektrum digital servos with metal gears (installed)
• 1x Spektrum AR6250MHX flybarless flight controller and receiver with AS3X and SAFE
• 1x Spektrum Dual 15A main and 8A tail brushless Smart Lite ESC (installed)

Still needed

• 1x Spektrum DSMX/DSM2-compatible remote control with 6+ channels and full range (programmable for helicopters)
• 1x 3S 11.1V 850mAh LiPo battery with IC2® connector (or with a compatible IC2 adapter, sold separately)
• 1x Compatible LiPo charger (includes matching IC2 adapter/charging cable, e.g., SPMXCA320, sold separately)
