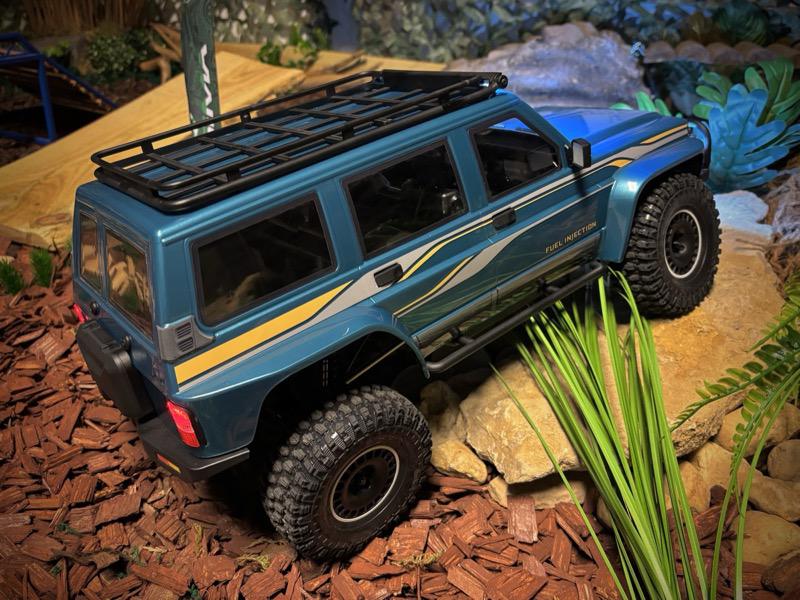

1:10 EP Crawler CR4.4 "PATROL"hellblau" RTR

Features

NEW! Newly developed "Low Center of Gravity" chassis
NEW! Innovative "Trail Turn" function
NEW! "Low Center of Gravity" gearbox
NEW! Revised servo protection function via steering damper
NEW! 10-channel remote control and 2-in-1 receiver/light unit
NEW! Separate waterproof Hobbywing speed controller

The completely redesigned tub-like chassis offers many advantages! All electronic components are freely accessible, which is absolutely essential with so much built-in technology! Thanks to the extremely flat "LCG" chassis and the matching gearbox, the center of gravity is shifted downwards, which is particularly helpful with high body concepts. The battery box is centered and can be perfectly adapted to all 2-3S Lipo and 6-7 cell NiMH batteries thanks to the Velcro fastener and adjustable holder. The 10-channel remote control is necessary to control all the technical features. The 2-in-1 receiver/light unit and the speed controller are kept separate to keep all options open for future optimizations/tuning measures.

"TRAIL TURN" FUNCTION

Innovative TRAIL TURN function (patented), which locks a single wheel on the rear axle and thus enables a tighter turning circle. By pressing the CH4 button, the rear differential is automatically unlocked and the "Trail Turn" servo at the rear of the vehicle now reacts to the steering movement and locks the inner rear wheel by means of the installed brake discs.

"LCG" CHASSIS FEATURES
LCG chassis and gearbox design for maximum traction on any slope and extreme lean angles.

Adjustable battery box
CHASSIS & BODYWORK
Adjustable aluminum oil pressure shock absorbers
Lockable front & rear differentials (independent of each other via the transmitter)
2-speed gearbox (switchable via the transmitter)
Steering shock absorbers as servo protection function
Fully functional LED vehicle lighting (switchable via transmitter)
Realistically designed interior with many details
1.2mm PC body with clear windows

DRIVE
All gears made of steel, main gear made of plastic
Completely ball-bearing mounted
Steel U-joints on the front axle
Portal axles on front and rear axle
Ultra-grippy 2.2" competition tires
Reduction ratio 14T-M0.6 (standard): 70.3@low speed / 30.2@high speed
Optional gear ratios: 12T = 81.9@LS & 35.2HS / 13T = 75.7@LS & 32.5@HS / 15T = 65.6@LS & 28.2@HS

ELECTRONICS
25kg "High-Torque" digital steering servo with metal gears (25T)
550 32T brushed motor with 14T M0.6 pinion gear
WP-1060 Hobbywing speed controller (waterproof; 2-3S LiPo-capable; 6V/3A; 60/80A)
25kg "Trail Turn" digital servo with metal gears (25T)
3* mini servos 17g/0.9kg for 2-speed gearbox and differential shifting

REMOTE CONTROL
2.4GHz 10-channel remote control (operation with 2S TX LiPo or 4* AA Mignon)
10-channel receiver unit with separate light unit
Motor brake adjustable via transmitter (CH5)
2-speed gearbox switchable via transmitter (CH8)
Differential locks switchable via transmitter (CH3&CH4)
Lighting system controllable via transmitter (CH7)

Technical data

• Wheelbase: 325mm
• Track width: 267mm
• Approach angle: 58°
• Descent angle: 52°
• Steering angle: 40°
• Ground clearance: 65mm
• Wheel diameter/width: 116/42mm
• Dimensions (L/W/H): 521x247x267mm
• Weight (without bat.): 3100g

Scope of delivery

• 1x 1:10 PATROL Crawler
• 1x 2.4GHz remote control
• 1x sticker sheet
• 1x instruction manual

Also required

• 1x 2/3S LiPo or 7.2V/8.4V NiMH Race Pack
• 1x suitable charger for the vehicle battery
• 4x AA Mignon or 2S TX LiPo batteries for the remote control
