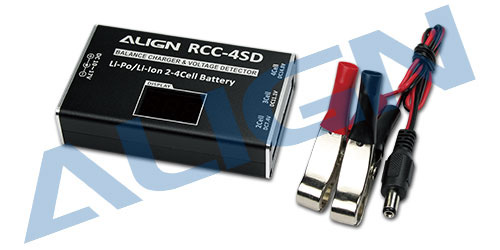

RCC-4SD Balance Charger

1. Suitable for DC 10V~17V power input.
2. Apply to 3.7V 2-4 cell Li-polymer/Li-ion batteries.
3. Can be used as battery detector to detect 2~4 cell battery defects, shorts or others.
4. Can be used as portable battery charger to charge 3S or 4S battery.
5. Balance charging is good to prevent the situation of over-charging or under-charging for a single cell.
6. The auto-detected function of low voltage for power storage.
7. Reverse polarity protection and short circuit protection.

Specifications

Input Voltage: DC 10~17V(50/60Hz)
Output Voltage: 2cell DC 7.4V / 3cell DC 11.1V / 4cell DC 14.8V
Supported Battery Type: Li-polymer / Li-ion
Charging Method: CC/CV
Charging Current: 1500mAh
Size: 80.5x50x20mm
Weight: Approx. 70g

Content

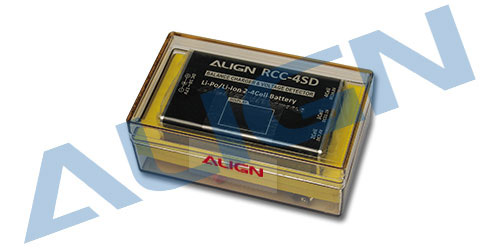

• 1x RCC-4SD Balance Charger
• 1x DC Power cord
