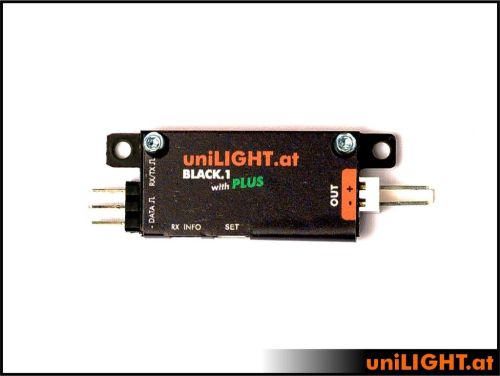

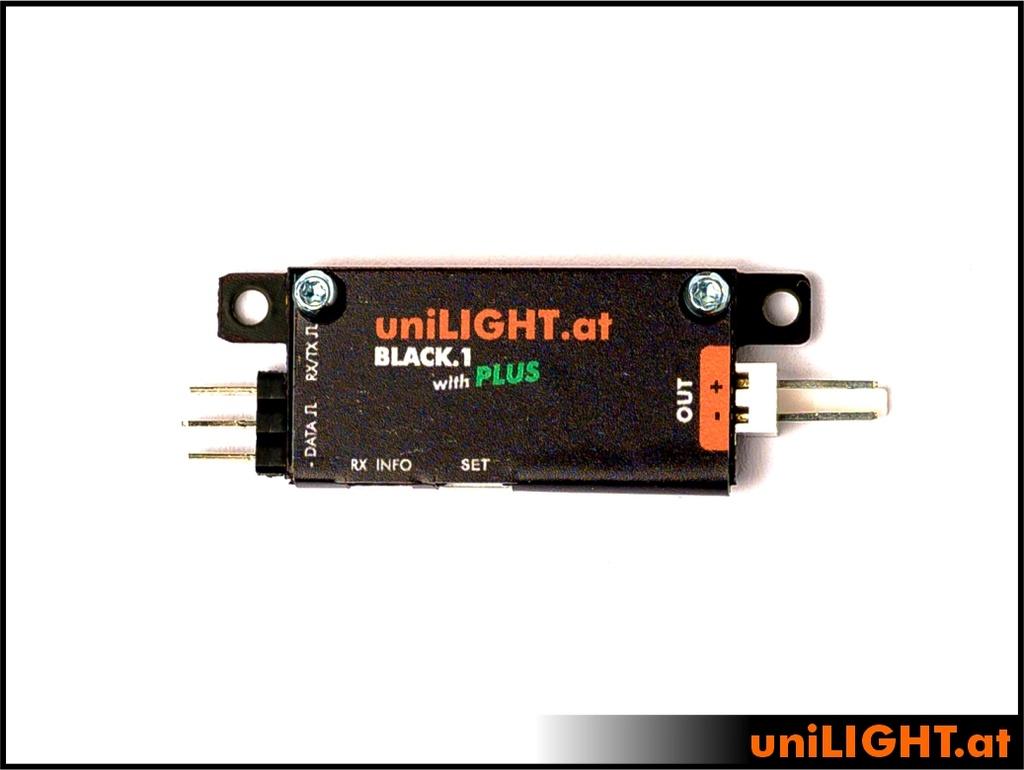

uniLIGHT 1-Kanal, BLACK.1 +

The latest generation of lighting control: BLACK.1 PLUS

Our 1-channel control module Black.1+ is the small entry-level version of the uniLIGHT system, now with the uniLIGHTPLUS interface and configuration via the uniLIGHTDESK. It is easy to use and delivers fast results for all model areas. However, the main application is the use of an ACL or BEACON light or even just switchable headlights.

New features of the PLUS series

Configuration of classic operation and user-defined light patterns can be set

Software compatible with uniLIGHTDESK

Dynamics More beautiful, faster and more sharply defined lighting effects with 32-bit depth

Safety Basic short-circuit protection of the outputs, undervoltage and temperature protection possible

Master-slave principle No switch required in the load circuit, only activated by the remote control

Special functions Soft switching transition, navigation+flash sport function, minimum and maximum level

Technical data

• Control side receiver 3.6-9.6V
• approx. 6g without cable
• Dimensions 45x16x5mm
• Light signals 1 channel with 6A to 16V
• Total load up to 10A short term
• Galvanically isolated system
• 14+2 classic light scheme
• 2+1 user-defined light scheme

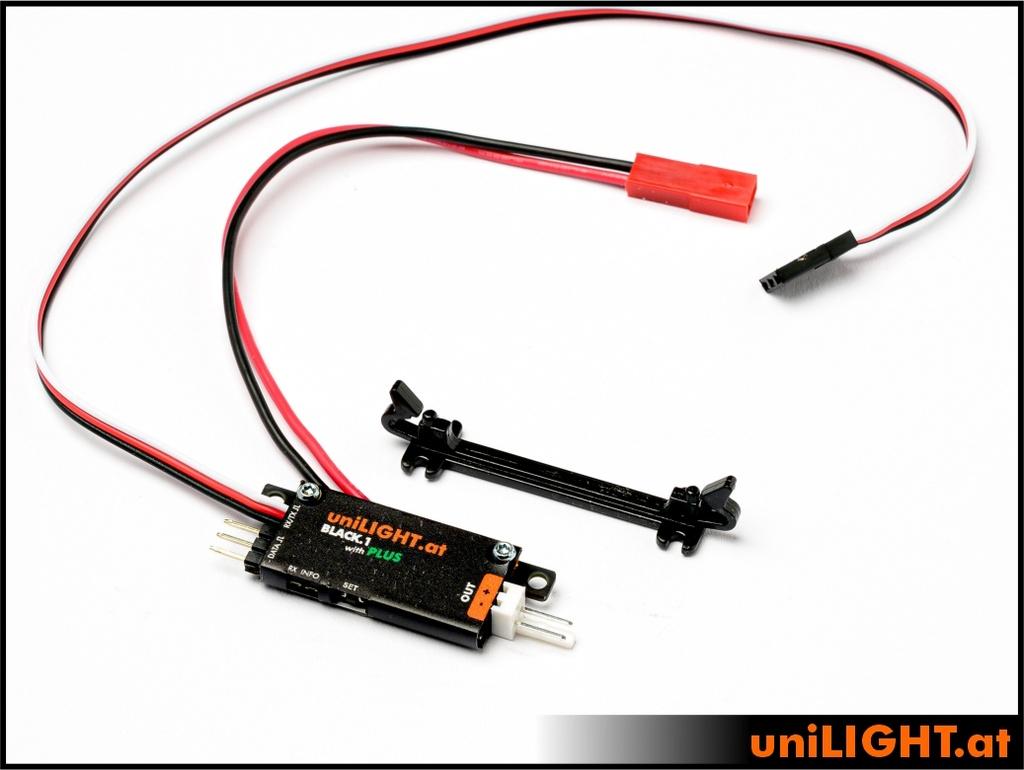

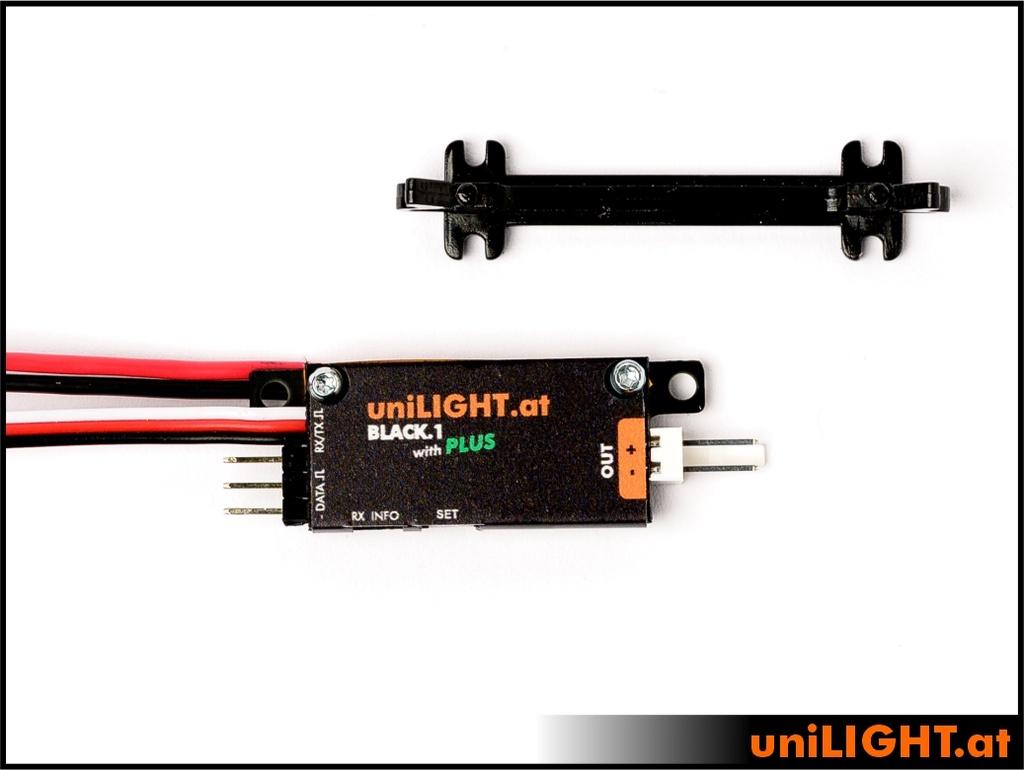

Scope of delivery

• 1x uniLIGHT 1-channel, BLACK.1 +
• 1x mounting bracket and description
