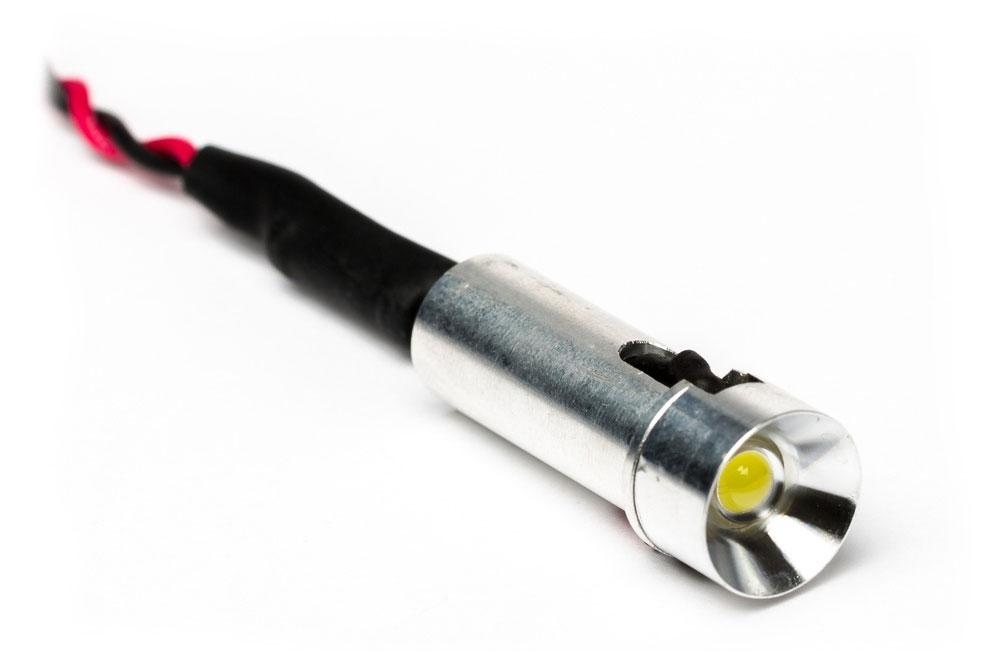

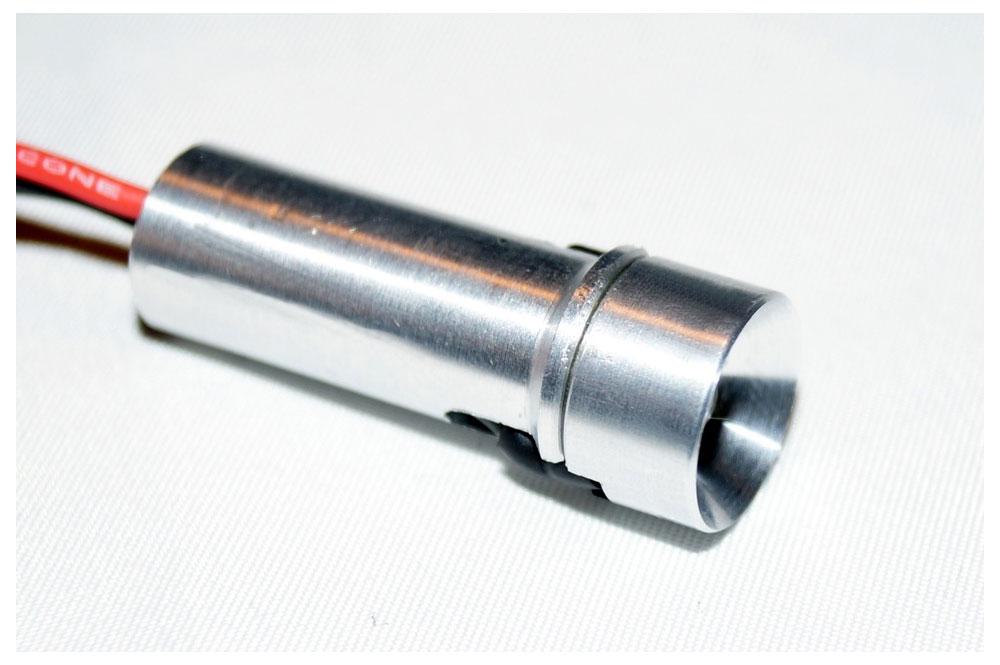

12mm Alu-Scheinwerfer, 4W weiss

Compact LED headlamp with CNC-milled aluminum reflector and high light output with minimal size.
With a diameter of just 12 mm and a mounting hole of 10 mm, this headlight is particularly suitable for small models where bright illumination is still required.
The short design enables installation even where space is limited.

Technical data

• Reference power: 4 W
• Operating voltage: 8 V (2S) or 12 V (3S with additional resistor)
• Current consumption: approx. 0.4 A
• Beam angle: approx. 110°
• Luminous intensity: approx. 110 lm (white), approx. 95 lm (warm white)
• Dimensions: Ø 12 × 32 mm
• Mounting hole: Ø 10 mm
• Weight: approx. 5 g (without cable)
• Cable length: 1 m silicone, 0.25 mm²
• Design: round
• Function: Headlight

Intended use

• Ideal for small to medium-sized models with visible headlight position
• Particularly suitable as a landing light or effect light for short missions

Scope of delivery

• 1× Compact spotlight 12 mm
• 1× Connection cable (1 m, pre-assembled)

Installation instructions

• Installation via a mounting hole with a diameter of 10 mm
• An additional series resistor must be used for 3S operation
• Operation without additional cooling only recommended for short periods (5-10 minutes)
• Improved air cooling is required for continuous operation

Warning notes

• The LED light is extremely bright - never look directly into the active LED
• Light can become very hot - always ensure sufficient cooling
• Use only in a model-specific frame
