HELISPORT Medium Beleuchtungsset

Powerful lighting set for sports helicopters from 500 size.

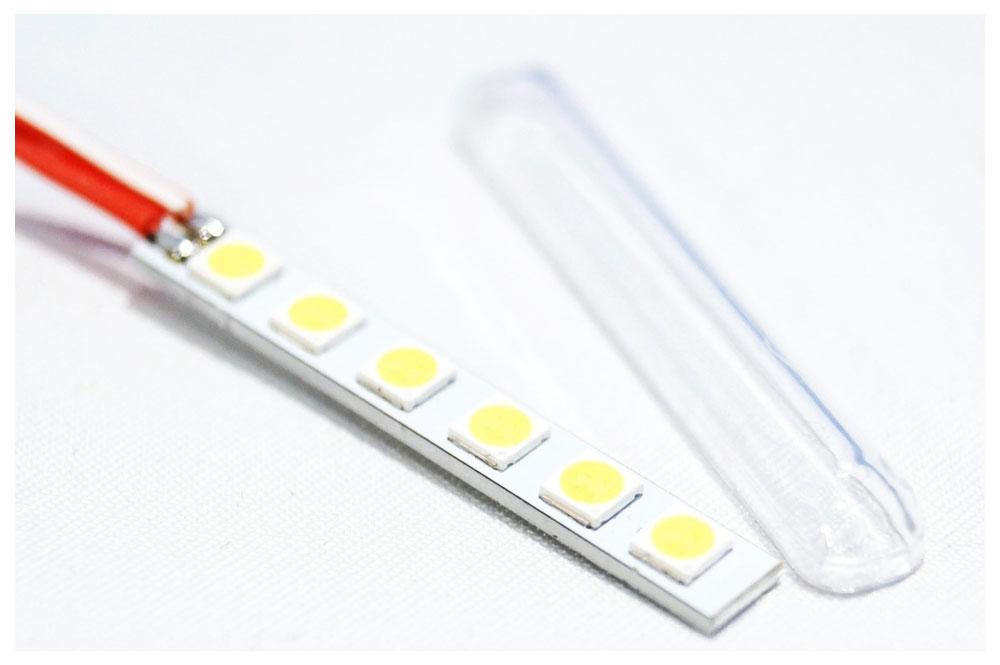

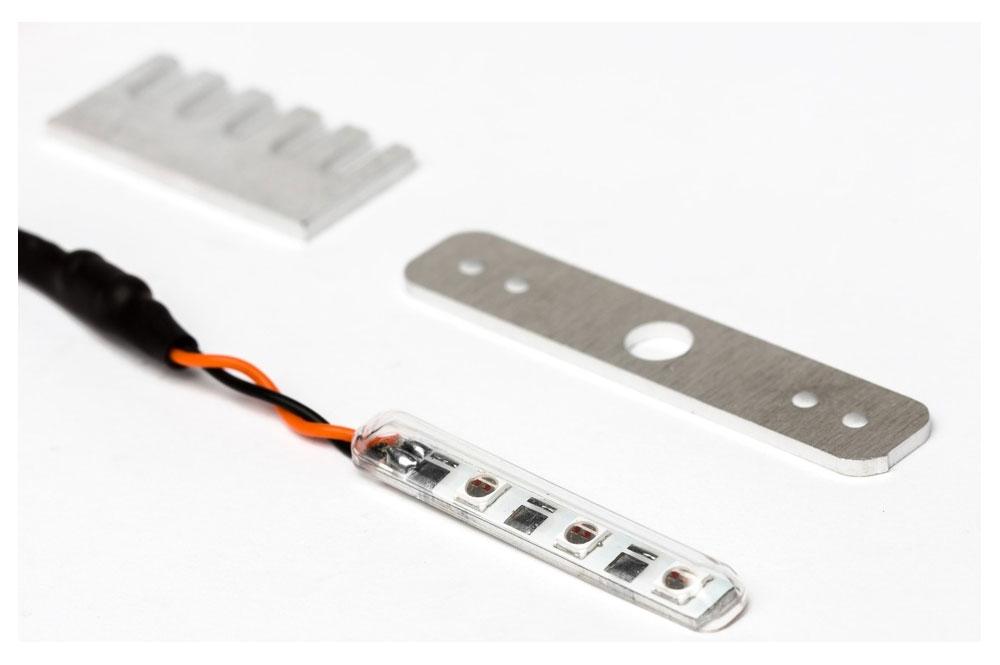

The set contains three bright 5 mm light bars in RED, GREEN and WHITE for mounting on skids, chassis or tail tube.

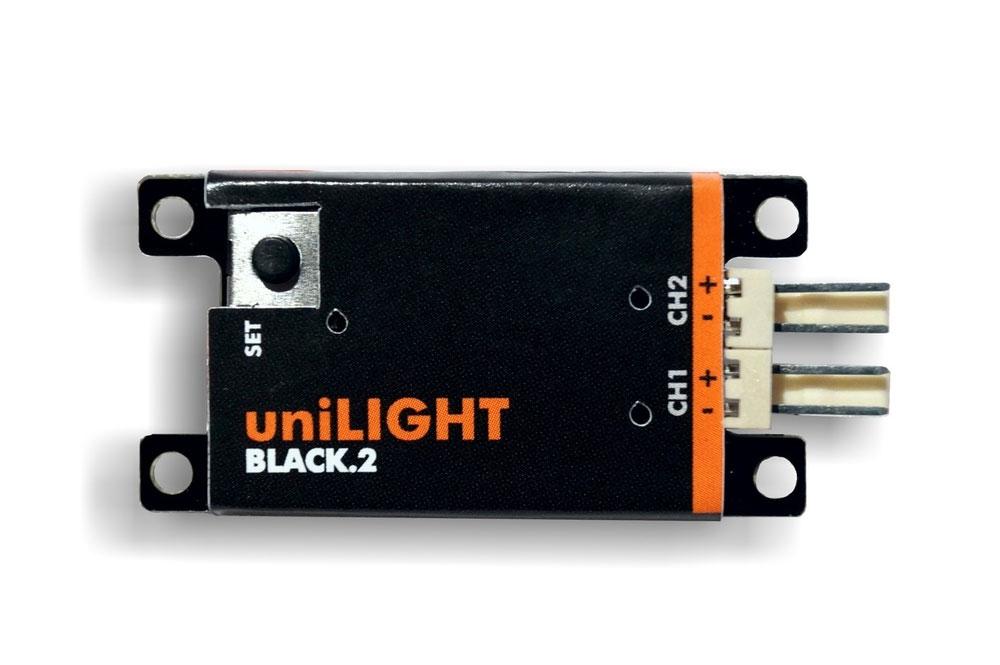

The included 2-channel controller enables various operating modes, including continuous light and flash functions.
Ideal for improved visibility and orientation - both during the day and at dusk.

Technical data

• Suitable for: Helicopters from 500 size
• Operating voltage: 2S Lipo (8 V)
• Control: 2-channel module
• Light outputs: 3× light bar 5 mm (red, green, white)
• Version: Generation.1

Scope of delivery

• 1× control module (2-channel)
• 1× light bar 5 mm RED
• 1× light bar 5 mm GREEN
• 1× light bar 5 mm WHITE
• 1× heat-conducting adhesive

Still required

• 2S Lipo battery (8 V) for power supply
• Optional: Extension with additional lighting components from the system

Installation instructions

All lights are ready for connection and are connected directly to the control module.
If possible, the beams should be glued to the rear tube or to the runners - ideally with the enclosed heat-conducting adhesive.
Installation is limited to laying or extending the cables.
Sufficient cooling is absolutely essential - e.g. through open mounting and air contact.

Warning notices

• The LED lights are extremely bright - never look directly into an active LED
• Ensure sufficient cooling during operation
• No liability for overheating due to improper use
