HELISCALE-Medium lighting set

Lighting set for small to medium-sized helicopters with fuselage cell, suitable for models of size 550 to approx. 700
The set includes complete basic equipment for scale lighting and is powered directly by a 2S Lipo (8 V).
All components are ready to use and ready for immediate connection.

Technical data

• Suitable for: Helicopters of size 550 to approx. 700
• Operating voltage: 2S Lipo (8 V)
• Control: 4-channel module
• Version: Generation.1

Scope of delivery

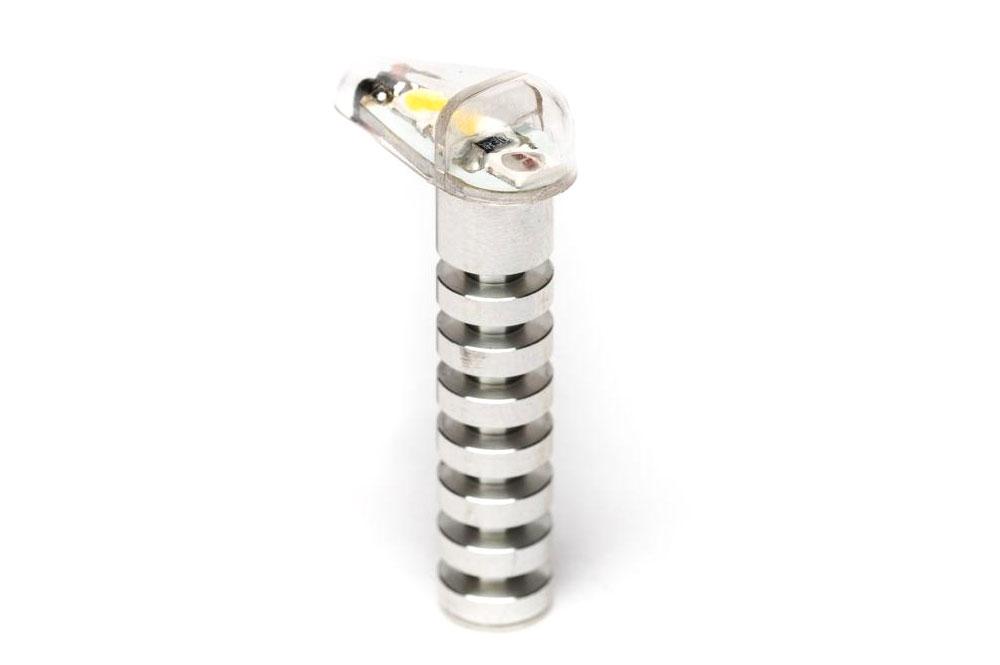

• 2× position lights 7 mm in RED/WHITE and GREEN/WHITE

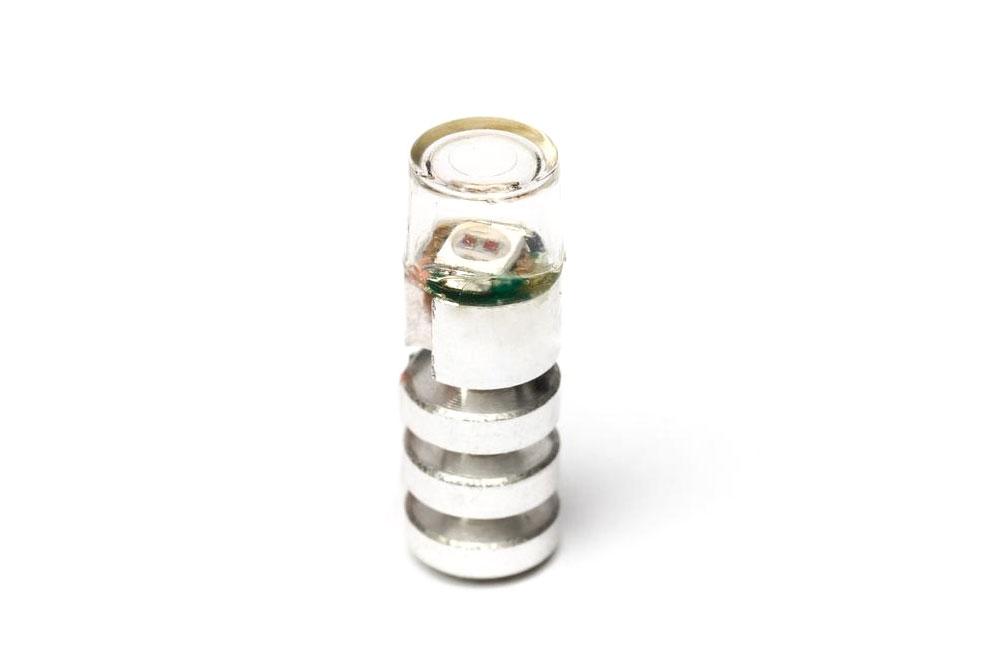

• 1× simple strobe light

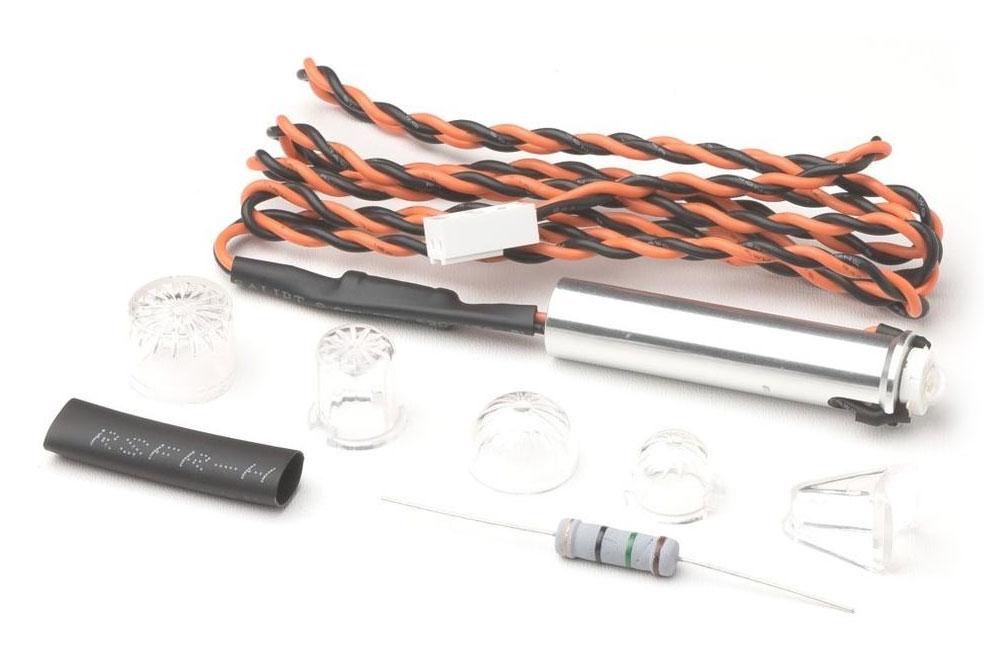

• 1× beacon light 10 mm RED

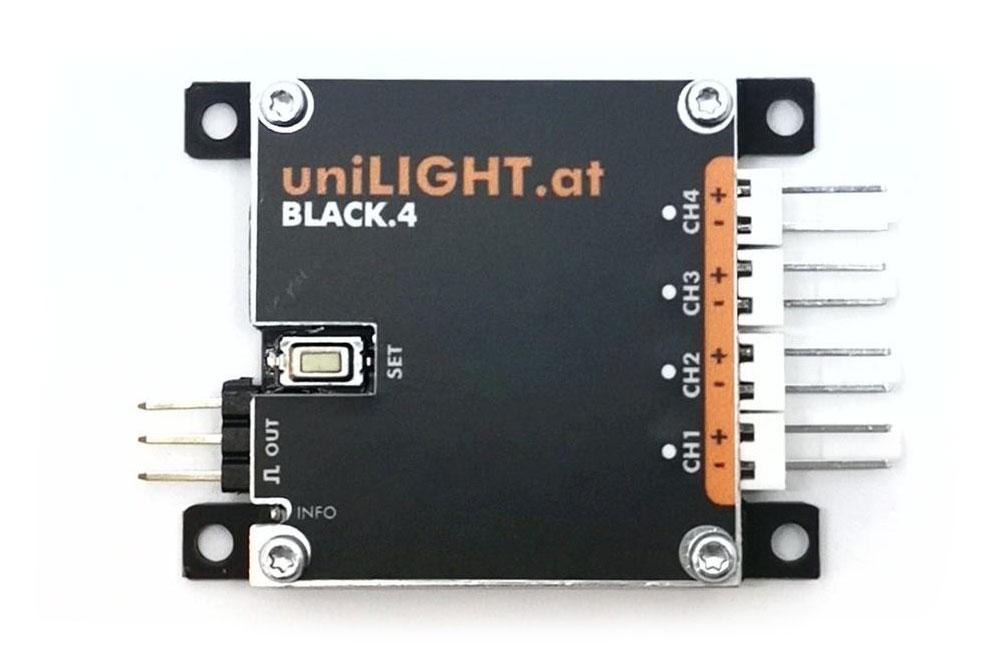

• 1× control unit (4-channel)

Also required

• 2S Lipo battery (8 V) for power supply
• Basic knowledge of installation and cable routing
• Optional: extension cable or additional light components

Installation instructions

All lights are ready to use and are simply connected to the control module.
Installation is limited to laying or extending the cables.
The system is modular and can be expanded with additional components from the range.

Warning notices

• The LED lights are extremely bright.
• Never look directly into an active LED!
