TB70 Super Combo V2 (MB)

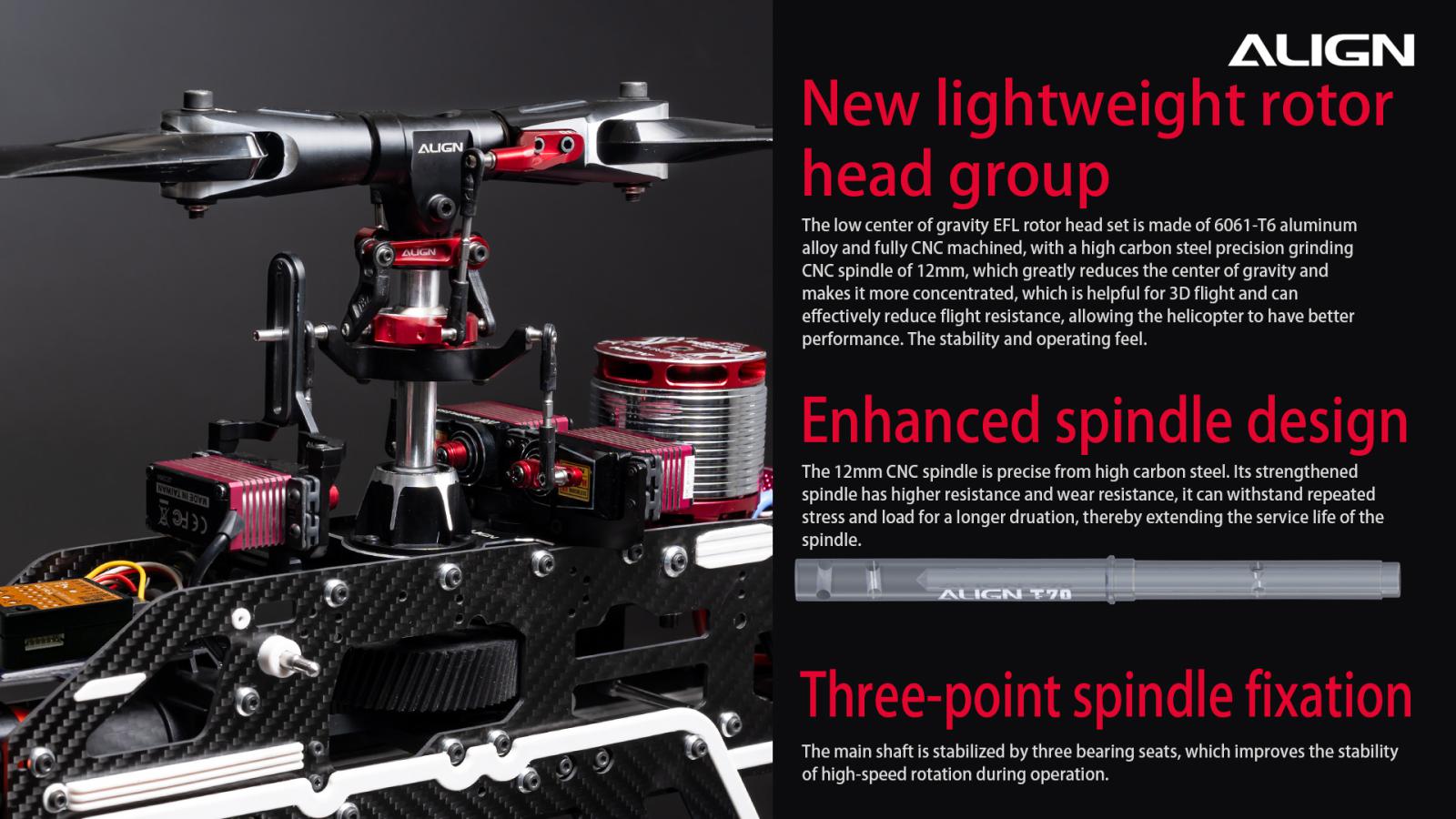

The TB70 V2 Super Combo is an advanced RC helicopter developed by Align, ideal for extreme 3D flight as well as demanding acrobatic and sport flying. This model is considered an evolution of the popular T-REX 700 series but has been completely redesigned to be lighter, more powerful, and quieter than its predecessors.

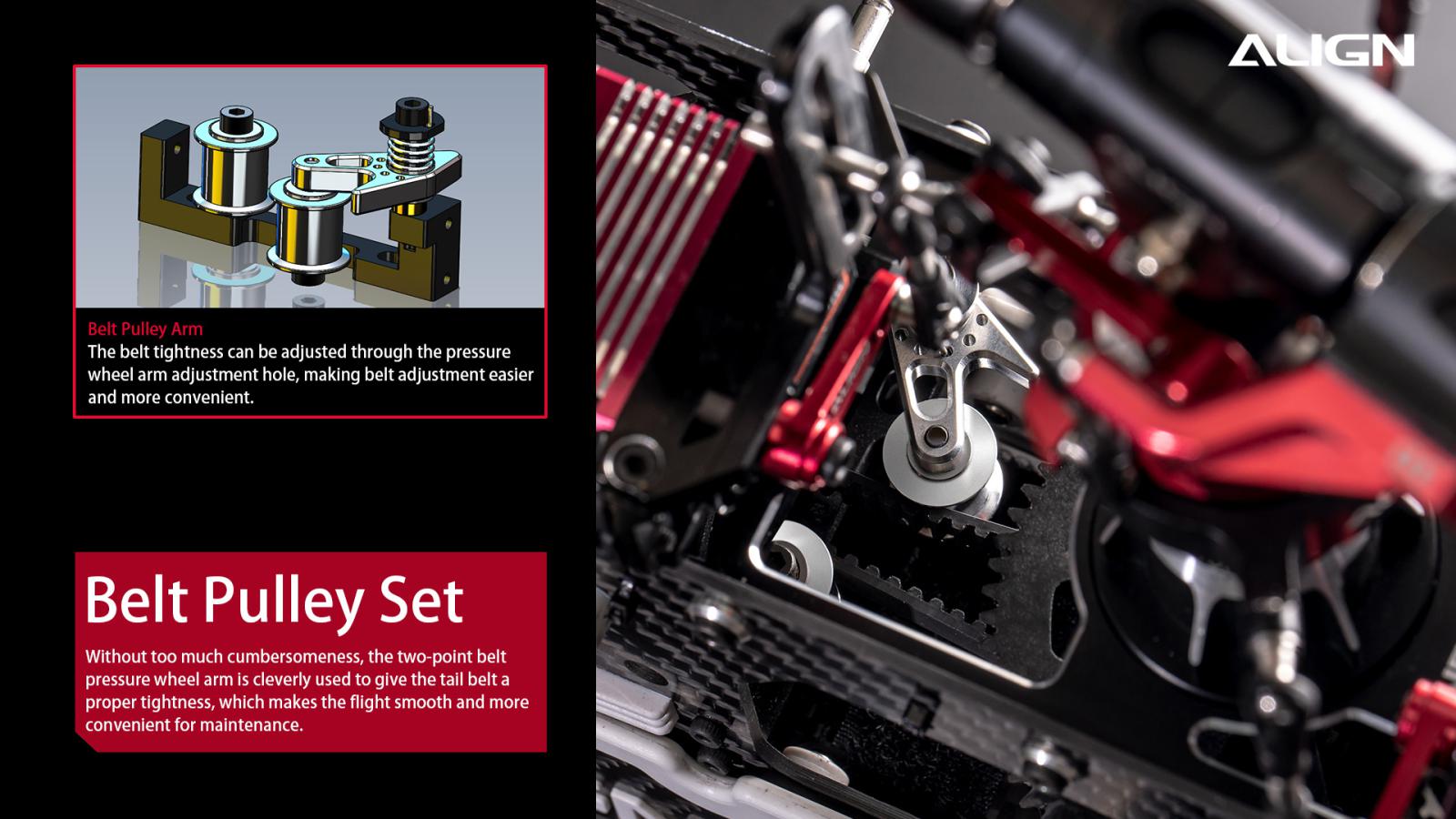

Transmission & Drive: Innovative belt-drive design for both the main and tail rotor (including a belt-driven tail rotor), combined with a new gear system concept. The tail boom requires no brace, saving weight.

Materials: Side frames made from composite-based material with patented embedding technology, resulting in a light yet strong frame with significantly reduced noise levels.

The MICROBEAST ULTRA (BXM76542) is a high-precision flybarless controller for RC helicopters, featuring state-of-the-art sensors and a powerful ARM processor. Supports all common radio systems and offers features such as telemetry, AttitudeControl, and bank switching for maximum flight enjoyment.

Specifications

• Length: 1356mm
• Height: 358mm
• Width: 187mm
• Main Blade Length: 650-730mm
• Main Rotor Diameter: 1542mm
• Tail Length: 105-115mm
• Tail Rotor Diameter: 279mm
• Motor Belt Pulley: 22T
• Belt Pulley: 50T
• Front Drive Main Shaft: 15T
• Main Drive Gear: 62T
• Autorotation Tail Drive Gear: 28T
• Tail Drive Gear: 23T
• Drive Gear Ratio: 9.38:1:5.0
• Max RPM(approx.): 2290RPM
• Flying Weight(With Battery): Approx. 4.9kg (ALIGN 12S 5200mAh)

Content

• 1x TB70 V2 Kit Set (assembly kit)
• 1x 22T Motor Belt Pulley
• 1x 700 Carbon Fiber Blades
• 1x 105mm 3K Carbon Fiber Tail Blades
• 1x 800MX Brushless Motor(570KV/4530)

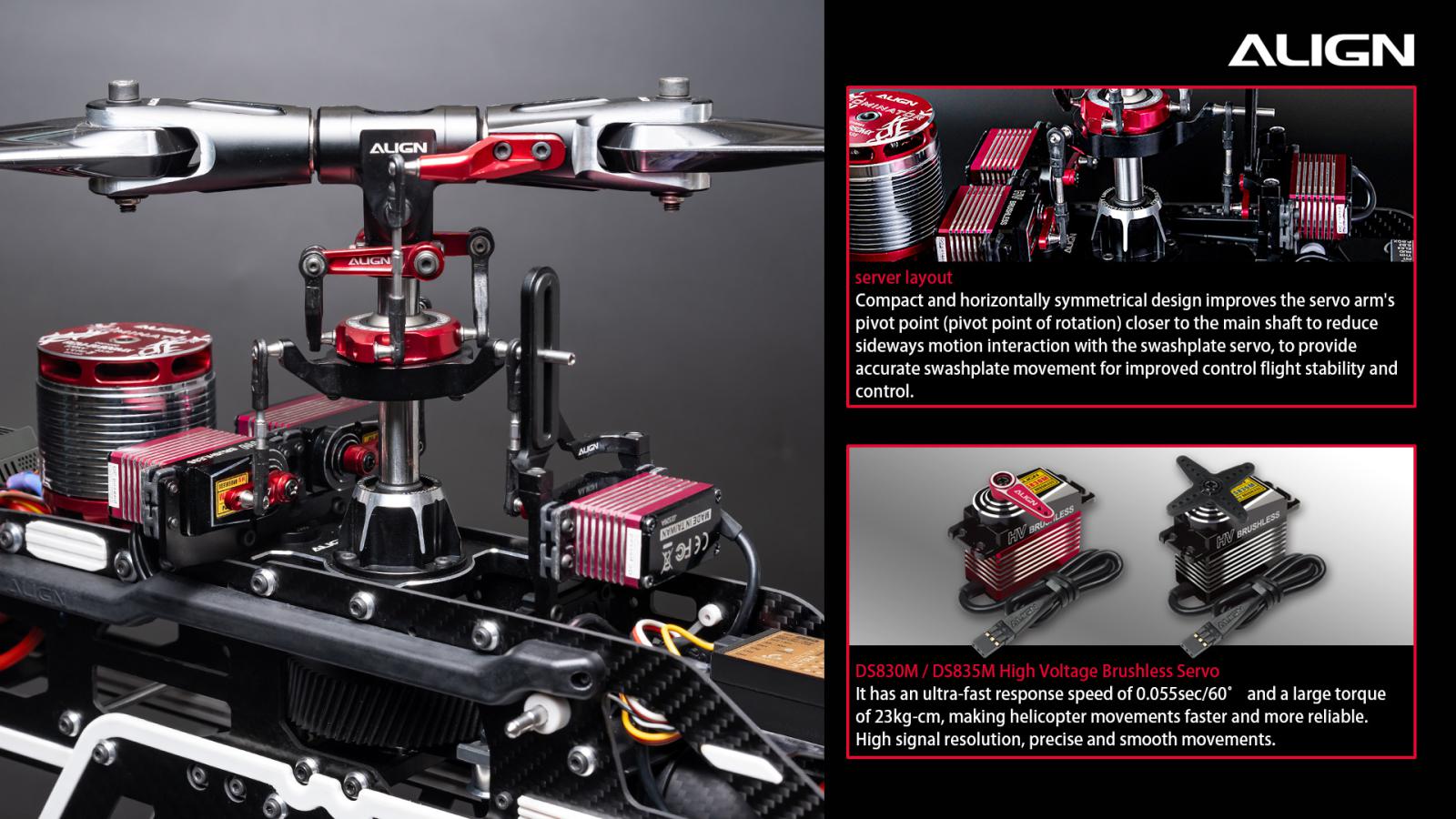

• 3x DS830M High Voltage Brushless Servo
• 1x DS835M High Voltage Brushless Servo
• 1x RCE-BL130A Brushless ESC
• 1x Microbeast Ultra Flybarless system

Required for assembly

• Transmitter (6-channel or more, helicopter system)
• Receiver (6-channel or more)
• Charger
• 2x 22.2V 6S 4000~5800mAh Li-Po Battery
• Digital Pitch Gauge
• Multi-function Tester
