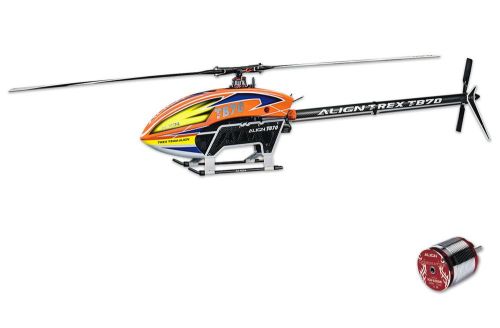

TB70 V2 KIT

The TB70 V2 Kit is a purpose-engineered, high-performance assembly kit for RC enthusiasts craving aggressive 3D, aerobatic, and sport flight. It features Align’s cutting‑edge belt‑drive transmission and lightweight, noise‑reducing composite side frames with proprietary embedding technology, paired with a sleek streamline canopy and enhanced mounting system for both reduced drag and improved handling.

Powered by the robust 800MX brushless motor (570KV) and delivering a lightweight yet sturdy build, this kit comes with premium 700mm main blades and 105mm 3K carbon tail blades. Designed for pilots seeking compact versatility and precision, it’s lighter, quieter, and stronger than its TREX 700 predecessors.

Specifications

• Length: 1356mm
• Height: 358mm
• Width: 187mm
• Main Blade Length: 650-730mm
• Main Rotor Diameter: 1542mm
• Tail Length: 105-115mm
• Tail Rotor Diameter: 279mm
• Motor Belt Pulley: 22T
• Belt Pulley: 50T
• Front Drive Main Shaft: 15T
• Main Drive Gear: 62T
• Autorotation Tail Drive Gear: 27T
• Tail Drive Gear: 23T
• Drive Gear Ratio: 9.38:1:4.83
• Max RPM(approx.): 2400RPM
• Frame Weight: Approx. 2.3kg

Content

• 1x TB70 Kit Set
• 1x 22T Motor Belt Pulley
• 1x 700 Carbon Fiber Blades
• 1x 105mm 3K Carbon Fiber Tail Blades

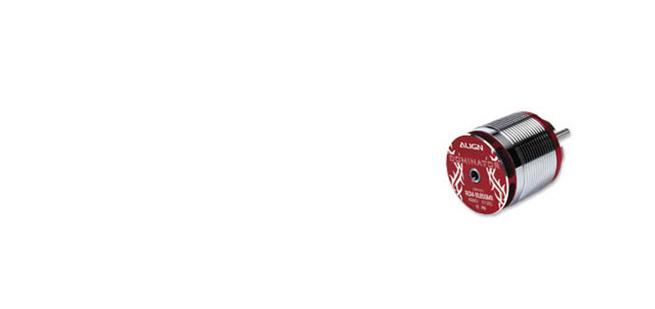

• 1x 800MX Brushless Motor(570KV/4530)

Required for assembly

• Transmitter (6-channel or more, helicopter system)
• Receiver (6-channel or more)
• Charger
• 2x 22.2V 6S 4000~5800mAh Li-Po Battery
• Digital Pitch Gauge
• Multi-function Tester
• Flybarless System
• 3x CCPM Brushless Servo
• 1x Rudder Brushless Servo
• 1x Brushless ESC
