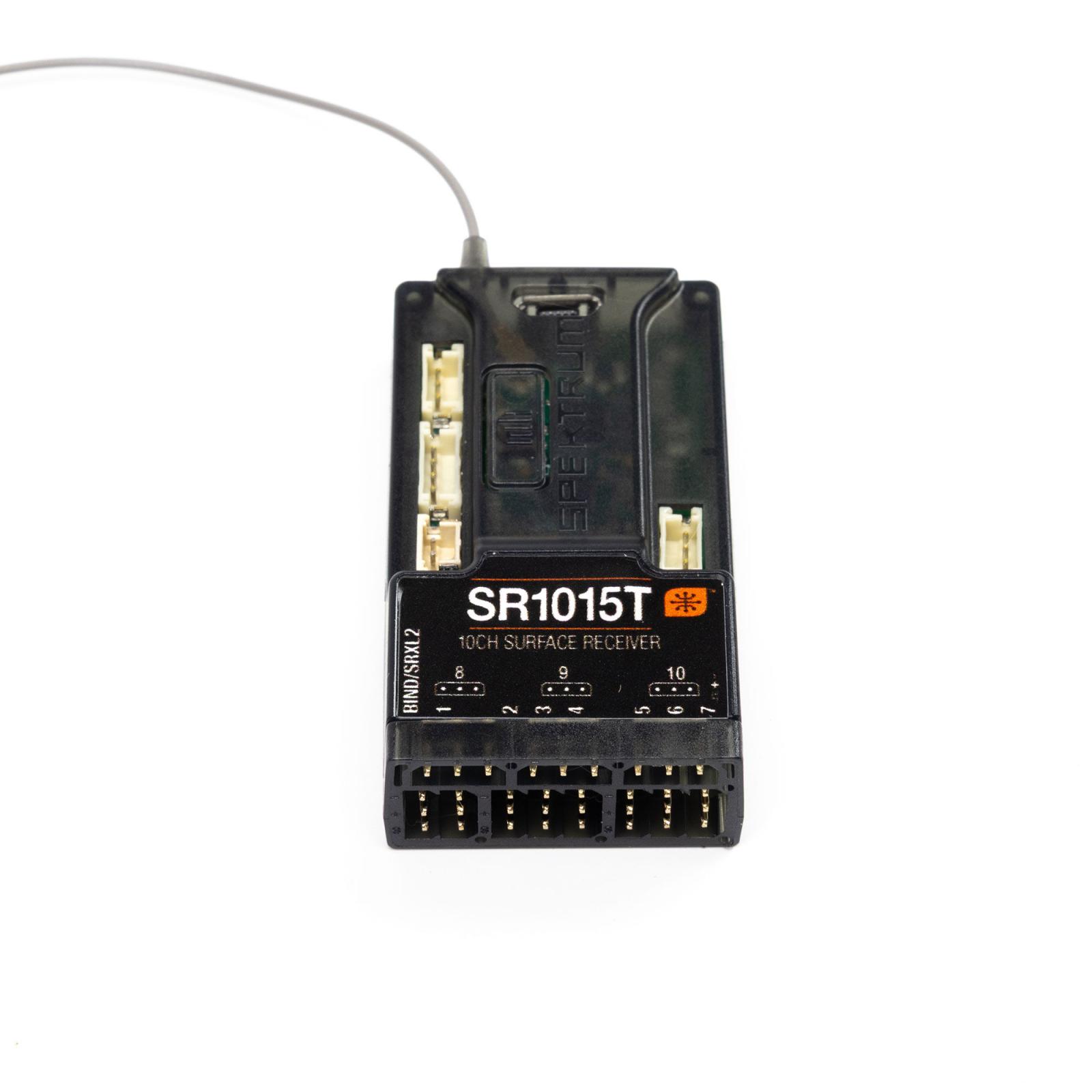

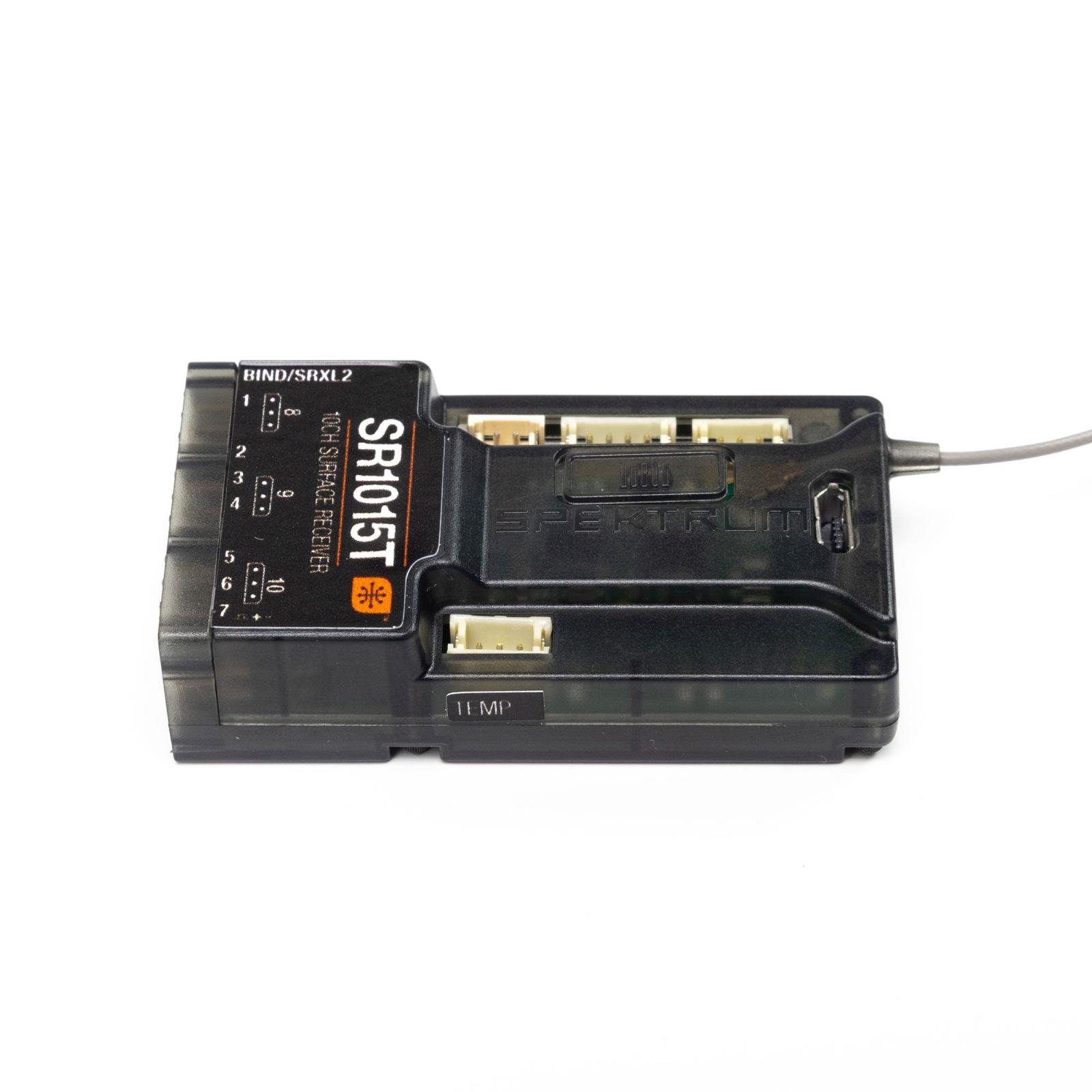

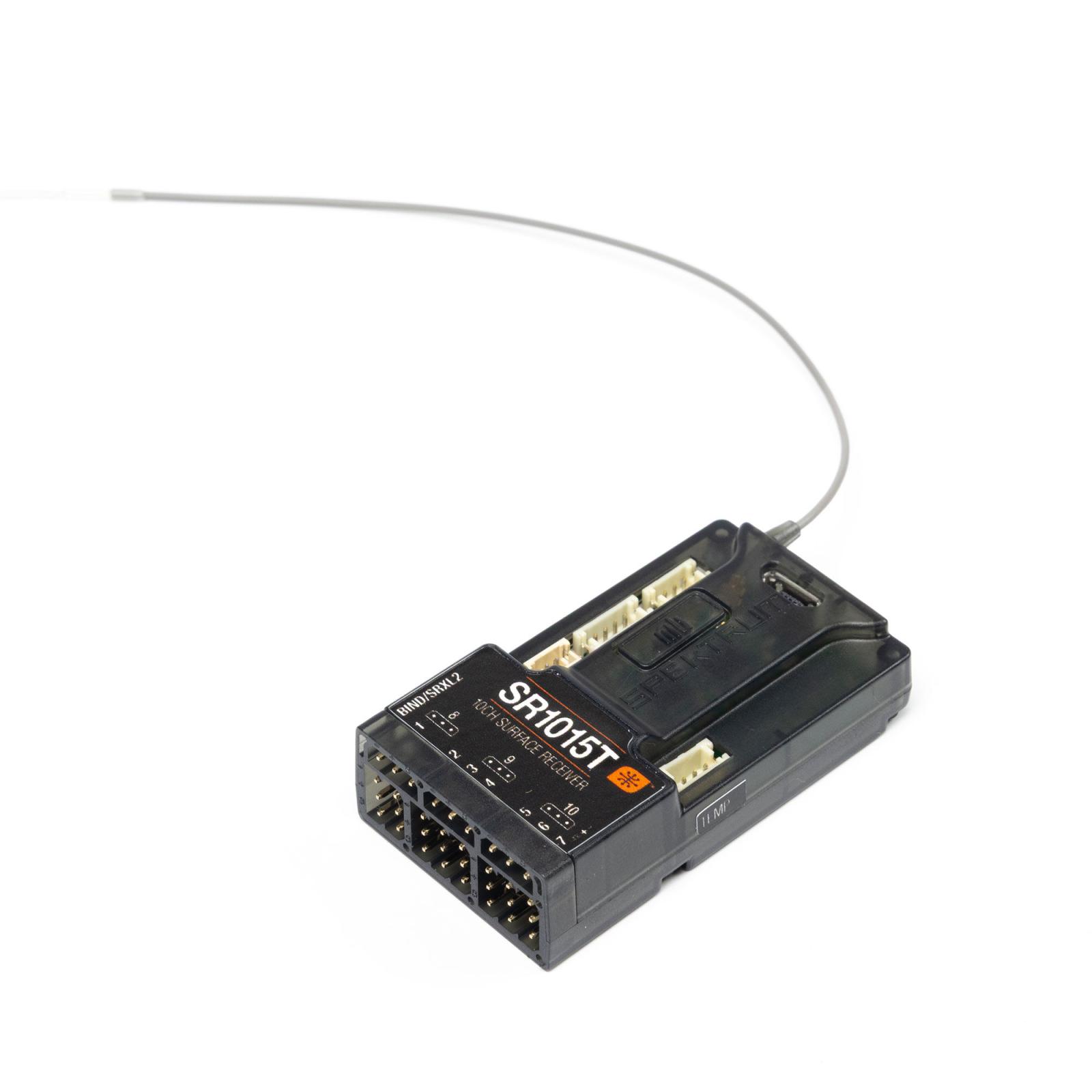

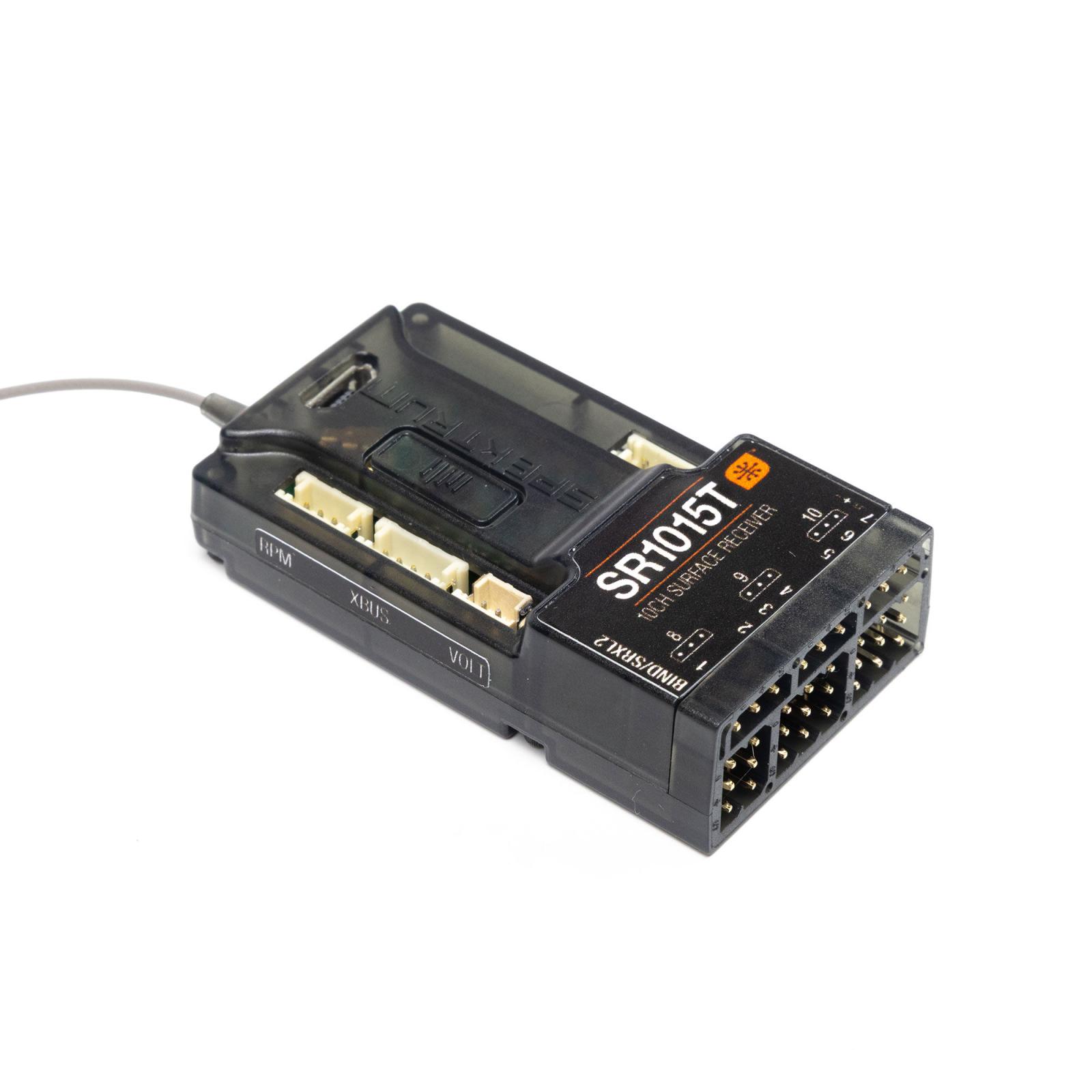

SR1015T 10-Channel DSMR+ Receiver

The Spektrum SR1015T receiver is compatible with DSMR and DSMR+ radio controls and expands the use of up to 10 channels. This gives you more options than ever before for your favorite crawler or basher. In addition to smart technology, the SR1015T also offers additional built-in telemetry ports that are compatible with Spektrum transmitters.

Spektrum SR1015T 10-Channel DSMR Receiver Overview

The Spektrum SR1015T surface receiver is compatible with DSMR and DSMR+ and allows the use of up to 10 channels. DSMR+ offers more channels than ever before for Spektrum fans in the surface range. Combined with a DSMR+ capable transmitter, drivers can unlock more options for their crawler or basher than ever before. The SR1015T is Smart Technology enabled and provides real-time telemetry data when used with Smart ESCs and Smart batteries. In addition to Smart Technology, the SR1015T has other built-in telemetry ports that are compatible with Spektrum radio controls.

Spektrum SR1015T 10-Channel DSMR+ Receiver Features

• 10-channel DSMR / DSMR+ surface receiver
• Waterproof
• Full-range telemetry functions in conjunction with the Spektrum company Smart-ESC
• Long antenna, ideal for vehicles with low ground clearance and more
• Compatible with all DSMR and DSMR+ surface remote controls
• Bind button, no bind plug required
• Lightweight, robust housing
• Side connection pins for easy and space-saving installation
• Micro USB port for firmware updates via the Spektrum PC programming application


Smart telemetry functions
The throttle port of the SR1015T receiver is equipped with Smart Throttle. This port automatically detects when a Smart Throttle-enabled electronic speed control (ESC) is connected and switches to throttle modes. In combination with Spektrum Smart LiPo batteries and IC connectors, battery data can be transferred from compatible Spektrum Smart batteries. If a conventional ESC or servo is connected to the throttle port of the SR1015T receiver, the connection works as normal as with a classic receiver.


10 channels
10 channels offer more flexibility and versatile control options for additional functions such as winches, lighting, overdrive, ESC functions, Dig and more.


Bind button
The top-mounted button on the SR1015T makes binding easier than ever before. Two binding sequences make the process even easier, as binding is possible both when switching on and after connecting the receiver's power supply.

Specifications

• Range: Full
• Product Length: 1.18" (30 mm)
• Application: Surface
• Product Height: 1.93" (49 mm)
• Product Weight: 0.63 oz (18 g)
• Failsafe: Yes
• Water repellent: Yes
• Telemetry: Yes
• Resolution: 2048
• Modulation: DSMR+ / DSMR
• Input Voltage: 3.5-9V
• Product Width: 0.59" (15 mm)
• Technology : DSMR Protocol, DSMR+
• Bind Method: Bind Button, Bind Plug
• Forward Programming: Yes
• Channels: 10
• Antenna Length: 6.75" (171 mm)
• Band: 2.4GHz

Content

• 1x SR1015T 10-channel DSMR+ receiver
• 1x instruction manual

Required for assembly

• 1x compatible Spektrum Surface remote control
