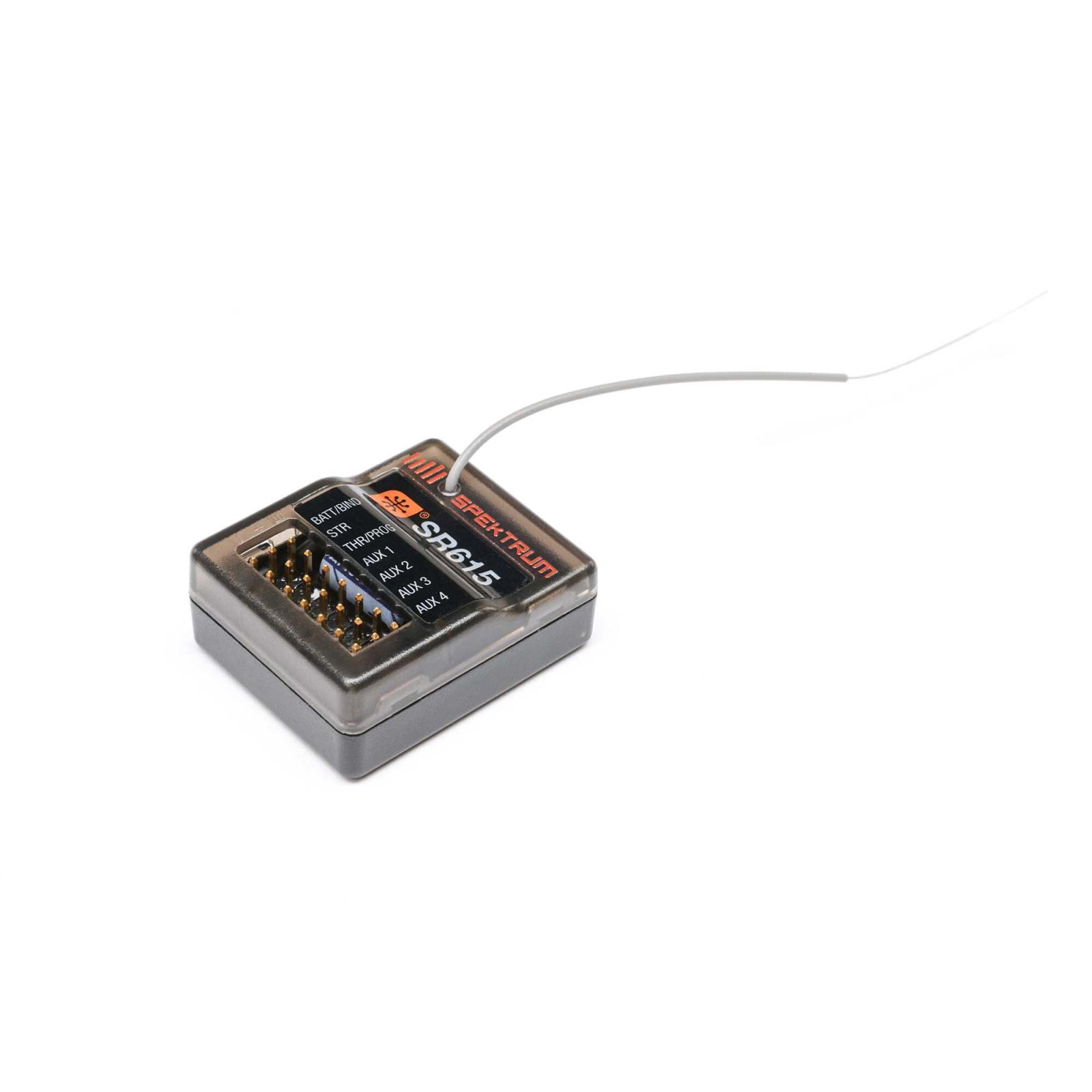

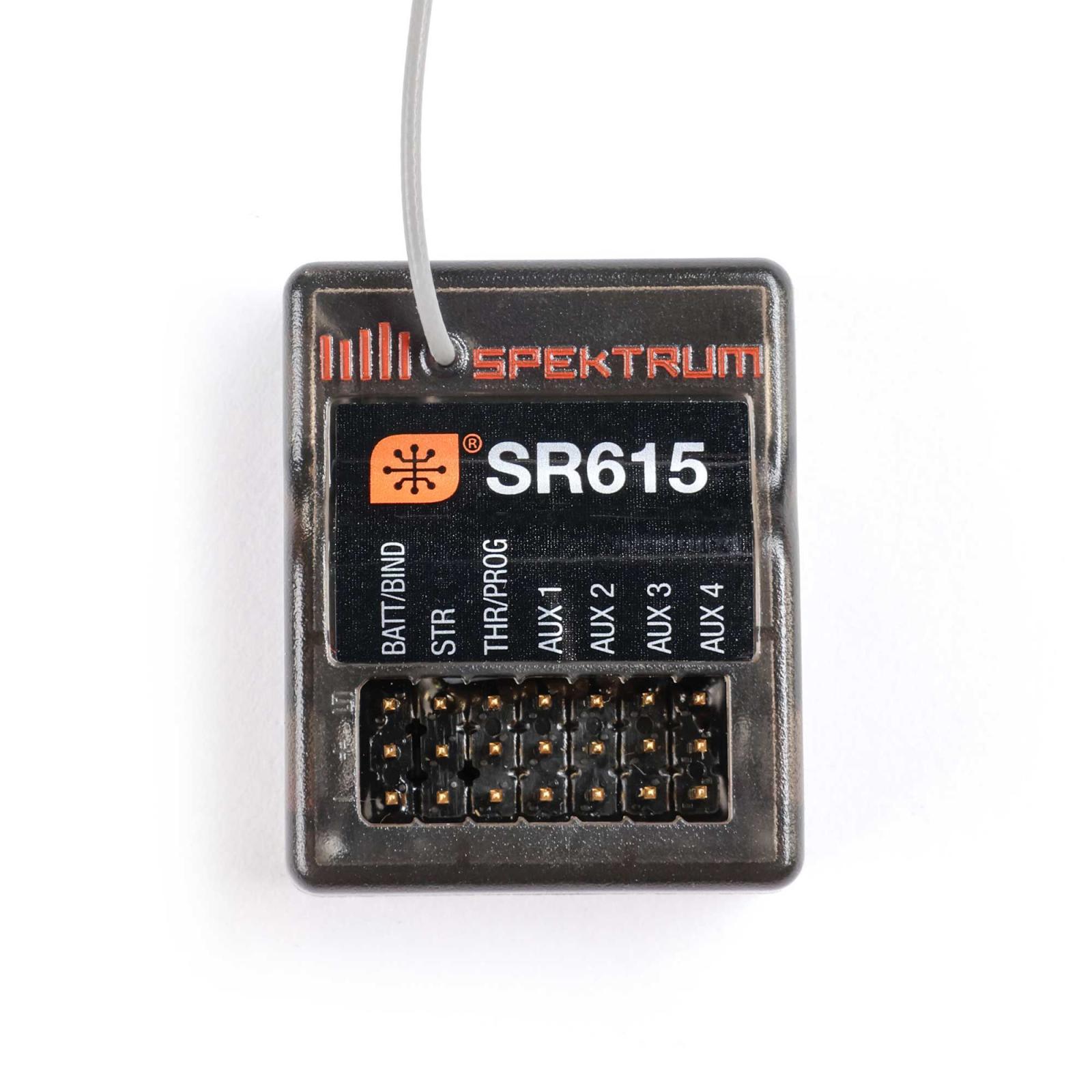

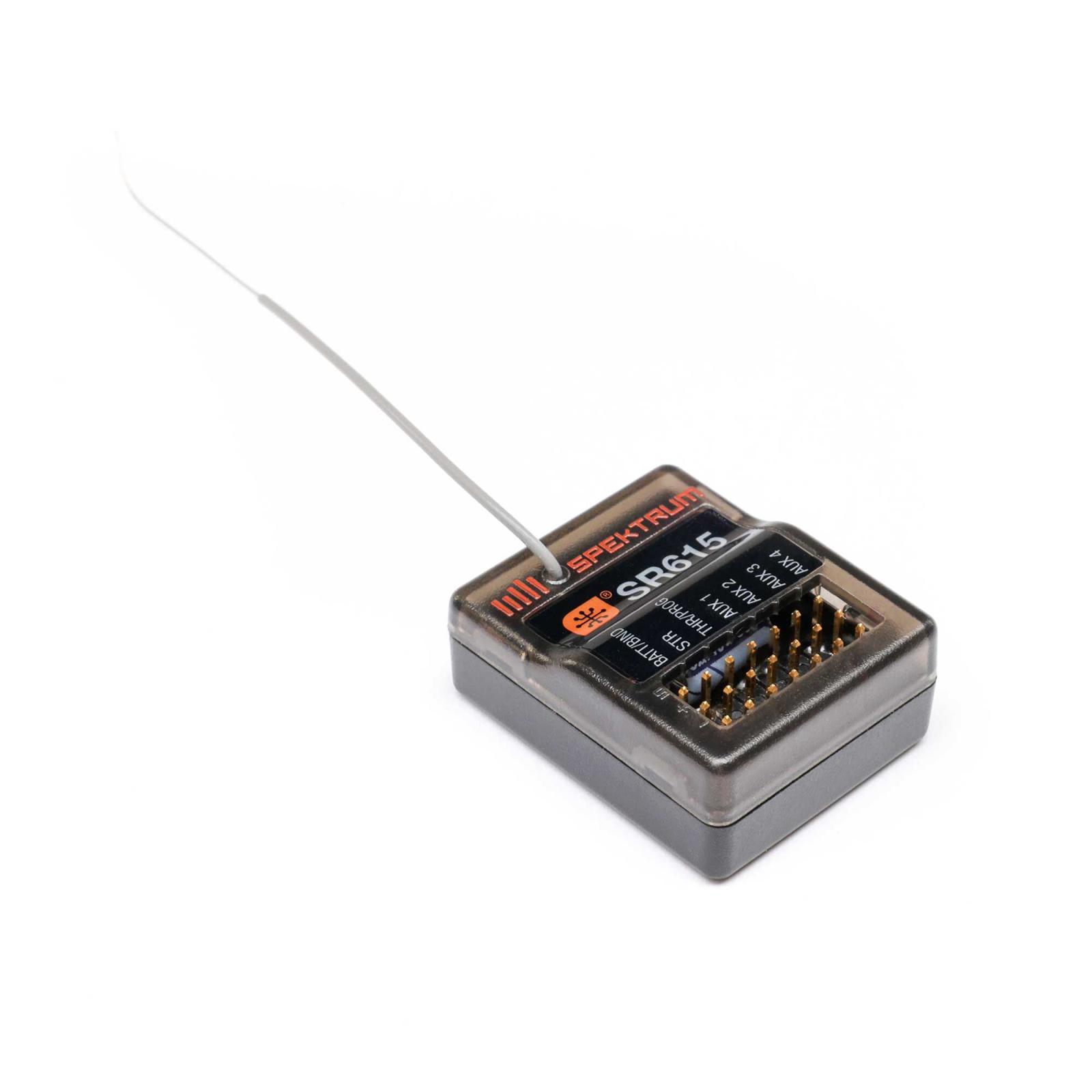

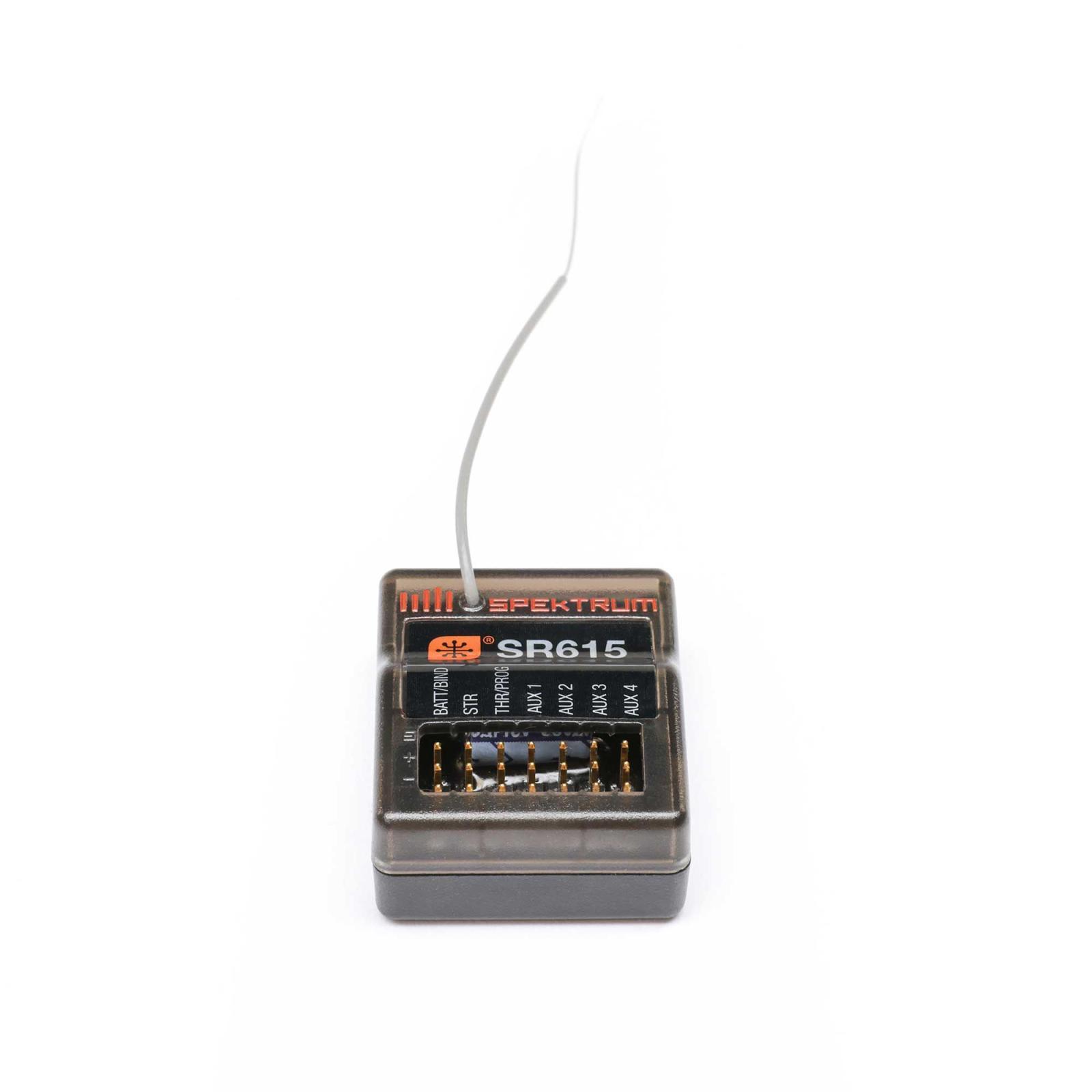

SR615 DSMR 6-Channel Water Resistant Receiver

6-channel receiver in a rugged housing, designed to withstand the rigors of any remote-controlled vehicle. Equipped with DSMR technology and smart telemetry to meet all your driving needs.

Spektrum SR615 DSMR 6-Channel Waterproof Receiver Overview

The SR615 6-channel receiver utilizes frequency-agile DSMR technology to provide excellent range and responsiveness, especially in RF environments where a stable 2.4GHz link is critical. Not only is the 2.4 GHz link extremely reliable, but the receiver also operates at a lightning-fast 5.5 ms frame rate, providing a faster and lag-free connection for demanding model enthusiasts. In addition, the circuit board is encapsulated with an epoxy material that protects it from water and vibration, making the SR615 water resistant*.
The SR615 also features a modern, compact housing design that is suitable for almost any model vehicle. When binding, you can choose between the SmartSafe™ and preset "e;gas" e;failsafe options.
Spektrum offers more features in an affordable receiver with the SR615 so you can ride with even more control.
*Details of the protection classes can be found in the instruction manual.


Compact design
The SR615 is perfect for particularly compact and narrow model vehicles. The housing has been optimized to remove unnecessary edges to make installation easier than ever before. The housing also features an improved antenna mount and an integrated slot for antenna tubes - ideal for individual models that do not have a fixed receiver routing.


6-channels
The SR615 6-channel receiver uses frequency-agile DSMR® technology and offers unbeatable signal stability in a compact, modern design. It is perfectly matched to modern 6-channel transmitters such as the DX6 Rugged, DX6C and iXSR.


Gas Mode Failsafe
The SR615 features the latest failsafe mode for ground applications: Gas Mode Failsafe. This can be easily selected during binding and allows the failsafe position to be set individually for all available channels. In addition, drivers can use the SmartSafe™ failsafe, which reduces the throttle to the lowest position and retains the last known commands on the other channels.


Waterproof
The SR615 6-channel receiver is weatherproof and water-repellent, so it works reliably in almost any conditions and on any terrain. Whether it's dust, gravel, snow or water, this receiver will keep you moving.


Smart technology-enabled
The SR615 gives you state-of-the-art connectivity right out of the box and supports Spektrum™ Smart Batteries and ESCs' innovative all-in-one telemetry. Smart technology ensures that all of your vehicle's electronic components work together seamlessly for maximum efficiency and performance. It informs you of the status of all components, giving you more confidence in their capabilities and making your entire system more responsive and user-friendly.

Technical Specifications

• Product Width: 0.84" (21 mm)
• Programmable: No
• Channels: 6
• Application: Surface
• Product Height: 0.53" (13 mm)
• Range: Full
• Antenna Length: 4.72" (120 mm)
• Band: 2.4GHz
• Product Length: 1.28" (33 mm)
• Telemetry: Yes
• Bind Method: Bind Plug
• Water Repellent: Yes
• Product Weight: 0.21 oz (6.0 g)
• Modulation: DSMR
• Input Voltage: 3.5-9.6 V
• Failsafe: Yes
• Antenna Length: 4.72" (120 mm)

Scope of delivery

• 1x SR615 6-channel DSMR water-resistant receiver
• 1x instruction manual
