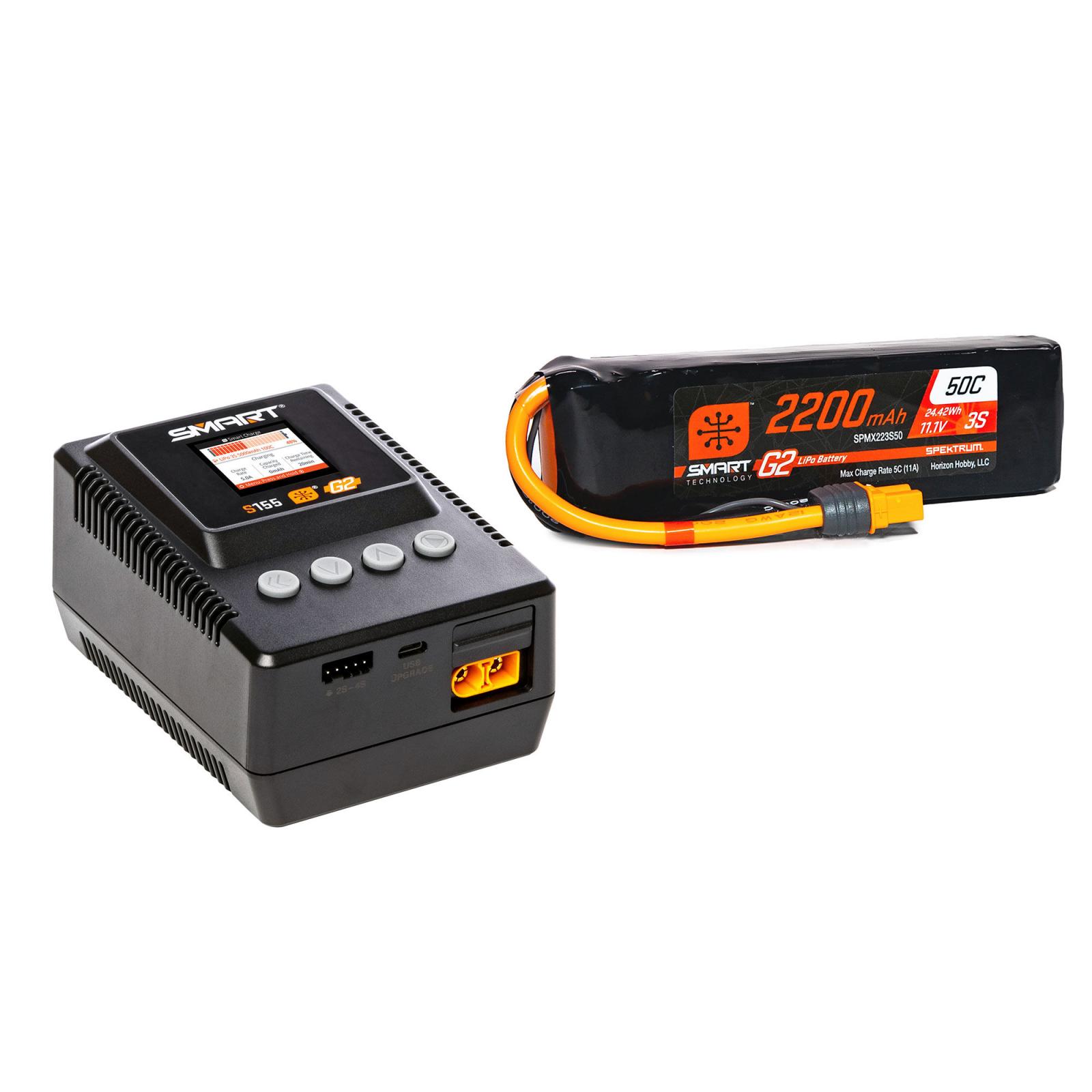

Smart Powerstage Air Bundle: G2 2200mAh 3S LiPo IC3 & S155 Charger

The Spektrum 3S Smart Powerstage Bundle is the ideal all-in-one solution for model aircraft that require a 3S LiPo battery Designed specifically for maximum performance, this bundle combines easy-to-use G2 Smart technology with the highly popular S155 charger.

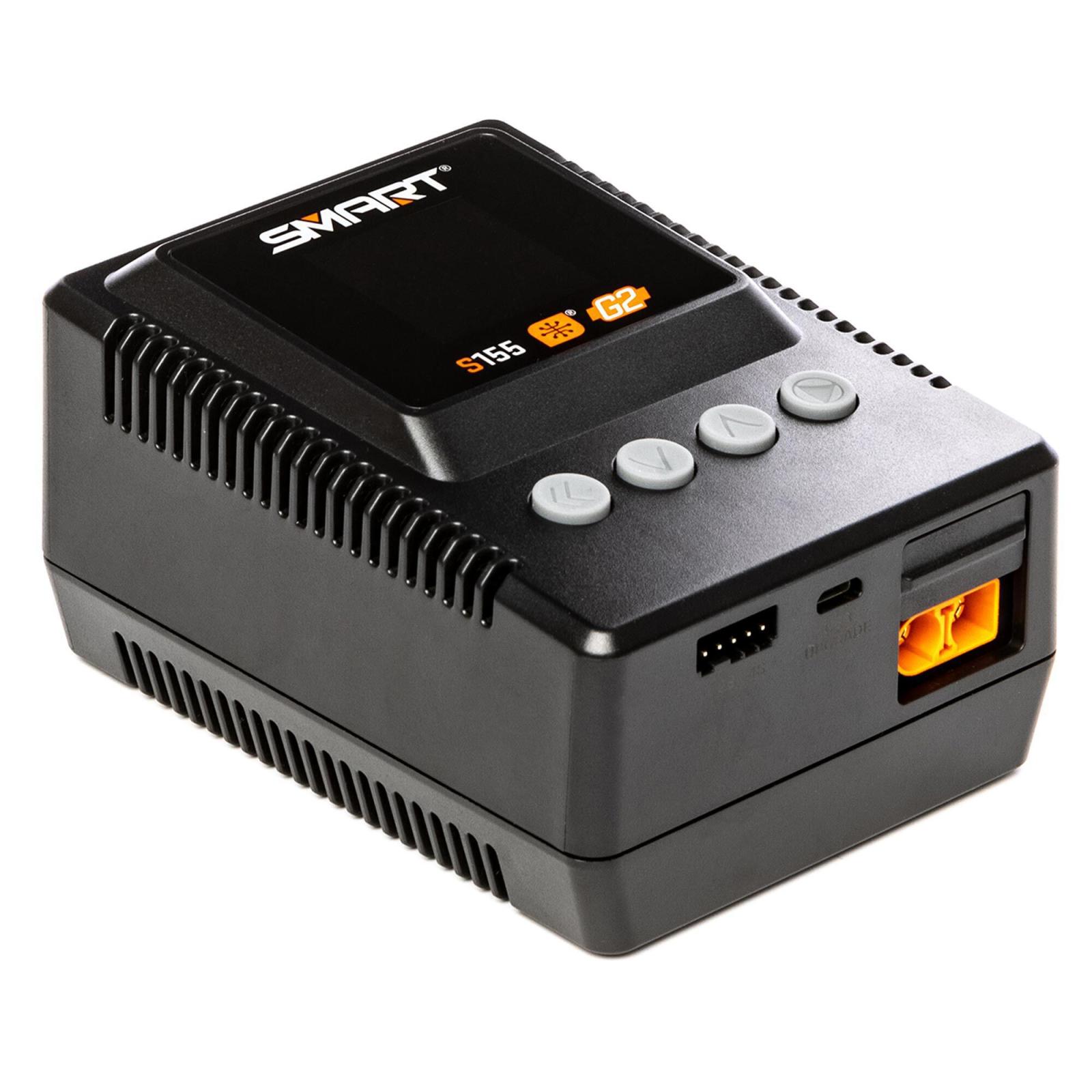

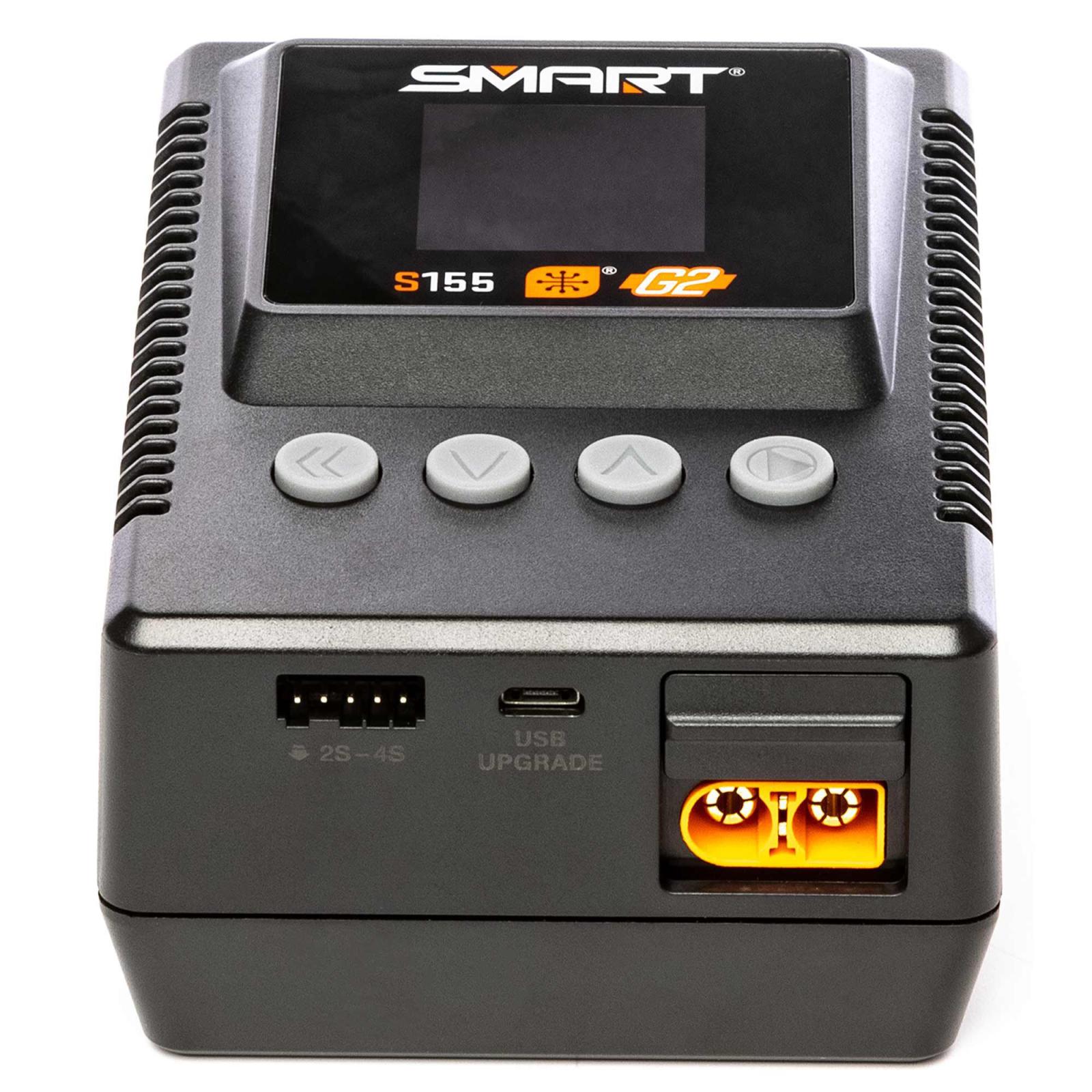

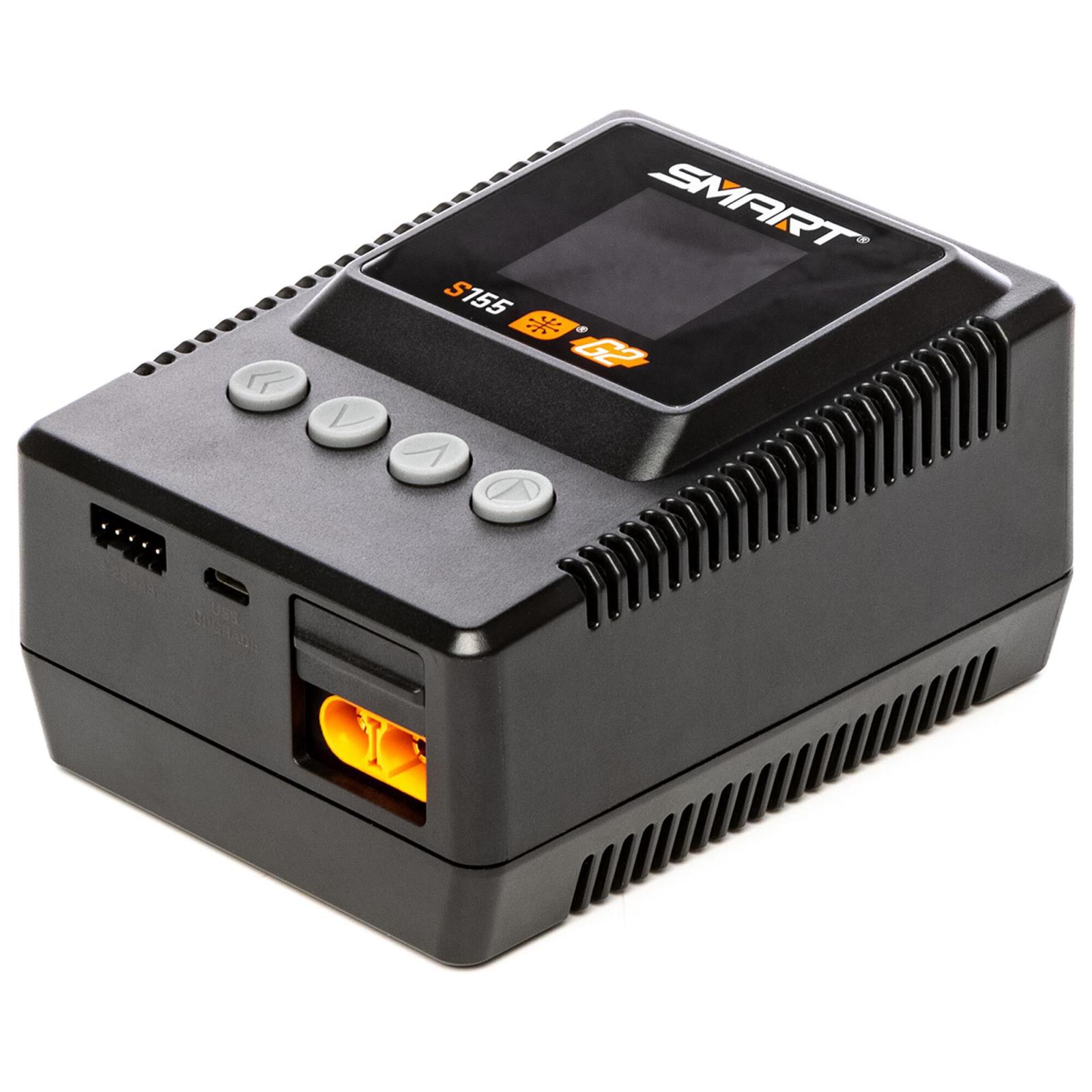

Spektrum S155 55W AC G2 Smart Charger Overview

The Spektrum™ S155 Charger brings advanced and easy-to-use Smart G2 charging technology to any RC hobbyist at an affordable price. It is especially suited for price-conscious beginners looking for the safe and easy operation that only a Smart Charger can provide.

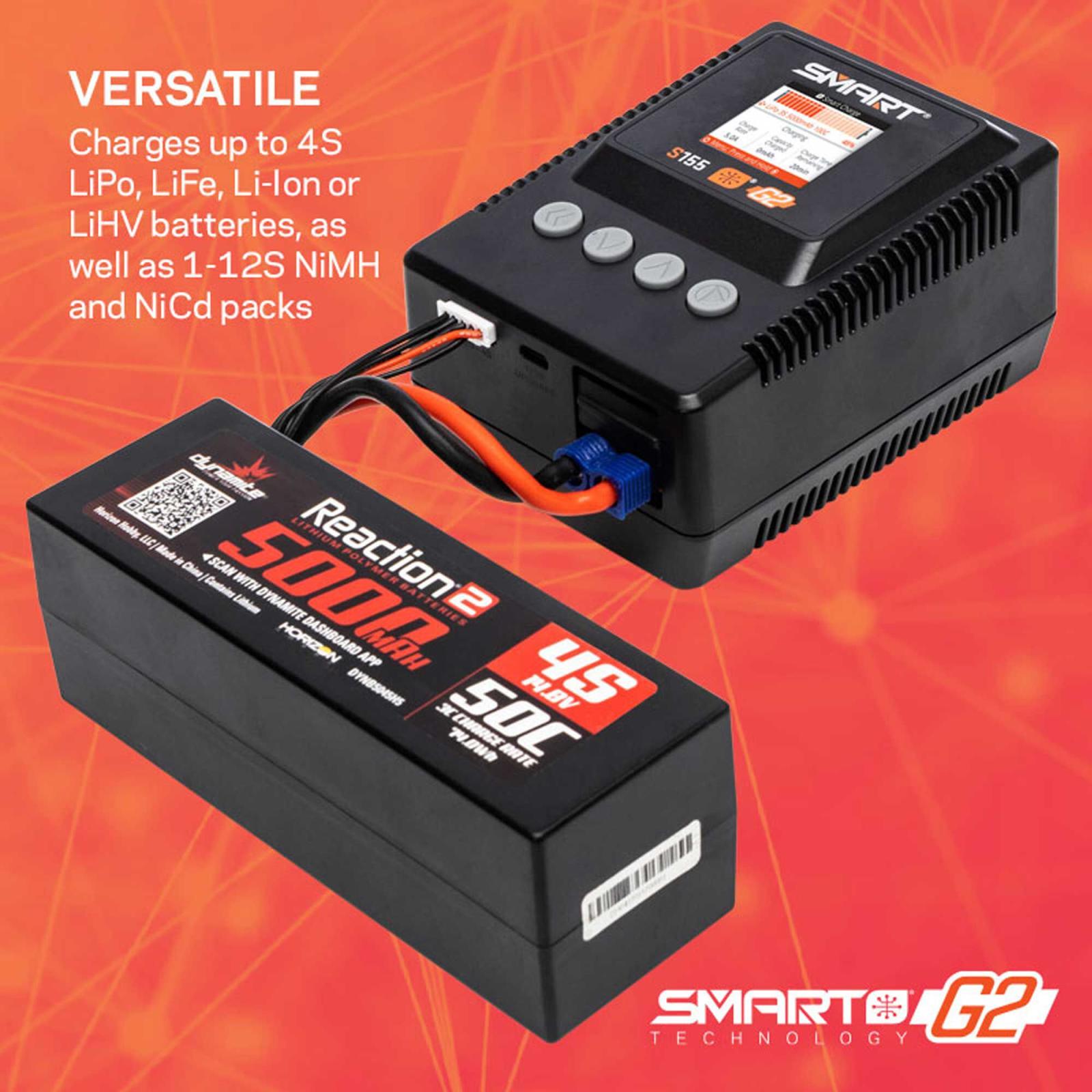

Compatible with 4S LiPo, LiFe, Li-Ion or LiHV batteries, as well as 1-12S NiMH and NiCd packs, the 55-watt S155 charger can be used with all popular RC battery types (although only Smart batteries take full advantage of the charger's innovative features). It has IC3® and IC5® connectors, so no separate adapters are needed to charge most Smart batteries. Thanks to Generation 2 Smart technology, the S155 Smart G2 battery can both charge and balance with just one simple connection. A separate balancing cable is not required. As soon as a Smart battery is connected, the Auto Charge function recognizes the correct charging parameters and starts the safe charging process automatically.

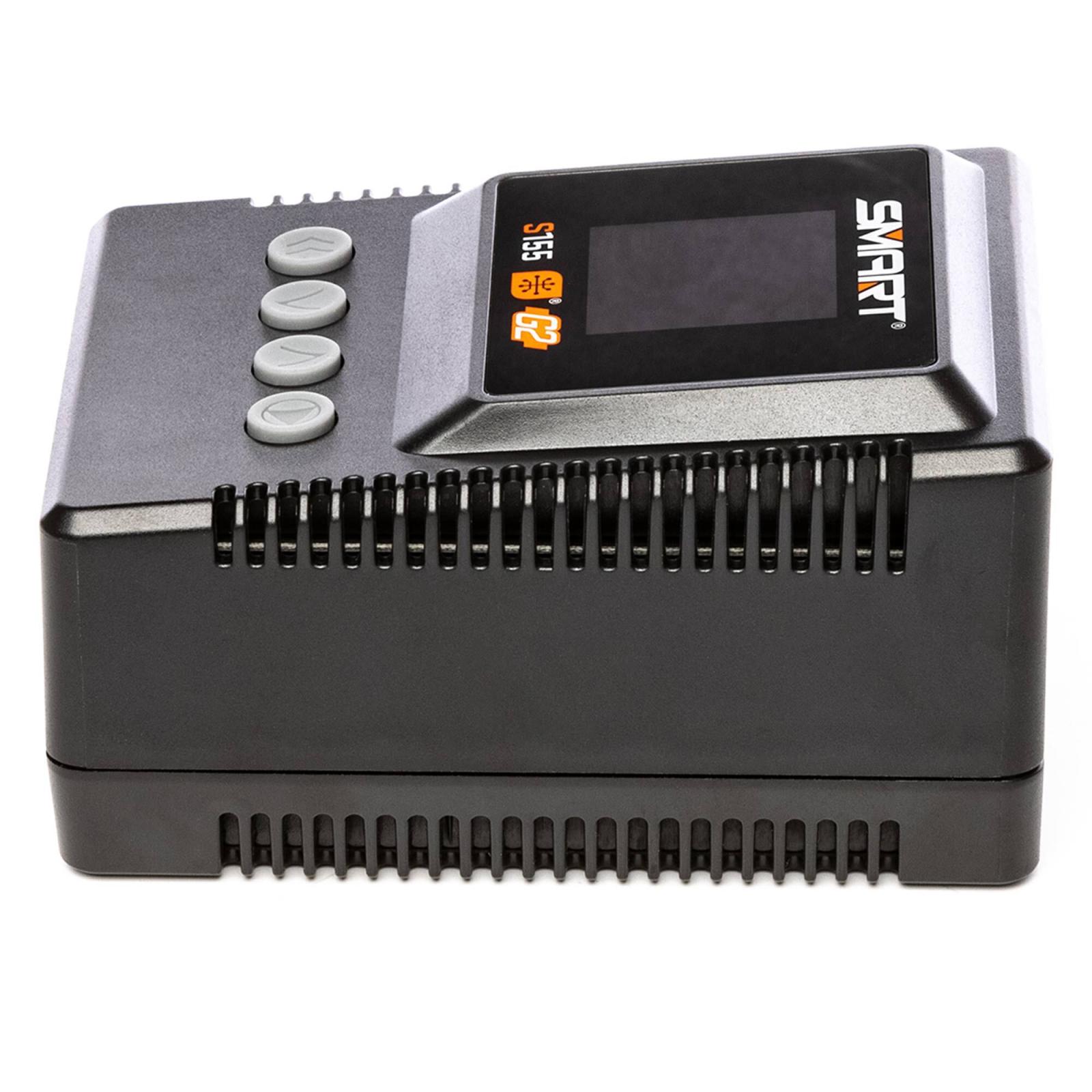

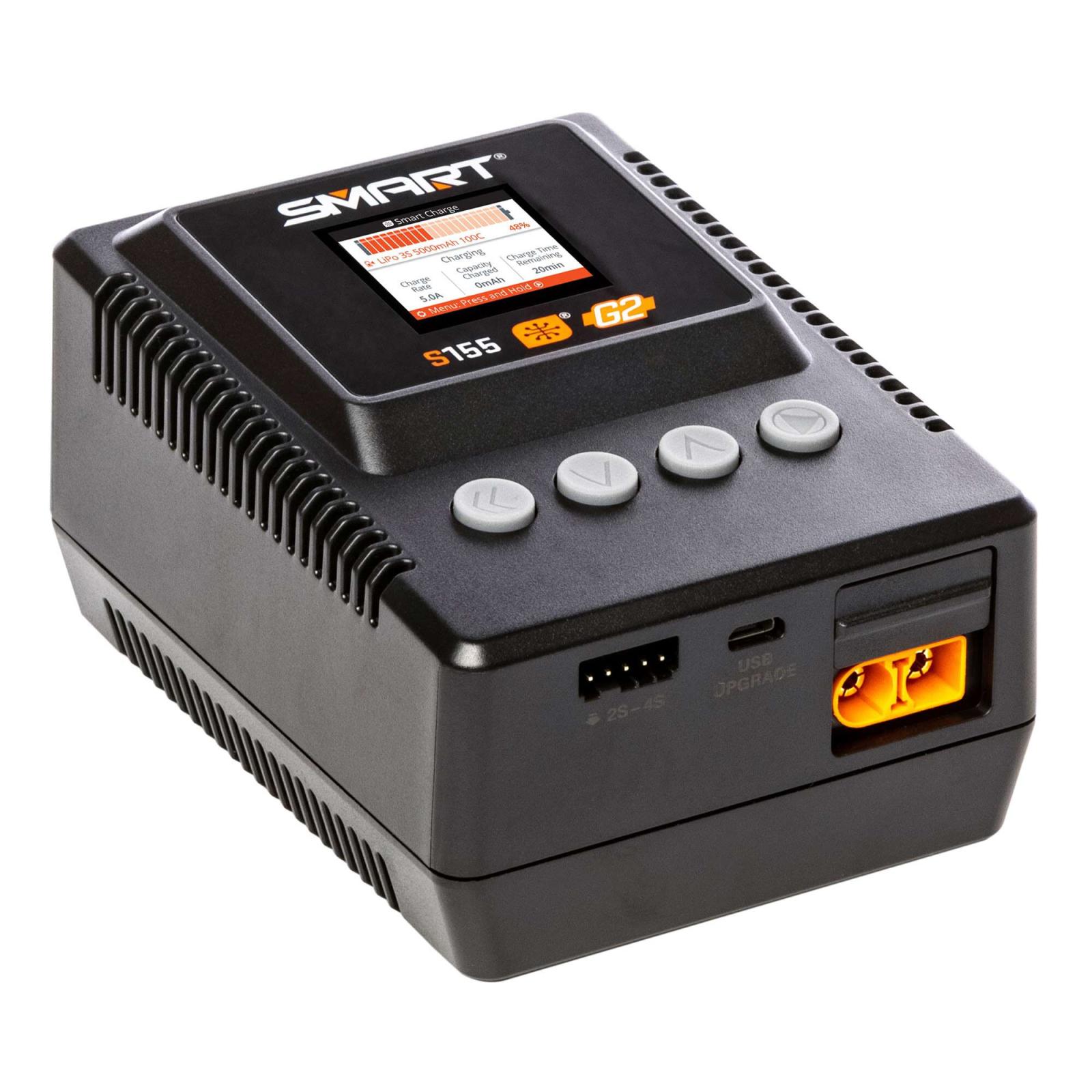

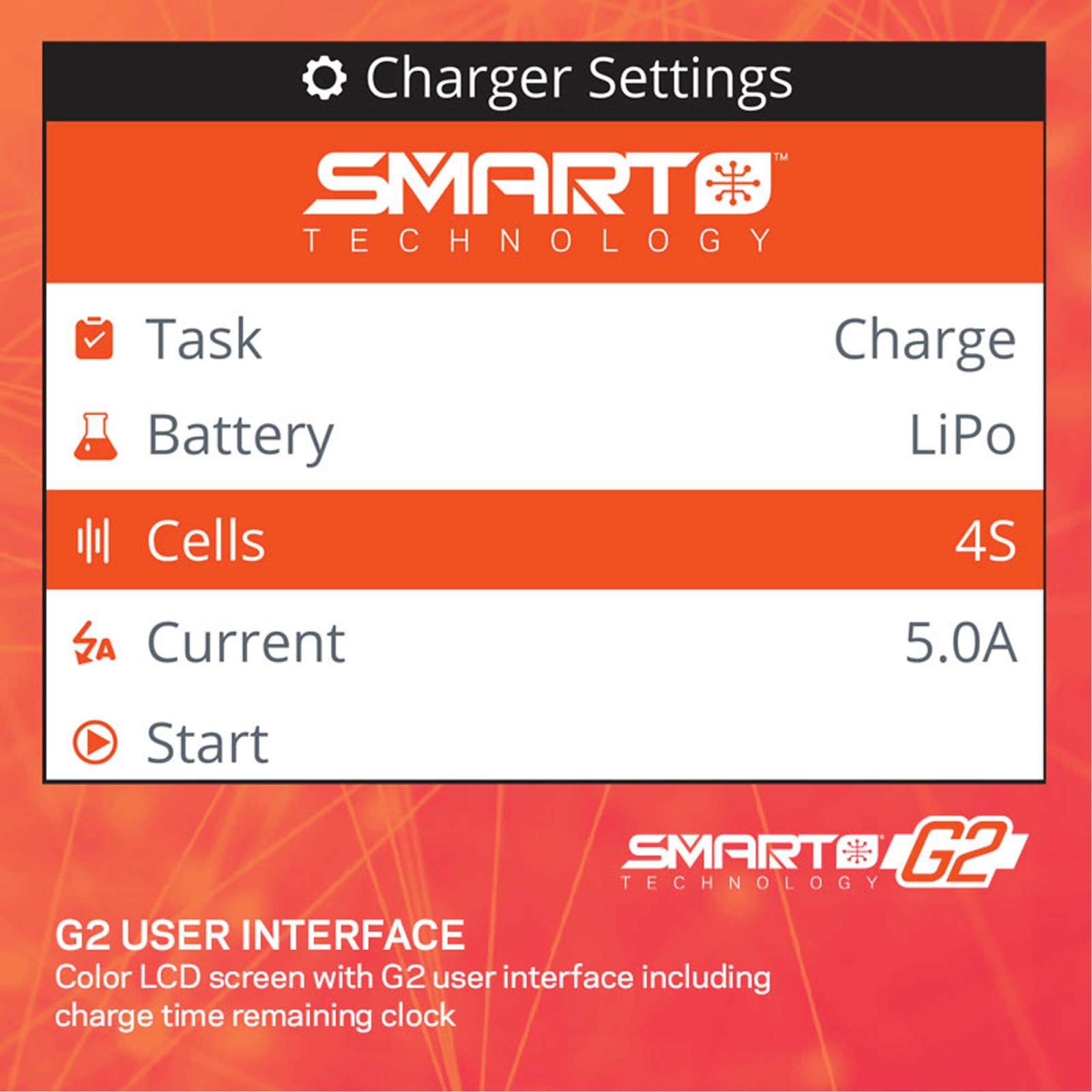

For a particularly user-friendly charging experience, the Spektrum™ S155 Smart G2 AC Charger features a color LCD display with enhanced menus, icons and navigation tools. The intuitive user interface makes it possible to monitor charging progress and adjust settings with ease. An integrated clock shows in real time how many minutes are left until the battery is fully charged and ready for use.

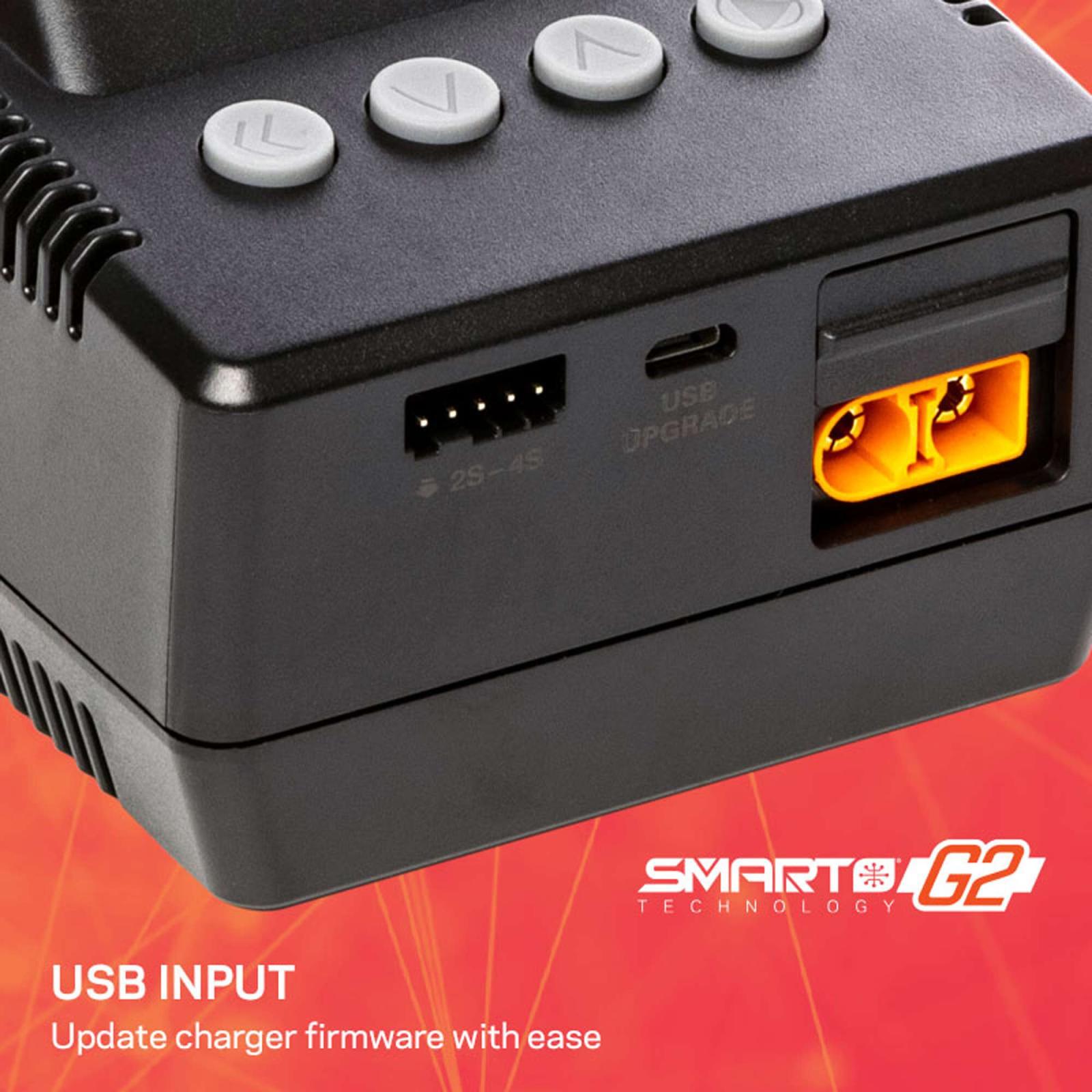

Firmware updates are also child's play. A USB input port is conveniently located on the front of the housing. No special cables are required.

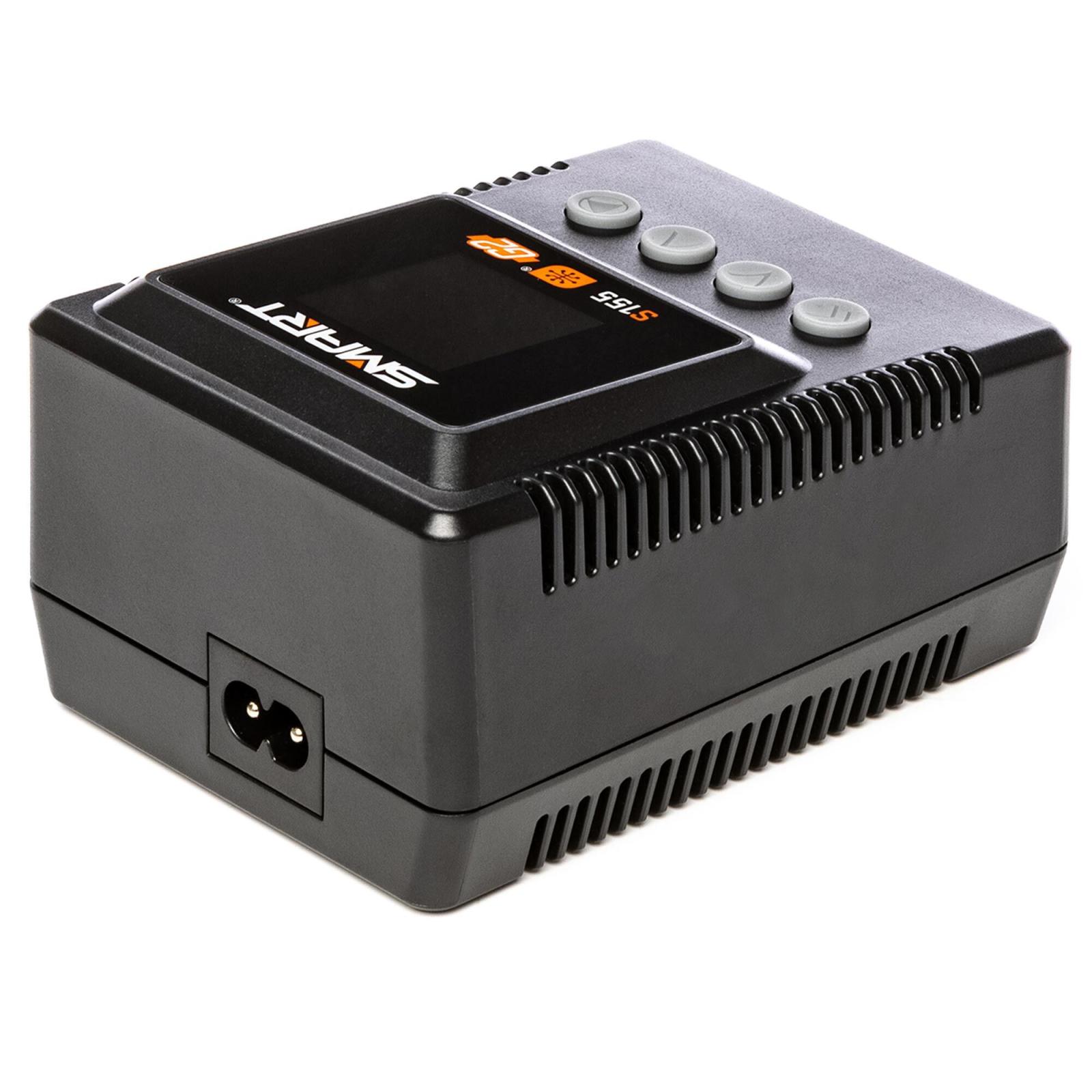

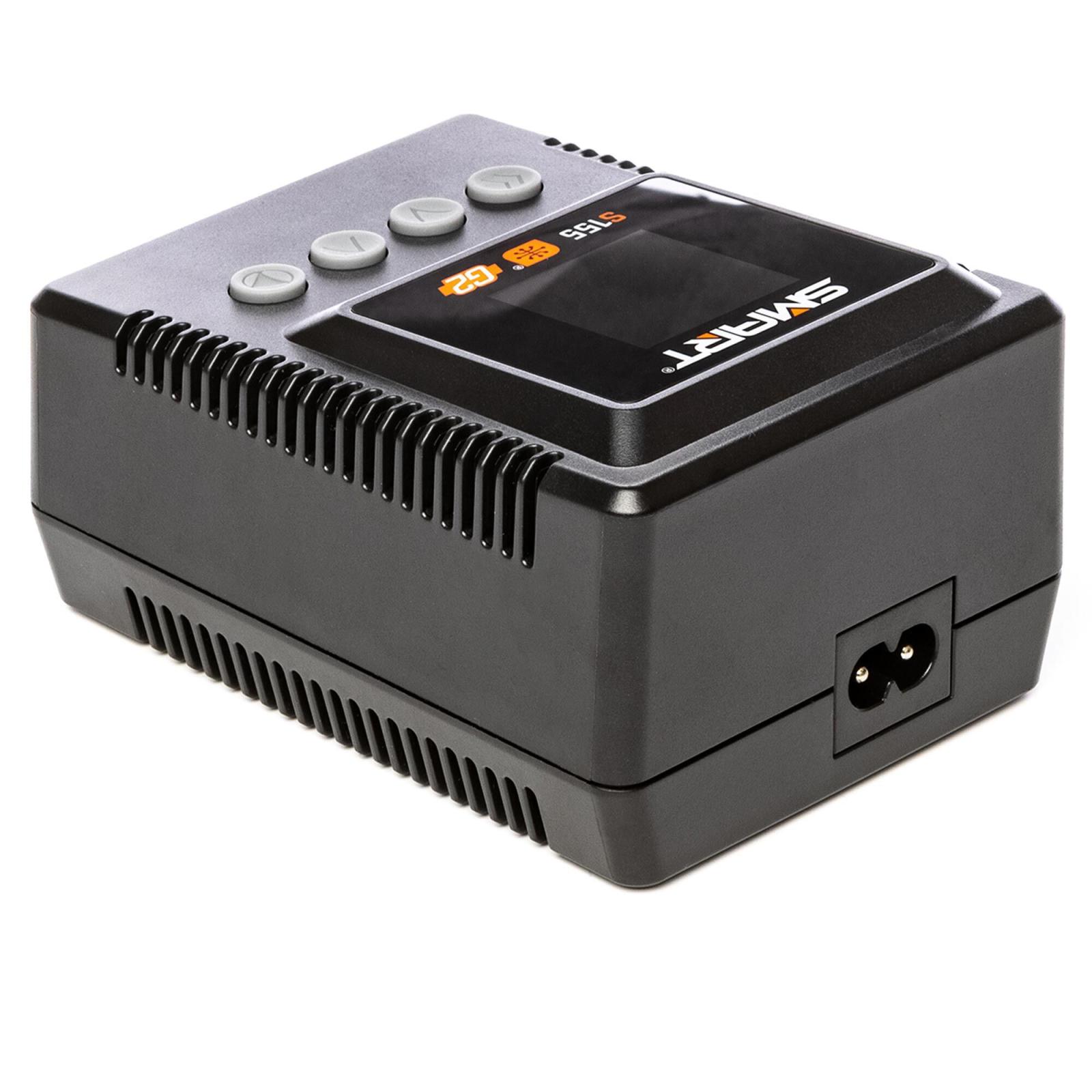

Other handy features of the Spektrum™ S155 Smart G2 AC Charger include a sleep mode and a detachable power cord. Enjoy your hobby even more with the benefits of advanced and easy-to-use Smart G2 charging technology - now at a price that will delight any modeler!

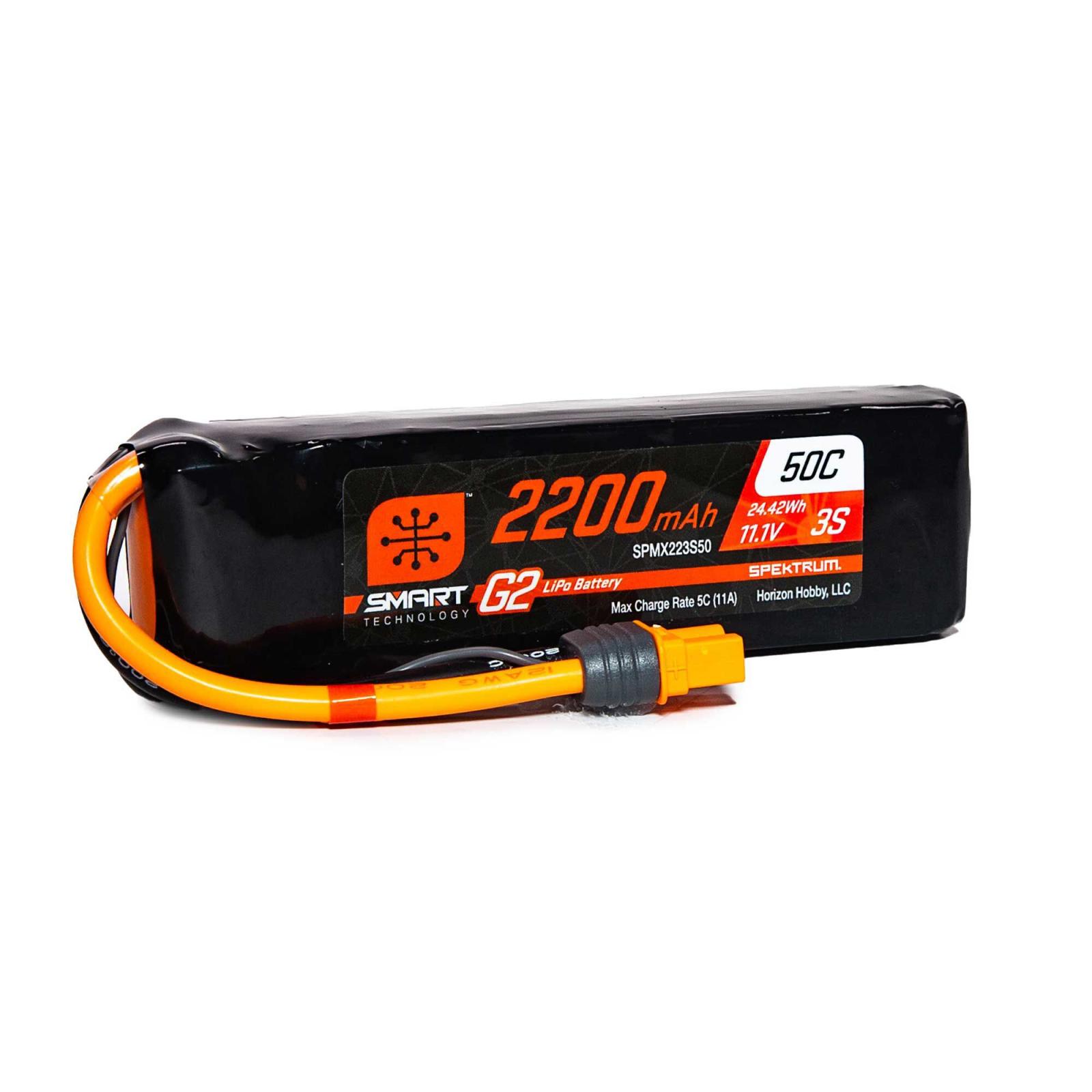

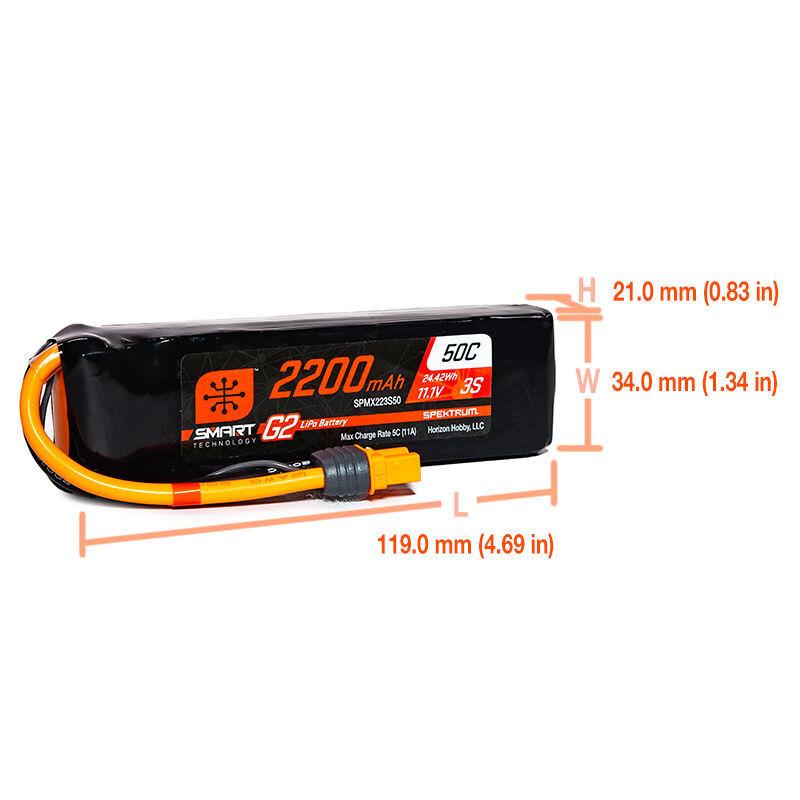

Spektrum™ 11.1V 2200mAh 3S 50C Smart G2 LiPo Battery: IC3 Overview

Pilots will enjoy even more benefits when they power their aircraft with Spektrum™ Smart G2 50C LiPo batteries. The new "e;Generation 2" e;features make these LiPo packs - with a continuous discharge rate of 50C for high performance and longevity - even easier and safer to use with your Smart Charger.
Thanks to Spektrum Smart G2 technology, balancing your LiPo batteries is much easier. The balancer information is transmitted via the unique data cable of each Smart G2 battery with the IC3® or IC5® connector. This means that only a single connection is required - a separate balancer cable is not needed.

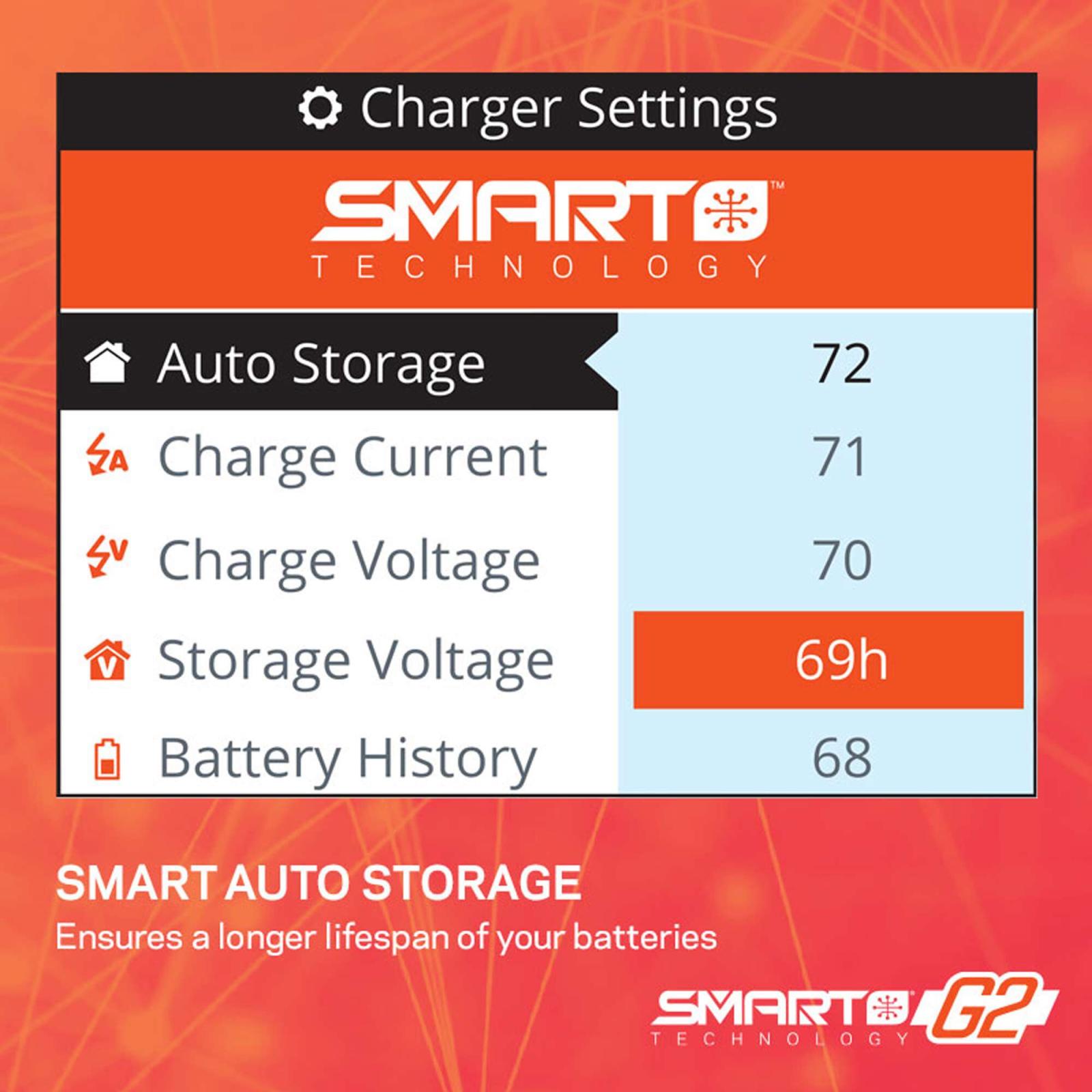

Smart G2 batteries are factory programmed to automatically discharge to a safe storage voltage of 3.90V after 72 hours of inactivity. This ensures a longer battery life, better performance over its lifetime and the peace of mind that your Smart battery is maintenance free. The auto-storage settings can be customized according to your own preferences. G2 batteries also offer a three times faster discharge rate for storage compared to the previous G1 Smart batteries.
The Smart G2 series soft case LiPo packs also feature thicker internal metal plates. These improve heat dissipation and provide additional protection for the cells in hard landings or similar impact situations.
As with other Smart batteries, you don't have to adjust the charge settings for a Spektrum Smart G2 battery yourself - unless you want to. Once a Smart G2 LiPo battery is connected to a Spektrum™ Smart charger, the battery's integrated microchip transmits the unique charging parameters and status information to the charger. You can view and adjust settings such as the charging speed via the charger. All you have to do is connect the battery to your Smart charger - the Smart technology does the rest.
Spektrum Smart G2 LiPo batteries store a variety of important information, including

• Battery type
• Battery capacity
• Battery C-rate
• Single cell voltage
• Battery temperature
• Charge/discharge cycles

In addition, Spektrum Smart G2 LiPo batteries keep an error log that records the number of overheats, deep discharges and overcharges. This data can help you ensure that the battery is suitable for your application. The innovative Spektrum Smart G2 LiPo batteries are so easy to use that they almost manage themselves. With Smart G2 technology, you can effortlessly achieve maximum battery performance, reliability and longevity!

Spektrum S100 USB-C Smart Charger Overview and Tutorial Video

Spektrum Smart G2 Family Video

Technical Specifications

• Watt Hours: 24.42
• Battery Voltage: 11.1V
• Power Source: AC
• Normal/Standard Charge Current: 2.2A
• Number of cells: 3
• Maximum Charge Rate: 5C
• LiPo Compatibility: 1S,2S,3S,4S
• Battery Type: LiPo (3.7V per cell)
• Peak Detection: Yes
• Auto Storage: Yes
• Programmable: Yes
• Display: LCD
• Overcharge Protection: Yes
• Roar Approved: No
• Normal/Standard Charge Rate: 1C
• Short Circuit Protection: Yes
• Input Voltage: 100-240V, 50-60Hz
• Product Length: 4.4"
• Prop 65:
• Technology : Smart
• Application: Air
• Hard shell: No
• Number of Output Ports: 1
• Integrated Balancing: Yes - Internal Balancer & Internal Adapter
• USB Power out: No
• Software Updates: Yes
• Part Type: Electronics
• Low Voltage Protection: Yes
• Output Connector: IC3,IC5
• Discharge: 50C
• Capacity: 2200mAh
• Thermal Protection: Yes
• Wire Gauge: 12 AWG
• Battery: Included
• Connector Type: IC3
• Power (watts): 50-99W
• Reverse polarity protection: Yes
• Selectable Charge Rate: Yes
• Voltmeter: Yes
• Product Width: 2.4"
• Product Weight: 12.2 oz (345 g)
• Maximum Continuous Discharge Rate: 50C
• Product Height: 2.4"
• PC Connection: Yes
• Overload Protection: Yes
• Battery Balance Connector: G2 Smart
• Battery: Included

Scope of delivery

• 1x Spektrum S155 55W AC G2 Smart Charger (SPMXC2050)
• 1x Spektrum 11.1V 2200mAh 3S 50C Smart G2 LiPo battery with IC3 connector (SPMX223S50)
