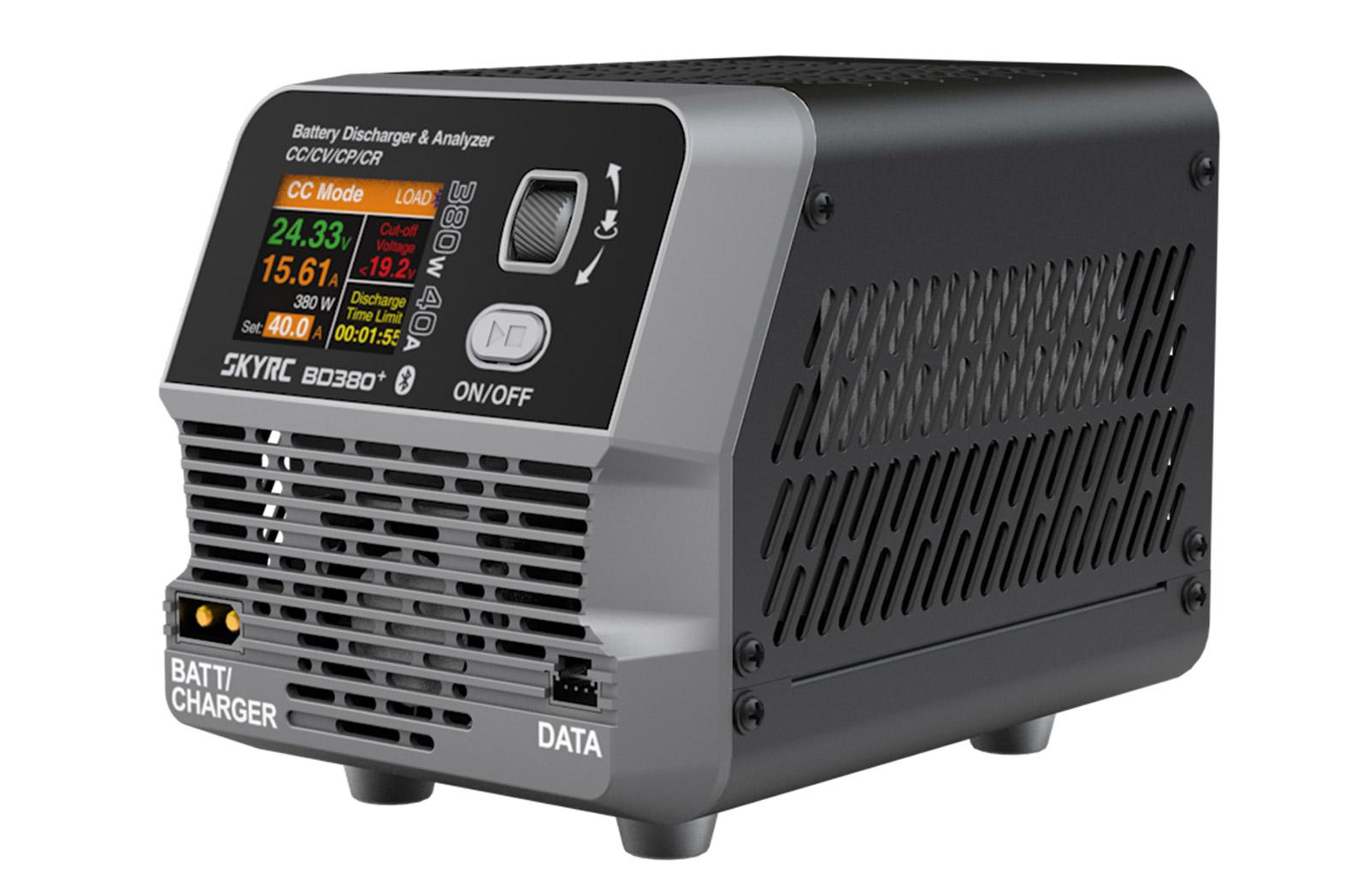

SkyRC Entladegerät 40A BD380+ 380W

Powerful unloading. Precise analysis. The SkyRC BD380+ is a stand-alone battery discharger and analyzer for demanding applications. Up to 380W power, 40 A discharge current and 40V ensure enormous performance and precise handling for all battery types!

The BD380+ starts discharging autonomously directly after connection without any external power supply. Thanks to Bluetooth app control and PC/Mac connection (USB-C), you can keep an eye on voltage, current, power and discharged capacity in real time.

Features

• 380 W maximum power, up to 40A and 40V
• Four discharge modes: CC (constant current), CP (constant power), CR (constant resistance), CV (constant voltage)
• Real-time curves & measured values
• App control via Bluetooth or PC/MAC software via USB-C
• Effective performance cooling system
• XT60 connection; multilingual user interface

Technical specifications

• Operating voltage: 3-40V DC
• Discharge power (max.): 380 W
• Discharge current: 0.3 - 40.0 A
• Discharge voltage range: 3-40V
CC: 0.3 - 40.0 A
CR: 1 - 100Ω
CP: 1 - 380W
CV: constant voltage
• Connection: XT60
• Communication: Bluetooth/APP
• Dimensions / weight: approx. 159.7 × 121.6 × 110 mm / approx. 1.1 kg

Scope of delivery

• 1x SkyRC discharger 40A BD380+ 380W
