Shape S8 (green/red)

SHS8B00004 - Shape S8 (gruen_rot) Shape-Heli SHS8B00004
Picture can be different from original item



The Shape S8...
is a real 800 electric helicopter and a pioneer in this young branch of model helicopters.


With a main rotor diameter of 1795mm the heli provides powerful appearance that makes others pale in comparison.
Despite the enormous size it was developed to make any trade-offs in terms of stability and agility.
This is reflected by the massive main gear with a 20mm diameter one-way bearing case for example.

Limits of performance are currently not known.
The drive system outclasses all other popular drive systems in the market.
Because of the conceived construction it is possible to realize light and energy-saving setups from 6kg as well.
Therefore it is suitable to every requirement, from after work pilots up to 3D-competition pilots.

Parts
All aluminium parts are mortised with the full-carbon main frame plates to obtain an absolutely precise position tolerance of the individual components.
This ensures highest accuracy and maximum stability for the main frame.

The components-mountings for motor and esc, are arranged to get an optimum airflow for today′s heavy duty power systems.

The Shape S8 impresses with its clear and functional design.
It was ensured that all components like the new MICROBEAST Plus HD, RX and servos are arranged for very easy installing and almost invisible wiring.

Style
The Shape S8 is available with five several canopy designs.
The unique and handmade canopies are painted with airbrush design in highest quality.


Features


• Oval massive tail boom in drop shape with internal tail rotor linkage.
• Push-Pull linkage to discharge swashplate servos because of the extreme positioning forces.
• 140° Swashplate for especially high controlling precision (also available with optional 120°swashplate)
• All aluminium parts are anodized for best optical longevity and high quality appearance.
• Carbon parts are made from high-grade full-material.
• Pinion with integrated counter bearing cones for using motors with short motor shafts (max. 32mm Motor shafts)
• Easy motor installation and maintaince because of above mounting with only three screws.
• Airbrush canopies available in different color combinations.

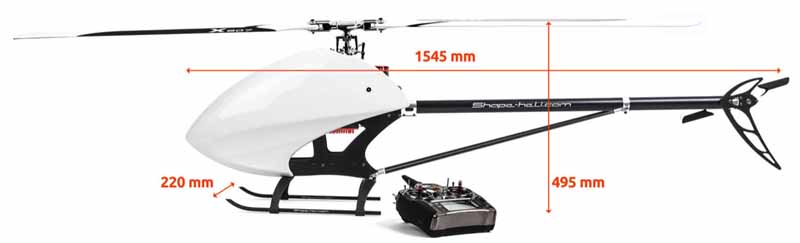

Specifications


• Weight: 5,9kg (FAI conform)
• Lenght: 1545mm
• Height: 494mm
• Width (landing skid): 220mm
• Main rotor diameter: 1795mm
• Tail rotor diameter: 316mm
• Main gear: 130 teeth / modulus 1 / slant drive / 22mm
• Suitable pinion gears: 13-16 teeth / modulus 1 / slant drive (optional selectable)
• Possible Main gear ratios: 10 - 8,1
• Tail gear ratio: 1:4,78
• Suitable battery: 12-14S LiPo 4000-5300mAh


Recommended Setups
12S LiPo
• Brushless Regler: Shape Platinum 200HV/Castle Talon 120/Kontronik HeliJive 120HV / YGE-120HV
• Brushless Motor: Kontronik Pyro 700-45 oder Shape 5035-380kV
• Swashplate servo: XServo X70 or 950BL HV
• Tail servo: XServo X75 or 980BL HV

14S LiPo
• Brushless Regler: Shape Platinum 200HV/Kontronik Kosmik 200HV / YGE-200HV
• Brushless Motor: Shape 5035-380kV oder Pyro 800-40/Pyro 850-40 (nur i.V.m. Kontronik Kosmik!)
• Swashplate servo: XServo X70 or 950BL HV
• Tail servo: XServo X75 or 980BL HV

Receiver Power Supply
• 2S LiPo 1500 - 2000mAh, 25C


Content


• Shape S8 Kit
• Airbrush canopy
• Main blade holder, big
999,00 €
incl. Tax
plus Shipping
 Item in stock.
Delivery time ca. 3 to 5 days*
Item number

SHS8B00004

Manufacturer

Shape-Heli

Packing weight4,5 Kg
EAN4260211764597
NewCondition
