Shape S8 ComboX Power

The Shape S8...

... everything else is just a toy

The Shape S8 is a genuine 800 electric helicopter and a pioneer in this still young segment of model helicopters.

With a rotor diameter of 1795 mm, the helicopter has a huge appearance and makes everything else look small. Despite its enormous size, it was developed without having to compromise on stability and agility. This is reflected, for example, in the extremely massive main gear and a freewheel with a diameter of 20 mm.

There are currently no known performance limits. The Heli is superior to all conventional drive systems in this class.
Even very light and energy-saving setups from 6 kg take-off weight can be realized thanks to the sophisticated design. The helicopter is therefore suitable for every requirement, from the recreational flyer to the 3D competition pilot.

Parts
All aluminum parts are mortised to the side plates made of full carbon to achieve an absolutely precise position tolerance of the individual components. This not only ensures maximum accuracy but also maximum stability of the chassis.

The electrical components such as the motor and controller are arranged in such a way that today's high performance drives are perfectly accommodated in terms of cooling.

The Shape S8 impresses with its clear and functional design. Care has been taken to ensure that all components such as the new MICROBEAST Plus HD, receiver, servos, controller and motor are arranged in such a way that the cabling can be laid easily and almost invisibly.

Style
The Shape S8 is supplied in five different canopy styles. All canopies are airbrushed and are practically always unique, but with the best quality and consistent lines throughout.

Features

• Oval, solid drop-shaped tail tube with internal tail linkage
• Push-pull linkage to relieve the swashplate servos due to the extremely high actuating forces
• 140° swashplate for particularly precise control (120° version also available as an option)
• All aluminium parts anodized for optimum visual durability and a high-quality appearance
• Carbon parts made from high-quality solid material
• Pinion with integrated counter bearing journal, so motors with a short shaft can also be used (max. 32 mm motor shaft length)
• Easy installation and maintenance of the motor using three screws from above
• Hood in airbrush design available in many color combinations.

Technical data

• Take-off weight: from 5.9kg (FAI compliant)
• Length: 1545mm
• Height: 494mm
• Skid width: 220mm
• Main gear: 130 teeth / module 1 / helical 22mm
• Usable motor pinion: 13-16 teeth / module 1 helical (optionally selectable)
• Reduction ratio main rotor: 9.29:1 (variable 10 - 8.1)
• Tail rotor gear ratio: 1:4.78
• Usable battery: 12-14S LiPo 4000-5300mAh
• Main rotor diameter: 1795mm
• Tail rotor diameter 316mm


Recommended setups
Power 12S LiPo
• Brushless ESC: Shape Platinum 200HV/Castle Talon 120/Kontronik HeliJive 120HV / YGE-120HV
• Brushless motor: Kontronik Pyro 700-45 or Shape 5035-380kV
• Swashplate servos: XServo X70 or 950BL HV
• Tail servo: XServo X75 or 980BL HV

14S LiPo drive
• Brushless controller: Shape Platinum 200HV/Kontronik Kosmik 200HV / YGE-200HV
• Brushless motor: Shape 5035-380kV or Pyro 800-40/Pyro 850-40 (only in conjunction with Kontronik Kosmik!)
• Swashplate servos: XServo X70 or 950BL HV
• Tail servo: XServo X75 or 980BL HV

Receiver power supply
• 2s Lipo 1500 - 2000mAh, 25C recommended

Scope of delivery

• Shape S8 kit (without main and tail rotor blades!)
• Airbrush canopy (without canopy rubbers)
• Transport holder, large
• Main rotor blades x807 XBlades
• Tail rotor blades x116 XBlades

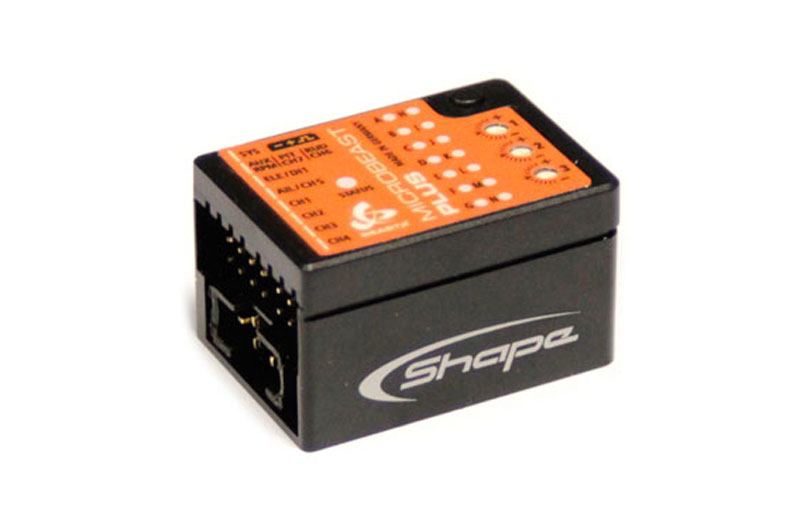

• Microbeast Plus HD - Pro Edition (with Governor & AttitudeControl) Plus HD Pro
• Shape Motor 5035 380KV-10P SHS8E00001
• Shape Platinum HV200A OPTO Governor SHS8E00002

Still required

Multifunction LCD Program Box HW-30502001
XServo High Voltage Set (3x X70BLHV / 1x X75BLHV) XS7570BLHVS
