Scorpion A2-5017 PNP Combo (6s / 67-68" Acro / 25cc / 3150w) Black Ember

Features

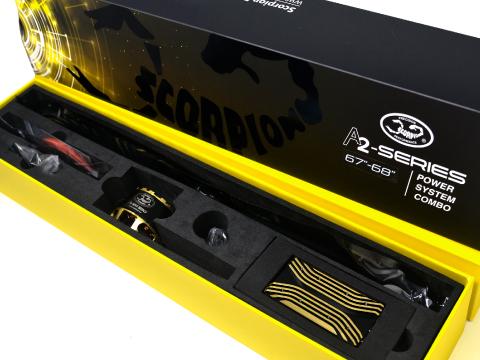

To celebrate the launch of our new A2 series of motors, we are pleased to introduce our new “PLUG-N-POWER” combo sets! We wanted to eliminate the guesswork involved in electric power systems and offer our customers a simple, practical, and reliable power system for their 67–68-inch aerobatic models or other models that require up to 3,150 W with a 6s LiPo battery. The A2-5017 PNP combo package is the solution. It combines our powerful and highly efficient A2-series motors with one of our pre-programmed Tribunus III ESCs in the right size! This gives you a tested, proven, and practical power system combination that’s guaranteed to deliver immense power with maximum efficiency! This PNP combo includes our perfectly matched 18x8 carbon propeller and is ready to install right away, delivering the power you need with the efficiency you want.

*Note: Due to this motor’s high power output, wooden propellers are not recommended. Other carbon propellers may work, but we can only guarantee performance when using the official Scorpion 18x8 carbon propeller, which was specifically designed for a perfect fit.

Specifications

• Total weight of the powertrain (motor + ESC + cross mount + propeller): 680 g (23.98 oz)
• Cross mount: Standard mount (Skywing / AJ Aircraft / Other)

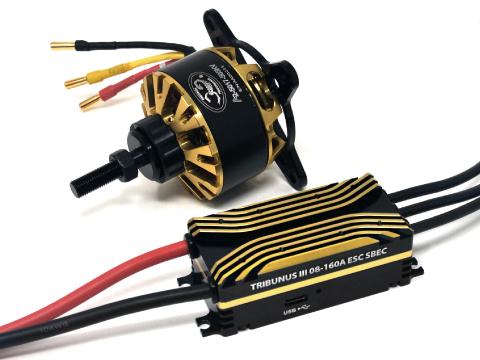

MOTOR:
• Motor Kv: 505 rpm/V
• Weight (including mount + propeller mount accessories): 414.6 g (14.62 oz)
• Motor body dimensions: 59.6 mm x 43.9 mm (+10.0 mm propeller spacer) (2.35" x 1.73" (+0.39"))
• Shaft outer diameter: 8 mm
• Continuous current: 90 A
• Continuous power: 2250 watts
• Peak current* 140 A
• Peak power* 3,150 watts
• Max. rated voltage of the LiPo cell** 6s
• Stator arms: 12
• Magnetic poles: 14


ESC
• Maximum continuous current 160 amps
• Peak current: 200 amps
• Operating voltage range: 11–35.0 volts
• BEC output voltage: adjustable from 5.1 V to 12.1 V
• Max. BEC continuous current: 15 amps at 8.1 V
• Peak BEC output current: 30 amps/1 s at 8.1 V
• Start-up resistance: 0.33 mOhm × 2
• ESC housing dimensions: 39.0 × 79.0 × 29.0 mm (1.53 × 3.11 × 1.14 inches)
• Mounting tab dimensions: 24.0 × 88.0 mm (0.944 × 3.46 inches) / M3 screw
• Weight (without cables) 165 g (5.82 oz)
• Weight (with cables): 205 g (7.23 oz)
• Drive frequency: 8 kHz – 32 kHz Dynamic frequency
• Cable gauge: 10 AWG (battery side) / 12 AWG (phase side)
• Maximum electrical speed 240,000 rpm

* The continuous current is specified at 100% speed for 60 seconds and an airflow of 35 m/s.

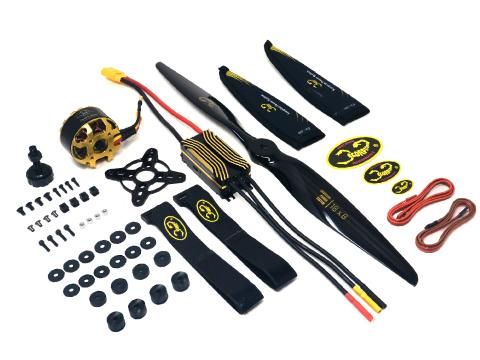

Content

• 1x Scorpion A2-5015 BLDC motor
• 1x Cross Bracket: Standard Mount (Skywing / AJ Aircraft / Others)
• 1x Tribunus III 08-160A ESC
• 2x Scorpion 600 mm ESC/BEC cables
• 2x Scorpion L-Lock mounting straps
• 3x Scorpion stickers
• 2x M8 propeller nuts
• 1x Scorpion 18x8 Carbon Electric Propeller

Required for assembly

• 1x battery: 6s 4500 mAh – 5500 mAh
