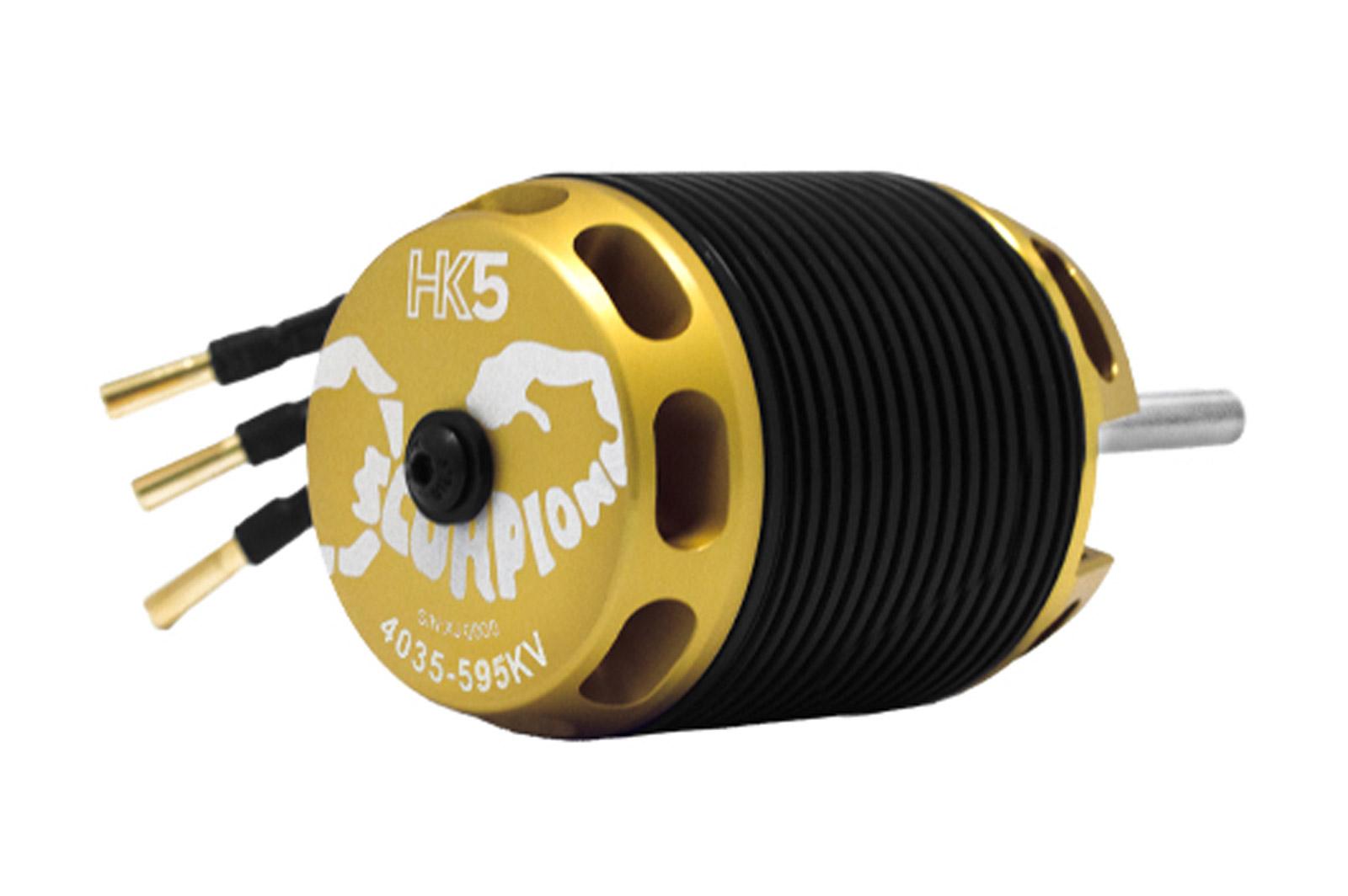

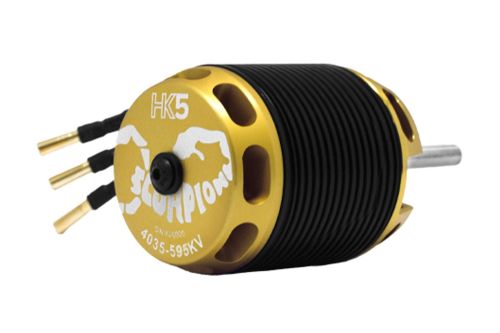

Scorpion HK5-4035-595kv Motor

We introduce the fifth generation of Scorpion's renowned and award winning "HK - Series" motors. The Scorpion "HK5 - Series"

The HK5 Series lives up to and exceeds our standards of the most Powerful and Efficient motors, with market leading Torque per Amp capabilities. In addition, on the HK5 series we focused specifically on motor cooling and motor temperature. With an all new Internal Fan design, combined with our proven external centrifugal fan, we have nearly doubled the amount of airflow passing through the motor. The result is much improved cooling, and cooler operating temperatures.

The HK5-4035-595kv is designed for 600 - lightweight 700 size helicopters on 10s-12s lipo, or other UAV application requiring up to 8200w of power.

Technical Specifications

• Motor KV: 595 KV RPM per Volt
• Weight: 482.0 grams (17.00 oz)

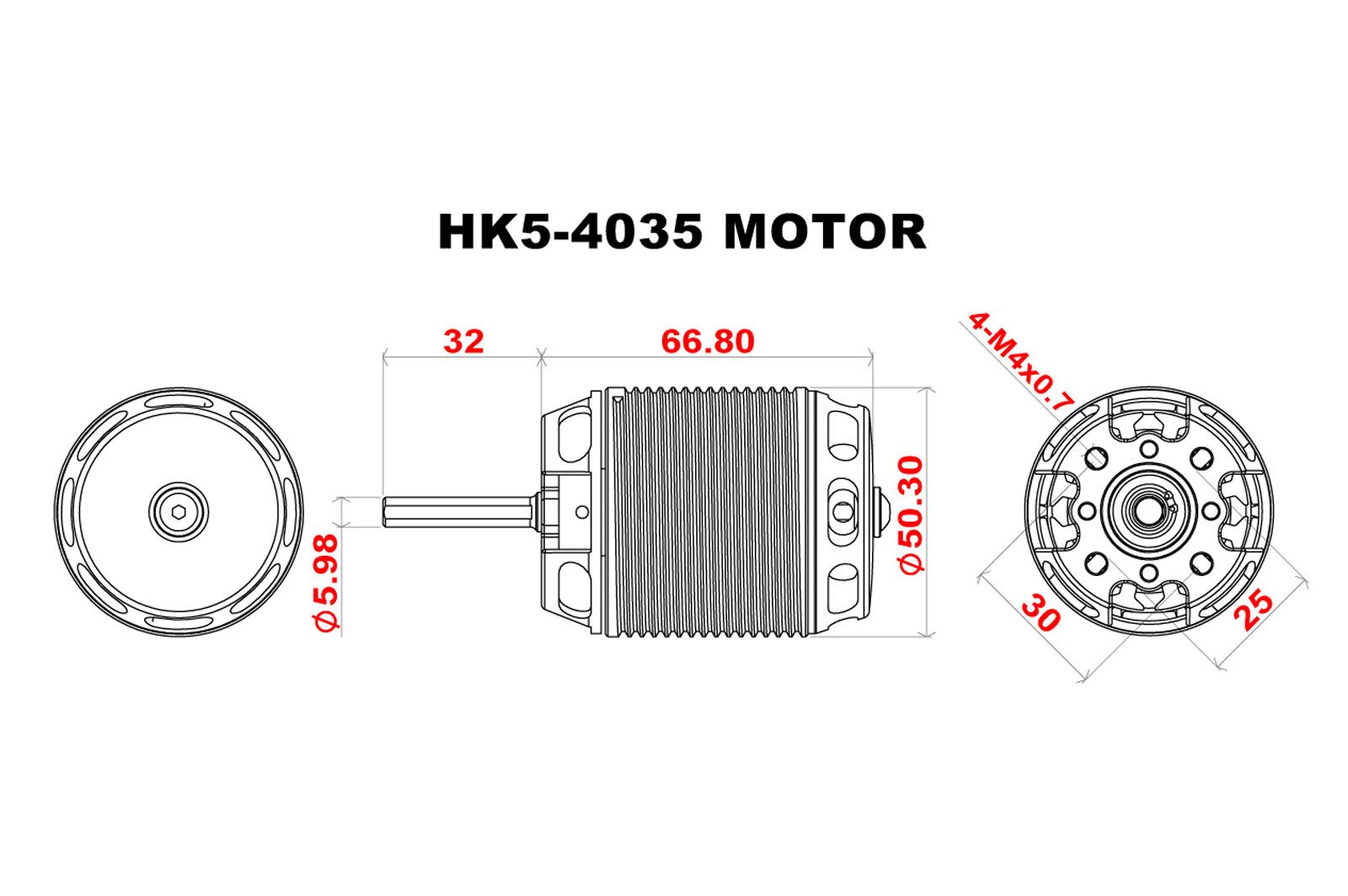

• Motor Dimensions: 49.5 mm x 67.1 mm (1.95" x 2.64")

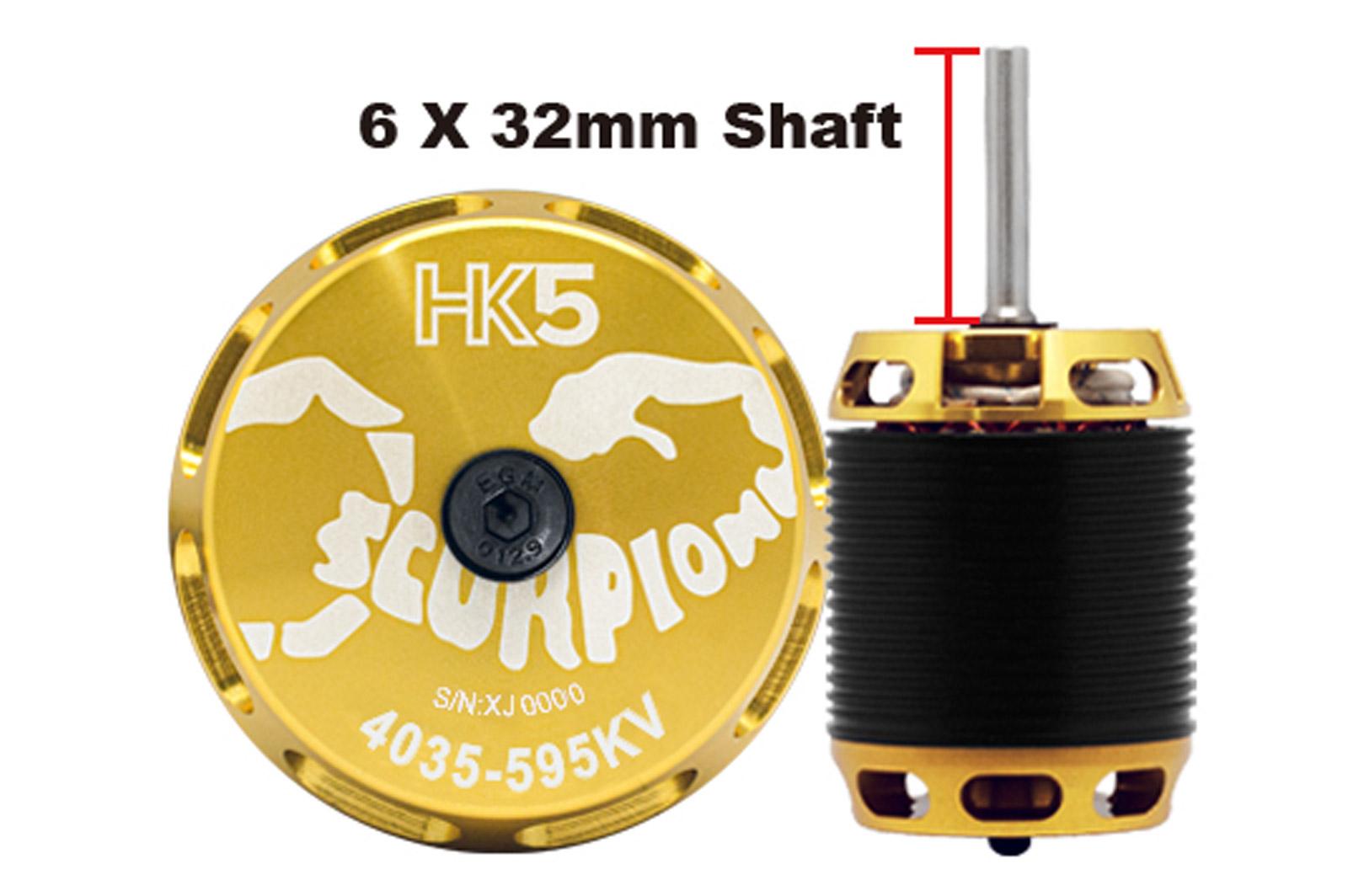

• External Shaft Dimensions: 5.98 mm x 38 mm (0.235" x 1.50")
• Continuous Current: 110 Amps
• Continuous Power: 4884 Watts
• Peak Current: 185 A (2 seconds)
• Peak Power: 8200 Watts (2 seconds)
• Max LiPo Cells*: 12s
• Stator Diameter: 40 mm (1.57 in)
• Stator Thickness: 35 mm (1.18 in)
• Number of Stator Arms: 12
• Number of Stator Poles: 10
• Motor Wind: 4T Delta
• Motor Wire: 1.56 mm

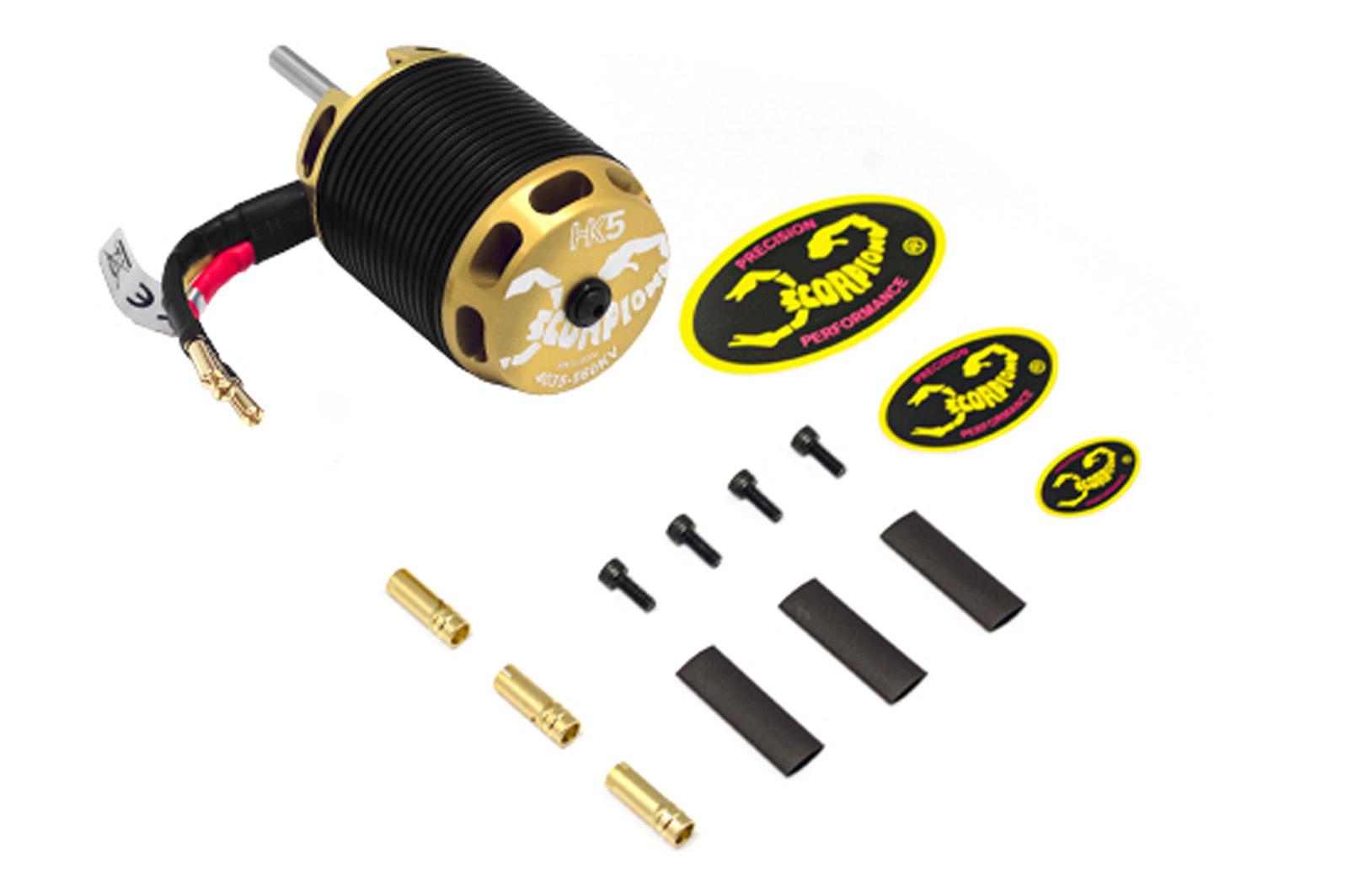

Scope of Delivery

• 1 x HK5-4035 BLDC Motor
• 3 x 4 mm Female Connectors
• 3 x Heat Shrink Tubes
• 1 x Hardware / Accessory Pack
