TB60 Kit

Specifications

• Length: 1218mm
• Height: 353mm
• Width: 183mm
• Main Blade Length: 600mm
• Main Rotor Diameter: 1339mm
• Tail Length: 95mm
• Tail Rotor Diameter: 253mm

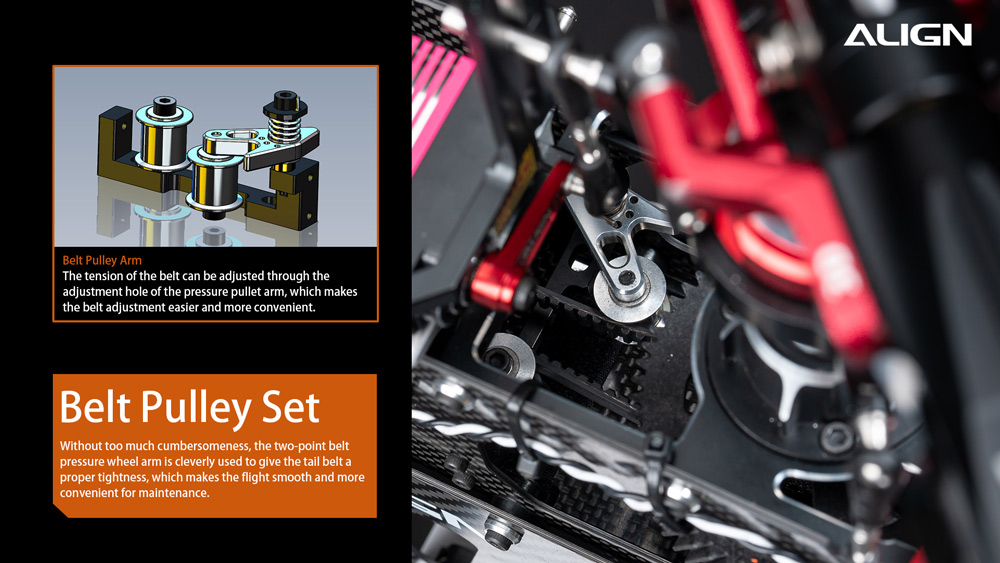

• Motor Belt Pulley: 23T
• Belt Pulley: 44T
• Front Drive Main Shaft: 15T
• Main Drive Gear: 62T
• Autorotation Tail Drive Gear: 28T
• Tail Drive Gear: 23T
• Drive Gear Ratio: 7.89:1:5.04
• Max RPM(approx.): 2400RPM
• Weight: Approx. 1.8kg

Content

• 1x TB60 Kit Set
• 1x 600 Carbon Fiber Blades set
• 1x 95 Carbon Fiber Tail Blades set
• 1x Lube Pack

Required for assembly

• 1x Transmitter(6-channel or more, helicopter system)
• 1x Receiver(6-channel or more) or Remoet Receiver
• 1x RCC-6CX Intelligent Balance Charger
• 2x 6S Li-Po 2600 - 4600mAh
• 1x Digital Pitch Gauge
• 1x Multi-function Tester
• 1x Flybarless System (z.b. Microbeast ULTRA)
• 1x Brushless Motor
• 3x CCPM Brushless Servo
• 1x Rudder Brushless Servo
• 1x Brushless ESC
