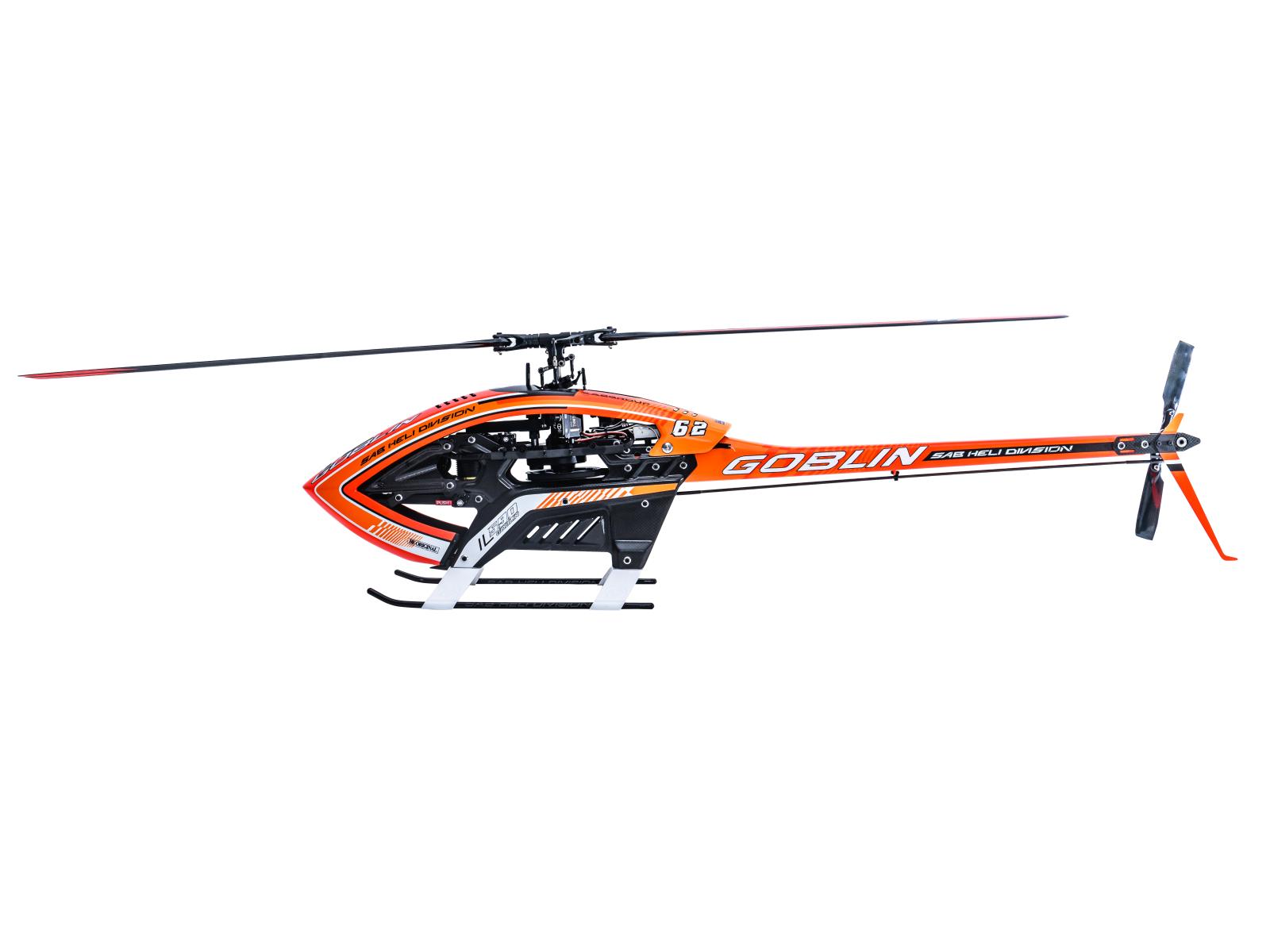

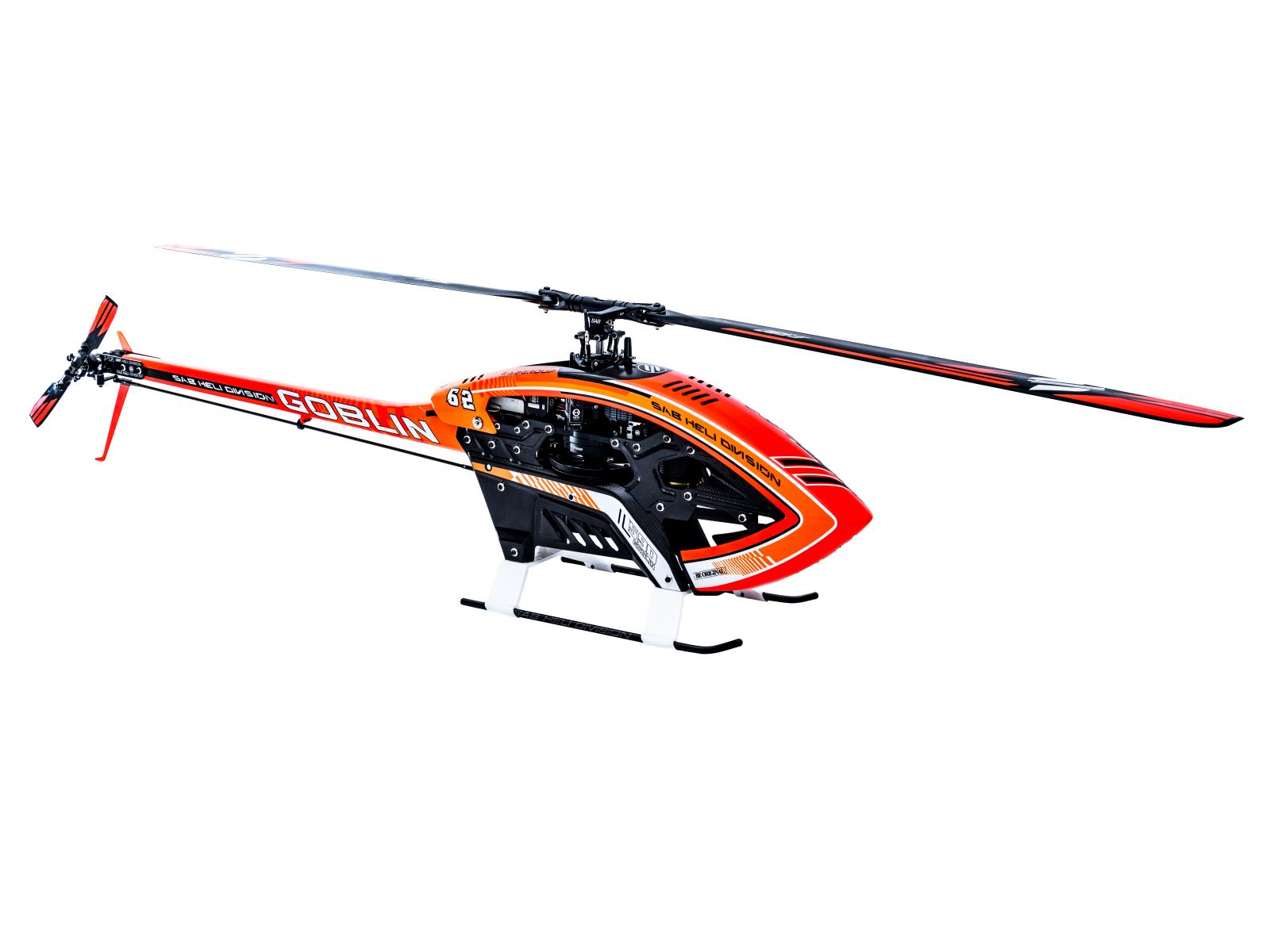

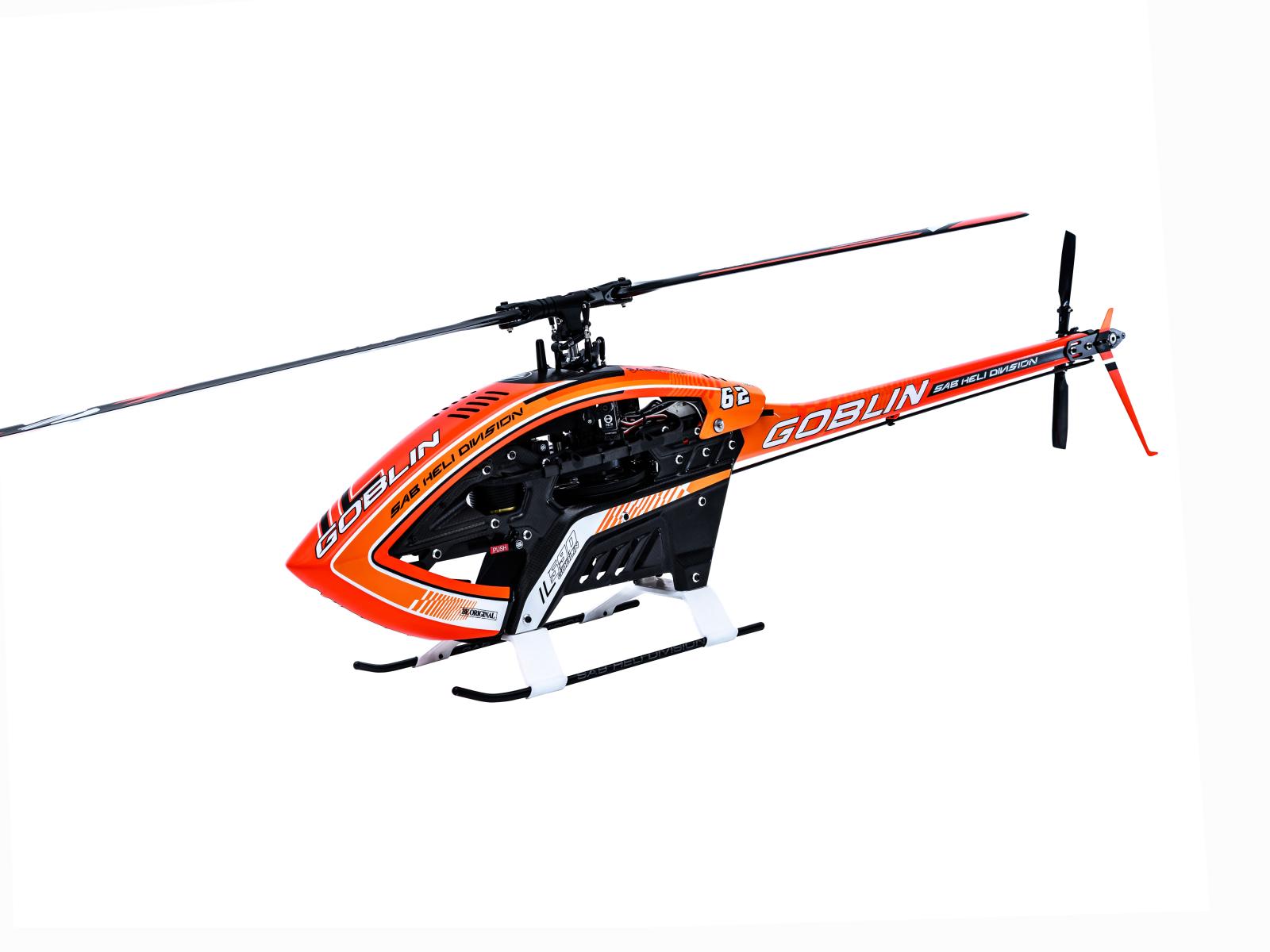

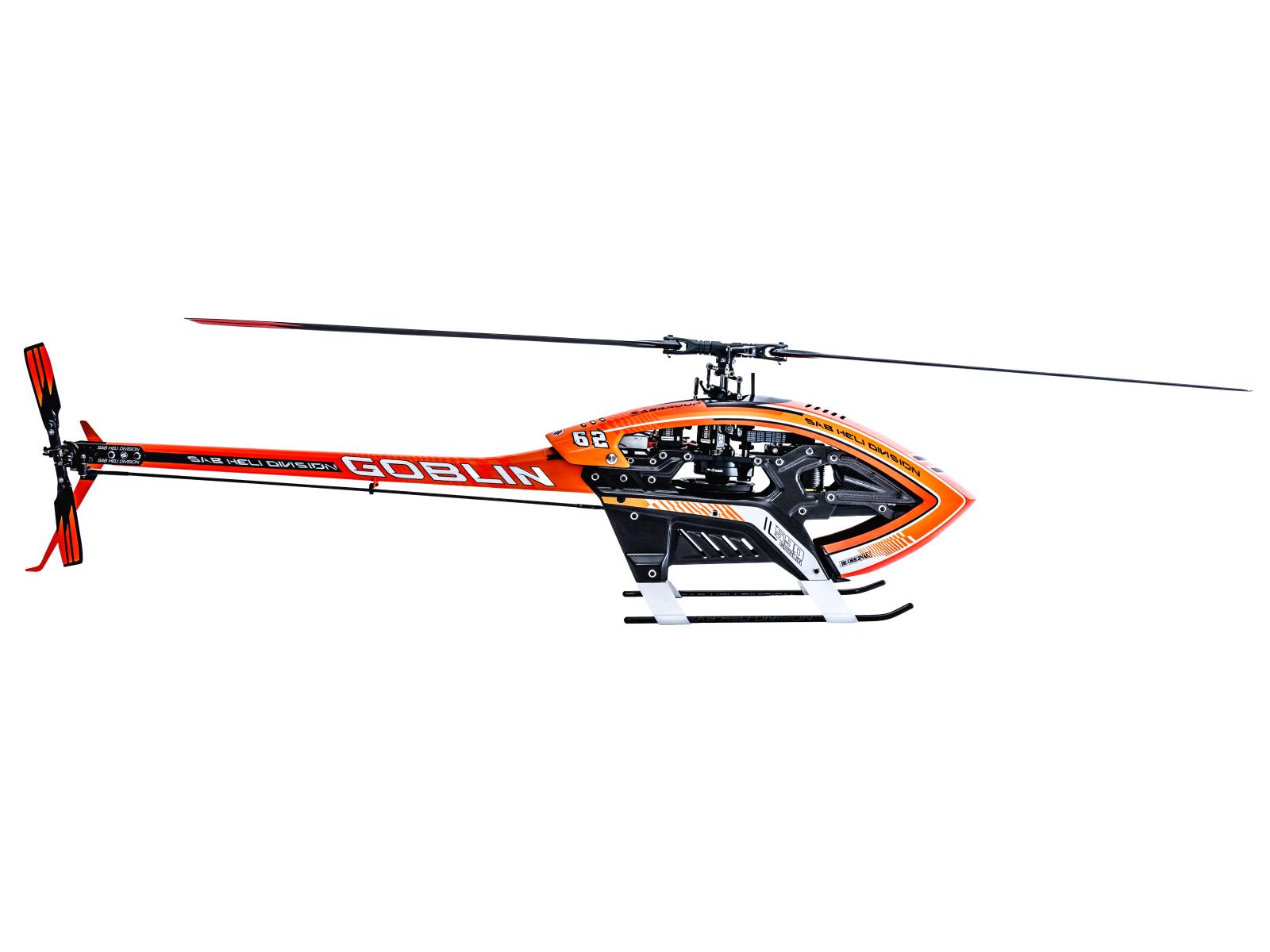

SAB ILGoblin 590 - Orange

The evolution of the legendary Goblin continues:
The SAB Goblin 590 combines an extremely lightweight and rigid carbon chassis with a particularly robust powertrain. This RC helicopter was designed for high precision, outstanding flight performance, and maximum durability.

With a main rotor size compatible with 550 to 590 mm rotor blades, the Goblin 590 is ideal for demanding sport and 3D pilots. Since the helicopter can be configured with either a 6S or a 12S power system, the model offers a high degree of flexibility in choosing the power setup.

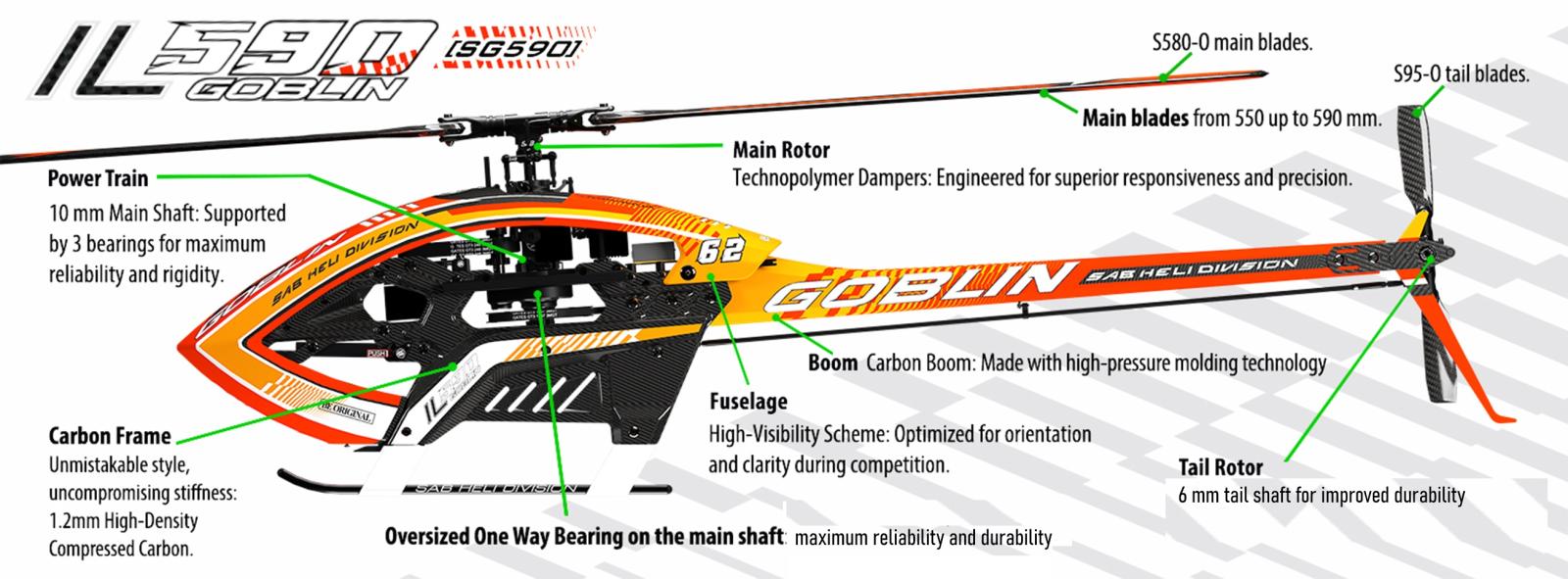

Lightweight carbon chassis for precise flight handling
The low weight of just 1,820 g, including the main and tail rotor blades—but excluding the motor, electronics, and battery—ensures agile and responsive flight handling.

The frame is made of 1.2 mm high-density carbon. The tail tube is also made of high-stiffness, high-density carbon. The combination of low weight and high stiffness creates optimal conditions for precise control responses and dynamic flight maneuvers.

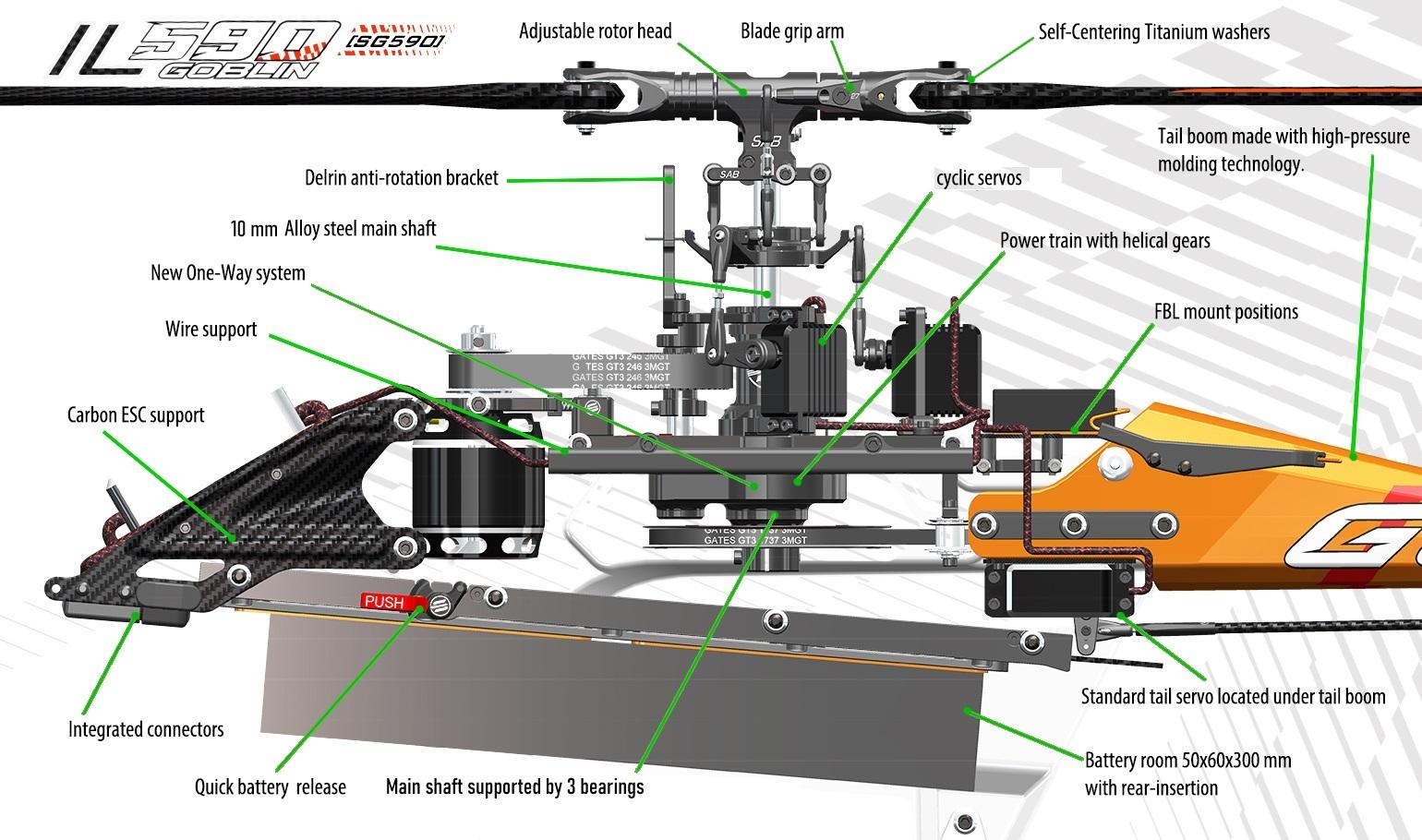

Robust “Eternal” Gearbox
A special highlight of the Goblin 590 is the oversized “Eternal” gearbox. The large-diameter one-way bearing (OWB) sits directly on the main rotor shaft and is designed for high load capacity and a long service life.

The 10-mm main rotor shaft and the 6-mm tail rotor shaft underscore the Goblin 590’s robust construction.

Flexible 6S or 12S Configuration
Depending on your preferred flying style and power setup, the SAB Goblin 590 can be configured as a 6S or 12S RC helicopter.

Servo Configuration
Three mini servos are provided for the swashplate. Optionally, the Goblin 590 can also be built with three standard servos; the H2537-S upgrade is required for this. A standard servo is used for tail control.

Technical Specifications

Model: SAB Goblin 590
Type: RC electric helicopter
Main rotor diameter: 1,242 mm
Main rotor blades: 550–590 mm
Weight: 1,820 g*
Frame: 1.2 mm high-density carbon
Tail tube: High-stiffness carbon
Main rotor shaft: 10 mm
Tail rotor shaft: 6 mm
Gearbox: “Eternal” gearbox with oversized OWB
Swashplate servos: 3x mini or optionally 3x standard
Tail servo: Standard
Power system: 6S or 12S
* Weight includes main and tail rotor blades, excluding motor, electronics, and battery

Package Contents

• 1x SAB iLGoblin 590 Orange
• 1x S580-O Orange main rotor blades
• 1x S95-O Orange tail rotor blades
• Bound manual

Still needed

• 1x Motor (Our recommendation: 6S = Scorpion HK5-4026-545kv or 12S = Scorpion HK5-4026-545kv)
• 1x ESC (Our recommendation: 6S = Scorpion Tribunus III 08-160A or 12S = Tribunus III 14-150A)
• 3x swashplate servos (Our recommendation: Chaservo HV150 / AGF-RC A35BHLP)
• 1x tail servo (Our recommendation: SAVÖX SB-2295SG / AGF-RC A80BHP-H)
• 1x flybarless system (Our recommendation: Microbeast Ultra)
• 1x battery (6S 5000–6000 mAh; our recommendation: Gens Ace G-Tech 5600 mAh 22.2 V 80 C or 12S 3000–4000 mAh; our recommendation: Gens Ace G-Tech 4000 mAh 22.2 V 60C)
