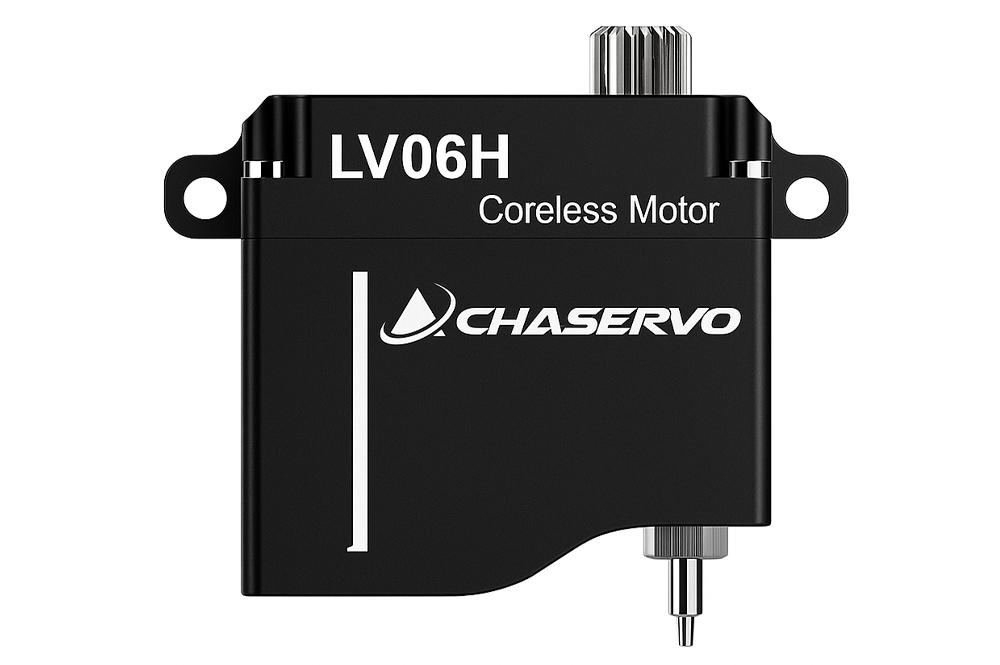

Chaservo LV06H DIGITAL SERVO

The Chaservo LV06-Series is a versatile 6mm low-voltage servo that is available in three different versions for standard or horizontal installation as well as a neutral version. With its particularly flat and compact design, this micro-sub fits seamlessly into thin surfaces. The solid workmanship and the coreless motor also ensure a wide range of applications. Micro servos are ideal for applications that require a small size and must be used in confined spaces. They are used in model airplanes, micro RC cars, drones, robots and many other small applications.

Extremely thin.
Extremely accurate.
The Chaservo LV06-Series is a versatile 6mm low-voltage servo that is available in three different versions for standard or horizontal installation as well as a neutral version.

With its particularly flat and compact design, this micro-sub fits seamlessly into thin surfaces. The solid workmanship and the coreless motor also ensure a wide range of applications.

Micro servos are ideal for applications that require a small size and must be used in confined spaces. They are used in model airplanes, micro RC cars, drones, robots and many other small applications.

Advantages of the Chaservo LV06 series
• Extremely flat and compact design
• Coreless motor for high efficiency and performance
• Solid workmanship and high-quality materials
• Versatile application possibilities

Areas of application
• Model airplanes
• Micro RC cars
• drones
• robots
• And many other small applications

Technical data

• Version LV06H, LV06, LV06N
• Chaservo brand
• Dimensions 19 x 6 x 18.5 mm
• Weight 6.1 g
• Toothing 15T, 4mm
• Rated voltage DC 4.2V
• Voltage range DC 3.3 - 5.0V
• Ball Bearing 2 x Ball Bearing
• Position sensor Potentiometer
• Motor Coreless DC
• Operating frequency 1520 μs / 20 KHz
• Pulse width 900µs - 2100µs
• Programmable Yes
• Housing material Aluminum
• Gearbox material Metal gearbox
• Holding torque at 3.3 V 1.0 kg-cm
• Holding torque at 4.2 V 1.45 kg-cm
• Holding torque at 5.0 V 1.9 kg-cm
• Output torque at 3.3 V 1.0 kg-cm
• Output torque at 4.2 V 1.3 kg-cm
• Output torque at 5.0 V 1.7 kg-cm
• Idle speed at 3.3 V 0.077 sec/60°
• Idle speed at 4.2 V 0.066 sec/60°
• Idle speed at 5.0 V 0.055 sec/60°
• Max. Current at 3.3 V 0.39 A
• Max. Current at 4.2 V 0.64 A
• Max. Current at 5.0 V 0.79 A

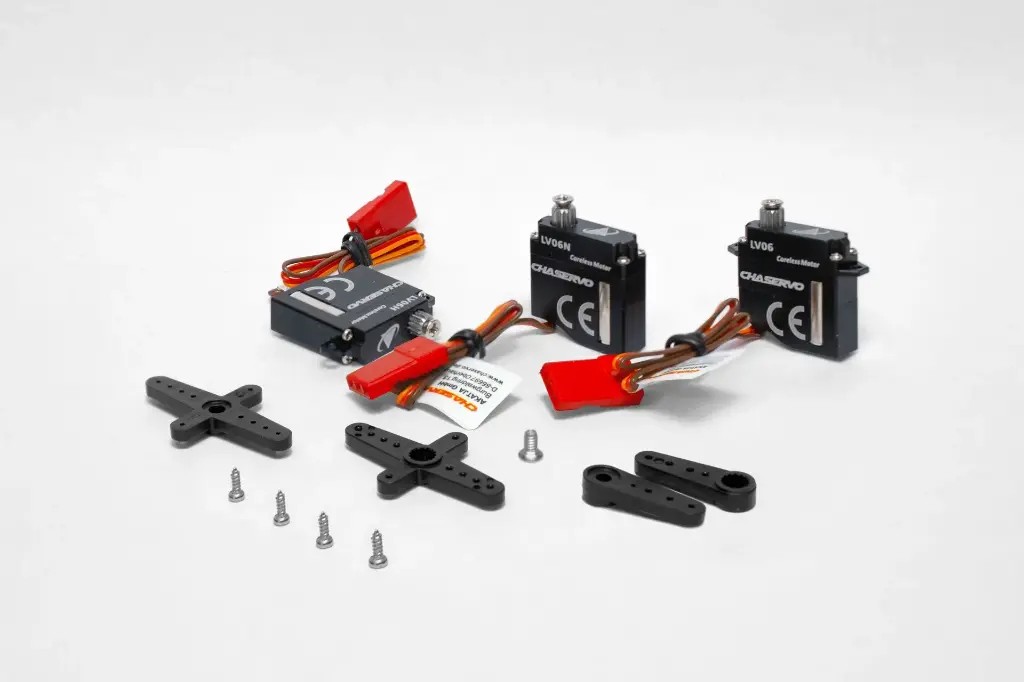

Scope of delivery

• 1x Chaservo LV06H-Series servo: LV06, LV06H or LV06N
• Plastic servo arm
• Mounting material
