AR630+ DSMX 6-Channel AS3X+ & SAFE Receiver

The Spektrum™ AR630+ 6-channel AS3X+ receiver is a DSM2® and DSMX® capable receiver with a compact design that fits a variety of aircraft. It features full range and integrated AS3X+® and SAFE® stabilization. The all-new AS3X+ stabilization algorithm provides better flight performance, improved sensor accuracy and data rate, and gives pilots an even more enhanced flight experience compared to AS3X. There is no delay in control response or limits on control deflections. You'll simply feel like you're flying an expertly tuned model that does exactly what you want it to do.

*Please note - The use of this receiver in turbine-powered model aircraft is not recommended

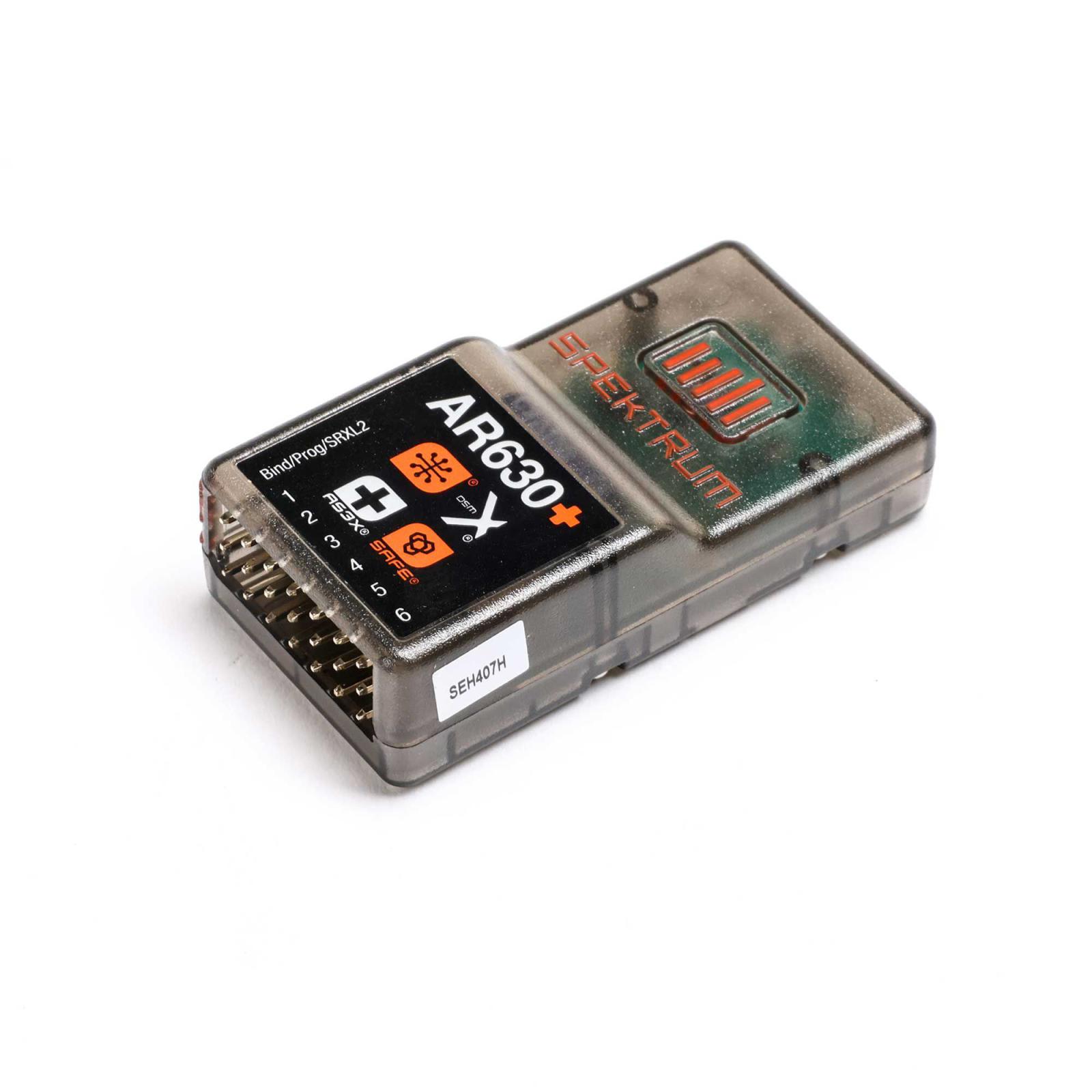

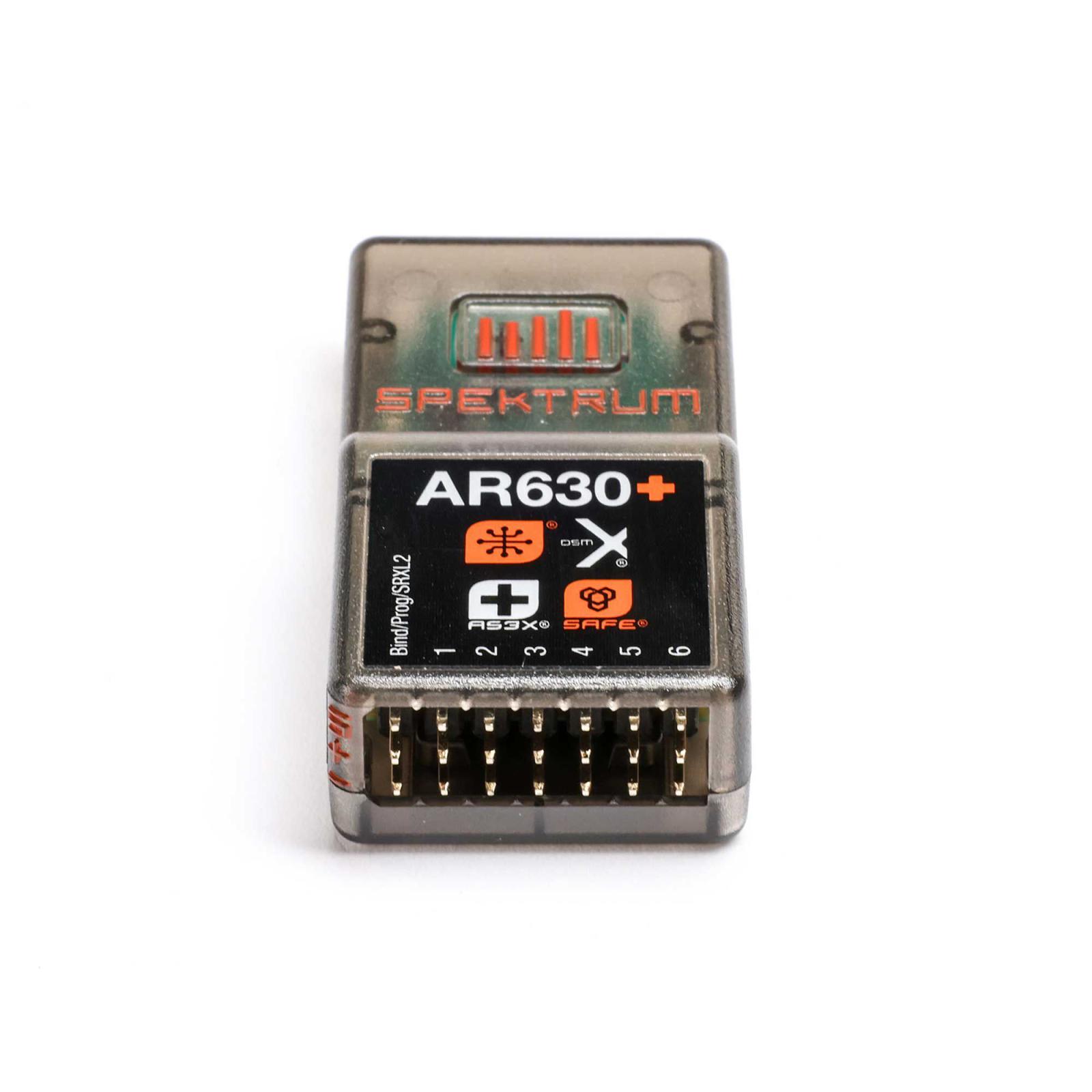

Spektrum AR630+ 6-channel AS3X+ & SAFE receiver overview

The AR630+ features fly-by telemetry, a bind button for easy binding without a bind plug, SmartSafe™ technology, Hold-Last-Command and preset failsafe types set through Forward Programming. It also offers Smart Telemetry support and Smart Throttle support. In addition, Smart model files allow BNF models to be stored on the receiver to automatically import the model when binding.
With Smart technology, the normal servo connector on the throttle slot transmits the throttle signal to the ESC and the ESC sends telemetry data such as voltage and current back to the receiver. The throttle connection of the AR630+ receiver (channel 1 connection only) automatically recognizes when a Smart-compatible ESC is connected. ESCs with Smart and IC series connectors can also pass battery data from compatible Spektrum Smart batteries. Spektrum Avian™ ESCs are compatible with the AR630+ receiver for Smart technology functions.
For Smart to work, you must have a Smart ESC paired with a Smart telemetry receiver and a Spektrum DSMX transmitter with telemetry. Smart features may require an update to your transmitter. Visit www.spektrumrc.com to register and update your transmitter. When a standard ESC or servo is connected to the throttle port of the AR630+ receiver, the throttle channel will function normally (PWM signal) as with any conventional RC system.
Please note: These transmitters do not support forward programming function: DX6i, DX6G2 (EU version), DX7, DX7S, DX7SE, DX7G2 (EU version), DX8, non-computer transmitters

Spektrum AS3X+ Receiver Firmware Update Guide

Spektrum AR630+ 6-channel AS3X+ & SAFE receiver features

• Antenna-less design for easy installation and improved performance
• Integrated AS3X+ stabilization system with SAFE attitude protection
• AS3X+ and SAFE are set up directly from your Spektrum transmitter through Forward Programming
• Ready to use with Spektrum Smart ESCs for one-wire telemetry data without the need for modules, connections and cables
• Optimized housing design with lightweight housing
• Bind button allows for easy binding and eliminates the need for bind plugs
• DSMX protocol receiver with DSM2 backwards compatibility
• Support for fly-by telemetry
• Standard servo connections

NEXT LEVEL FLIGHT STABILIZATION
The all-new AS3X+ features a significantly improved stabilization algorithm that has been thoroughly tested by experts with extensive model flying experience. The system is even easier to tune and can be easily optimized and set up for any of your aircraft types. Never again spend hours tuning and optimizing until you find the settings for your model. We were able to program most aircraft in less than 5 minutes, including tuning for the first flight.

Key improvements to the AS3X+ include:
• Snap and release value parameters
• Heading hold improvements
• Improved gyro filtering
• Support for canard and thrust vector control

SUPPORT FOR SMART TRANSMITTER FILES
Smart transmitter files are a new feature on the AR630+ receiver that makes transmitter programming easier than ever. They consist of a set of transmitter configuration parameters stored in the model file in the receiver. When binding to a receiver that contains one of these model files, the user can choose to download said model file from the receiver and overwrite the currently selected transmitter model memory with the model file stored on the receiver. This provides the user with an easy way to import a new model setup for their BNF model into the current model memory without having to program the model themselves or search for and download the relevant model programming online.
Note: Supported transmitters are currently the iX20, iX14 and NX transmitters with the latest firmware updates.

SAFE® TECHNOLOGY
SAFE® (Sensor Assisted Flight Envelope) flight mode helps pilots avoid over-controlling their models. SAFE uses AS3X+ to achieve normal flight performance, but with limited pitch angles to prevent the aircraft from entering extreme flight envelopes.

ANTENNELESS
The AR630+ features an internal antenna design that provides superior performance over the entire range. Installation is easier than ever before and there is no more risk of failure due to cable breaks or chafing

SMART TELEMETRY
Use the AR630+ receiver with a Smart ESC and a telemetry-enabled Spektrum DSMX® transmitter to take full advantage of Smart™ technology. Important telemetry data such as current, voltage, temperature and RPM are sent directly to your transmitter in real time. For more information on Smart Technology, please visit our Spektrum Smart Technology page.

AS3X+ FORWARD PROGRAMMING
You can wirelessly configure the AR630+ receiver directly from any compatible Spektrum™ transmitter using Forward Programming. No separate computer or mobile device is required for setup and customization.

Technical specifications

• Input Voltage: 3.5 - 9V
• Product Application: Air
• Product Length: 1.85" (47 mm)
• Telemetry: Yes
• Product Height: 0.51" (13 mm)
• Dimensions: 1.85 x 0.98 x 0.51 in (47 x 25 x 13 mm)
• Technology : AS3X+, SAFE
• Failsafe: Yes
• Serial Out: SRXL2
• Product Weight: 0.34 oz (9.5 g)
• Integrated Variometer: No
• Band: 2.4GHz
• Telemetry Range: Fly-By
• Bind Method: Bind Button
• Modulation: DSMX/DSM2
• Forward Programming: Yes
• Remote Receiver Ports: 0
• Channels: 6
• Application: Air
• Range: Full
• Product Width: 0.98" (25 mm)
• Resolution: 2048

Scope of delivery

• 1x Spektrum AR630+ AS3X+ / SAFE receiver
• 1x operating instructions

Still required

• 1x telemetry-capable Spektrum transmitter
