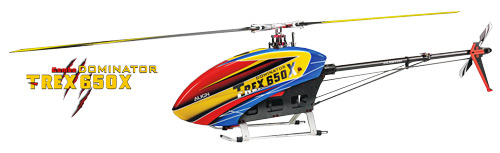

T-REX 650X Dominator Super Combo (12S)

The Airspace Dominator
The new ALIGN T-REX 650X has a unique frame design. It has a separate main frame, a narrow upper frame and a wider lower frame. Ideal for strengthening the structure and easy repair. The flight battery is a 12S LiPo with 3300-6000mAh. In addition, there are many nice features, such as a new quick release for the battery, clearly visible colors on the vertical tail, the main rotor blades and the canopy, which has also been equipped with a new magnetic closure. The flight performance is a combination of the high stability of the 700 and the higher agility of a 600.

Features

• Brand new 650X rotor head with low center of gravity and improved metal swashplate
• Vibrant colors, lightweight canopy
• 650mm carbon main rotor blades
• Helical main gear with module 1 improves torsional strength

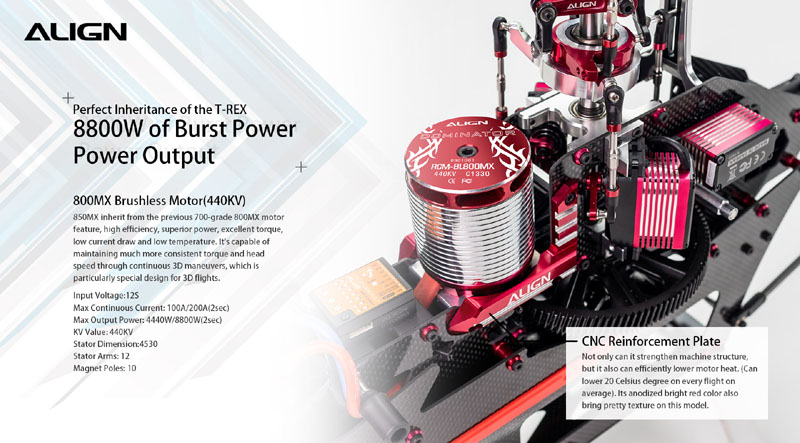

• 800MX 440KV motor 8800W output power

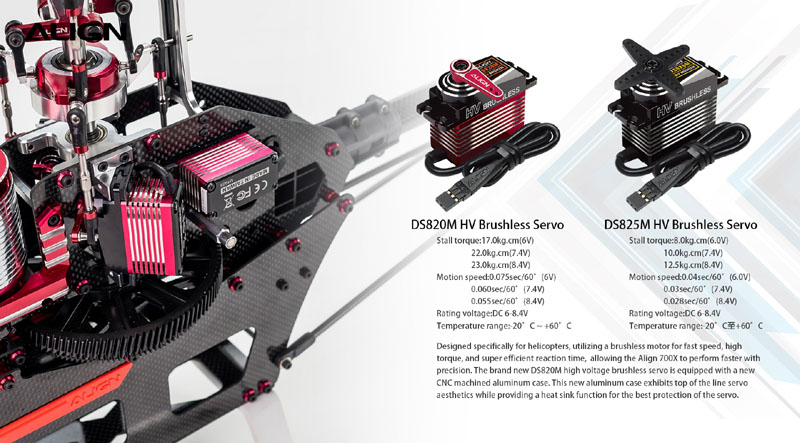

• DS820M / DS825M HV brushless servos for high speed and high torque
• RCE-BL130A brushless ESC for continuous high power output
• Quick-locking system for the flight battery

Technical specifications

Length: 1220mm
Height: 356mm
Width: 196mm
Main rotor diameter: 1455mm
Main rotor blade length: 650mm
Tail rotor blade length: 105mm
Tail rotor diameter: 280mm
Motor pinion: 16T
Main gear: 112T
Autorotation gear: 131T
Tail rotor gear: 34T
Gear ratio: 7:1:3.85
Weight (without drive system): 3320g

Content

• 1x T-REX 650X DOMINATOR
• 2x 650 carbon main rotor blade
• 2x 105mm 3K carbon tail rotor blade
• 1x 800MX brushless motor (440KV) HML80M04T
• 3x DS820M High Voltage Brushless Servo
• 1x DS825M High Voltage Brushless Servo
• 1x RCE-BL130A brushless speed controller

Required for assembly

• 1x remote control (7-channel or more, helicopter system)
• 1x receiver (7-channel or more, suitable for remote control)
• 1x flybarless system
• 2x flight battery (6S 22.2V LiPo 3300-6000mAh) or 1x flight battery (12S 44.4V LiPo 3300-6000mAh)
• 1x charger (6S or 12S LiPo capable)
• 1x pitch adjustment gauge
