A20CLS Servo

Description

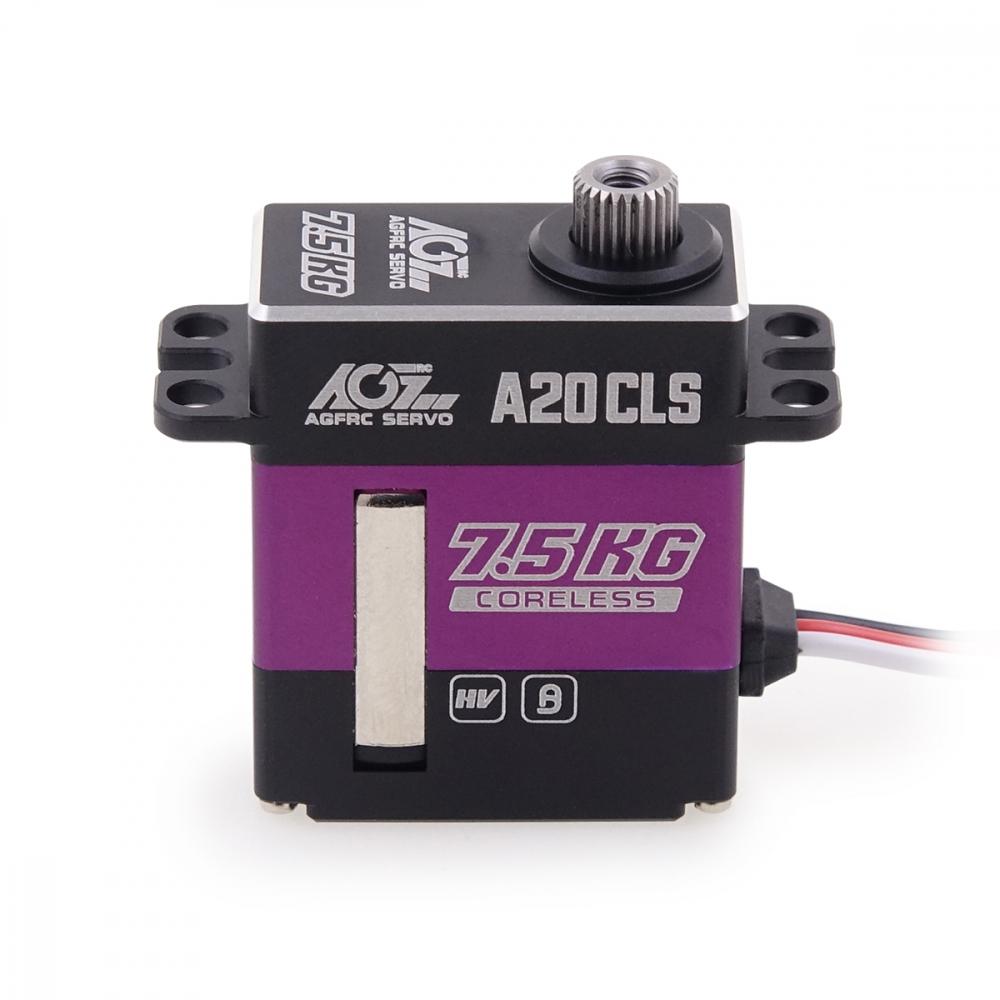

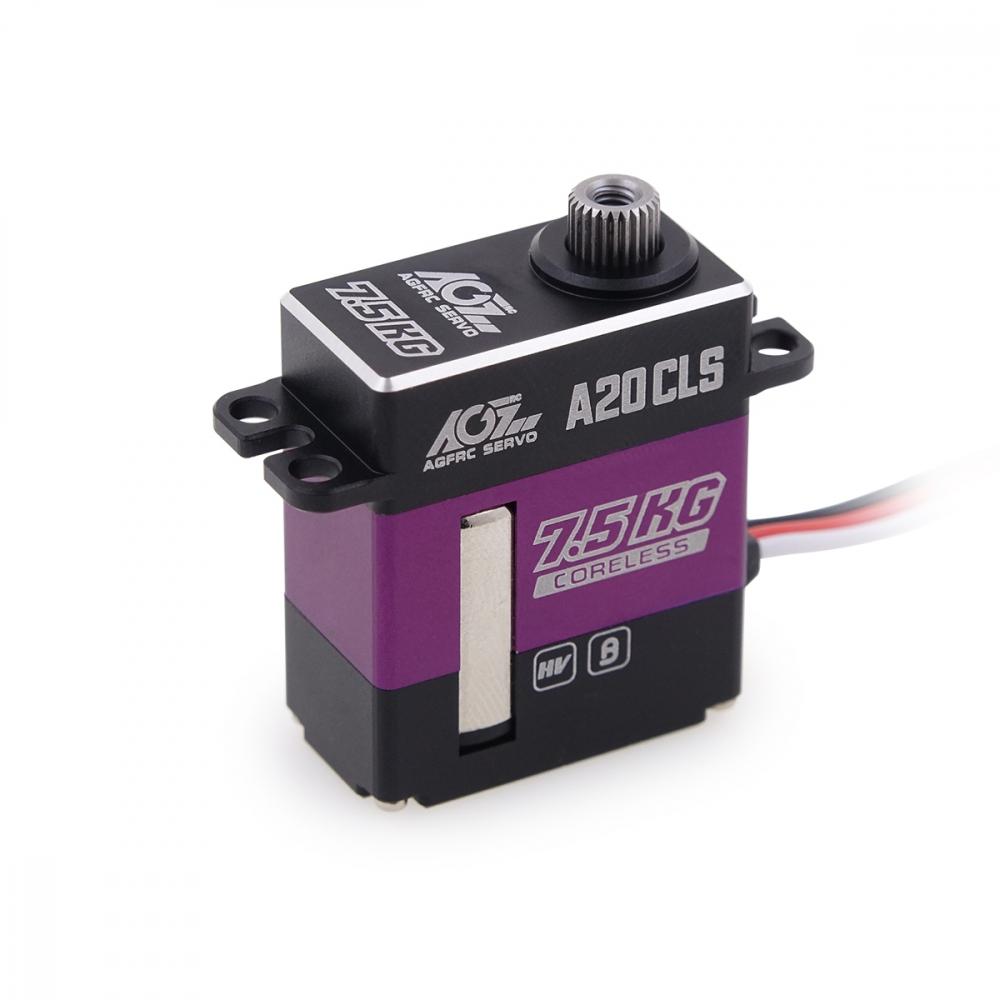

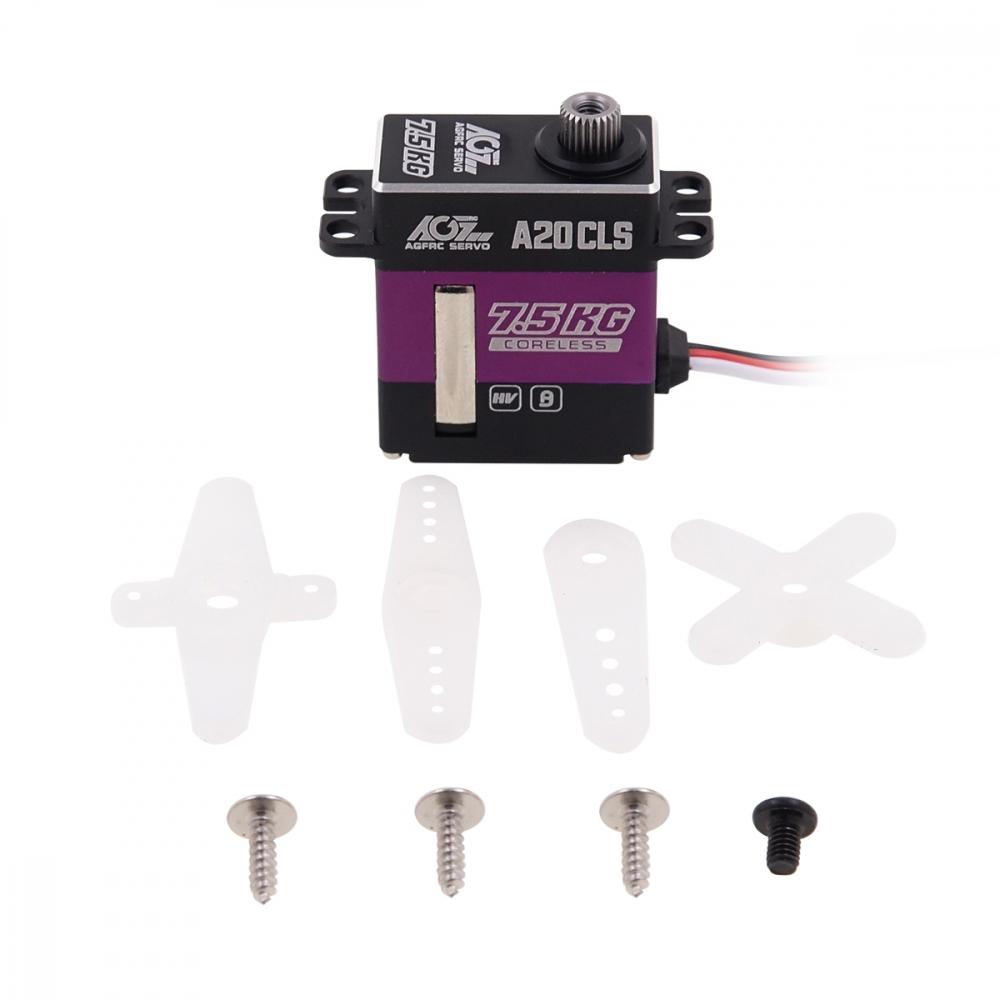

The AGF-RC A20CLS is a 12mm mini servo with an all-aluminum housing. The servo is HV capable and can be operated directly on a 2s LiPo (4.8 - 8.4V). With 7.5kg actuating force, this little powerhouse can show what it can do in various tasks.
Whether in a fixed-wing model, in an RC car or on the swashplate in 450 / 480 helicopters - the A20CLS delivers top performance at a good price.

The A20CLS is also programmable with the optional AGF-SP USB interface.

This requires a Windows computer with Windows 7 or 10. The servos are supplied directly via the USB port and only need to be plugged into the interface. In the software, for example, the soft start, the neutral point, the servo travels can be adjusted (larger and smaller) or the direction of rotation can be set. Furthermore, the Sanwa SSR mode can be activated if required, which is of particular interest to RC car drivers. The integrated overload cut-off can also be adjusted in 3 stages and you can select what should happen in the event of signal loss.

Of course, these are optional features, all servos can be operated as normal straight out of the box and do not need to be adjusted beforehand!

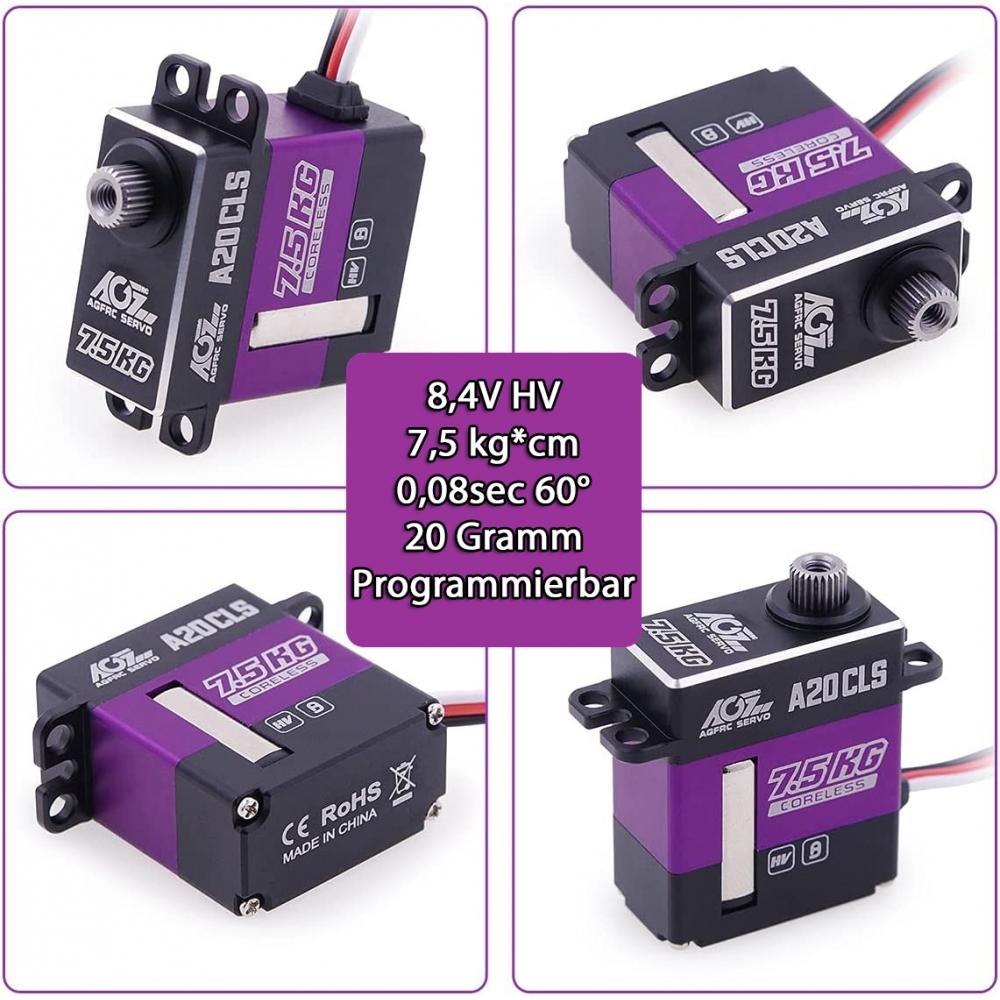

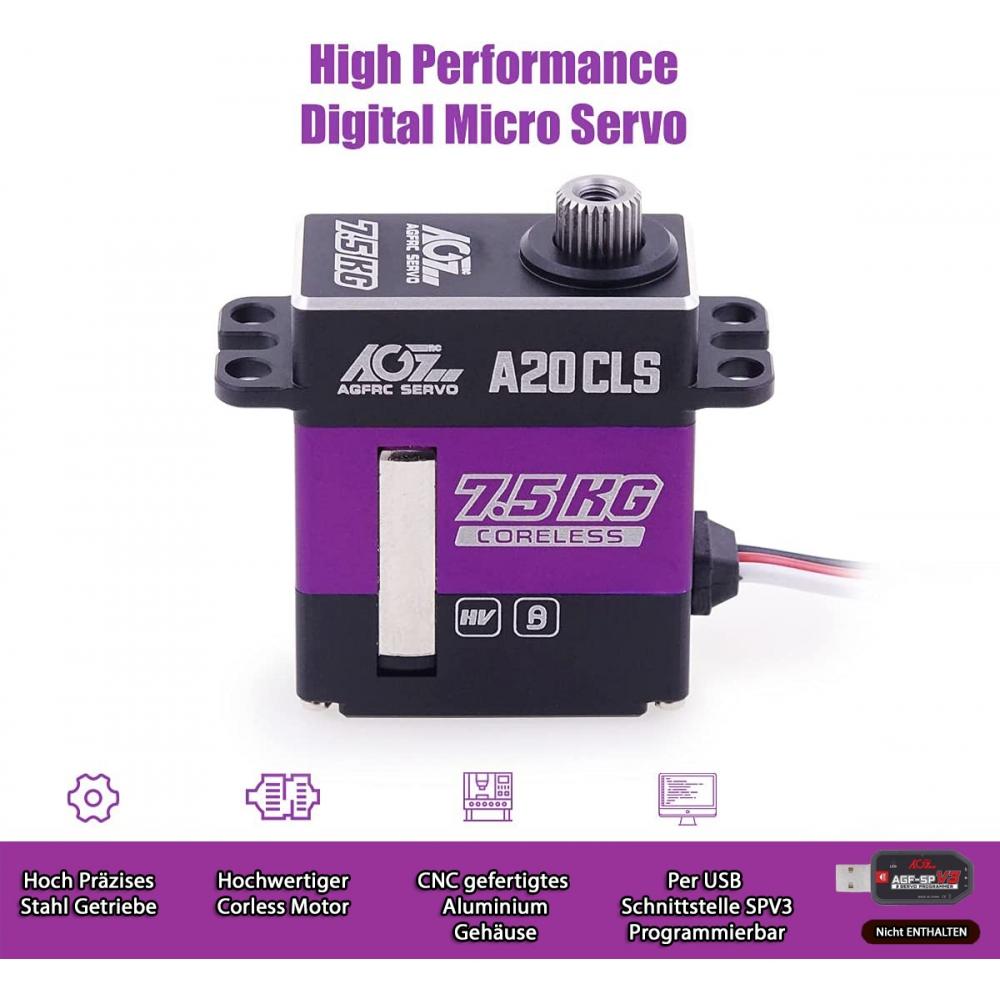

• 12mm mini servo in aluminum housing
• HV capable, 4.8V - 8.4V
• 7.5kg at 8.4V 0.08sec / 60°
• Programmable with optional USB interface AGF-SP

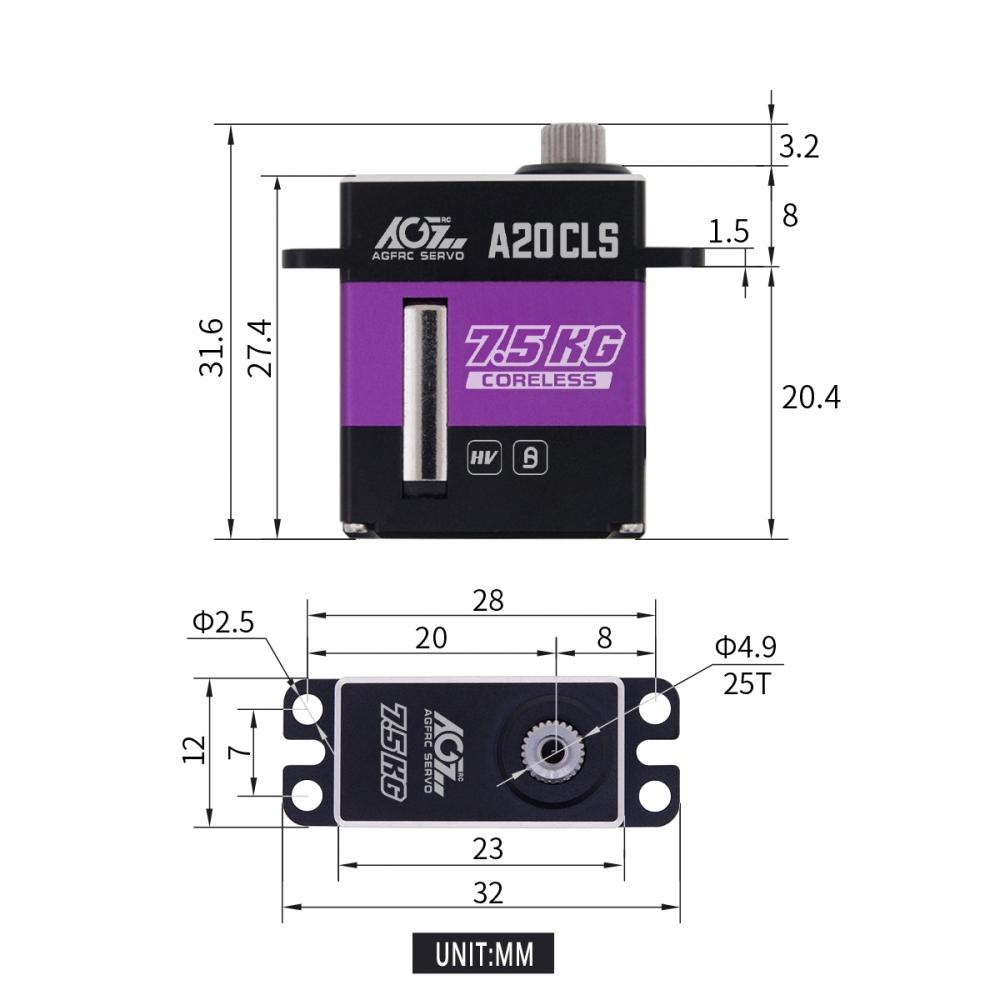

• 20 grams, dimensions 23*12*27.5mm

Technical specifications

• Width (mm): 12
• Weight (g): 20
• Length (mm): 23
• Height (mm): 27.5
• Voltage range: 4.8V-8.4V
• Actuating force S1 (kg*cm): 5.8
• Actuating force S2 (kg*cm): 7.5
• Actuating frequency: Up to 333Hz
• High-voltage capable up to 8.4V: Yes

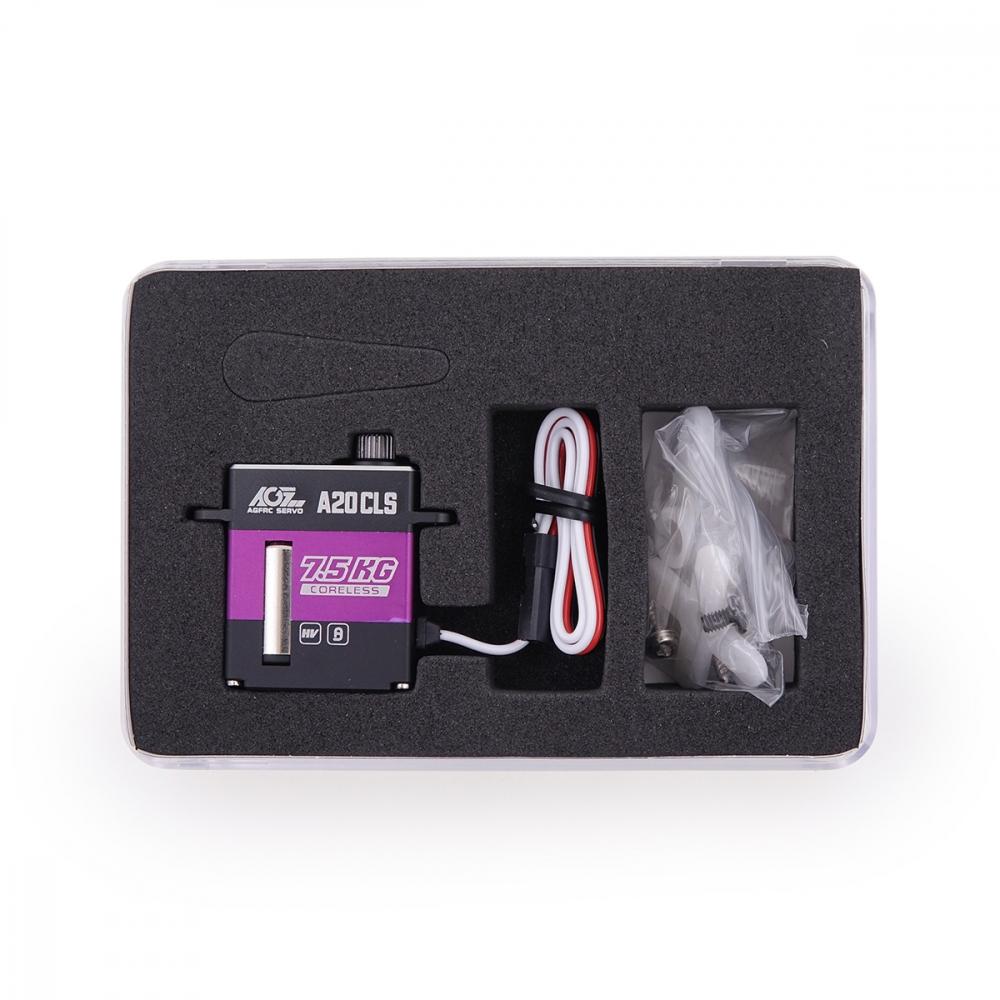

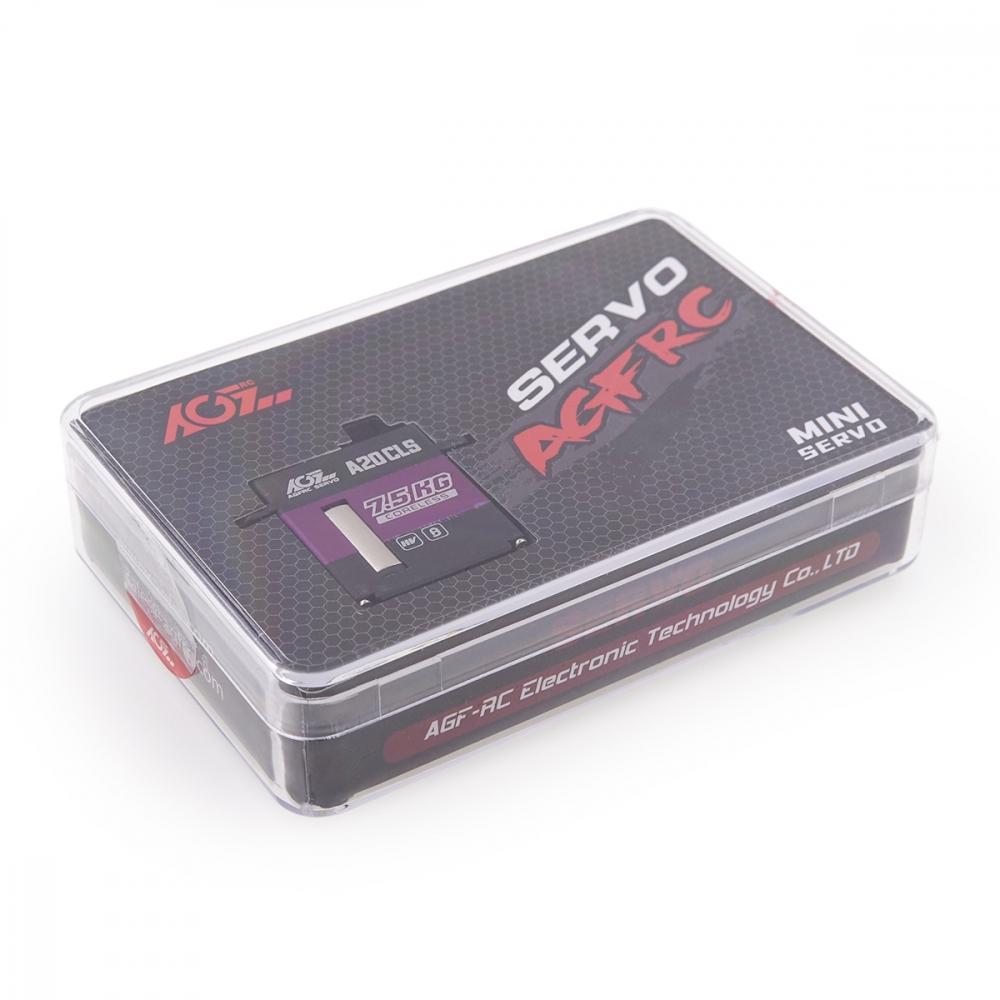

• Packaging: Plastic BOX AGF
• Recommended applications: Helicopter, airplane, car, boat
• Ball bearing (quantity): 2
• Voltage 1 (Volt): 6,0
• Motor type: Bell armature motor
• Gear type: Metal
• Output teeth (number): 25
• Housing type: Full metal
• Voltage 2 (Volt): 8,4
• Classification: Mini
