5mm PRO Navigation Light, 2Wx2 green

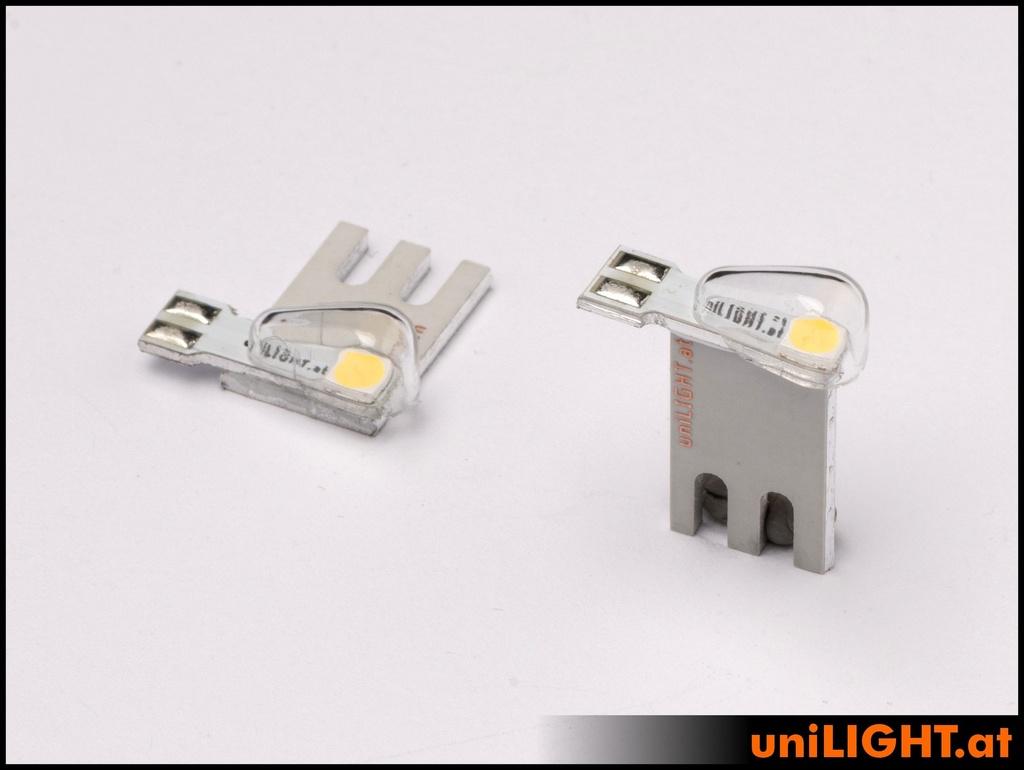

Extremely powerful position/navigation light of the 5mm series is very compact and fits optically also with small models and helicopters also at the smallest positions. Included in the delivery are 3 highly transparent and unbreakable polycarbonate caps, these can be used according to taste and need. In terms of size, this series corresponds approximately to the classic 5mm light emitting diode, but with multiple output and enormously wide radiation. The delivery also includes the heat sink.

Technical data

• Electrical: 2W reference power,
• Voltage: 8(12)V, 0.25A
• Beam angle: >120°
• Luminous intensity: 110 lumen GREEN
• Overall dimensions: 4x15mm (without heat sink)
• Weight: 3g (without cable)


Intended use:

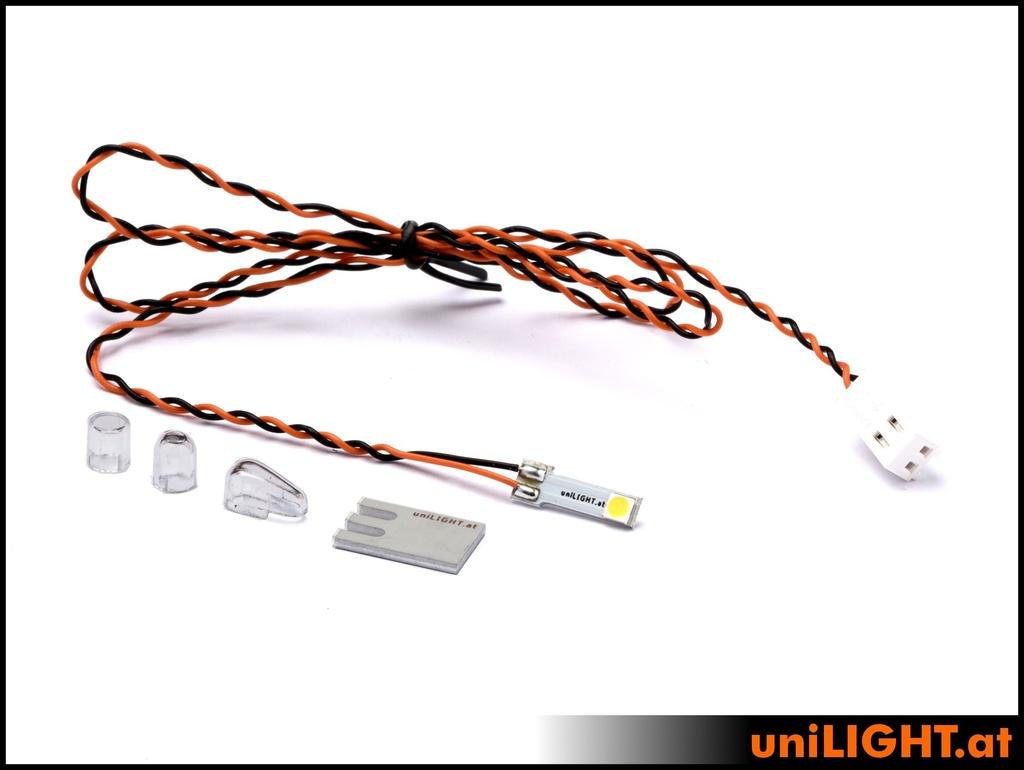

• With 1m silicone cable and pre-assembled series resistor for 2S operation

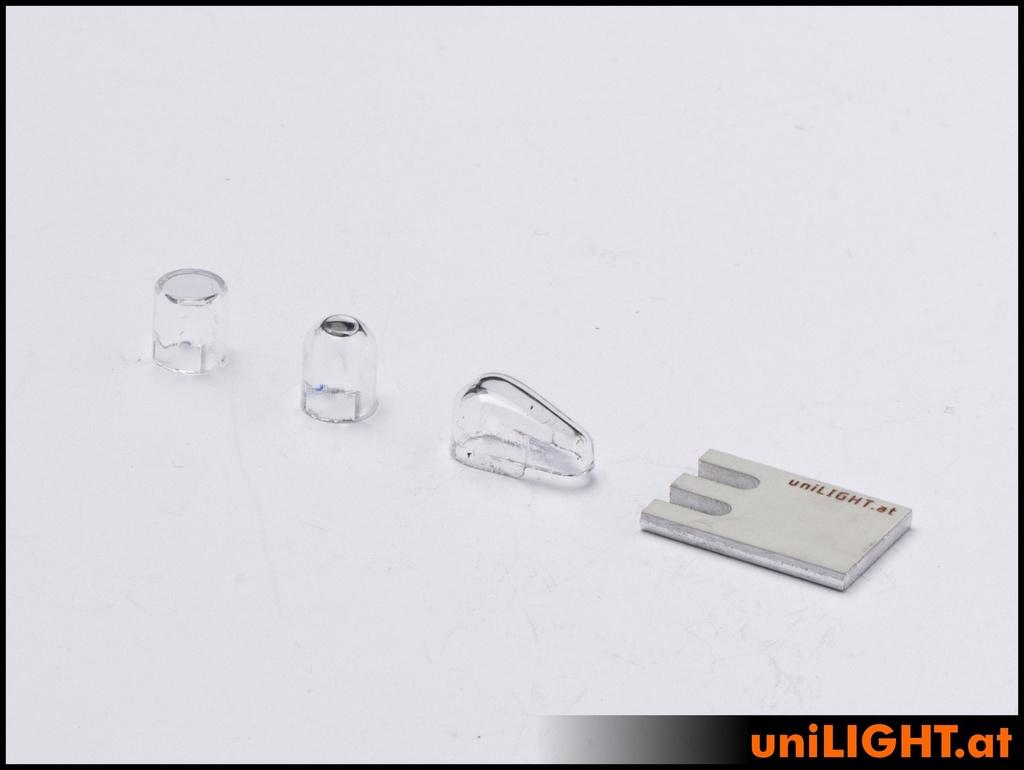

Scope of delivery

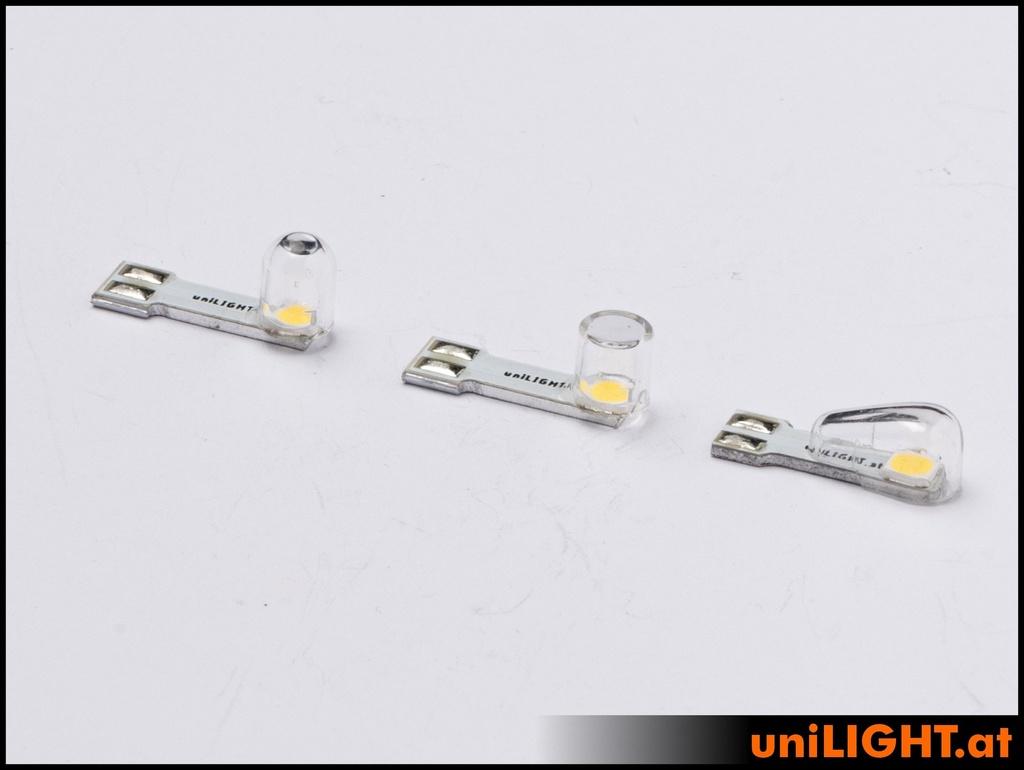

• Cap 1: 5mm profile-shaped
• Cap 2: 5mm round, cylindrical
• Cap 3: 5mm round hemispherical, focusing

Installation instructions

Use additional resistor for 3S operation.

Warnings

Please note that high-power LEDs can become very hot, up to 70°C is quite normal. These lights with heat sink mounting are suitable for continuous operation if air convection is possible. Check the operating temperatures after installation. We cannot accept any warranty due to overheating.
Attention: The LED lights are extremely bright! Never look directly into an LED!
