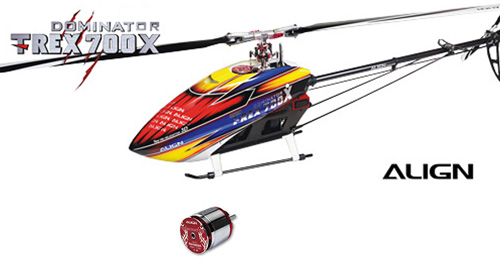

T-REX 700X Dominator Kit
Abbildung kann von Originalware abweichen
EnglishAll-New Align T-REX 700X is specially designed for extreme 3D flight addicts.
The advanced engineered narrow body design efficiently decreases gear abrasion, machine deformation, increases power, and extends flying durability. The unique Split-Type Main Frame design, made of composite material side plates, is engineered using our proprietary embedding technology, which strengthens the entire structure and provides better accessibility for servicing the T-REX 700X. This extraordinary design includes a progressive lightweight landing skid making the T-REX 700X the leader in the 700 class. The Align T-Rex 700X is 400g (0.882lbs) lighter than our pervious model, this can effectively increase your flight time. The brand new 700EFL Flybarless Rotor Head System utilizes an extremely low CG design which reduces resistance during 3D maneuvers while increasing flight responsiveness and precision.
The T-REX 700X is equipped with the new 850MX motor which is highly efficient with superior power, excellent torque, low current draw, and is the most advanced motor approved by World RC Champions. The new designed motor cooling mount plate can reduce the motor operating temperature up to 20°C (68°F). The helicopters high quality design is accented with precision machined red and silver metal parts. The brand new RCE-BL130A brushless ESC supplies extreme power. The ESC includes a superior governor and BEC which allows you to set 5V-8V (Step: 0.1V). The NEW DS820M / DS825M high voltage brushless servos are more efficient and out perform other servos in this class. To protect these servos the new high-end CNC aluminum case function as a heat sink allowing the servos to operate at a lower temperature.
Gathering fully ultimate perfection all in one : Steelness, Lightweight, Precision. T-REX 700X, the King of the Sky is now arrived! What are you waiting for? Let the most innovative design and high-end equipments elevate the adrenaline in your blood!
Main Blade Length: 700mm
Main Rotor Diameter: 1582mm
Tail Rotor Diameter: 281mm
Motor Drive Gear: 13T
Main Drive Gear: 110T
Autorotation Tail Drive Gear: 104T
Tail Drive Gear: 22T
Drive Gear Ratio: 8.46:1:4.73
Weight (with Battery): Approx. 5100g
• 1x T-REX 700X Dominator Kit
• 2x 700 Carbon Fiber Blade
• 2x 106mm 3K Carbon Fiber Tail Blade
• 1x 850MX Brushless Motor (490KV)
Required for assembly
• 1x Transmitter (7-channel or more, helicopter system)
• 1x Receiver (7-channel or more)
• 2x 6S Li-Po 4500 ~ 5200mAh
• 1x Digital Pitch Gauge
• 3x Swashplate Brushless Servo
• 1x Rudder Brushless Servo
• 1x Brushless ESC
• 1x Flybarless System
