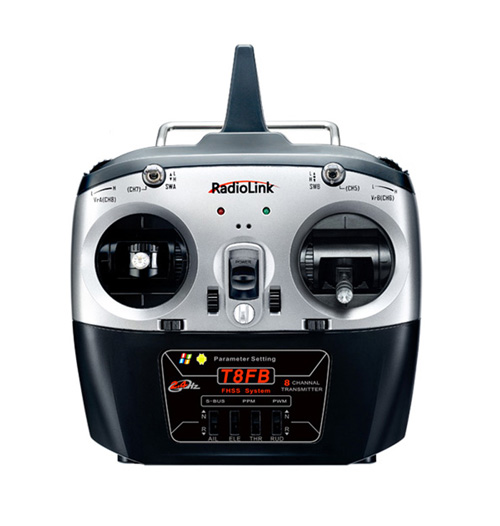

RadioLink T8FB 2.4GHz FHSS 8-Kanal inkl. R8FM (Mode1)

RLT8FBM1 - RadioLink T8FB 2.4GHz FHSS 8-Kanal inkl. R8FM (Mode1) RLT8FBM1
Abbildung kann von Originalware abweichen
Anti-Interference Ability and Control Distance Upgrade
Protocol Upgrade
T8FB with Chip TI CC2500 (OpenTX, same as FrSky X9D) and the transmission rate is three times faster than OpenTX, use same FHSS spread spectrum of AT9S and 67 channels pseudo random frequency sequence hopping makes T8FB have better anti-interference ability both at the same frequency band and different frequency bands. Control distance 2000m air, about two times of T4EU, T6EHP-E and T7E.

Sticks Precision Improved
PCB layout redesign makes the max PWM signal jitter is 1.84μs, and the regular jitter is 0.5μs (same as AT9S), 4 times better than the old version of T8FB and 14 times higher than a famous racing drone transmitter which with 7μs regular signal jitter, much better than the competing transmitters. Use same joysticks components of AT9S.

Full Types
Suit for the most of the airplanes including fixed wing 2 airfoils 3 rears, glider 4 airfoils 2 rears and all multicopters, RC Cars and boats. 21cm long antenna receiver specialized good for RC boats.

Programmable Mix Control
Basic Menu, Advanced Menu, graph view for varieties of throttle and servo curve, 5-8 channels are customized. Advanced settings as you want.

Low Consumption of Battery
Switching Mode Power Supply (SMPS) keeps operating current of T8FB less than 110mA. With our Hardware design avoid the interference of SMPS.

Wide Voltage Range Input
Operating Voltage is 4,8-18V, applicable to 2S to 4S LiPo or 4pcs AA batteries. T8FB, simply the operation, makes it easy to use even without user manual.


Features


• Wide Range of Voltage
• Mini Receiver

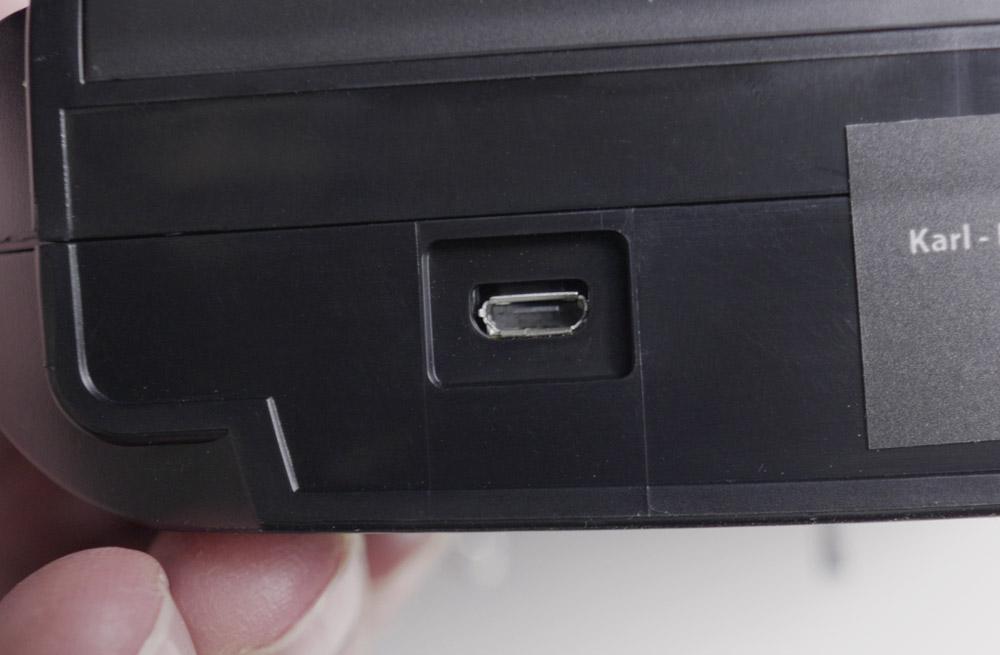

• USB Upgrade - Parameters Setup via Android App
• Antiplug Protect
• 80mA Operate Current
• 8CH Full Function
• FHSS
• S.BUS / PPM / PWM Support


Specifications


Size: T8FB - 173x102x206mm
Weight: 0.47kg
Frequency: 2.4GHz ISM band (2400MHz2483.5MHz)
Modulation mode: GFSK
Channel bandwidth: 400KHz
Band width: 1200kHz
Spread spectrum: FHSS
Adjacent channel rejection: >36dBM
Transmitter power: <100mW (20dBM)
Sensitivity: -104dBM
Speed rate: 38kbps
PWM output: 1.0ms ~ 2.0ms
Section precision: 2000, 0.5μs per section
Cycle:15 ms/per frame
Radio T8FB operating voltage: 4.8V to 18V
Radio T8FB operating current: <110mA
Supported receivers: R8EF, R8FM, R4FG, R4F
Control distance: 2000 meters air, the actual control distance depends on the flying environment


Content


• RadioLink T8FB Transmitter
• RadioLink R8FM Receiver
• USB Adapter Cable
• Throttle Stick return back
• Manual
69,90 €
inkl. MwSt.
zzgl. Versand
 Artikel auf Lager.
Lieferzeit ca. 1 bis 3 Tage*
Artikelnummer

RLT8FBM1

Hersteller

RadioLink

Packungsgewicht0,7 Kg
EAN4260211768687
NewCondition
