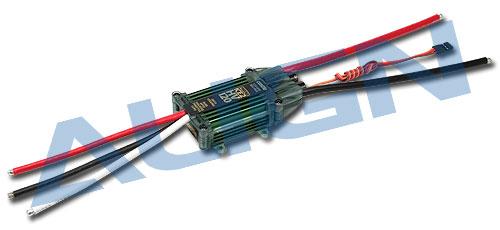

CastleCreations EDGE HV 120 Brushless ESC

HES12002 - CastleCreations EDGE HV 120 Brushless ESC Align HES12002
Abbildung kann von Originalware abweichen

English
Features
• The new Castle Edge ESC provide New Phoenix Controller AUX Line within more options as below:
a. Gain input - Allow the ESC to utilize an additional receiver channel to adjust the governor gain.
b. RPM out - Toggles the AUX Line for every electrical commutation. Divide this number by your number of magnetic pole pairs for mechanical RPM.
c. Excessive load detection - Prevent damage caused by large current spikes typically caused by too much load or possibly a short in the motor wires.
d. Audible Beacon - The controller will emit an audible locator signal from the motor when the AUX LINE is above 50% signal. The beacon is only emitted if the motor is not running
e. Log Data Reset Percentage - The users may select a percentage of the data buffer which all data is erased upon ESC boot up. This helps to ensure that the most recent flight is logged.
• Comprehensive heli feature set, including direct entry governor mode, autorotation with bailout, and soft start capabilities to protect your gearing.
• Opto isolated throttle cable helps reduce radio interference.
• Full data logging capabilities. Measure amp draw, controller temperature, motor rpms, battery voltage and ripple and more. Take the mystery out of electric flight.


Specifications
• Surge current: 120 Amps
• Supporting motor types: 2 poles to 10+poles in/outrunner brushless motors
• Max Supporting input voltage: 50V (12S LiPo / 36 cells NiCd/NiMH)
• Size: 86.6x50.6x23.2mm
• Weight: 148g
Bisher 289,99 €
262,40 €
inkl. MwSt.
zzgl. Versand
 Im Zulauf. Liefertermin noch nicht bekannt
Artikelnummer

HES12002

Hersteller

Align

Packungsgewicht0,15 Kg
EAN4713413978489
NewCondition
262.40EUROutOfStock
AlignHES120024713413978489
