800 AS-365 Marine

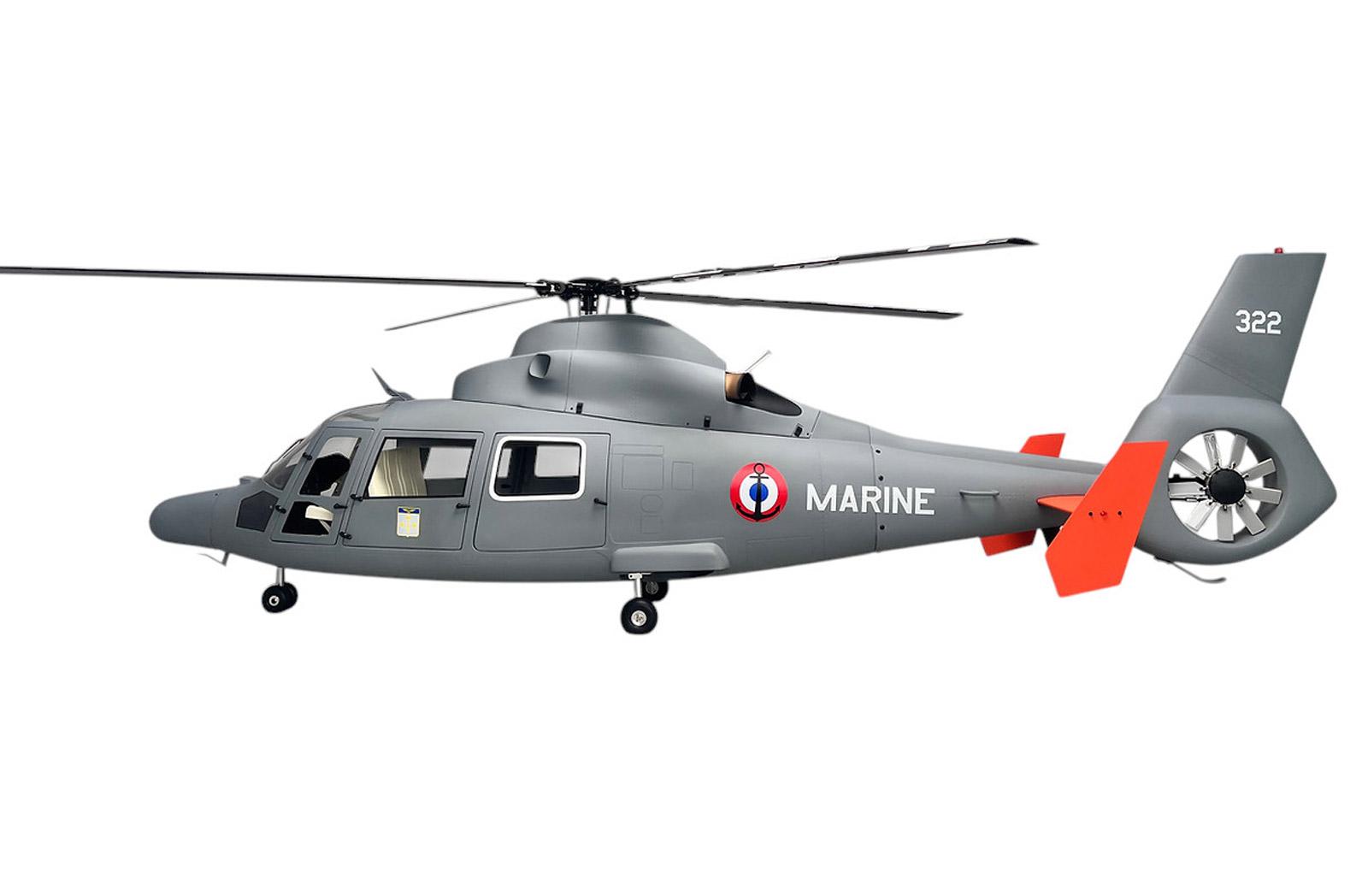

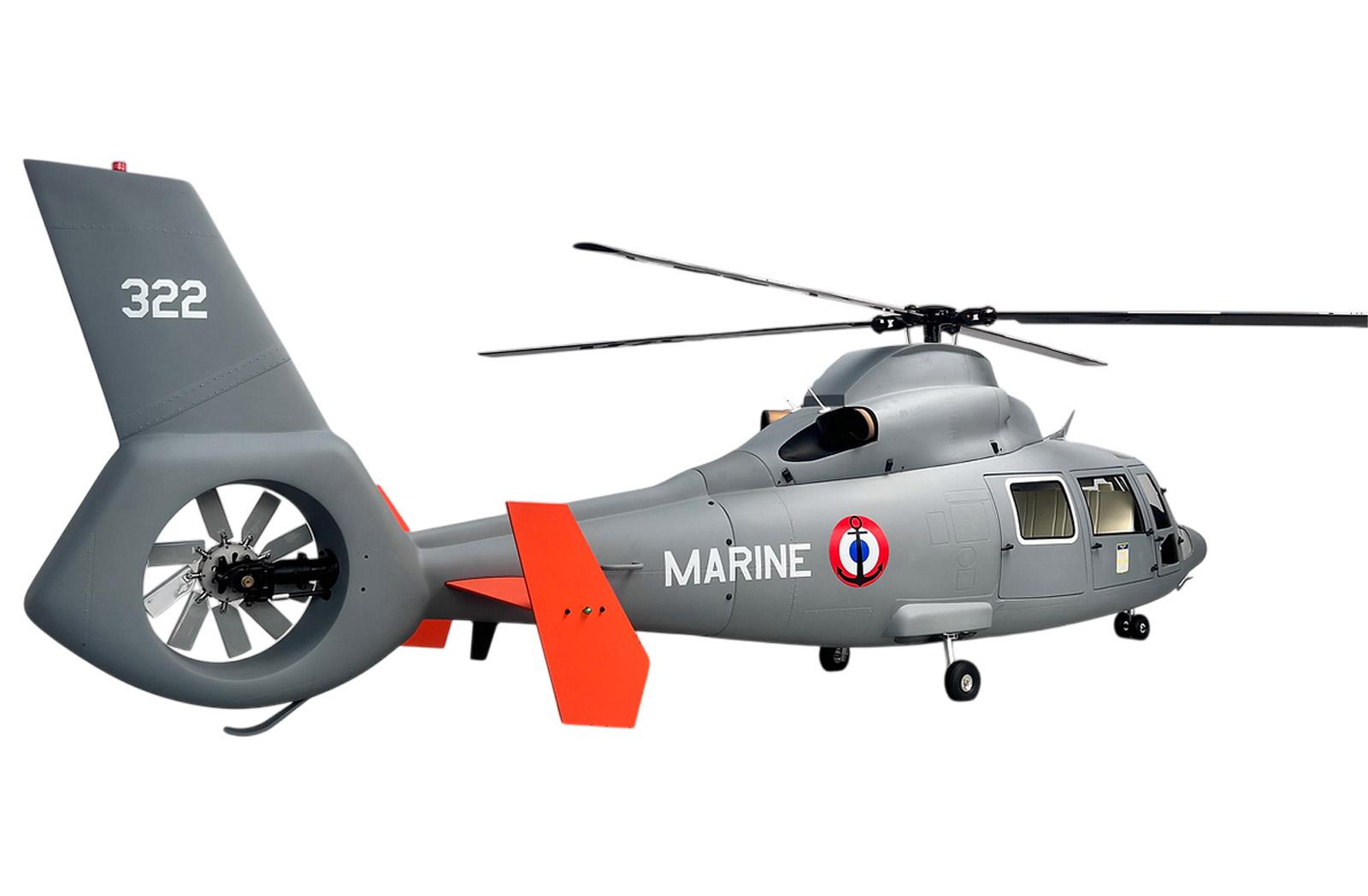

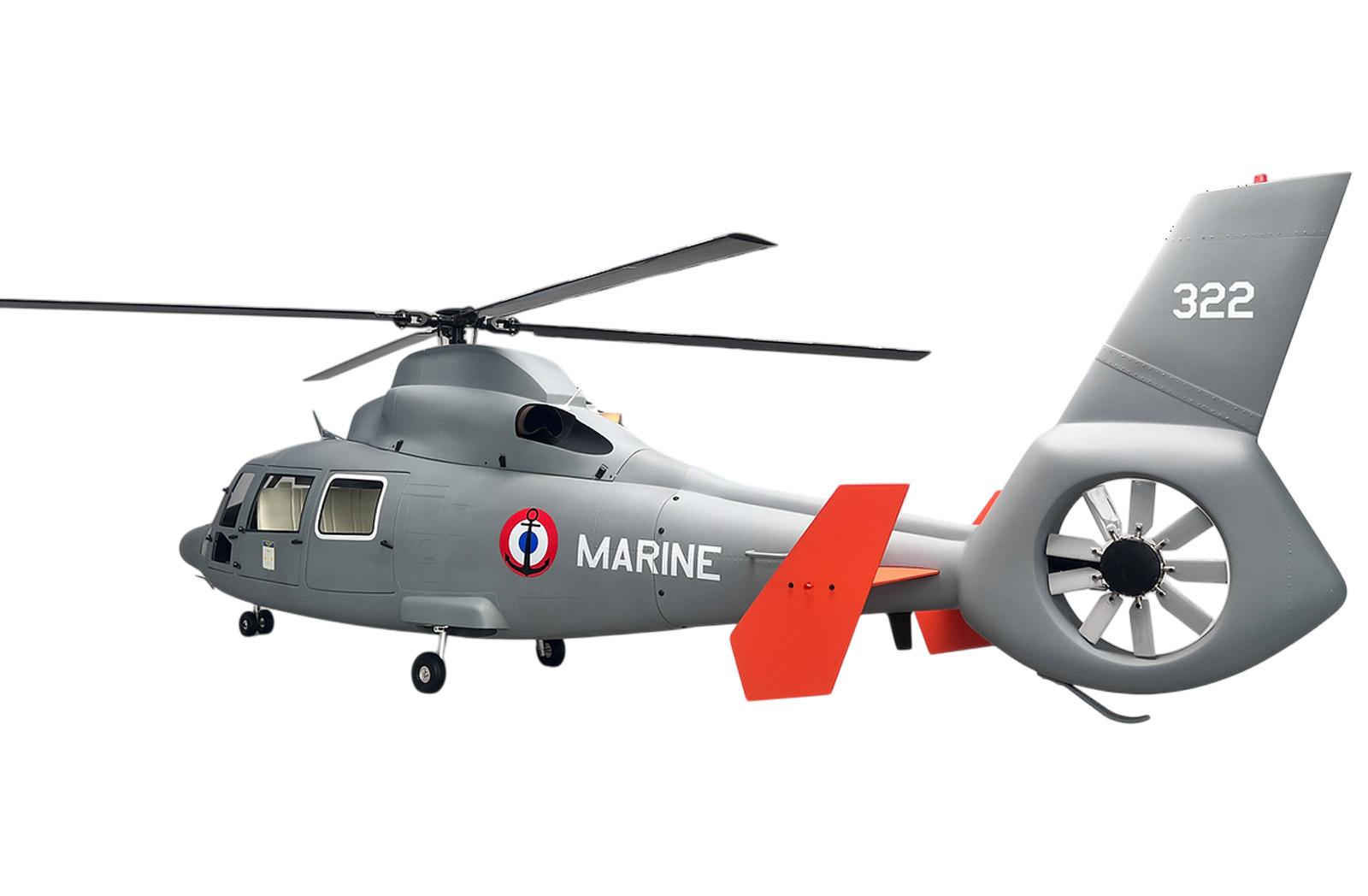

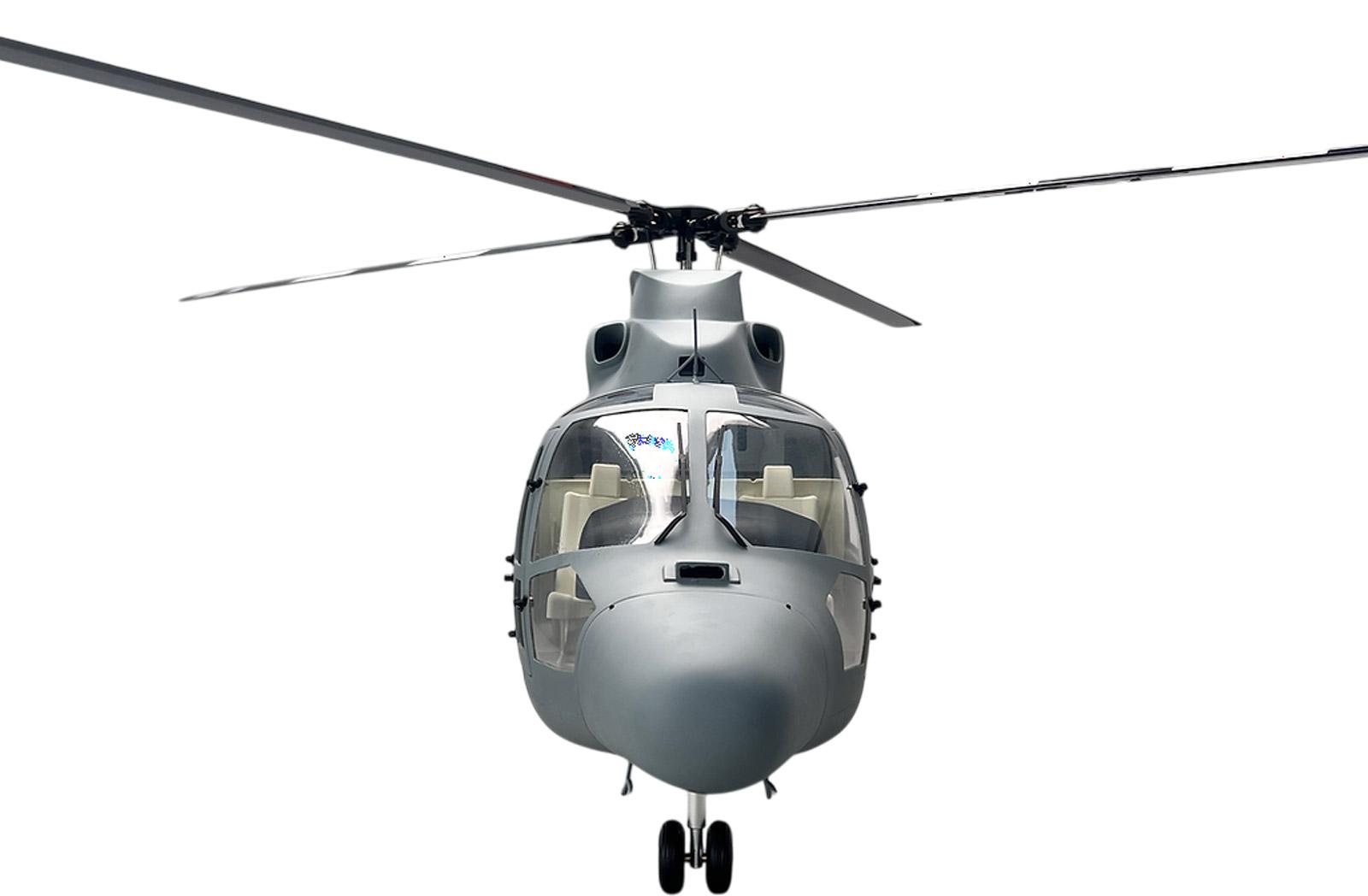

Discover the Elegant Roban AS-365 Dauphin Scale 800 ARF - Precision, Presence, and True Scale Appeal

Experience the refined lines and unmistakable presence of one of the world’s most recognizable twin-engine helicopter designs with the Roban AS-365 Dauphin Scale 800 ARF. This premium scale kit combines impressive size, proven mechanics, and carefully executed detail to deliver a model that stands out both in the air and on display.


Key Highlights:
Distinctive Scale Realism:

The AS-365 Dauphin is faithfully recreated with the sleek proportions and characteristic fenestron tail that make the original helicopter so iconic. The fuselage captures the elegant and purposeful appearance of the full-scale aircraft, giving the model an authentic and commanding presence.

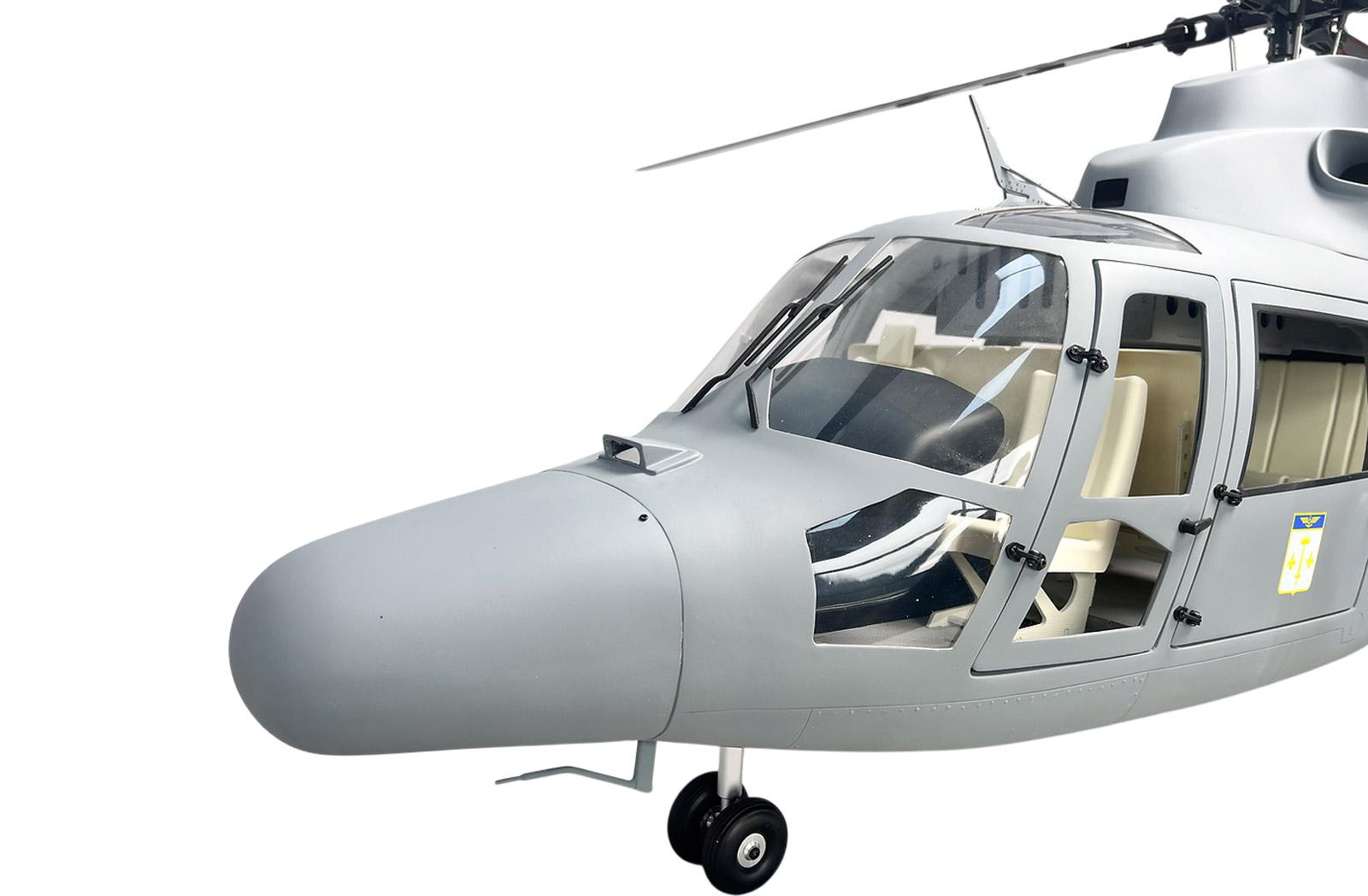

Detailed Scale Fuselage:
From its streamlined body shape to its scale-specific contours and surface detailing, this model is designed to reflect the look and spirit of the real Dauphin. The clean integration of all major components preserves the realism of the airframe and enhances its visual impact.

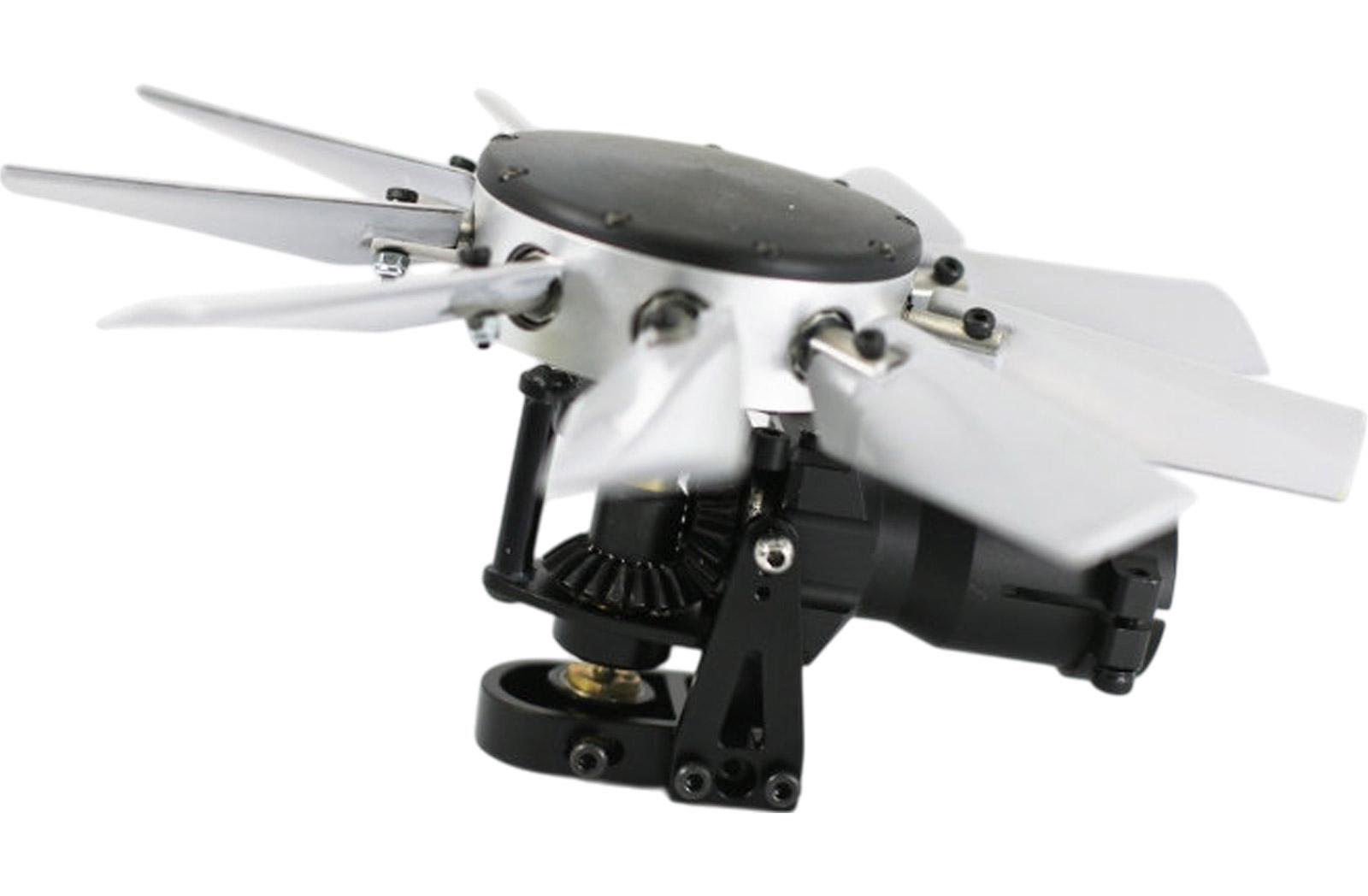

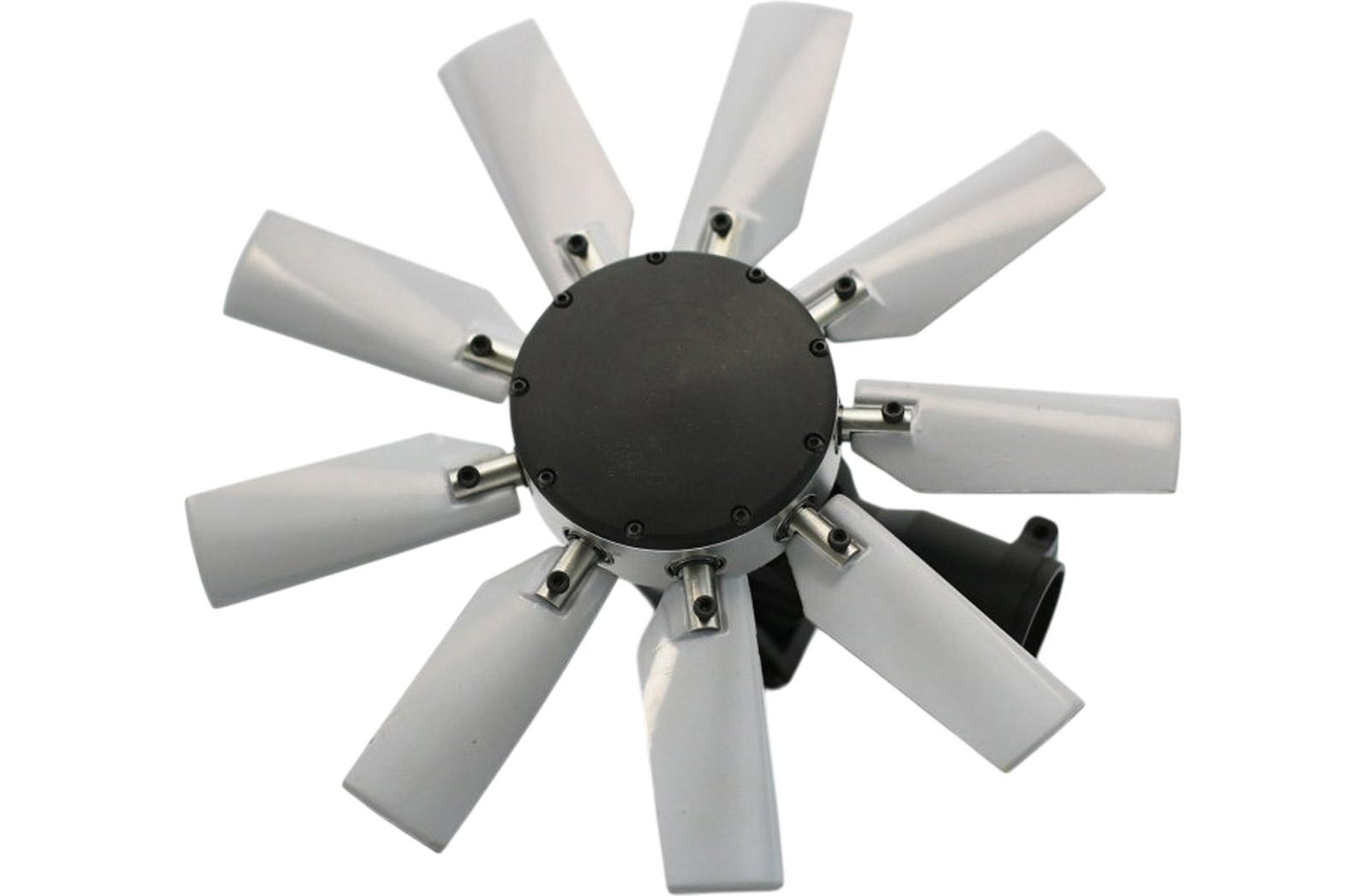

Impressive Fenestron Tail Design:
A defining feature of the Dauphin is its enclosed fenestron tail rotor, and this model stays true to that signature configuration. The result is a uniquely scale appearance that immediately sets it apart from conventional helicopter designs.


Spacious and Authentic Scale Layout:
The fuselage offers the generous dimensions and internal structure needed to create a highly convincing large-scale helicopter model. Its overall form, cabin proportions, and mechanical layout contribute to a realistic and harmonious scale presentation.


Proven and Reliable Mechanism:
At its core lies the trusted HSM-800 mechanism (2019 version), a strong and dependable system that has powered thousands of models with proven reliability, efficiency, and solid flight performance.


Seamless Mechanics Integration:
The mechanics are neatly concealed within the fuselage to maintain the clean and scale-correct external appearance of the Dauphin. This careful integration ensures that the model looks true to the original while remaining practical and functional.


Accessible Maintenance Design:
The model is designed with accessibility in mind, allowing practical access to internal components and battery installation while maintaining proper balance and a clean exterior finish.


Built for Scale Enthusiasts:
The Roban AS-365 Dauphin Scale 800 ARF is ideal for pilots and collectors who value authentic proportions, classic helicopter styling, and a large-scale presence combined with dependable mechanical design.


The Roban AS-365 Dauphin Scale 800 ARF is more than just a model. It is a tribute to one of aviation’s most elegant rotorcraft designs, brought to life in large scale with impressive realism, proven engineering, and unmistakable character.

Specifications

• Body length: 1760 mm
• Length incl. rotors: 1960 mm
• Width: 360 mm
• Height: 570 mm
• Main rotor diameter: 1660 mm
• Main blade length: 750 mm
• Fenestron diameter: 160 mm
• Tail blade length: 70 mm
• Main shaft diameter: 12 mm
• Tail shaft diameter: 5 mm
• Spindle diameter: 8 mm
• Main blade count: 2
• Tail blade count: 9
• Drive gear ratio: 1:13.8:4.7
• Motor:* 1x 750MX 450KV brushless outrunner, 12S capable
• Speed controller:* 1x 120A brushless, 12S capable
• Servo:* 3x metal gear cyclic, 1x metal gear tail servo
• Battery:* 44.4V 5000mAh 35C
• Flight time: 8 minutes
• Takeoff weight: 8000 g
• Flight stabilization:* 3-axis flybarless gyro
• Radio control:* min. 6-channel with pitch and throttle curves
