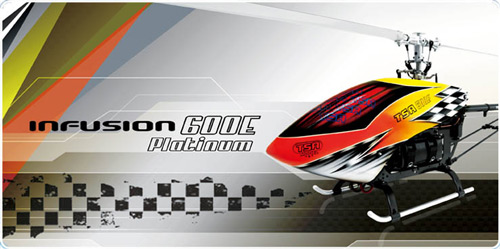

TSA Model Infusion 600E Platinum

Full length of fuselage: 1230mm
Full width of fuselage: 215mm
Height: 390mm
Main blade: 600 ~ 620mm
Main rotor diameter: 1345mm
Tail blade: 90mm
Tail rotor diameter: 252mm
Main gear ratio: 11T / 12T / 13T / 14T: 122T
Tail gear ratio: 113T : 25T
Gear ratio: 9.0 / 9.69 / 10.5 / 11.45 : 1 : 4.52
Fullweight (12s 500mAh approx): 4885g
Engine class: 3000 ~ 5,000W / 500 ~ 550KV
Power battery: 6 ~ 12S Li-Po 3200 ~ 5000mAh
Material specification: Carbon fiber
Tail rotor drive: shaft drive
Swashplate angle: 120°
