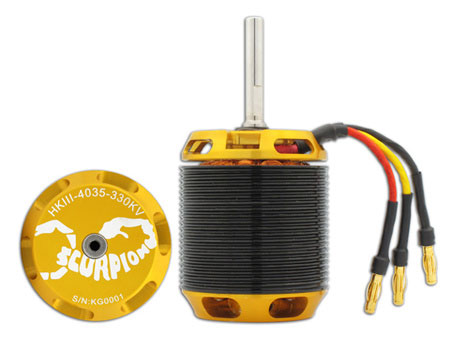

Scorpion HKIII-4035 330KV

SP-HKIII-4035-330 - Scorpion HKIII-4035 330KV SP-HKIII-4035-330
Abbildung kann von Originalware abweichen
The Scorpion HKIII-40 Series Motor* is designed for using on 700 class helicopters running on 12-cell Li-Po power.
This motor represents the most technologically advanced power source ever offered for a 700 class electric helicopter.

*This motor is using 30mm*25mm bolt spacing on the mounting with M4 Screw holes

Full Dimension
Stator Diameter 40 mm (1.56 in)
Stator Thickness 35 mm (1.024 in)
No. of Stator Arms 12
Magnet Poles 10
Motor Wind 14 Turn Delta
Motor Wire 20 - Strand 0.25mm
Motor Kv 330KV RPM / Volt
No-Load Current (IO) 1.33 Amps @ 10v
Motor Resistance (RM) 0.031 Ohms
Max Continuous Current 60 Amps
Max Continuous Power 2650 Watts
Weight 460 Grams (16.22 oz)
Outside Diameter 49.98 mm (1.97 in)
Shaft Diameter 5.98 mm (0.235 in)
Body Length 61.8 mm (2.43 in)
Overall Shaft Length 100.0 mm (3.93 in)
Max Lipo Cell 12s
Peak Current 80A (5 seconds)
Peal Power 3500 Watts (5 seconds)
Motor Timing 5deg
Drive Frequency 8kHz
Weight including packaging: 607g
Bisher 221,70 €
214,90 €
inkl. MwSt.
zzgl. Versand
 Beim Hersteller nicht mehr lieferbar




Packungsgewicht0,6 Kg
