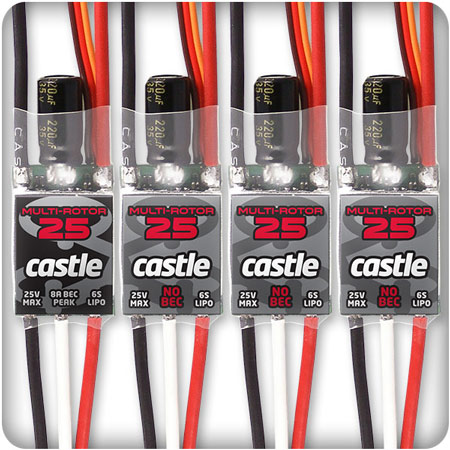

QuadPack 25 25AMP Multi-Rotor (4St)

CC-010-0132-00 - QuadPack 25 25AMP Multi-Rotor (4St) CastleCreations CC-010-0132-00
Abbildung kann von Originalware abweichen

English
QuadPack 25

It wasn′t until recently that Castle decided to spin into the Multi-Rotor market, and provide R/C enthusiasts with some of the most versatile and inventive systems ever devised. Enter the next master of the Multi-Rotor, the QuadPack 25.

This pack of four (4) 25 amp ESCs have already been optimized for use in your Quadcopter or Multi-Rotor by utilizing three (3) ESCs without a BEC and one (1) with a BEC. No more hassling with disabling the BEC on three of the ESC, this package is made specifically to save you the headache. The small footprint and lightweight design makes it the perfect choice for smaller Quads and Multi-Rotors.

A 490 Hz refresh rate makes the QuadPack 25 the epitome of stability during all aspects of flight from a simple hover to the most extreme maneuvers. Recommended for platforms pulling up to 25 amps** and running up to 6S LiPo, your Quadcopter or Multi-Rotor platform will perform as never before. While pre-programmed for your Multi-Rotor, the QuadPack 25 offers industry-leading software functions and USB programming capability via Castle Link USB adapter should you require them (Castle Link sold separately).

specifications

Input voltage:
MIN: 2S LiPo
MAX: 6S LiPo

Max continuous amperage at full throttle:
25 amps

BEC voltage (voltage regulator for powering radio and servos):
5.5 volts

BEC output:
8 amp peak
3 amp continuous
(always check servo draw prior to first flight)

Dimensions:
Width: 0.72" (18.2mm)
Length: 1.72" (43.7mm)
Depth: 0.32" (8.1mm)

Weight with wires (each)
0.63 oz. (17.8g)

Weight without wires (each)
0.32 oz (9g)

Items needed for operation or installation
Battery connector and motor connectors sold separately

Programmability
Fully programmable Castle feature set using Castle Link USB adapter (sold separately) and freely downloadable Castle Link Windows software.
87,10 €
inkl. MwSt.
zzgl. Versand
 Abverkauf so lange der Vorrat reicht.
Lieferzeit ca. 1 bis 3 Tage*
Artikelnummer

CC-010-0132-00

Hersteller

CastleCreations

Packungsgewicht0,12 Kg
EAN819326010729
NewCondition
87.10EURInStock
CastleCreationsCC-010-0132-00819326010729
