Optischer Drehzahlmesser für Helikopter 700-4500U/min

SK500010 - Optischer Drehzahlmesser fuer Helikopter 700-4500U_min SkyRC SK500010
Abbildung kann von Originalware abweichen

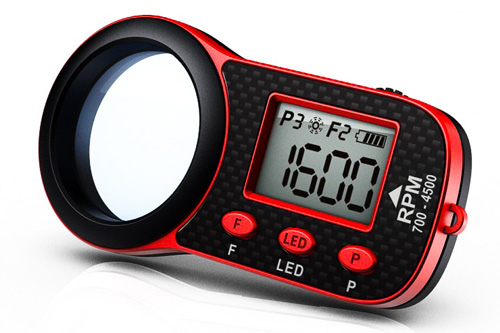

Optical Tachometer
It is a must have tool for any pilot, and can measure RPM of any rotating object, such as all kinds of helicopters, fixed-wing airplanes with propellers and multi-copters.
With high accuracy, fast response, compact size, ergonomic design and easy operation, this Optical Tachometer makes pilots have more fun!

How it works
As we know when the flashing frequency of 3D Glass Screen is the same as the RPM of a rotating object, if we view the rotating object through the 3D Glass Screen, the rotating object is "static".
At this time, the flashing frequency of 3D Glass Screen is the RPM of this rotating object.

When we view the rotating blades through the 3D Glass Screen, if the blades is"static", the flashing frequency displayed in the LCD is the RPM of this blades.

Applied for all kinds of helicopters, fixed-wing airplanes with propellers and multi-copters.

5 presets of Flashing Frequency/RPM
The RPM range that the Optical Tachometer could test is from 700RPM to 4500RPM.
In order to make it convenient for you to enter close RPM and find out the exact RPM in a short time, 5 presets of RPM can be saved in this unit and you could enter any preset by pressing "F" key.
Each preset RPM value can be set according to your different helicopters and airplanes, and also the last RPM value before shutting off will be saved as preset.

10 Level aperture adjustment
As the back light of the rotating object is quite different, there are 10 levels of aperture which can be set by pressing "F" key.
In this case,you could capture clear image through the 3D Glass Screen whether the light is bright or dark, so that you can get accurate RPM value of the rotating object.


Technical Data


• RPM Range: 700-4500RPM
• Accuracy: =b11RPM
• Power supply: CR2032 button battery
• Weight: 45g
• 10 level aperture adjustment
• 5 preset RPM value
• Rotary dial for RPM value adjustment
• LCD display


Content


- 1x Optical Tachometer
64,90 €
inkl. MwSt.
zzgl. Versand
 Im Zulauf, in Kürze wieder lieferbar
Lieferzeit ca. 5 bis 7 Tage*
Artikelnummer

SK500010

Hersteller

SkyRC

Packungsgewicht0,08 Kg
EAN4046032066474
