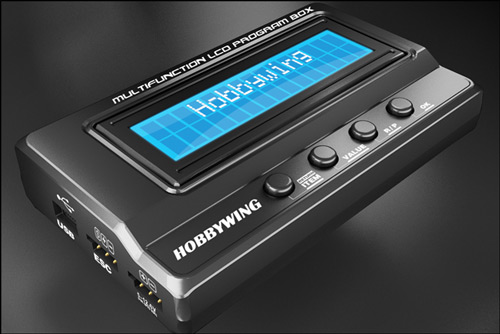

Multifunction LCD Program Box

HW-30502000014 - Multifunction LCD Program Box Hobbywing HW-30502000014
Abbildung kann von Originalware abweichen

Erstet durch neuen Artikel: SHS8E00003





Working Modes
• Works as an individual device to set the ESC, the value of each parameter is displayed on the LCD screen.
• Works as an USB adapter to link the ESC with a PC to update the firmware of the ESC or set the ESC by HOBBYWING USB LINK SOFTWARE .
• Works as a Lipo battery voltmeter to measure the voltage of the whole battery pack or each cell.


Specifications


Size (LxWxH): 90x51x17mm
Weight: 65g
Input Voltage: 4.5V - 12.6V (If the ESC hasn′t a built-in BEC, you must use an additional battery pack to supply the program box)
Display: 16x2 characters LCD
Interface: Mini USB interface, ESC interface (Futaba plug), Power supply interface (Futaba plug)


Programmable ESCs
• XERUN & EZRUN series Car ESC (Version 2.0 and 2.1)
• XERUN-120A V3 & V3.1 ESC
• PLATINUM series helicopter/aircraft ESC
• PLATINUM V3 series helicopter/aircraft ESC


Programmable items for the XERUN and EZRUN series car ESC
• Running Mode
• Drag Brake Force
• Low Voltage Cut-Off Threshold
• Start Mode
• Maximum Brake Force
• Maximum Reverse Force
• Initial Brake Force
• Throttle Neutral Range
• Timing
• Over-Heat Protection
• Motor Rotation
• Lipo Cells Amount

Programmable items for the PLATINUM series airplane ESC
• Brake
• Battery Type
• Low Voltage Protection Mode (Cutoff Mode)
• Low Voltage Protection Threshold (Cutoff Threshold)
• Start Mode
• Timing
• Governor Mode
• Reserved Item #1
• PWM Frequency
• Built-In BEC Output
• Reserved Item #2
• Lipo Cells Amount

Programmable items for the PLATINUM V3 series airplane ESC
• Brake
• Battery Type
• Low Voltage Protection Mode (Cutoff Mode)
• Low Voltage Protection Threshold (Cutoff Threshold)
• Flight Mode
• Autorotation Restart Time
• Timing
• PWM Frequency
• Built-In BEC Output
• Lipo Cells Amount
Bisher 34,99 €
32,90 €
inkl. MwSt.
zzgl. Versand
 Nicht mehr lieferbar
Artikelnummer

HW-30502000014

Hersteller

Hobbywing

Packungsgewicht0,13 Kg
EAN6938994400251
NewCondition
32.90EURDiscontinued
HobbywingHW-305020000146938994400251
