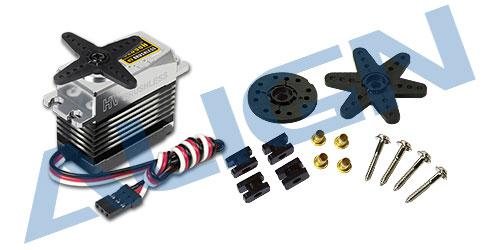

BL850H High Voltage Brushless Servo

HSL85001 - BL850H High Voltage Brushless Servo Align HSL85001
Abbildung kann von Originalware abweichen

English
• Rudder servo with 0.028sec/60° ultra high speed response, pushing the extreme.
• Utilizes brushless motor design for fast speed, high efficiency. And with the absence of brush wear, the longevity of servo is greatly increased.
• Supports 8.4V high voltage to provide optimal speed and torque performance of the brushless servo.
• Designed specifically for helicopters, with highest specifications on the market: 0.028sec/60° ultra fast speed and 12.5kg/cm monstrous torque, allowing helicopter to perform with faster and higher precision.
• Ultra high 12 bits signal resolution for excellent precision and smoothness.
• Hardened high strength superalloy gears that increase the lifetime.
• Brand new high voltage brushless servo equipped new CNC machined aluminum case, not only exhibited top of the line servo aesthetics, but also combine heat sink function and best protection for the servo.
• Supports both analog and digital control signals.
• Suitable for T-Rex 550/600/700/800 rudder use.


• Stall torque: 9kg/cm (6.0V)
• Stall torque: 11kg/cm (7.4V)
• Stall torque: 12.5kg/cm (8.4V)
• Motion speed: 0.045sec/60° (6.0V)
• Motion speed: 0.03sec/60° (7.4V)
• Motion speed: 0.028sec/60° (8.4V)
• Rating voltage: DC 4.8V - 8.4V
• Temperature range: -20°C ~ +60°C
• Dimension: 40.3x20.1x38.7mm
• Weight: 75g
Bisher 179,99 €
129,90 €
inkl. MwSt.
zzgl. Versand
 Abverkauf so lange der Vorrat reicht.
Lieferzeit ca. 1 bis 3 Tage*
Artikelnummer

HSL85001

Hersteller

Align

Packungsgewicht0,08 Kg
EAN4713413978953
