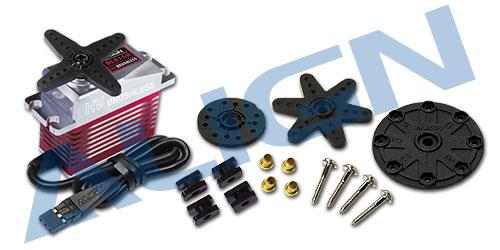

BL815H High Voltage Brushless Servo

HSL81501 - BL815H High Voltage Brushless Servo Align HSL81501
Abbildung kann von Originalware abweichen

• Designed specifically for helicopters,utilizes brushless motor for fast speed, high torque and super efficiency reaction, allowing helicopter to perform with faster and higher precision. Brand new high voltage brushless servo equipped new CNC machined aluminum case, not only exhibited top of the line servo aesthetics, but also combine heat sink function and best protection for the servo.
ullet Utilizes brushless motor design for fast speed, high efficiency. And with the absence of brush wear, the longevity of servo is greatly increased.
ullet Supports 8.4V high voltage to provide optimal speed and torque performance of the brushless servo.
ullet Designed specifically for helicopters, with highest specifications on the market: 0.055sec/60° ultra fast speed and 23kg/cm monstrous torque, allowing helicopter to perform with faster and higher precision.
ullet Ultra high 12 bits signal resolution for excellent precision and smoothness.
ullet Hardened high strength superalloy gears that increase the lifetime.
ullet Brand new high voltage brushless servo equipped new CNC machined aluminum case, not only exhibited top of the line servo aesthetics, but also combine heat sink function and best protection for the servo.
ullet Supports both analog and digital control signals.
ullet Suitable for T-Rex 550/600/700/800 cyclic and rudder use.


Specifications
ullet Stall torque: 17kg/cm (6.0V)
ullet Stall torque: 22kg/cm (7.4V)
ullet Stall torque: 23kg/cm (8.4V)
ullet Motion speed: 0.075sec/60° (6.0V)
ullet Motion speed: 0.060sec/60° (7.4V)
ullet Motion speed:0.055sec/60° (8.4V)
ullet Rating voltage: DC 6.0V-8.4V
ullet Temperature range: -20°C ~ +60°C
ullet Dimension: 40x20x39mm
ullet Weight: 80g
139,99 €
inkl. MwSt.
zzgl. Versand
 Nicht mehr lieferbar
Artikelnummer

HSL81501

Hersteller

Align

Packungsgewicht0,1 Kg
EAN4713413983063
