KDE 550 / 600 Universal Motor Mount |
Abbildung kann von Originalware abweichen
|
| Artikelnummer | : | AT550-UMM | | Hersteller | : | KDEDirect | | Packungsgewicht | : | 0,02 kg | | EAN | : | 10003602 |
Im Zulauf, in Kürze wieder lieferbar
Lagerstatus für Versand Kerpen
|
UNIVERSAL MOTOR MOUNT
FOR ALIGN TREX 550/600 ELECTRIC SERIES HELICOPTERS
Material: Aluminum 6061-T6
Models: all ALIGN TREX 550E, 600E, and 600ESP series (replaces stock Align part #H60033)
The Universal Motor Mount provides the pilot the ability to run almost-all motor and gearing combinations

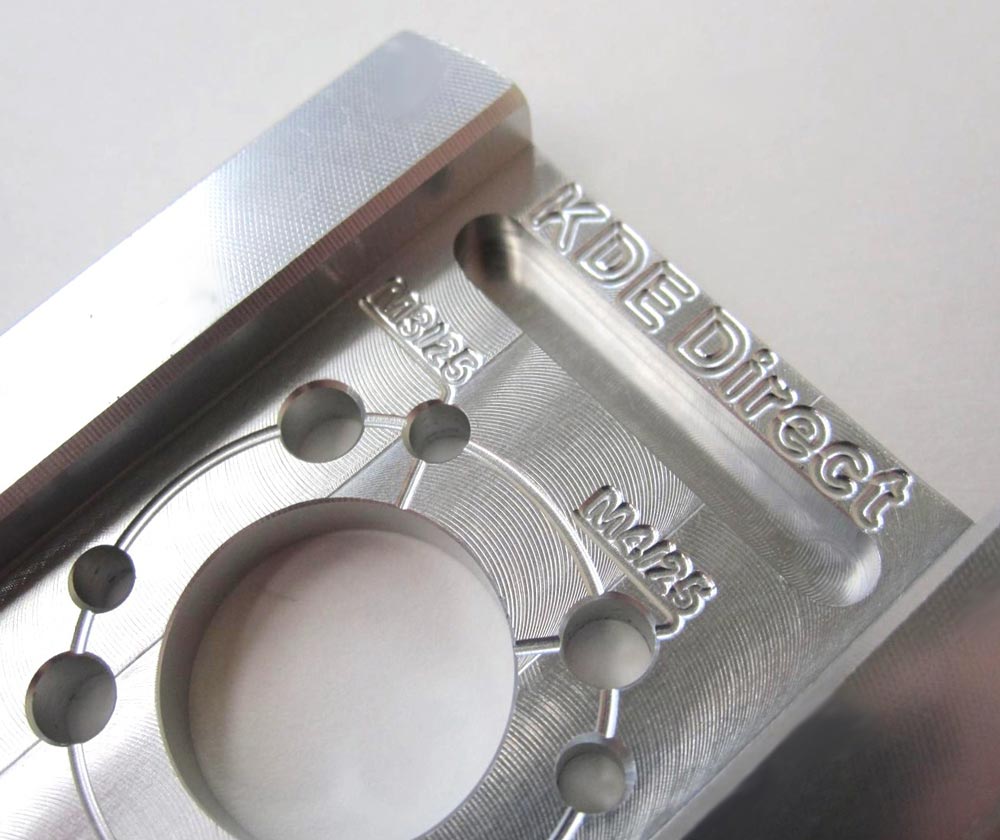

available for the TREX 550E, 600E, and 600ESP series helicopters. With a unique Universal Motor Mount hole pattern,
the design can accommodate all M4 x 25mm and M3 x 25mm motors on the market with a solid, four-bolt hole pattern

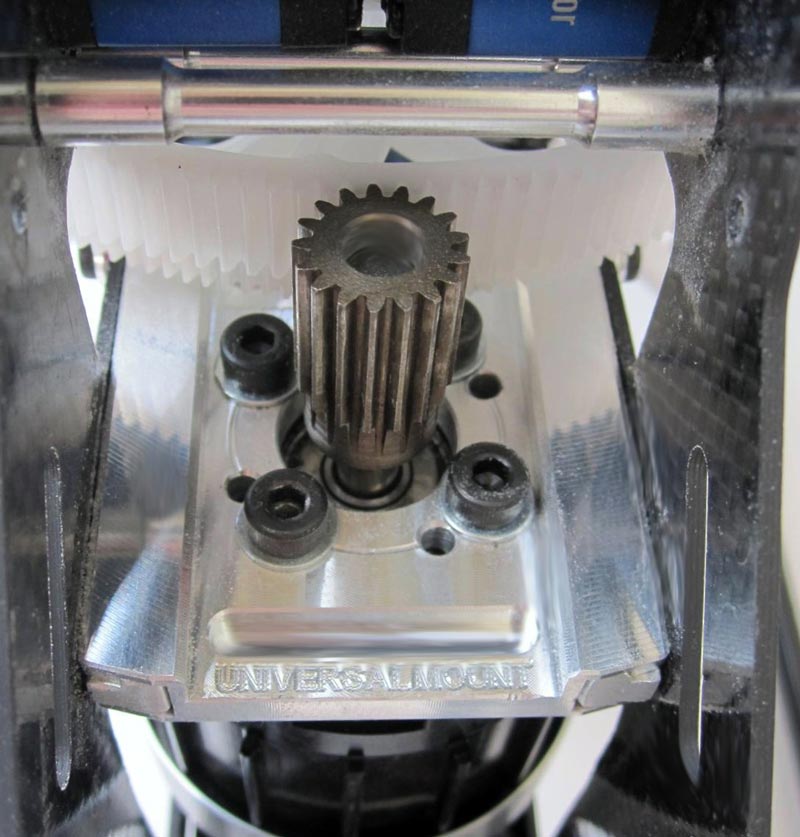

for the motor installation and a strong and secure, t-channel lock system incorporated into the assembly. To adjust the
motor pinion and main gear mesh, simply loosen the four side screws holding the mount to the frame, set the motor to
the desired mesh, and then retighten the side screws for rock-solid hold.
Includes:

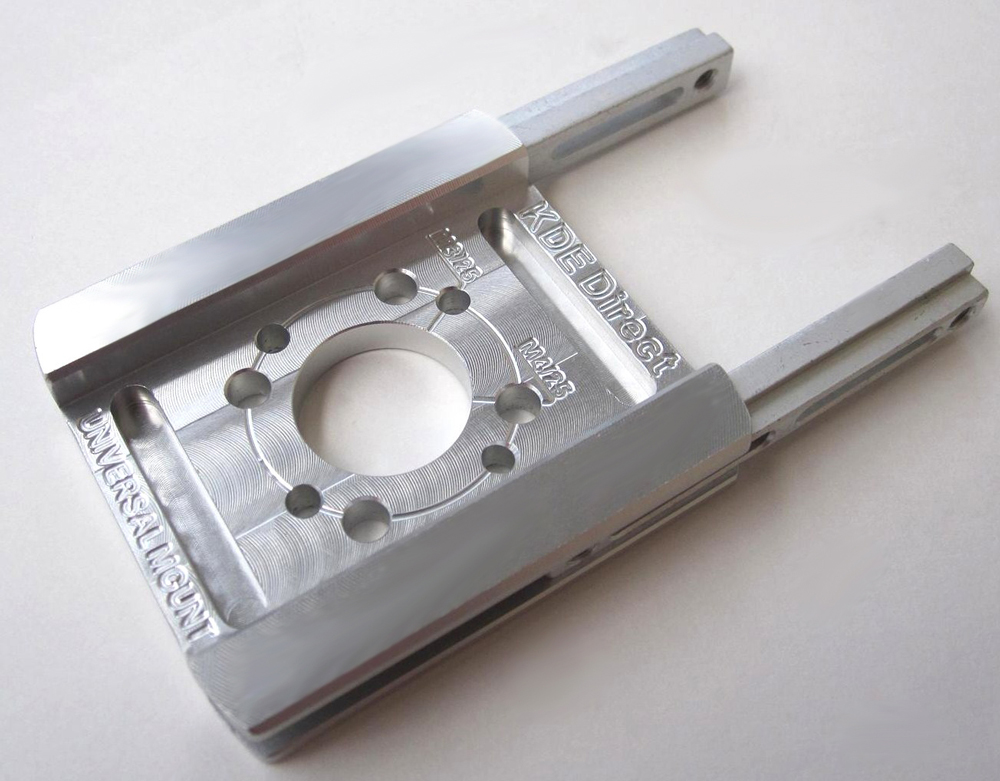

- One (1) TREX 550/600 Series Aluminum Universal Motor Mount Assembly

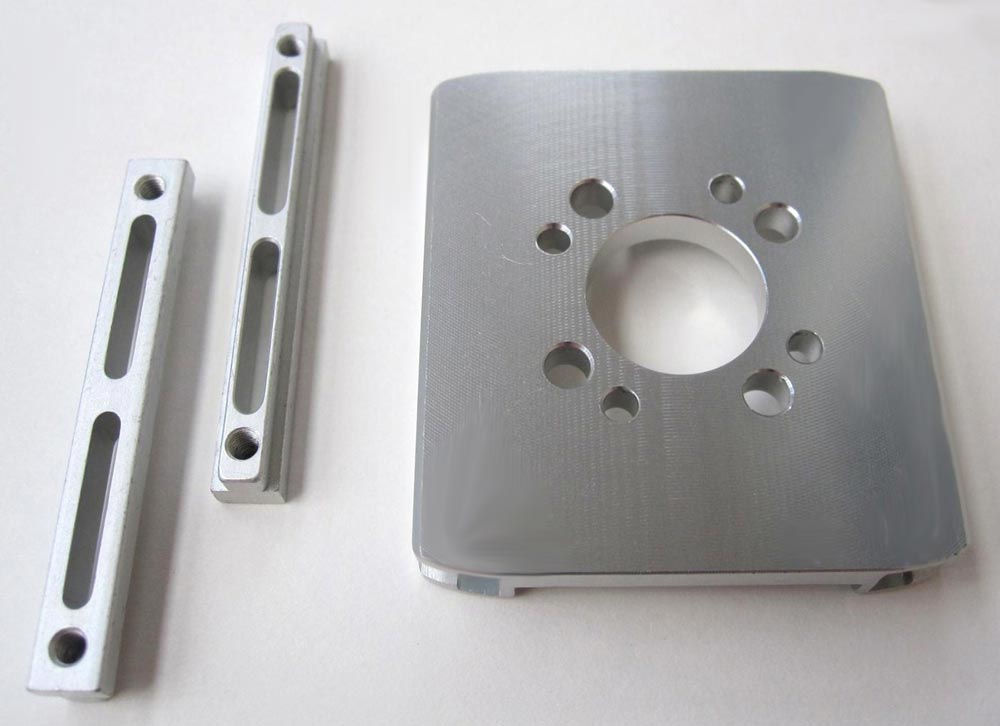

- One (1) TREX 550/600 Series Aluminum Universal Motor Mount Plate
- Two (2) TREX 550/600 Series Aluminum Universal Motor Mount Rails
- Four (4) M4 x 0.7 x 10 mm Socket Head Cap Screws (Class 12.9 BP Alloy Steel)
- Four (4) M4 Flat Washers (Zinc-Plated Alloy Steel)
- Two (2) M3 x 0.5 x 10 mm Socket Head Cap Screws (Class 12.9 BP Alloy Steel)
- Four (4) M3 x 0.5 x 8 mm Socket Head Cap Screws (Class 12.9 BP Alloy Steel)
- Two (2) M3 Flat Washers (Zinc-Plated Alloy Steel)
Finish:
Clear anodize, mirror-polish CNC gloss
Weight:
30 g (design is FEA optimized for maximum strength and minimum weight)
|
38,99 €
inkl. MwSt. zzgl. Versand
|
|
