Align 700 FL-760 3G Flybarless System - Silver |
Abbildung kann von Originalware abweichen
|
| Artikelnummer | : | HN7093 | | Hersteller | : | Align | | Packungsgewicht | : | 0,9 kg | | EAN | : | 4713413950980 |
Versandfertig innerhalb 24 Std.
Lagerstatus für Versand Kerpen
|

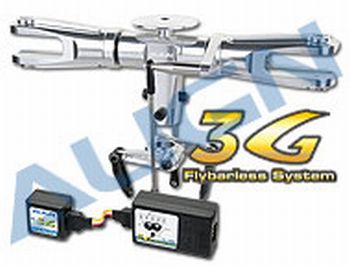

Align 700 FL-760 3G Programmable Flybarless System - Silver
Design Features:
• 3-axis gyroscopic flybarless system to simulate the stability of mechanical flybar system, yet at the same time achieving agile 3D performance.
• Utilizes Silicon Micro Machine (SMM) sensors for excellent stability.
• 12 bit processors providing ultra high resolution, resulting in highly precise controls
• Software upgradable through PC interface adapter
(sold separately)
• Simplistic setup process without the need of external devices. Setup is done through 5 steps and 2 sensitivity adjustments. Rudder setup is identical to GP780 gyro, minimizing learning curve.
• Flybarless system dramatically improves 3D power output and efficiency, resulting in reduced fuel or electricity consumption.
• Highly sensitive gyroscopic sensors combined with advanced control detection routine providing higher hovering and aerobatic stability than other flybarless system.
• Suitable for all CCPM and mechanical mixing system.
• Comaptible with helicopter of all sizes from T-Rex 250 to T-Rex 700.
• Innovative Pitch Gau as an aid to facilitate pitch adjustments.
• High frame rate signal output for faster and higher precision servo response.
• Capable to operate between 4.5V to 8.4V, compatible with high voltage servos.
• Small footprint, light weight, minimalists and reliable design.
Specification:
• Suitable Voltage Range:DC 4.5~8.4V
• Current Consumption:<80mA @ 4.8V
• Flip and Roll rate detection speed: :=b1300degrees/sec
• Rudder rate detection speed:=b1500degrees/sec
• Sensor resolution:12bit
• Operating temperatur:-20?~65?
• Operating humidity:0%~95%
• RoHS certified
• Dimension:
Control box:42x26.5x14.5mm
Sensor:22.3x21.7x14mm
• Weight:
Control box:16g
Sensor:9g

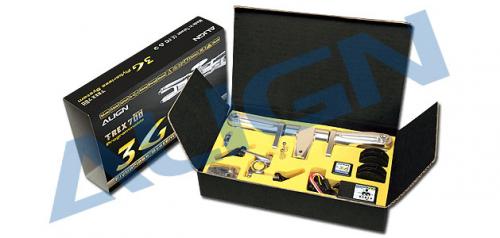

Accessories:

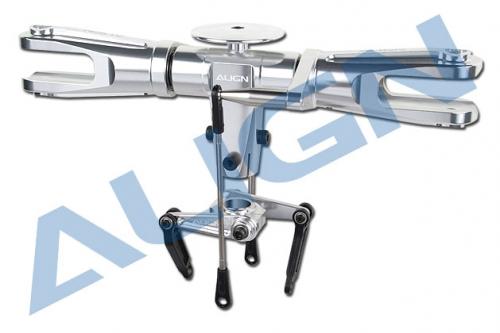

• Main Rotor head Set x1

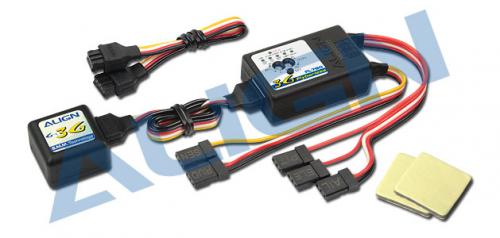

• Flybarless control unit x1
• Flybarless Sensor x1
• Screw bag x1
• Linkage rod A x2
• Linkage ball A x2
• Head Stopper x1
• Mixing base assembly x1
• Pitch Gauge x1
• Signal extension wire 100mm x1
• Signal extension wire 220mm x1
• Sensor mounting foam x2
• F servo horns x3
• J servo horns x3
|
369,99 €
152,99 €
inkl. MwSt. zzgl. Versand
|
|
