ELECTRONIC PINION SUPPORT
FOR ALIGN TREX 700 NITRO SERIES HELICOPTERS
Models: direct bolt-on for the TREX 700N Electronic Motor Mount Upgrade (M4/M3 x 25 mm)
Note: the ALIGN TREX 700N Electronic Pinion Support is a direct bolt-on to the TREX 700N Electronic Motor Mount
Upgrade, included in the KDE Direct TREX 700N Electronic Conversion XKit/Kits and sold separately. The Pinion
Support includes all necessary hardware to mount to all M3 or M4 x 25mm spacing motors, which accommodates the
majority of Brushless Motors on the market for the TREX 700. The bore has clearance for up to a 16T MOD 1.0 or a 23T

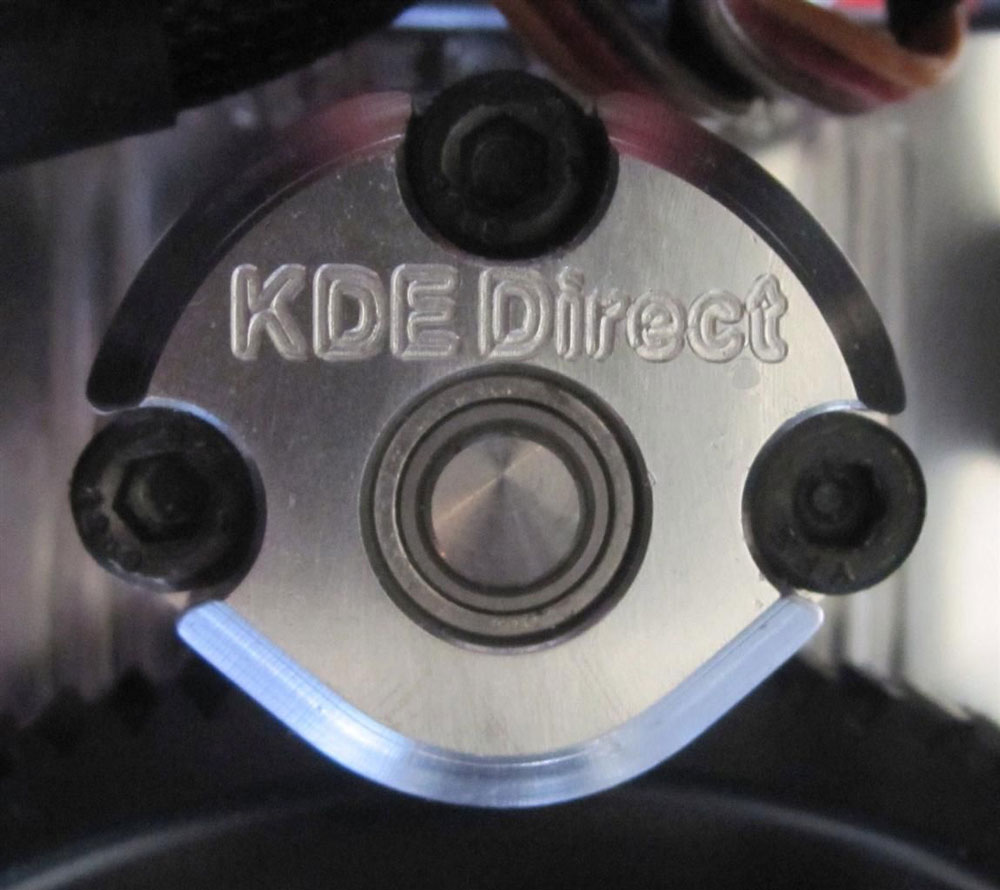

MOD 0.7 pinion. The Electronic Pinion Support is the first to include a dual-oversized bearing support above the pinion
for rock-solid support of the motor shaft; significantly increasing the life of the motor bearings, preventing high-stress
breakage of the motor shaft during hard 3D flight, and drastically decreasing the chance of premature wear and
stripping of the main gear.

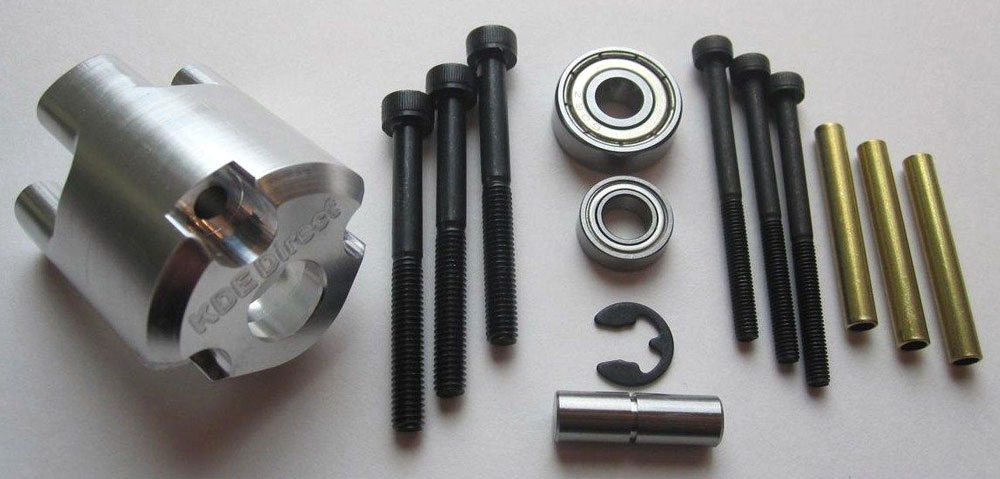

Includes:

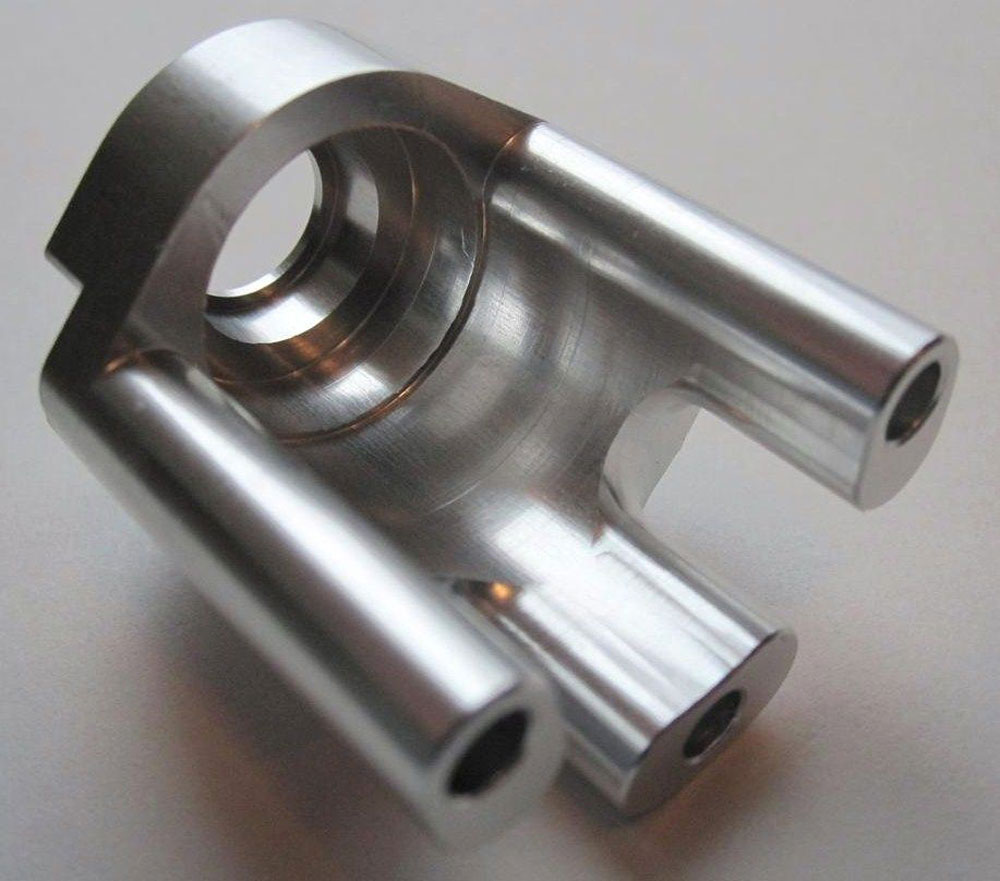

- One (1) TREX 700 Nitro Aluminum Electronic Pinion Support Upgrade
- One (1) TREX 700 Nitro Electronic Pinion Support Shaft Component (Precision-Ground SS 416)
- Three (3) TREX 700 Nitro Electronic Pinion Support M4/M3 Adapters (Formed Brass)
- One (1) Radial Ball Bearing 6 x 17 x 6 mm
- One (1) Radial Ball Bearing 6 x 12 x 4 mm
- Three (3) M4 x 0.7 x 40 mm Socket Head Cap Screws (Class 12.9 BP Alloy Steel)
- Three (3) M3 x 0.5 x 40 mm Socket Head Cap Screws (Class 12.9 BP Alloy Steel)
- One (1) E-Style Retaining Ring 6 mm (BP Alloy Steel)
Finish:
Clear anodize, mirror-polish CNC gloss
Weight:
24 g (design is FEA optimized for maximum strength and minimum weight)
|
|
38,95 €
27,99 €
inkl. MwSt. zzgl. Versand
|
|
