KDE 550/600 Heckrohr Abstützung |
Abbildung kann von Originalware abweichen
|
| Artikelnummer | : | AT-KDE550-PBSA | | Hersteller | : | KDEDirect | | Packungsgewicht | : | 0,03 kg | | EAN | : | 10004259 |
Versandfertig innerhalb 24 Std.
Lagerstatus für Versand Kerpen
|

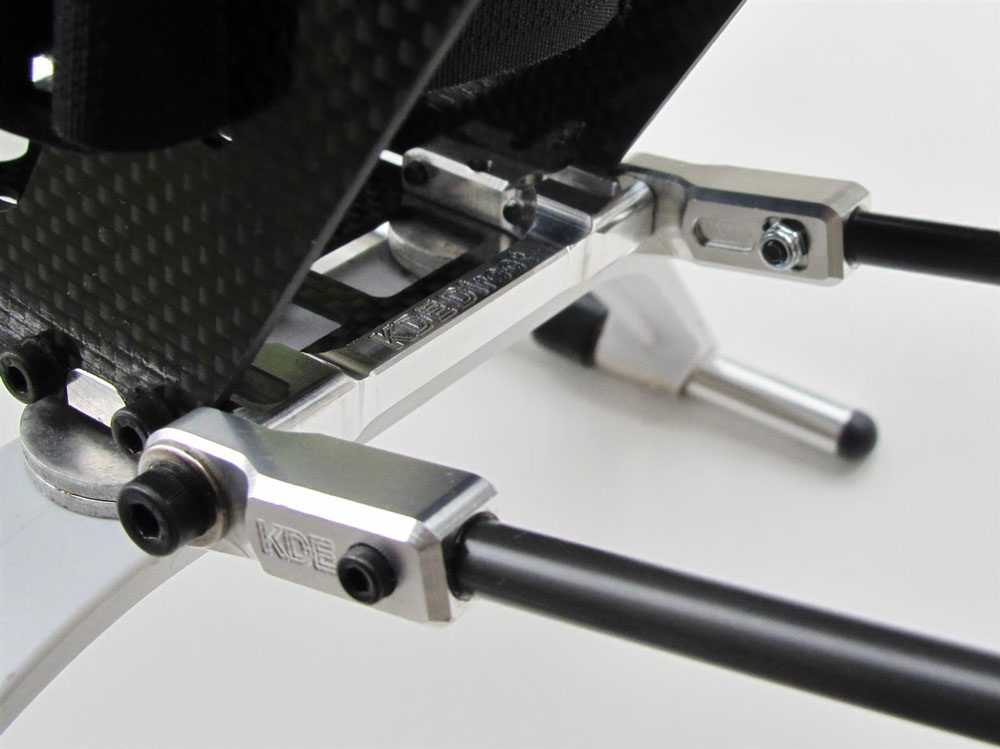

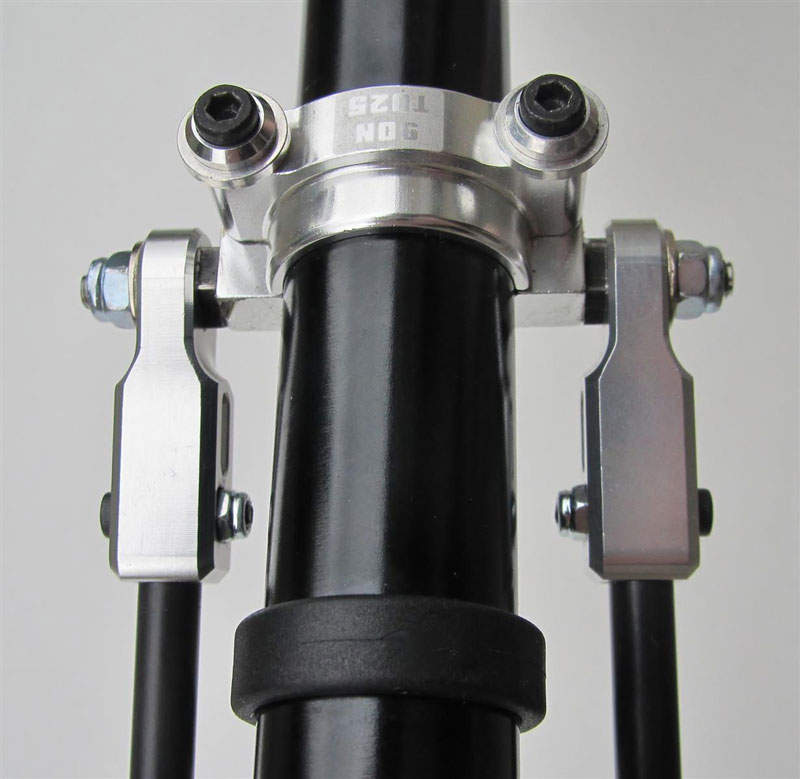

550/600 SERIES PERFORMANCE BOOM SUPPORT ASSEMBLY
FOR 550/600-ELECTRIC AND 30/50-NITRO SERIES HELICOPTERS
Material: Aluminum 6061-T6, Ultra-Strength Carbon Fiber Matrix (U.S.A. Produced)
Models: all ALIGN TREX 550 and 600 series, Gaui X5, Outrage Fusion/Velocity 50, and other
high-performance 550/600-class Electric and 30/50-class Nitro series helicopters. See Design Geometry
Diagram for overall dimensions and installation reference for adaptability into other brands and series.
Design utilizes M3 mounting holes and identical length to the ALIGN TREX 600 series tail boom supports
(replacement for stock Align part #H60055A).
Note: the KDE Direct 550/600 Series Performance Boom Support Assembly encompasses a series of specialized design
features targeted at preventing the problematic loosening and resultant failure (telescoping) of the critical Tail Boom
Support of the 550/600-class Electric and 30/50-class Nitro helicopters. Due to the caustic and high-frequency vibration
environment of RC helicopters, these upgrades are a necessary enhancement to maintain the structural integrity and
performance of the helicopter tail mechanics and control. The Boom Support Assemblies are produced and assembled
100% in the U.S.A.; including the highest-quality, ultra-strength carbon fiber tubes manufactured in the U.S.A. to yield
high-stiffness and lightweight charact
Includes:
- Two (2) KDE Direct 550/600 Series Performance Boom Support Assemblies

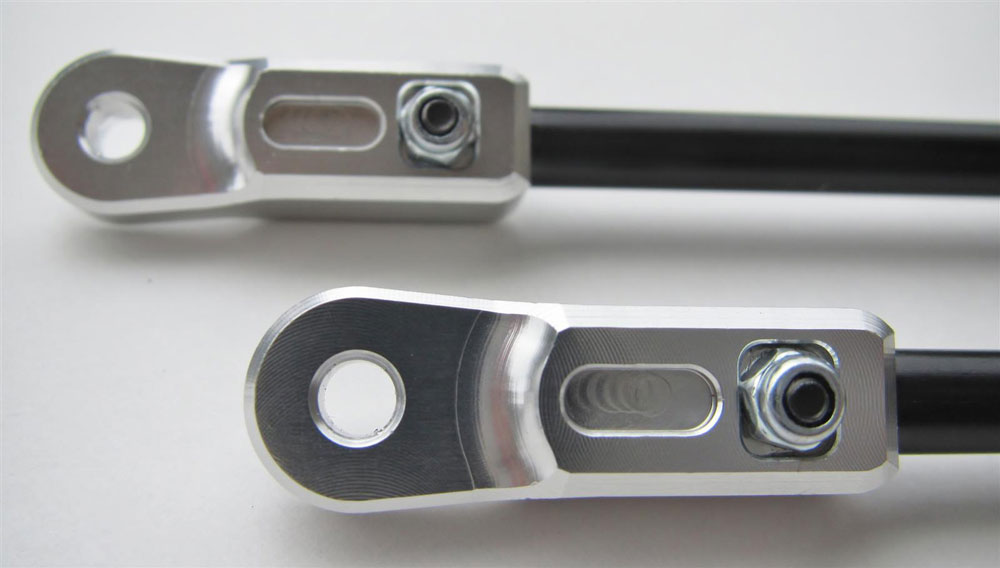

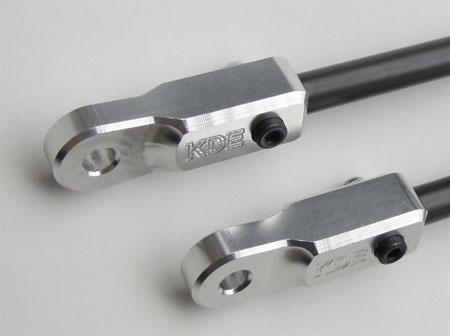

- Four (4) KDE Direct 550/600 Series Aluminum Performance Boom Support Rod Ends
- Two (2) KDE Direct 550/600 Series UTS Carbon-Fiber Matrix Tubes 0.240" O.D., 0.150" I.D.
- Four (4) 6-32 x 0.4375" Socket Head Set Screws (Grade 8 BP Alloy Steel)
- Four (4) M2 x 0.4 x 10 mm Socket Head Cap Screws (Class 12.9 BP Alloy Steel)
- Four (4) M2 x 0.4 Nylon-Insert Locknuts (Zinc-Plated Class 8 Alloy Steel)
Finish:
Clear anodize, mirror-polish CNC gloss
Weight:
20 g ea. (design is FEA optimized for maximum strength and minimum weight)
|
38,95 €
inkl. MwSt. zzgl. Versand
|
|
