KDE T700 UNIVERSAL MAIN GEAR CASE |
Abbildung kann von Originalware abweichen
|
| Artikelnummer | : | AT550/600-UMGC | | Hersteller | : | KDEDirect | | Packungsgewicht | : | 0,02 kg | | EAN | : | 10004256 |
Geringe Mengen verfügbar
Lagerstatus für Versand Kerpen
|
Material: Aluminum 6061-T6
Models: all ALIGN TREX 550E (V1) and 600E/ESP series (replaces stock Align part #HN6064).
Recommended Accessories:
TREX 700 SERIES MAIN DRIVE GEAR, 115T, MOD1.0
TREX 700 SERIES MAIN DRIVE GEAR, 164T, MOD0.7
TREX 550/600/600N SERIES HP ONE-WAY DRAWN CUP CLUTCH BEARING, HF1216

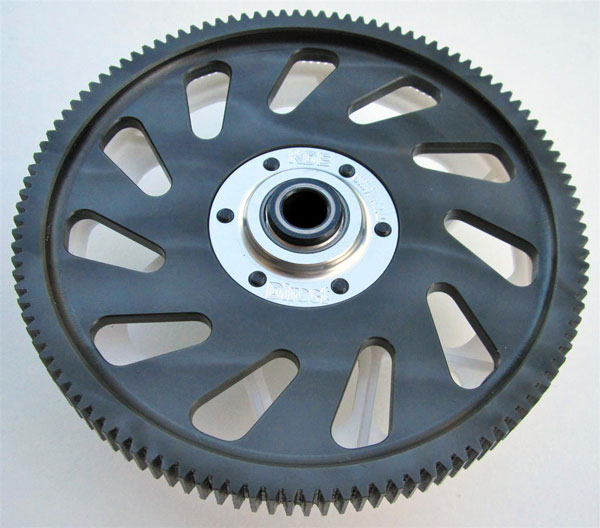

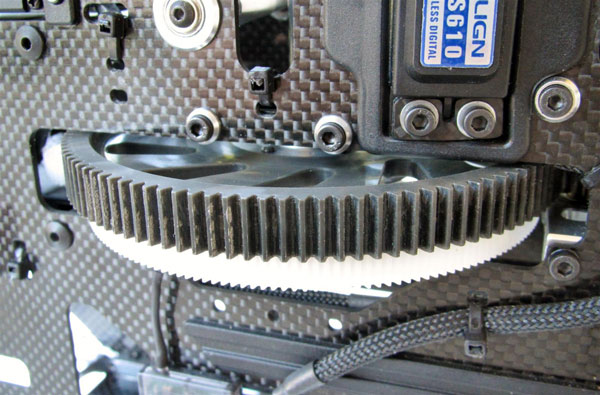

Note: the T700 Main Gear Case for the ALIGN TREX 550E/600E/600ESP electric series uses the stock ALIGN TREX 700
Main Gear (HN7019-1, need to purchase separately), which gives tremendous benefits to the 550/600 designs including:
increased headspeed (164T versus 170T), increased gear teeth engagement, and significantly increased strength due to
the taller gear and higher contact surfaces. This upgrade is a MUST HAVE for high-power, high-voltage setups to prevent
stripping of the main gear during flight and hard 3D maneuvers.
Important Notice: the AT550/600-MGC design is compatible with the following ALIGN components:
MOD 0.7 Tail Gearing
- Bearing Shaft: H60139, TREX600 One-Way Bearing Shaft
- Autorotation Gear: H60020, TREX600 M0.7 Autorotation Tail Drive Gear
- Torque Tube Gear: H60121, TREX600 M0.7 Torque Tube Front Drive Gear Set
- Belt Drive Gear: H60078, TREX600 Metal Tail Drive Gear Assembly
Includes:
- One (1) TREX 550/600 Series Aluminum T700 Main Gear Case
- Six (6) M3 x 0.5 x 6 mm Button Head Socket Head Cap Screws (Class 12.9 BP Alloy Steel)
- One (1) High-Performance One-Way Drawn Cup Clutch Bearing, HF1216 (When Included)
Finish:
Clear anodize, mirror-polish CNC gloss
Weight:
15 g (design is FEA optimized for maximum strength and minimum weight)
|
