HOME  RC Helicopter Align-RC T-Rex 700 Elektro Tuning
KDE 700 Electric Metal Bearing Block V2 |
Abbildung kann von Originalware abweichen
|
| Artikelnummer | : | AT700E-MBB-V2 | | Hersteller | : | KDEDirect | | Packungsgewicht | : | 0,04 kg | | EAN | : | 10003533 |
Geringe Mengen verfügbar
Lagerstatus für Versand Kerpen
|
THRUSTED METAL BEARING BLOCK SET V2
FOR ALIGN TREX 700 ELECTRIC SERIES HELICOPTERS
The Thrusted Metal Bearing Block V2 design utilizes high-end CNC machining to produce tight and accurate
tolerances throughout the part, giving you the best quality upgrade product on the market. With the addition of the
thrust-bearings to support all axial loads, more power will be available for hard pitch-pumps, 3D maneuvers, and
autorotations; as well as protecting the integrity of the radial bearings. The new "V2" design incorporates bearing-retaining
button head socket head cap screws and updated machining for easier installation and durability. In addition, the Elevator
Lever Upgrade V2 is included to provide proper clearance and perfect alignment of the elevator mechanics to the servo for
precise, interference-free operation.
THRUSTED METAL BEARING BLOCK SET V2
FOR ALIGN TREX 700 ELECTRIC SERIES HELICOPTERS
Includes:

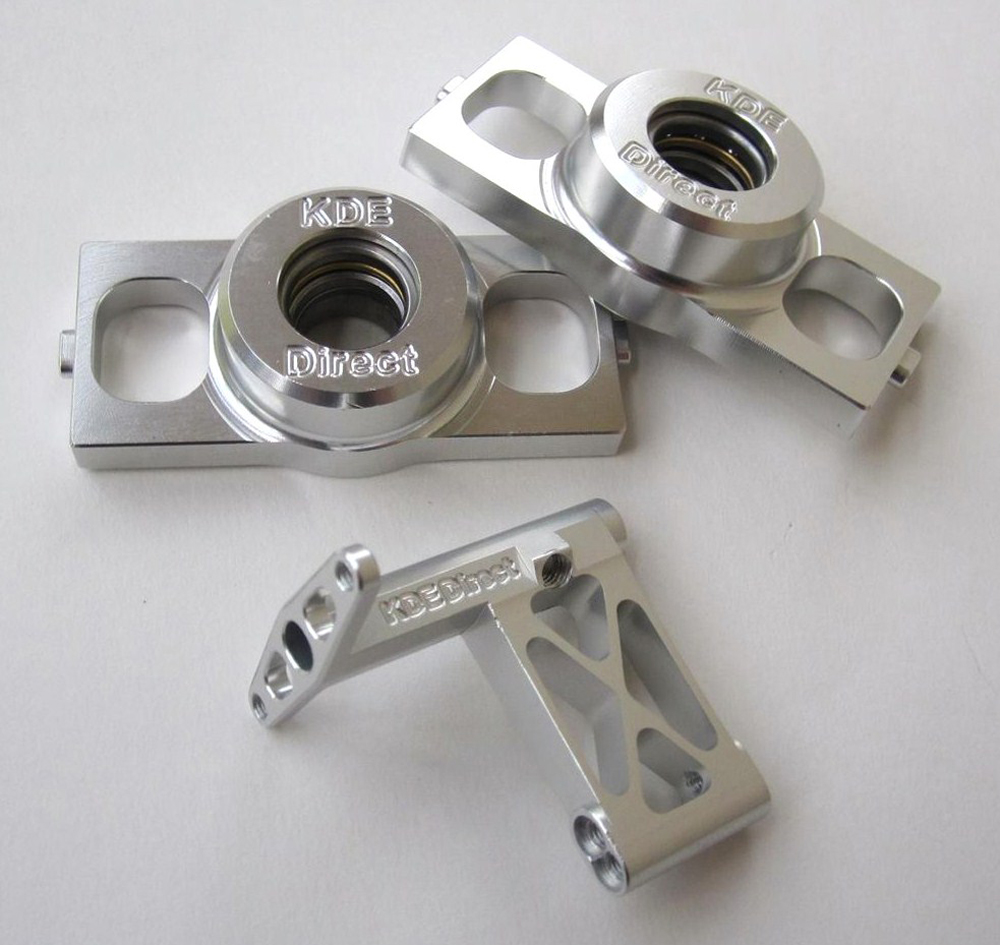

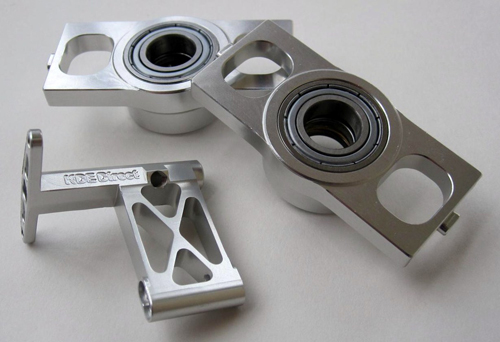

- Two (2) TREX 700E Series Aluminum Thrusted Metal Bearing Blocks V2
- One (1) TREX 700E Series Aluminum Elevator Lever Upgrade V2
- Two (2) Radial Ball Bearings 12 x 24 x 6 mm
- Two (2) Thrust Ball Bearings 12 x 23 x 7.5 mm
- Two (2) Round Hole Shims 12.1 x 16 x 1 mm
- Eight (8) M2.5 x 0.45 x 4 mm Button Head Socket Head Cap Screws (Class 12.9 BP Alloy Steel)
Finish:
Clear anodize, mirror-polish CNC gloss
Weight:
Thrusted Bearing Blocks V2: 19 g ea. (design is FEA optimized for maximum strength and minimum weight)
Elevator Lever Upgrade V2: 8 g (design is FEA optimized for maximum strength and minimum weight)
|
72,99 €
inkl. MwSt. zzgl. Versand
|
|
